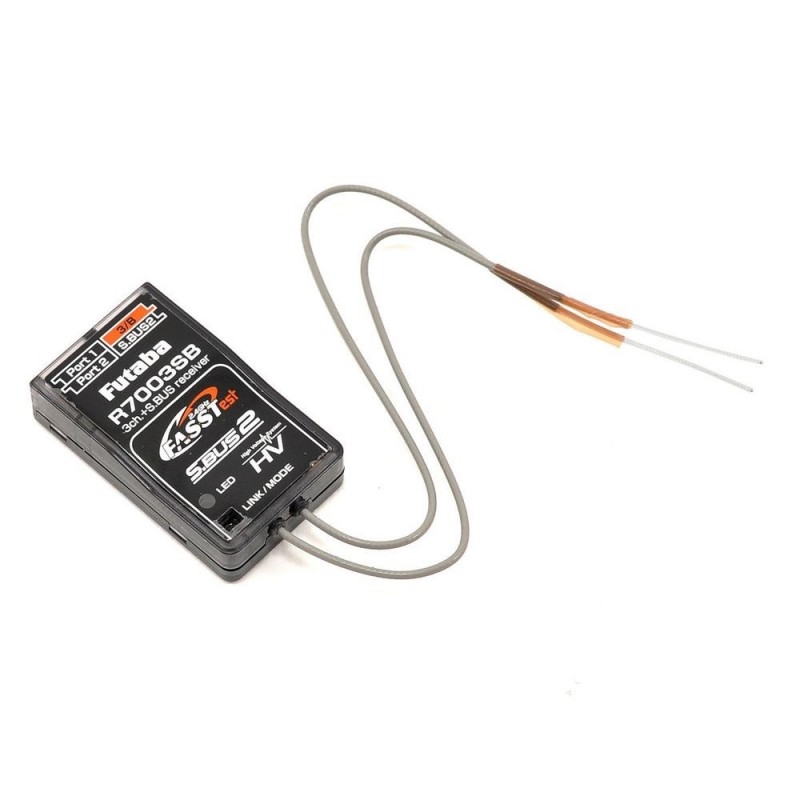

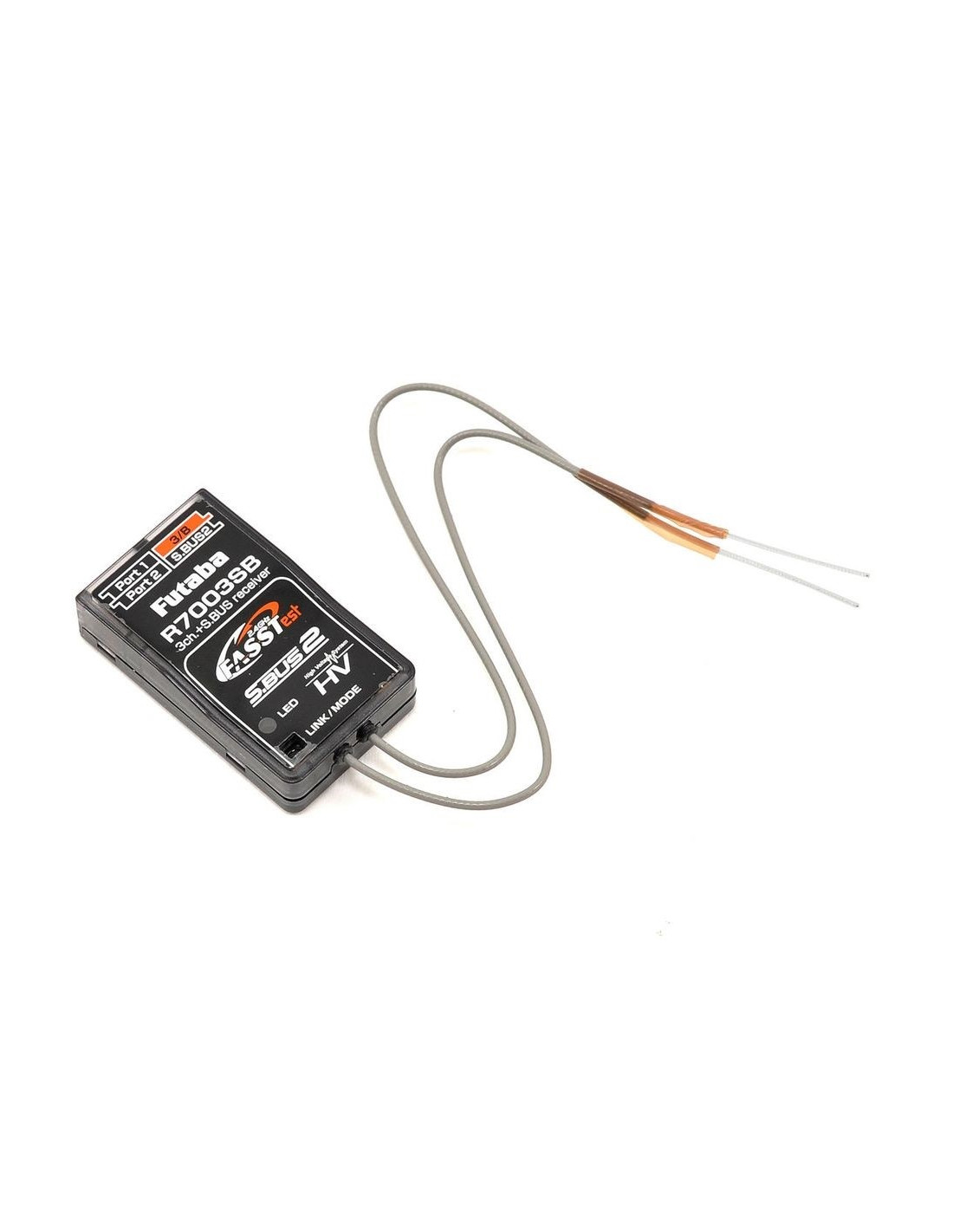

Futaba R7003SB FASSTest Receiver

€99.08

Tax included

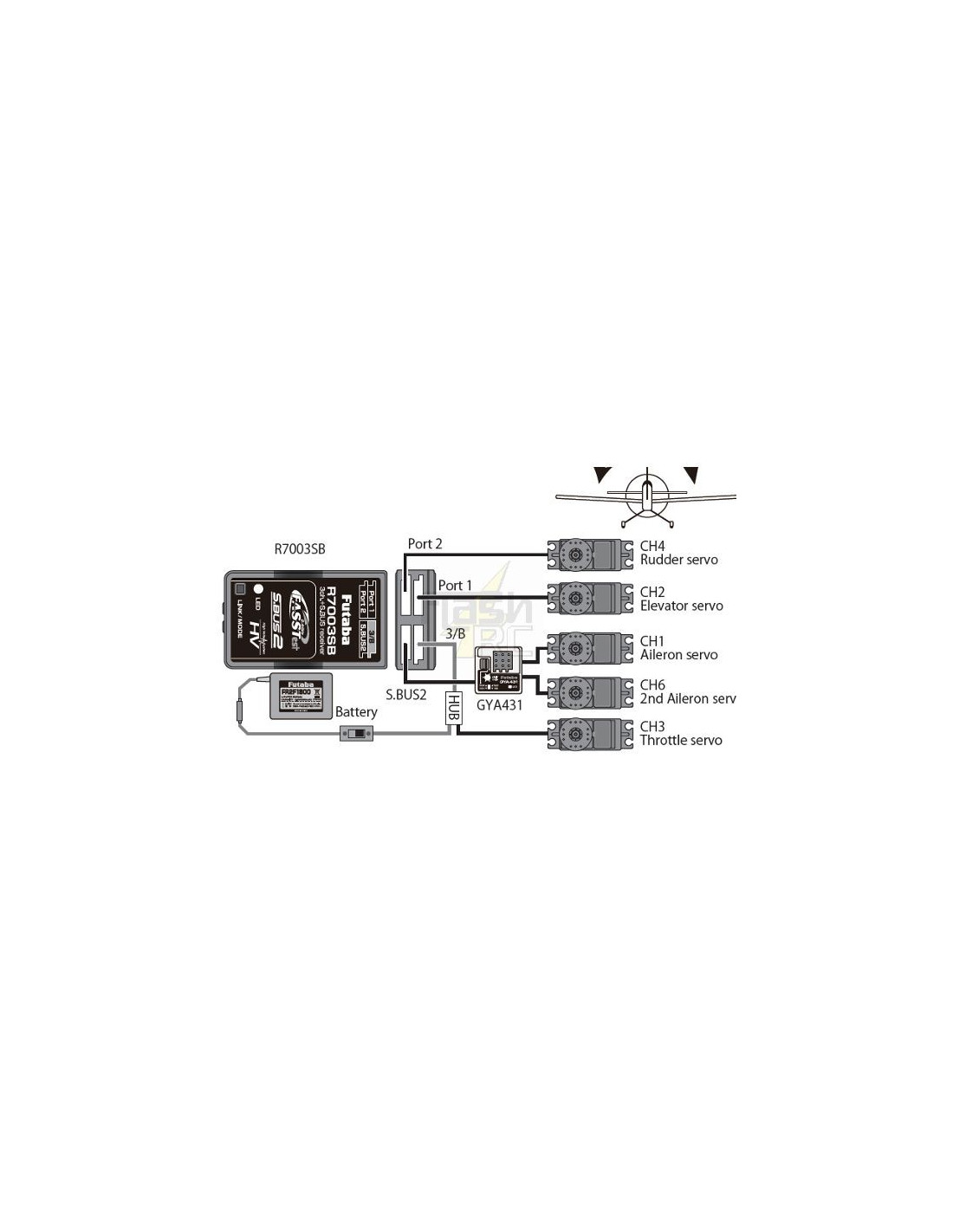

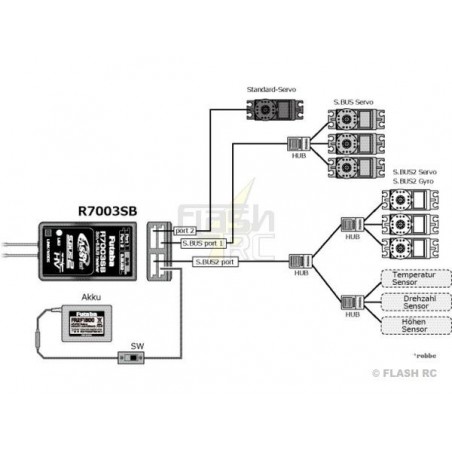

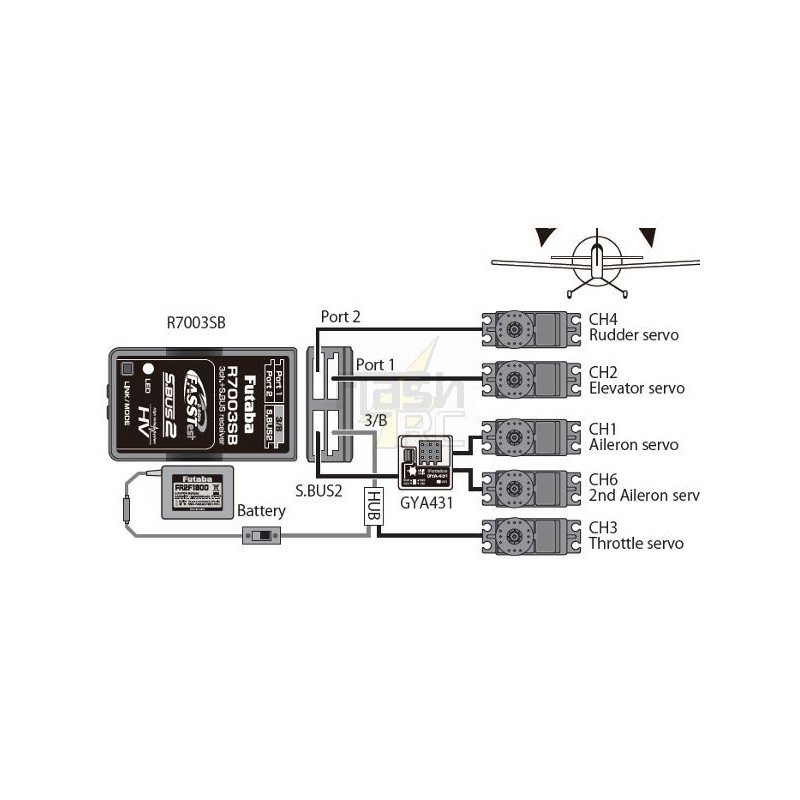

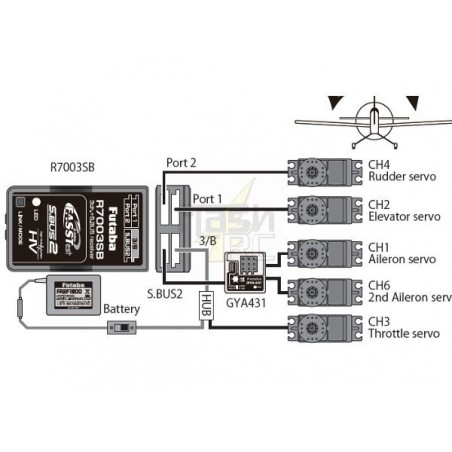

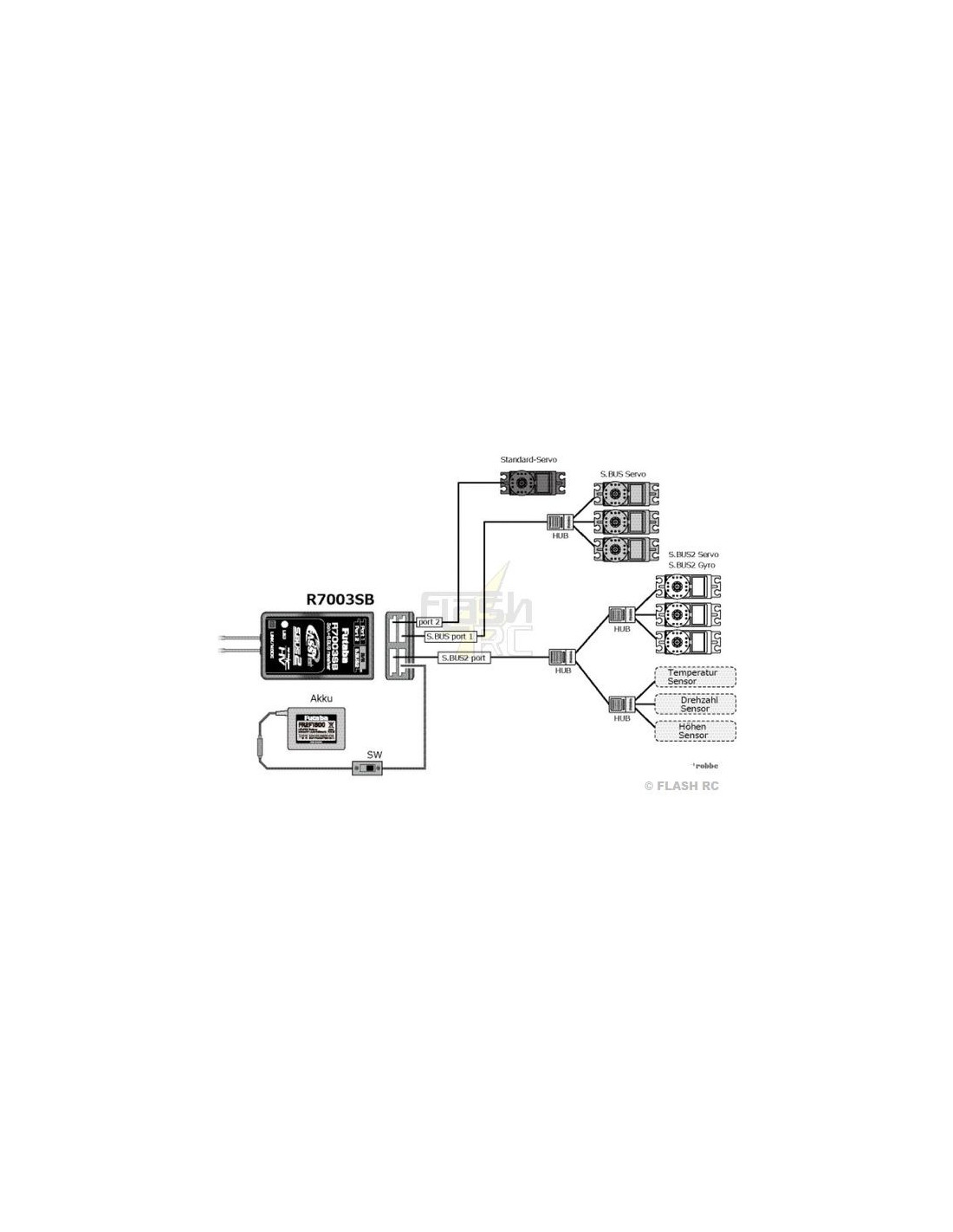

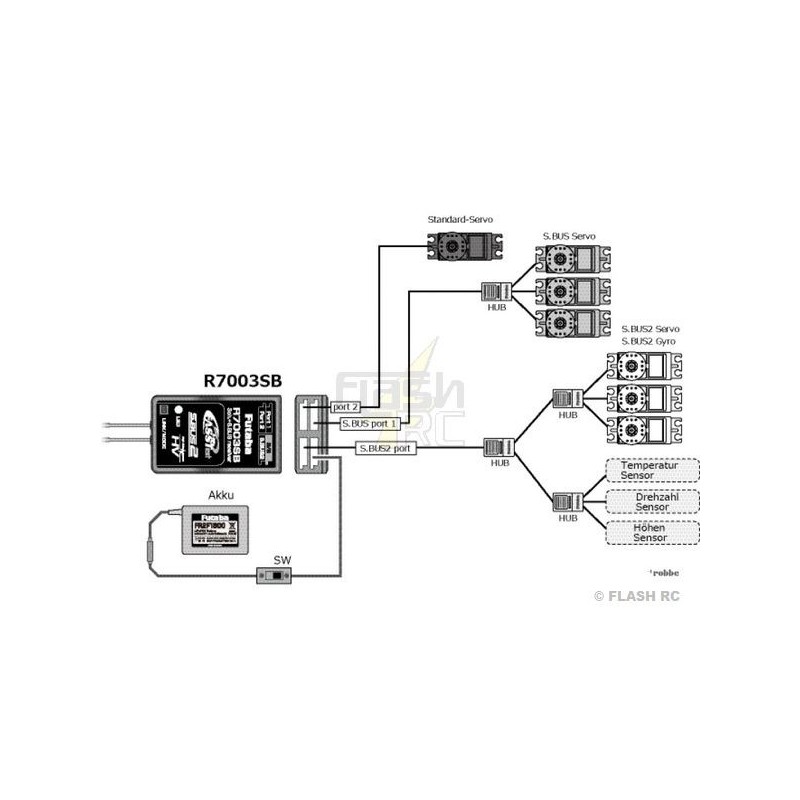

Micro receiver FASSTest 3 channels and up to 18 channels in SBUS. Channels 1 and 2 (port 1 and 2) of the receiver can be reassigned, very useful when using a SBUS gyro such as GYA430, GYA431 or CGY750. For example (see third picture): With a GYA431 stabilizing both ailerons, channels 1 and 2 will be assigned to drift and elevator respectively. In addition, port 1 can be transformed into a SBUS channel, as well as SBUS2.delivered with an adapter to connect the Extra Voltage sensor (F1001100).

FASSTest receiver compatibility

Technical data

Dual diversity antenna
Dimensions: 22.5 x 37.4 x 9.3 mm
Weight: 7.2g
Supply voltage: 3.7V to 7.4V (Accepted voltage range: 3.5 to 8.4V)
Number of PWM channels: 3
1 SBUS/SBUS 2 channel

Manual

Reference 066-01000677

EAN13 4513886024467

MPN 4513886024467
