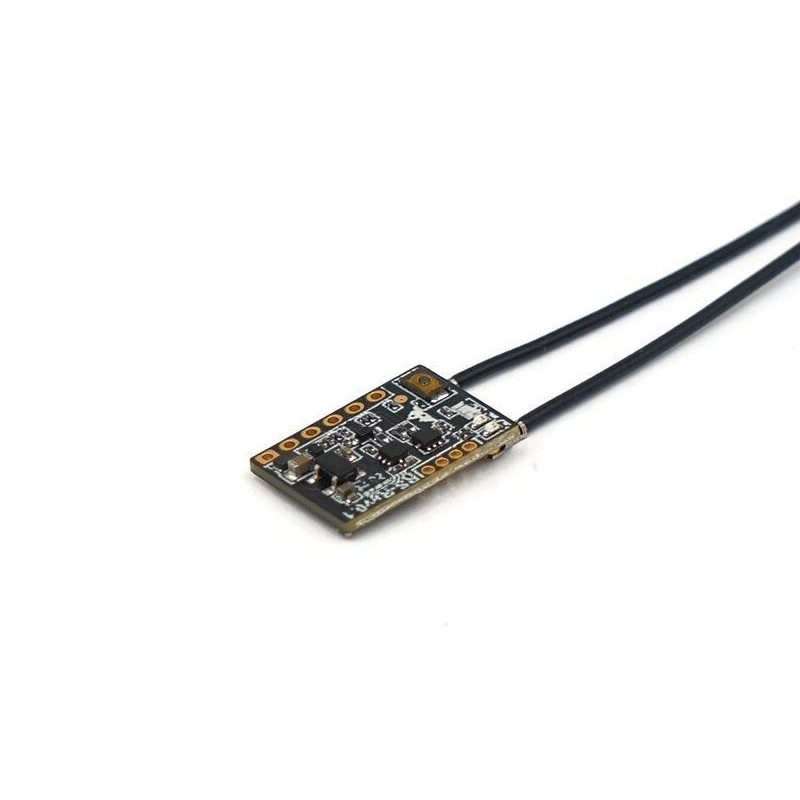

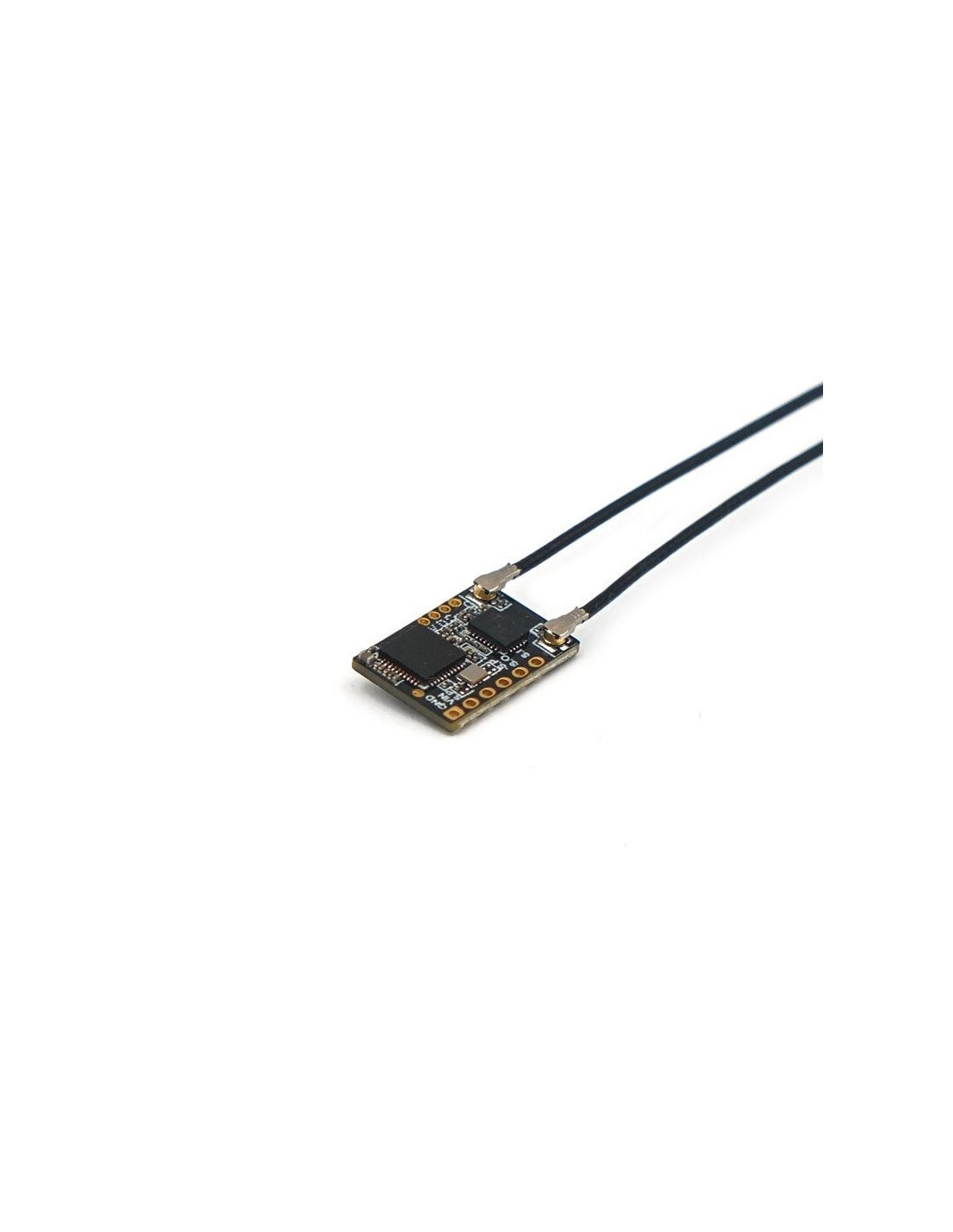

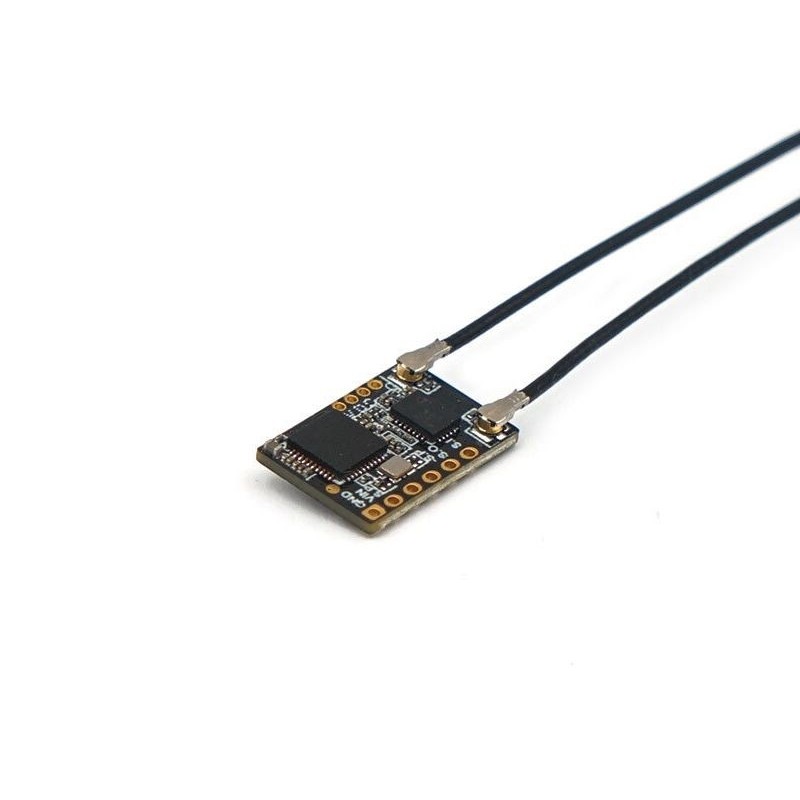

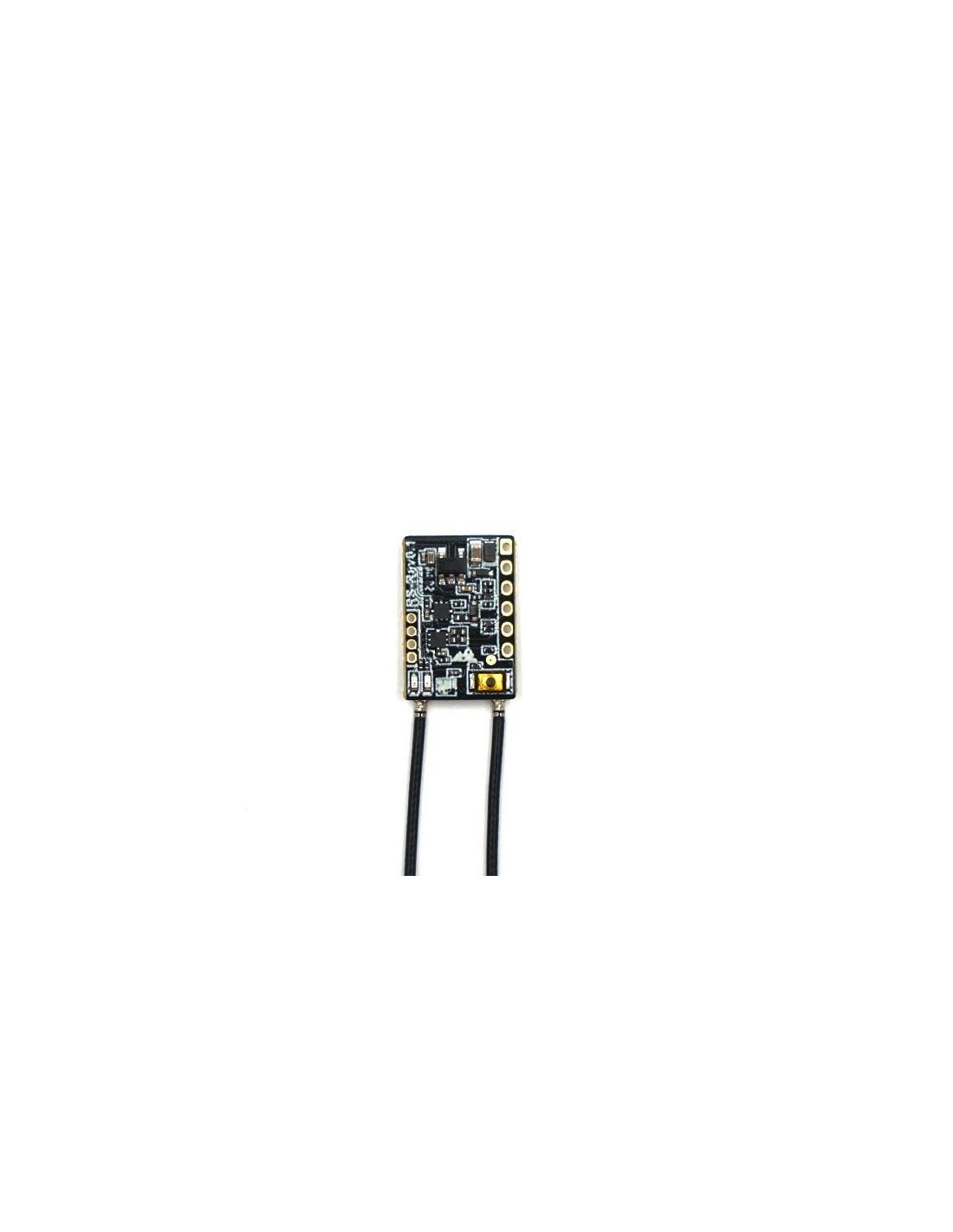

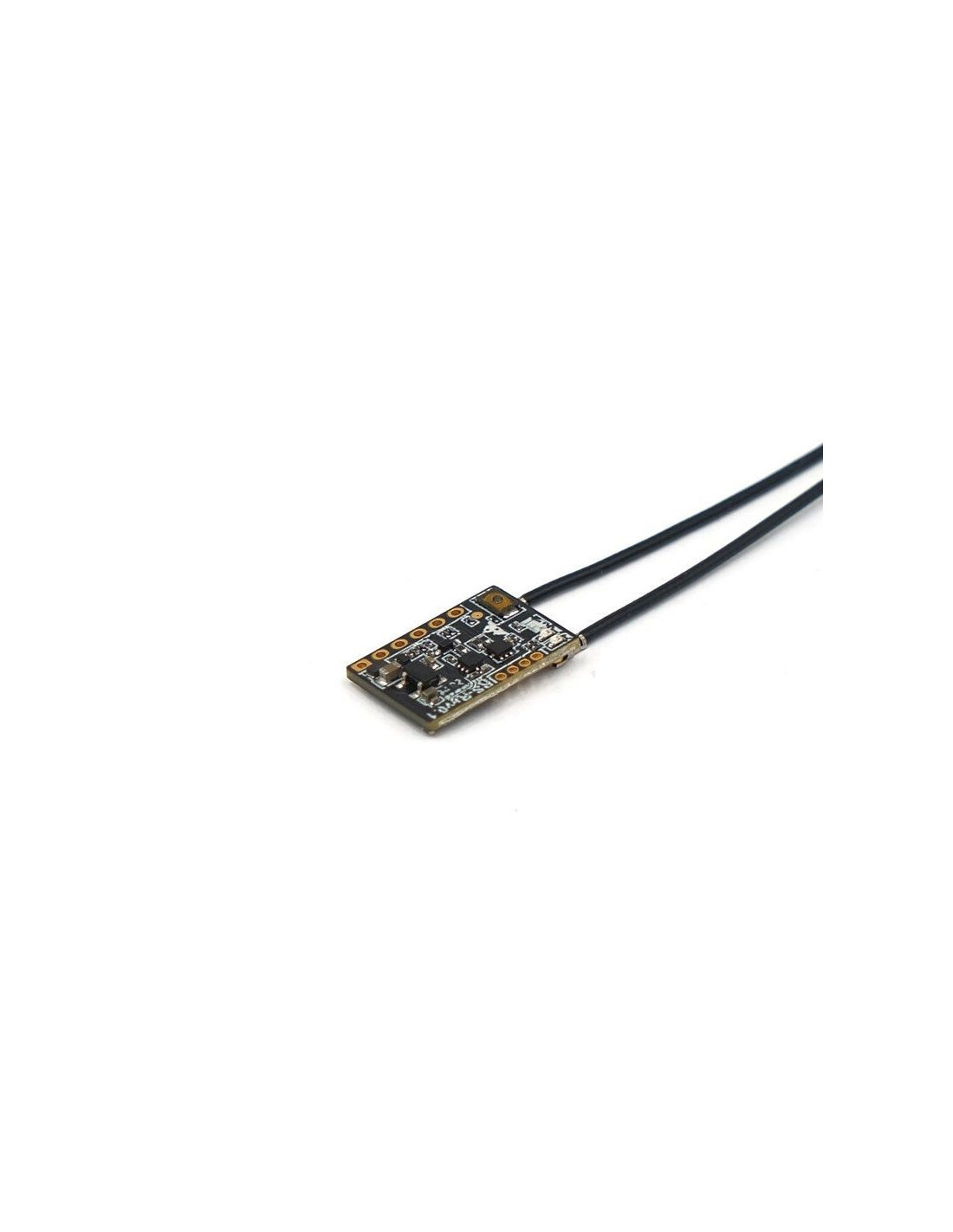

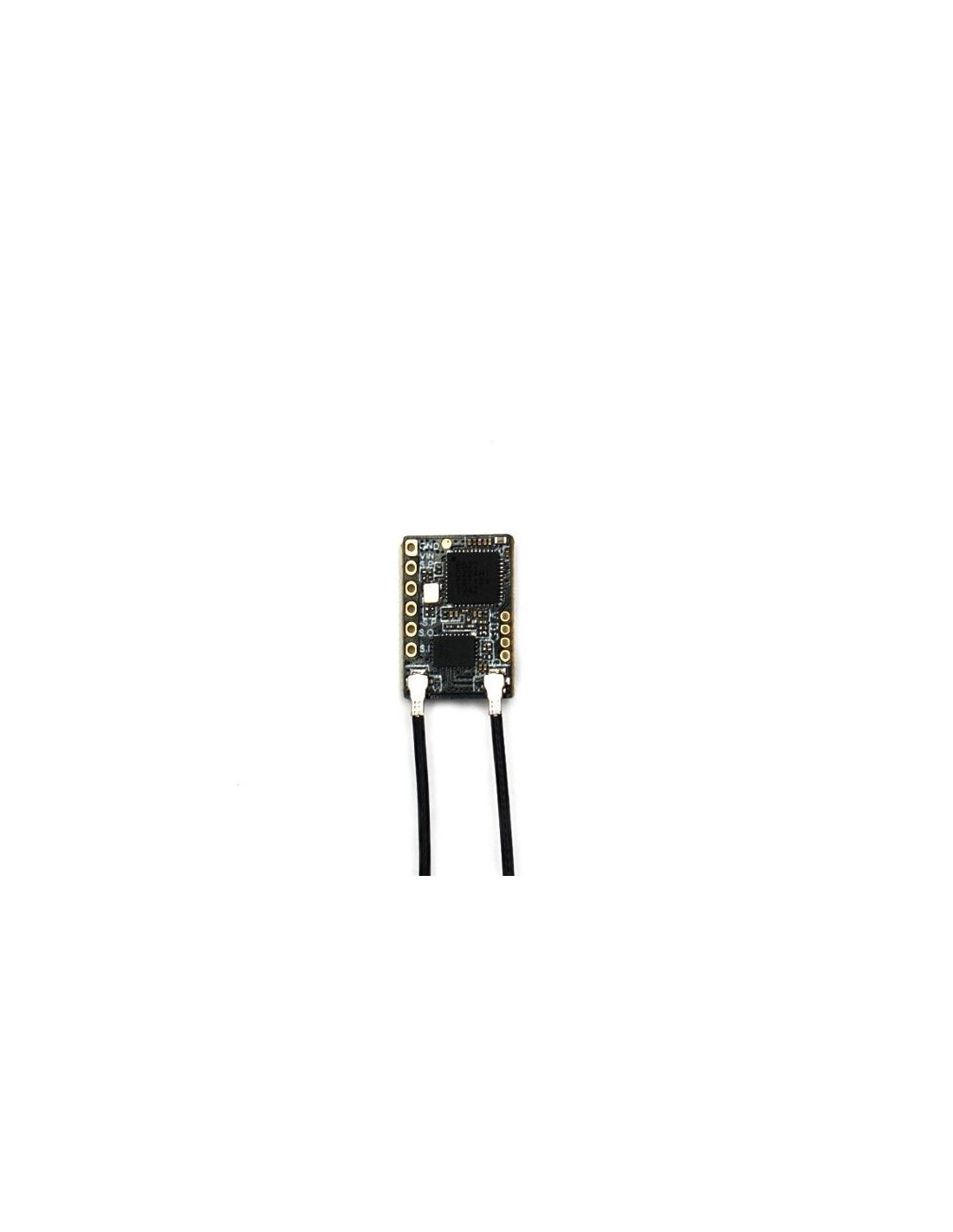

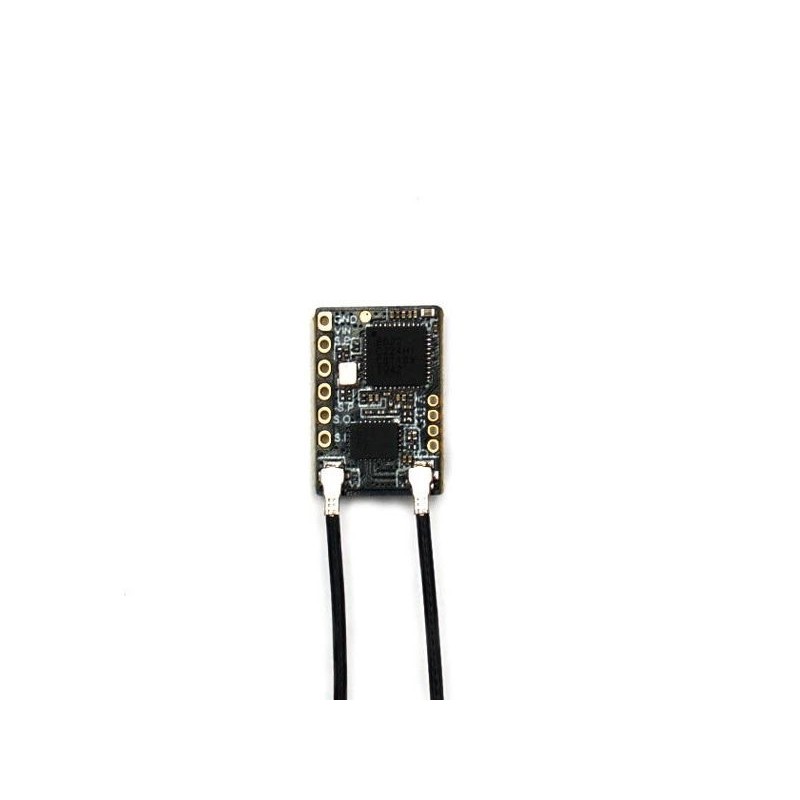

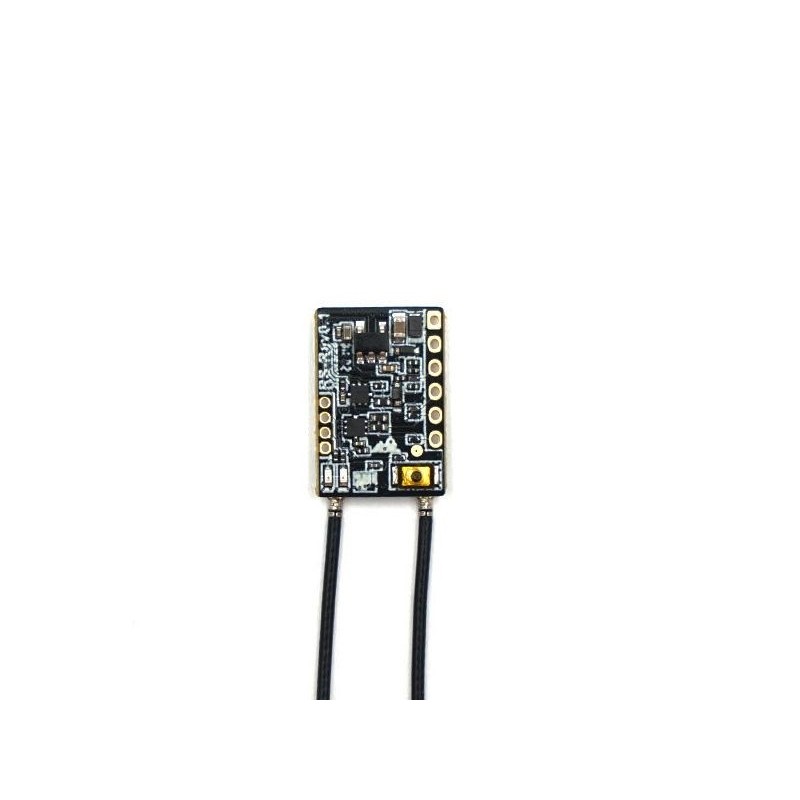

FrSky ARCHER Plus RS (Access) receiver

The Archer RS receiver incorporates all the advantages of the previous receiver in its class, the R-XSR. The RS supports full range signal monitoring with equivalent rangeability. The detachable/replaceable dual antennas ensure optimal antenna reception and maximum range due to its lightweight design with extremely small form factor. Equipped with a reverse port that allows easy connection of flight controllers, in addition to all this, the RS can also be used as a redundant receiver with any other FrSky ACCESS compatible receiver equipped with an SBUS port. The best available signal will be used to ensure superior connectivity.

All Archer receivers are hyper-matched with the ACCESS protocol. Not only do they offer wireless firmware upgrades, increased range and telemetry performance, but the RS now supports even more features such as configurable telemetry power, S.Port / F.Port switching and FLR output. Other valuable features are being developed to unlock the true potential of the ACCESS protocol.

Features :

Brand Name: FrSky
Item Name: ARCHER RS OTA Receiver
Model: ARCHER RS
Size: 16 * 11 mm
Weight: 1.5 g
16/24 channel SBUS output
Operating voltage range: 3.5 -10V
Operating current: < 60mA @ 5V
Control range: full range * with telemetry
(* Full range: > 2 km, range may vary depending on local conditions.)
Compatibility: All FrSky ACCESS transmitters

Features :

ACCESS protocol with Over The Air (OTA)
Tiny and super light
Supports siginal redundancy (SBUS In)
Full control range with telemetry
S.Port / F.Port
Reverse S.Port

Package includes:

1 x ARCHER RS OTA receiver
