AXIAL AXIM1144 AE-5 Waterproof Crwaler

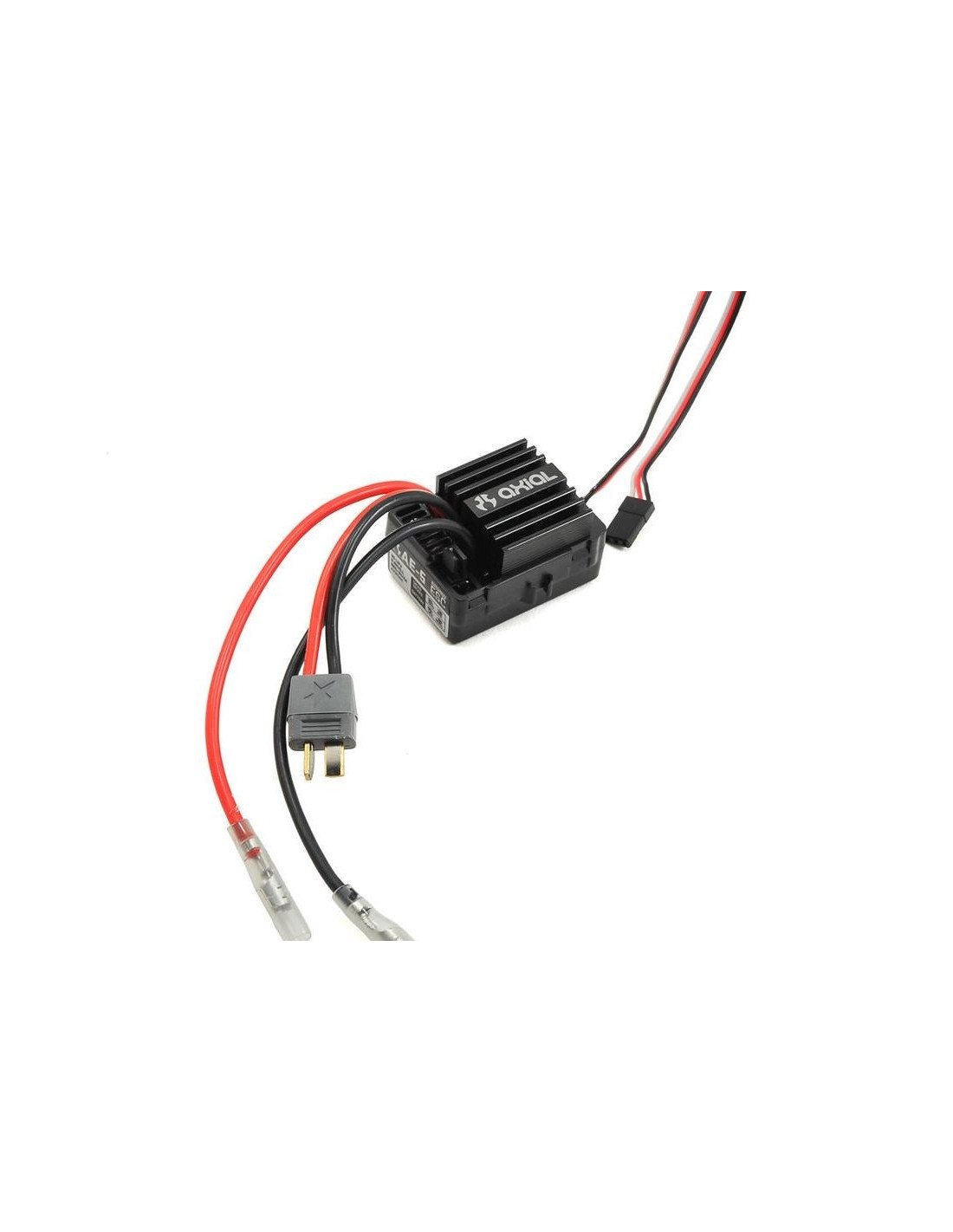

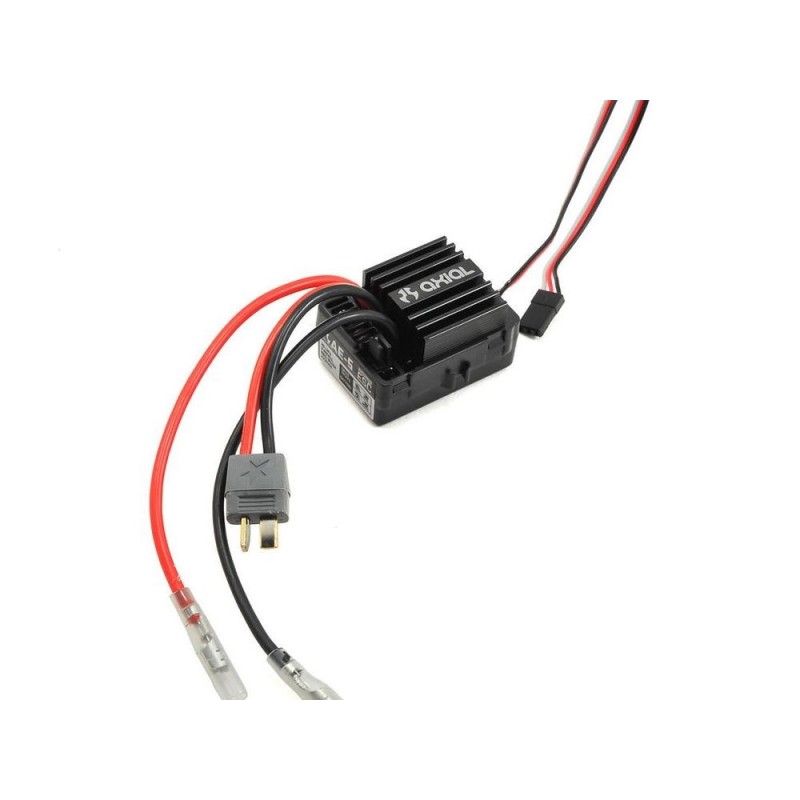

The Axial AE-5 Waterproof axial controller is a brush motor workhorse for rock exploration robots. With its 3S LiPo capability, adjustable drag brake, and waterproof function, it is an excellent ESC for rocking enthusiasts and crawlers who require smooth control of a brushed motor system. In addition, settings can be switched between LiPo and NiMH battery types "in the field" with a simple jumper, avoiding the complex procedures found on most robot ESC options. The ESC includes factory-installed bullet connectors for the motor and a T-style battery connector for plug and play versatility.

Jumper 1 offers a simple, plug and play choice between LiPo or NiMH batteries
Jumper 2 switch
Waterproof design with waterproof switch
Includes a T-style battery connector
Laser etched heat sink

Features:

Input Voltage: LiPo 2-3S, NiMH / NiCd 5-9 cells
Size: 46.5x34x28.5mm
Weight: 70g
Motor Limit: 12T 2S / 18T 3S
FET on resistor: .002
Rated / Peak Current: 180A
Brake Current: 90A
BEC Voltage: 5.0V 2A Peak
PWM Frequency: 1KHz
