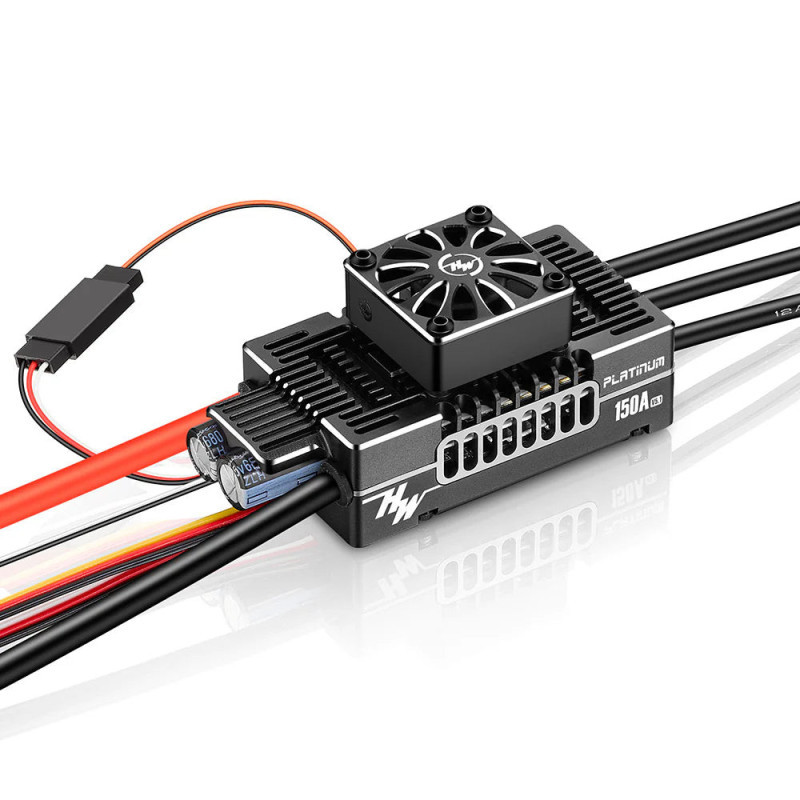

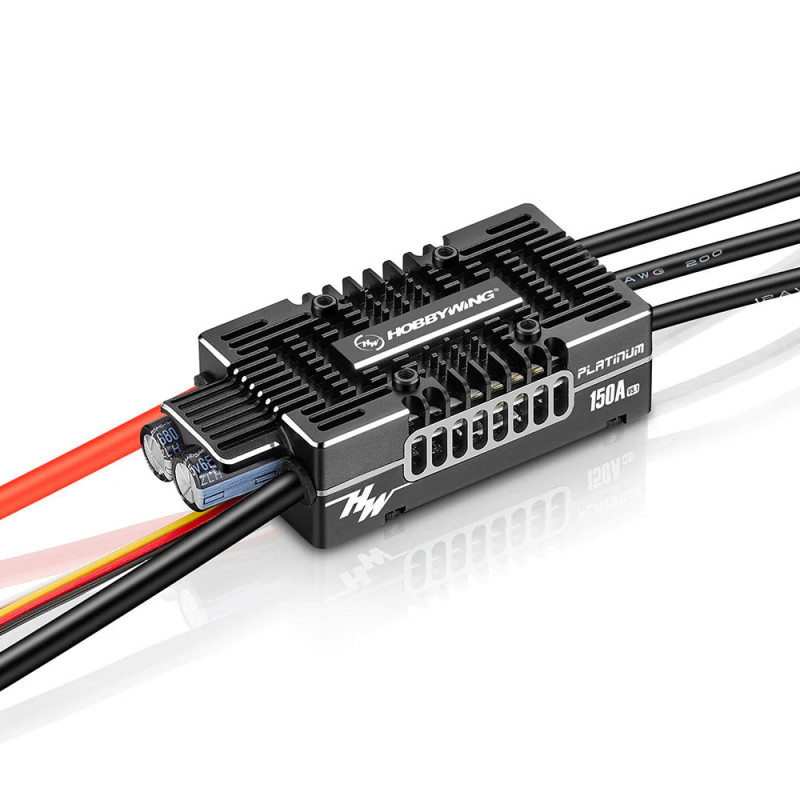

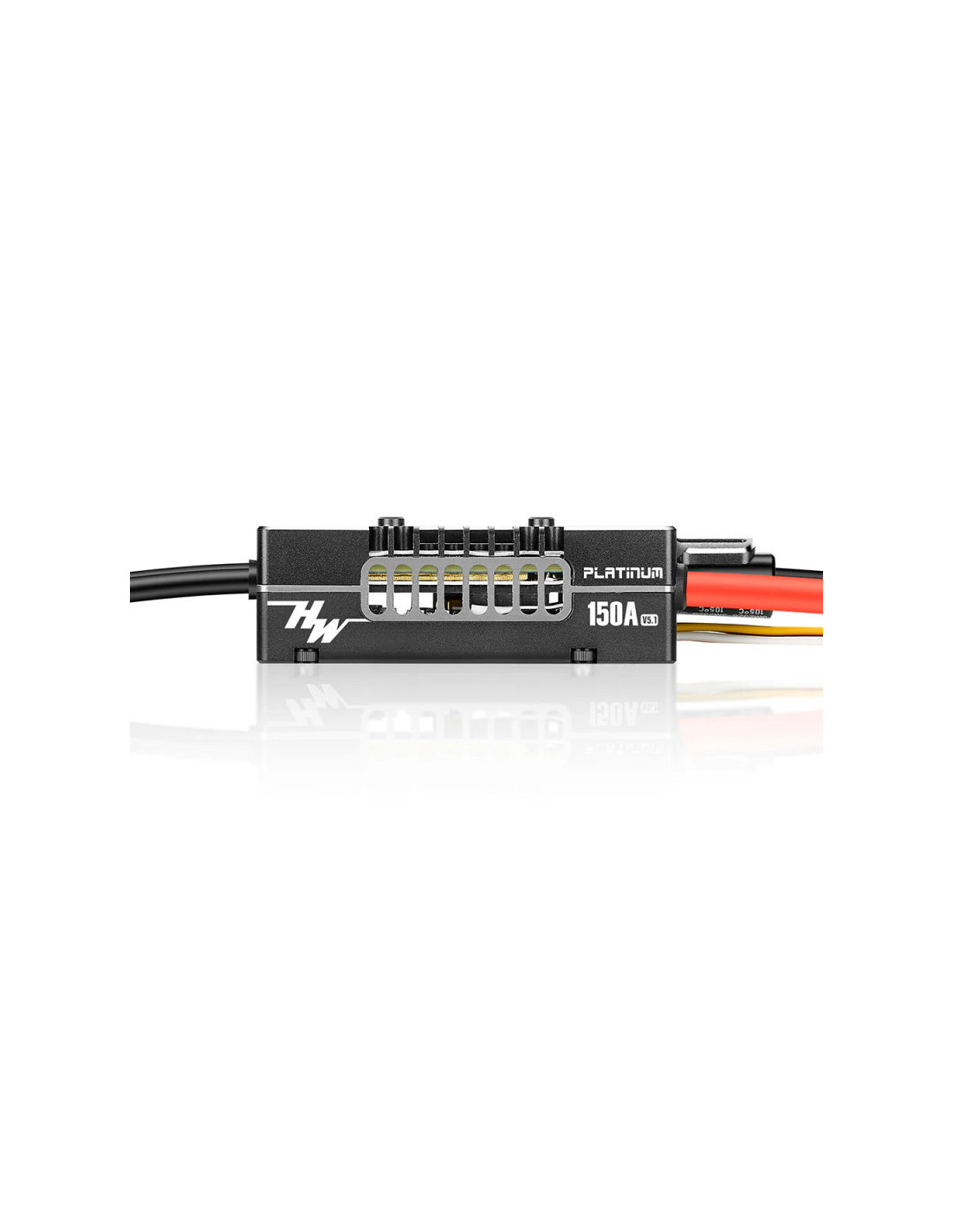

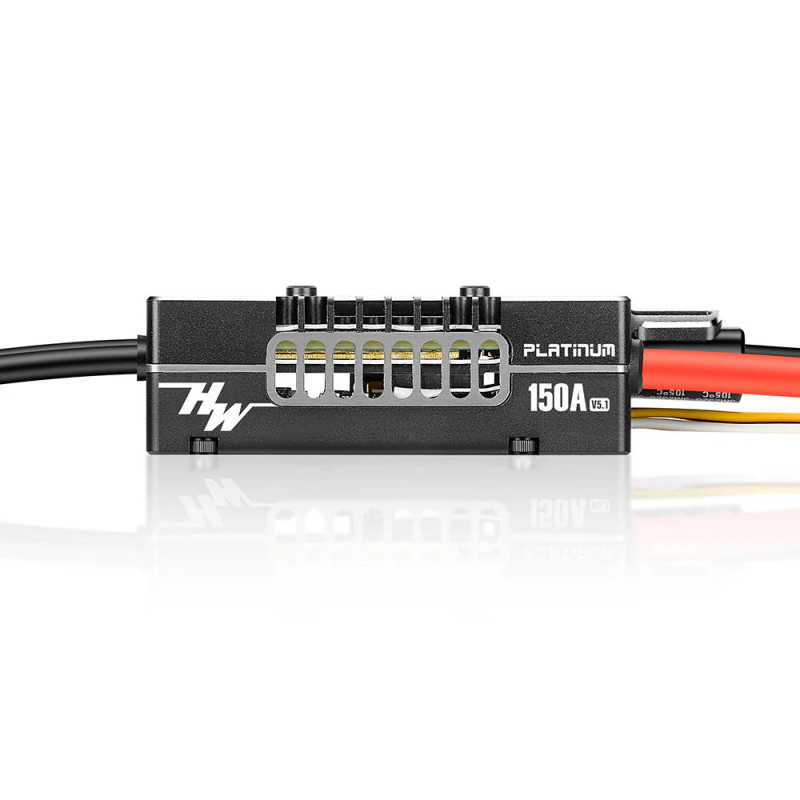

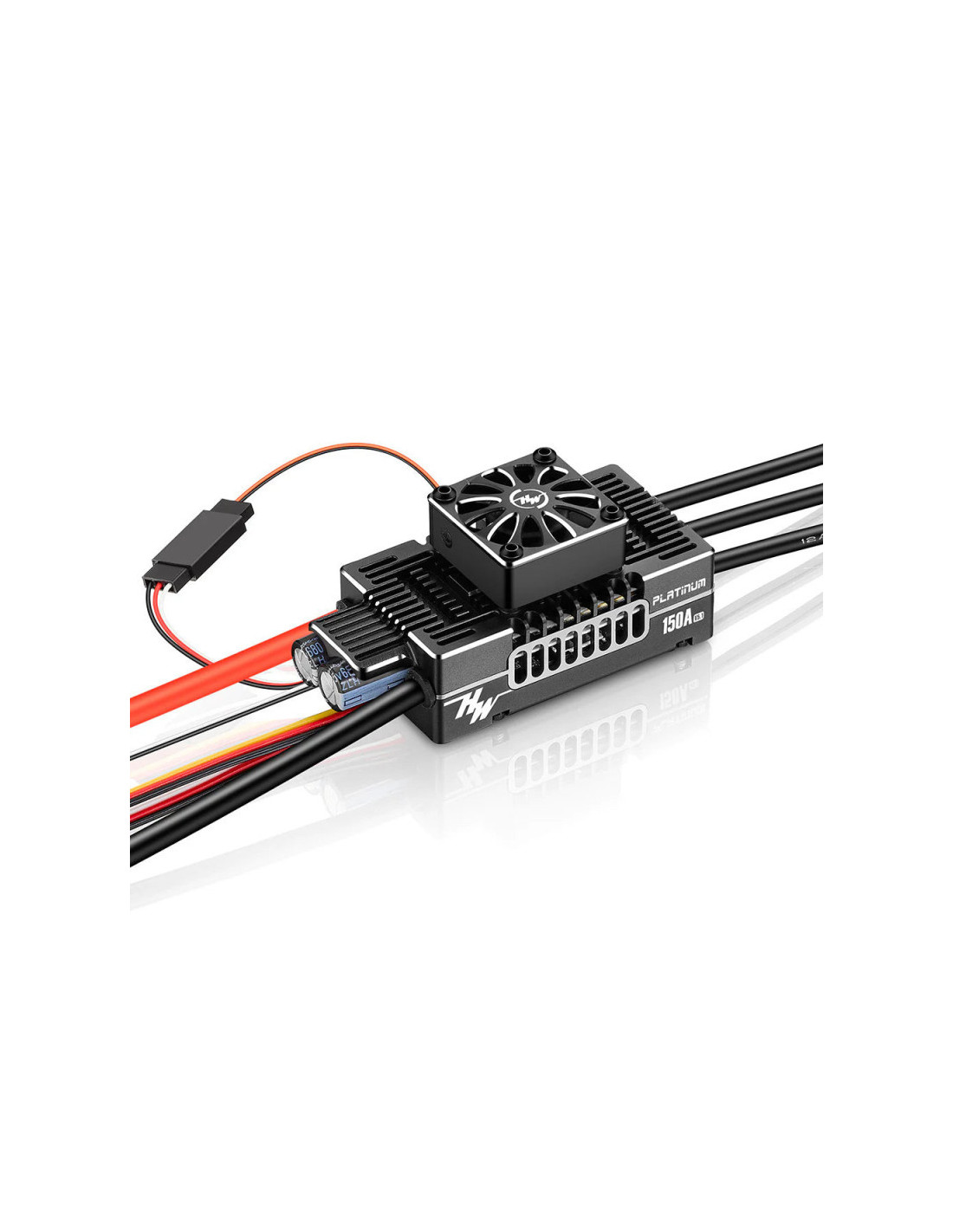

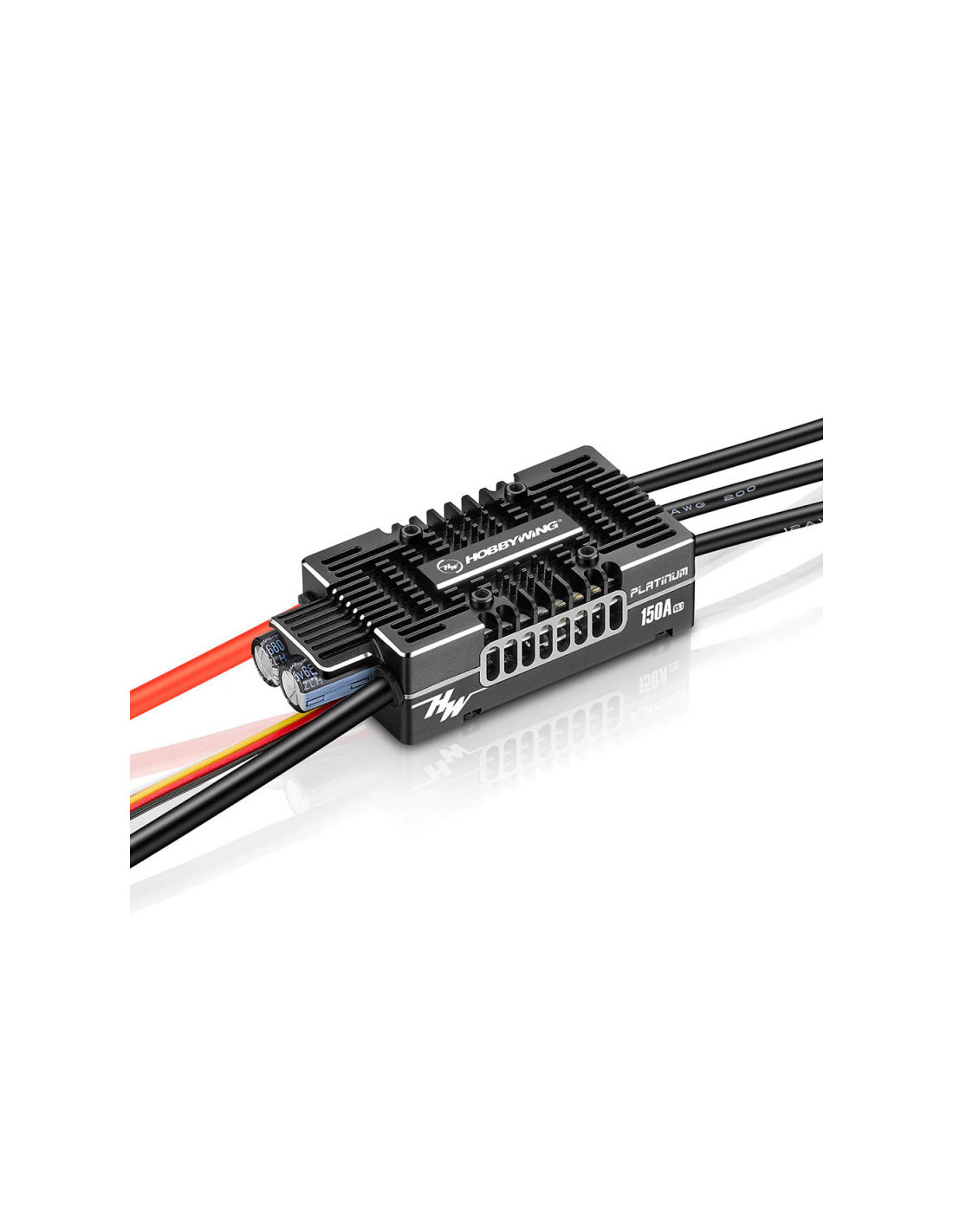

The Platinum V5.1 150A ensures constant speed control, guaranteeing an excellent flying experience thanks to its powerful 12V switch-mode BEC. The innovative case design, with additional windows on the sides and internal structure, enables highly efficient heat dissipation. The heat generated is transported directly from the PCB to the outside by the shortest route. This is all the more necessary as the integrated 32-bit processor improves the precision of the RPM algorithm, enhancing the overall performance of the ESC (Electronic Speed Controller) Platinum. Fine-tuning of speed sensitivity allows each rider to find the setting that suits him best.
custom html
To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option
FEATURES :
- Efficient cooling thanks to sophisticated heat dissipation system with windows
- Integrated BEC (5-12V)
- Supports multiple data protocols
- Data logging accessible via your smartphone's OTA module
- Multiple protection functions
- 16 adjustable parameters, including 4 flight modes: Fixed Wing || Helicopter - External Governor || Helicopter - Express Governor || Helicopter - Store Governor
TECHNICAL SPECIFICATIONS :
- Type : Brushless High Voltage
- Peak current : 150A/180A
- Elements : 3-8S LiPo
- BEC: 5-12V @10A (Switch Mode)
- Battery/motor cable: 1x 10AWG (red, black) | 3x 12AWG (black)
- Programming: LCD Programming Box | OTA Bluetooth Programmer || Seperate Programming Port
- Update: yes
- Dimensions: 82.2x37x22.5mm
- Weight (incl. cable): 150.6g (without fan)
- Compatibility: 520-580 Electric Helicopter (main rotor length: 520-580mm)
