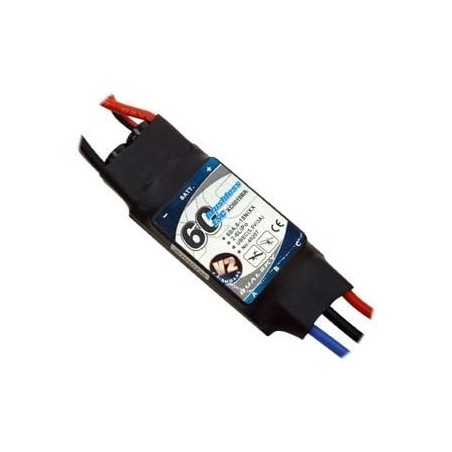

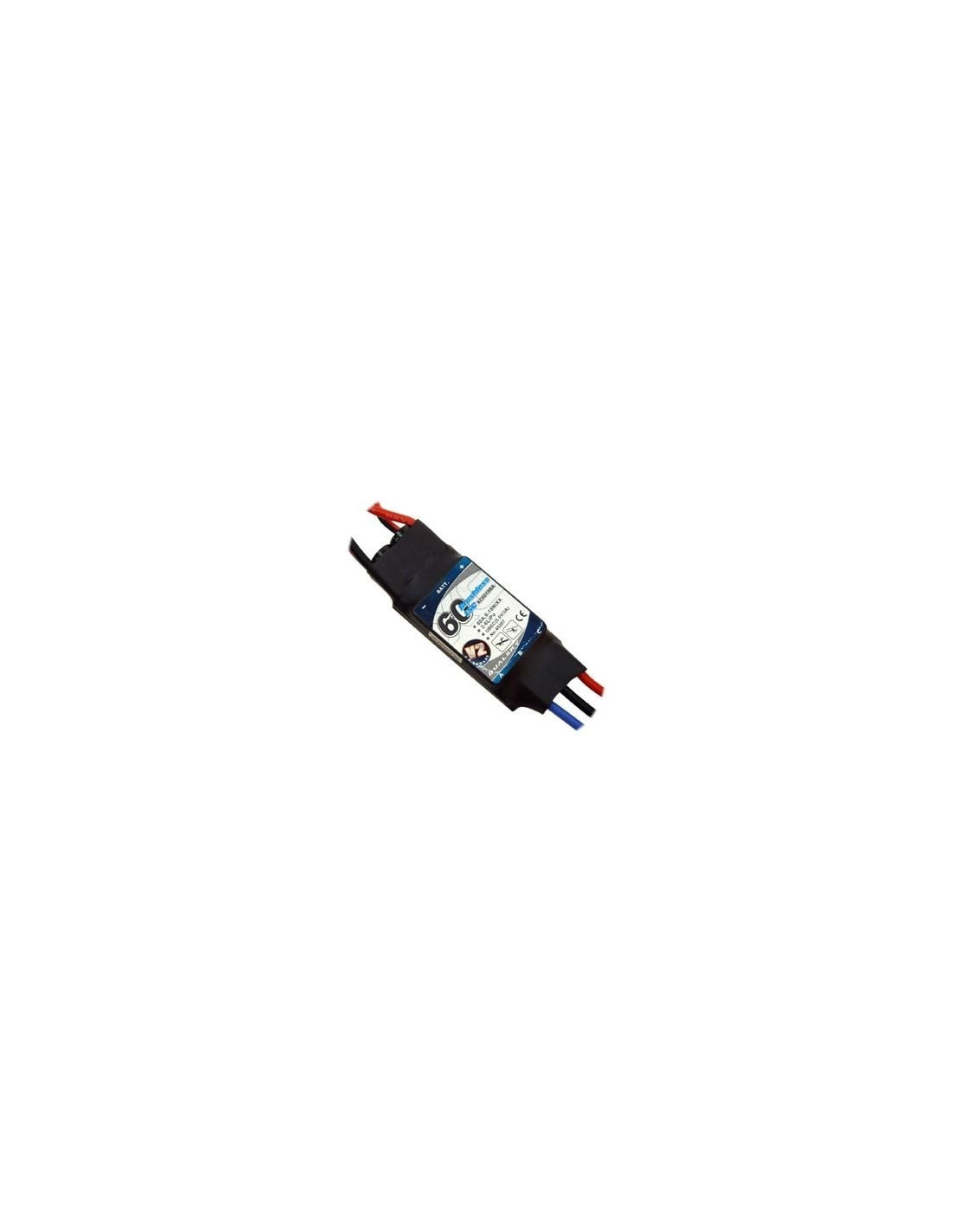

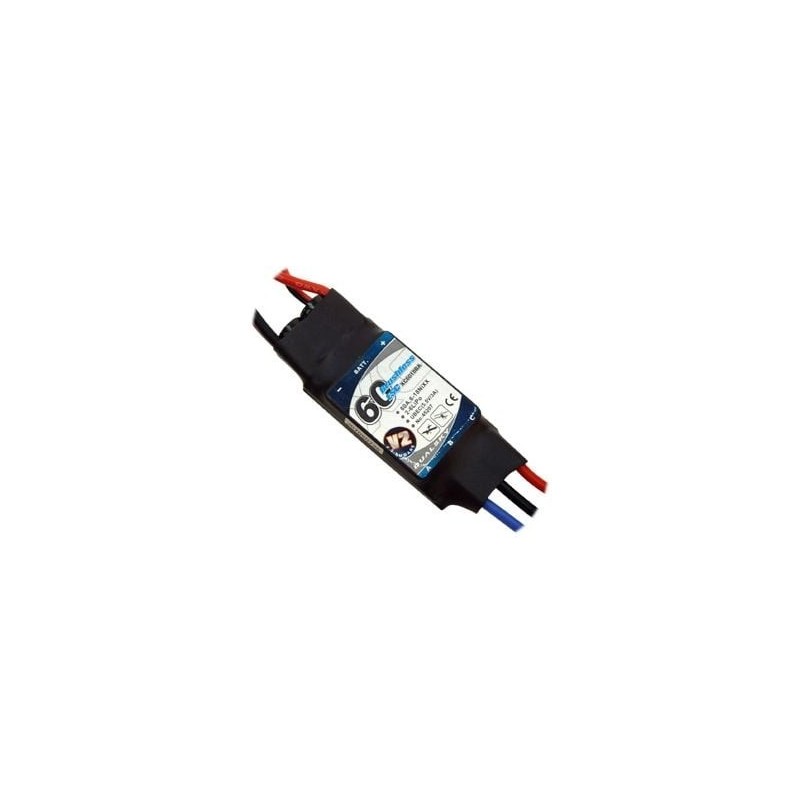

Product description
- High rate of PWM modulation (10 KHz)
- Possibility to activate or deactivate the programmable dynamic brake ensuring the fast folding of the propeller.
- Thermal protection in case of overheating
- Easily programmable features via the throttle or with a programming card
- Low voltage protection - the cut-off value can be programmed.
- The cut-off voltage can be programmed for motor stop or reduced power.
- Secure "power on" to prevent unintentional start-up.
- Programmable "soft start" to prevent damage to the gearbox.
- Automatic shutdown after 4 sec. of signal loss or when receiving a bad signal
- Controlled by a state of the art microprocessor
Technical data
Input voltage: 2-6LiPo / 6-18 NiXx
Continuous current:60A
Max current (15s.) :80A
BEC :3A- 5V (switching)
Dimensions :75 x 30 x 14 mm
Weight :60gr.
Socket on battery side :XT60
Socket on motor side:DB4
