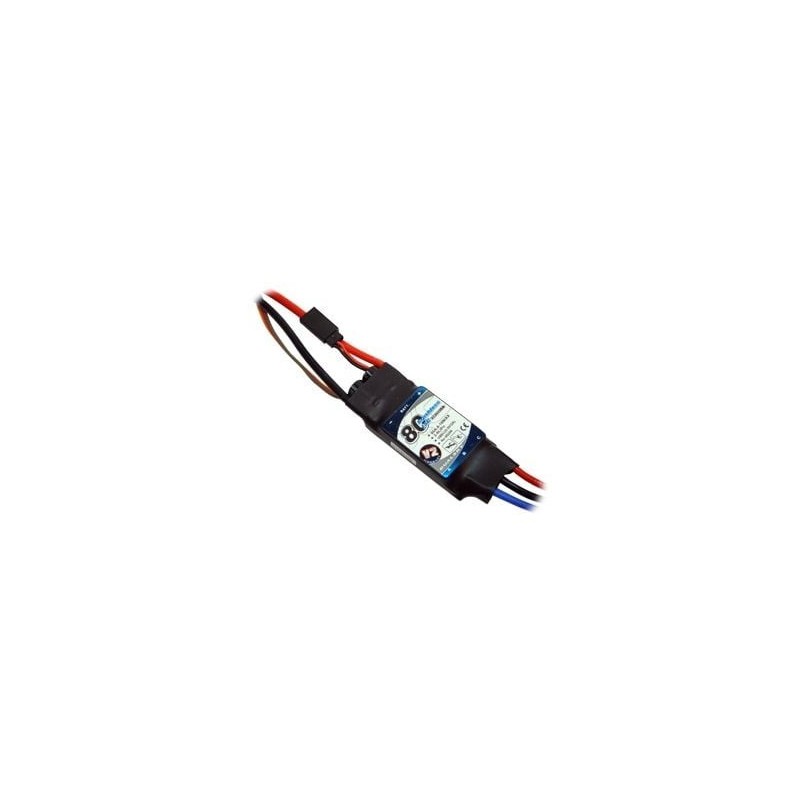

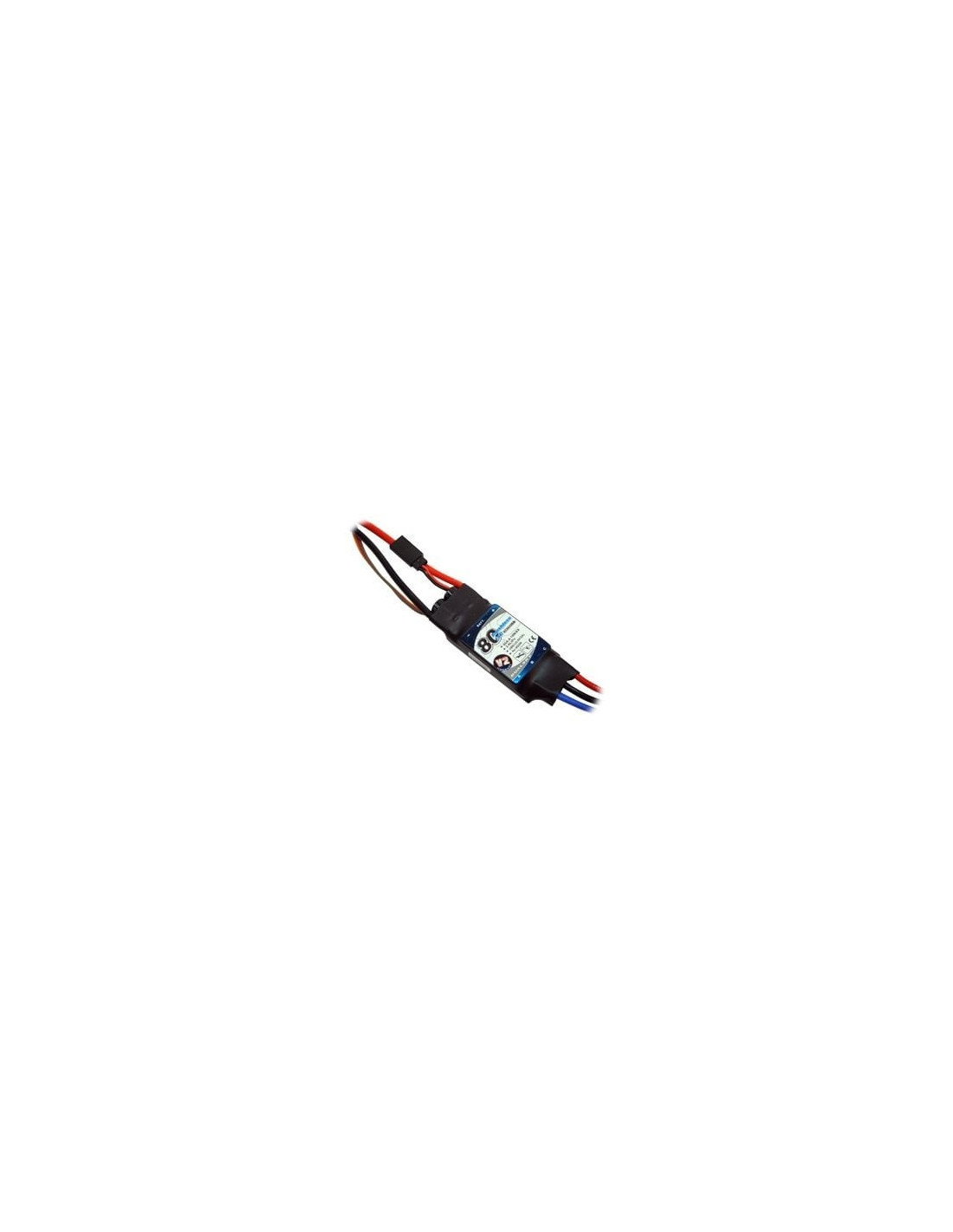

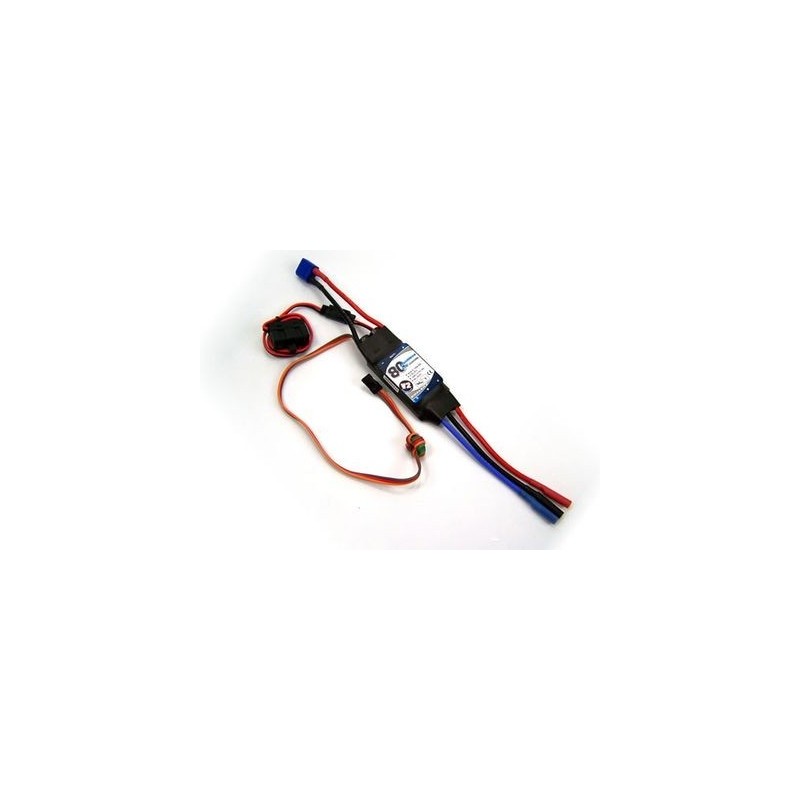

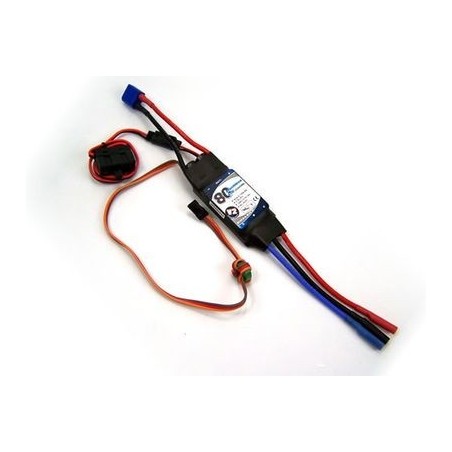

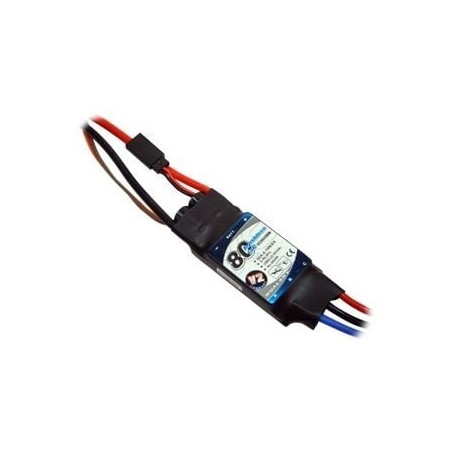

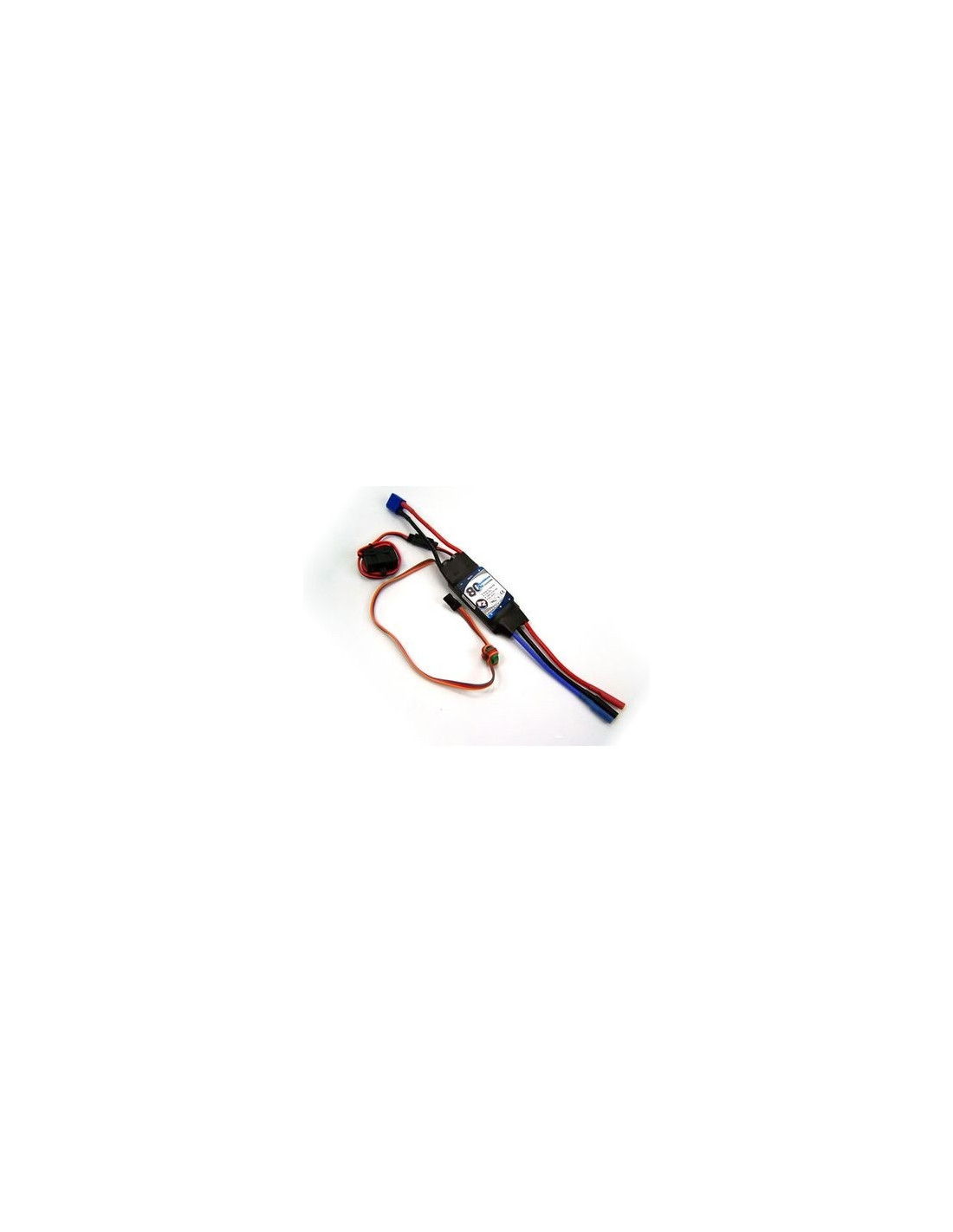

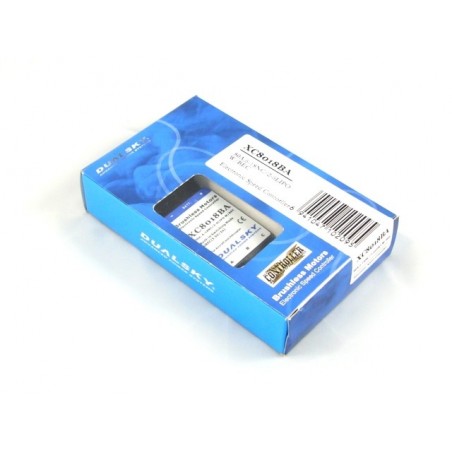

80A V2 Brushless Controller - XC8018BA Dualsky

Product description

• High rate of PWM modulation (10 KHz)
• Possibility to activate or deactivate the programmable dynamic brake ensuring the fast folding of the propeller.
• Thermal protection in case of overheating
• Easily programmable features via the throttle or with a programming card
• Low voltage protection - the cut-off value can be programmed.
• The cut-off voltage can be programmed for motor stop or reduced power.
• Secure "power on" to prevent unintentional start-up.
• Programmable "soft start" to prevent damage to the gearbox.
• Automatic shutdown after 4 seconds of signal loss or when receiving a bad signal.
• Controlled by a state of the art microprocessor

Technical data

Input voltage: 2-6LiPo / 6-18 NiXx

Continuous current:80A

Max current (15s.) :100A

BEC :3A- 5,5V (switching)

Dimensions :75 x 30 x 14 mm

Weight :66gr.

Socket on battery side :DC3

Motor side socket:DB4
