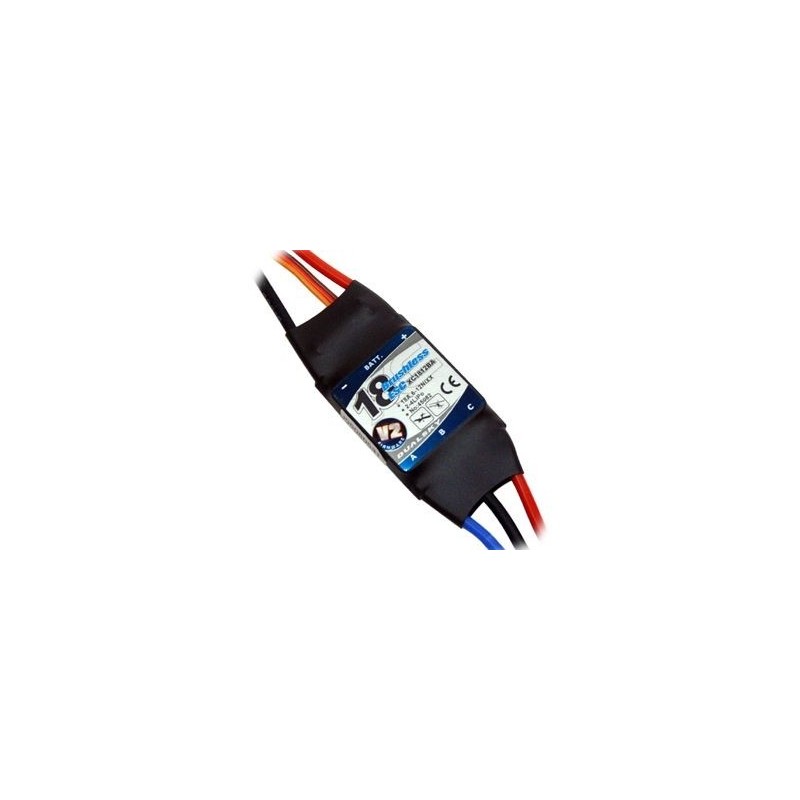

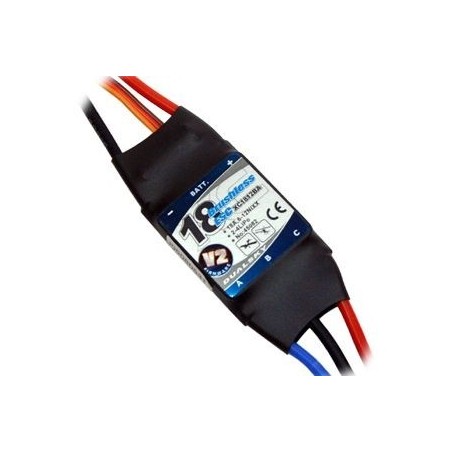

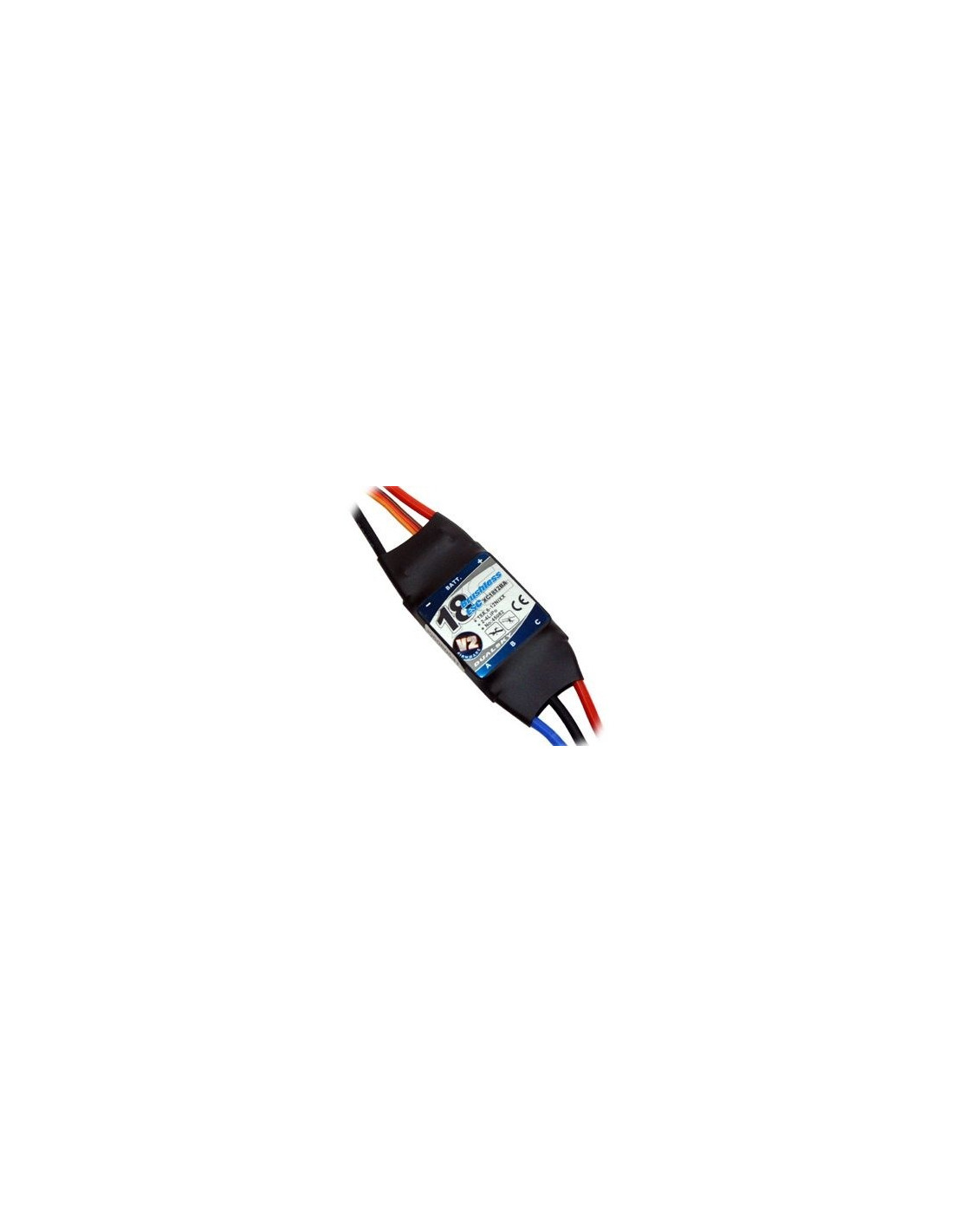

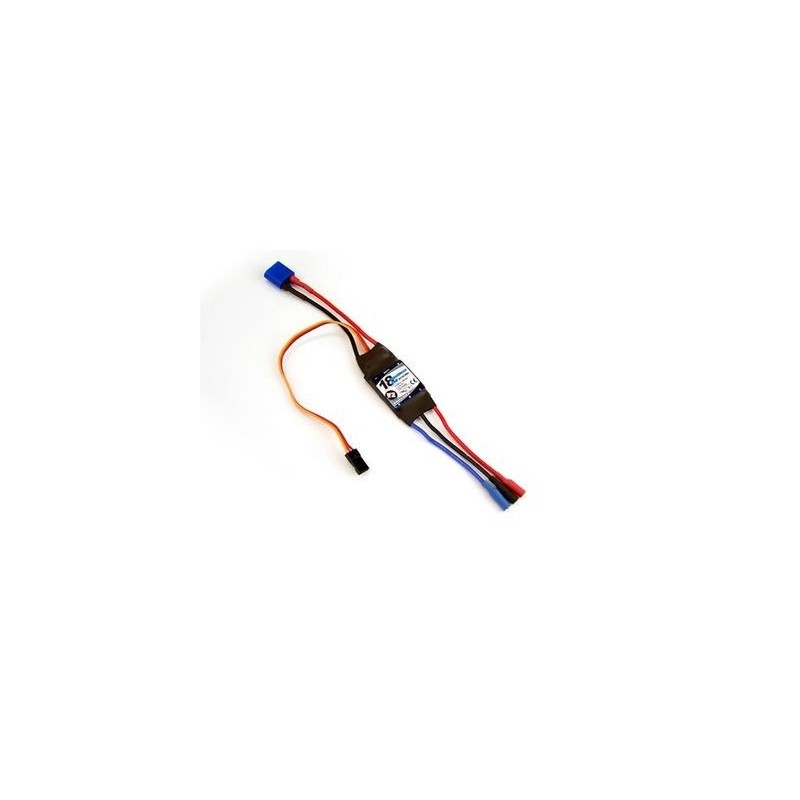

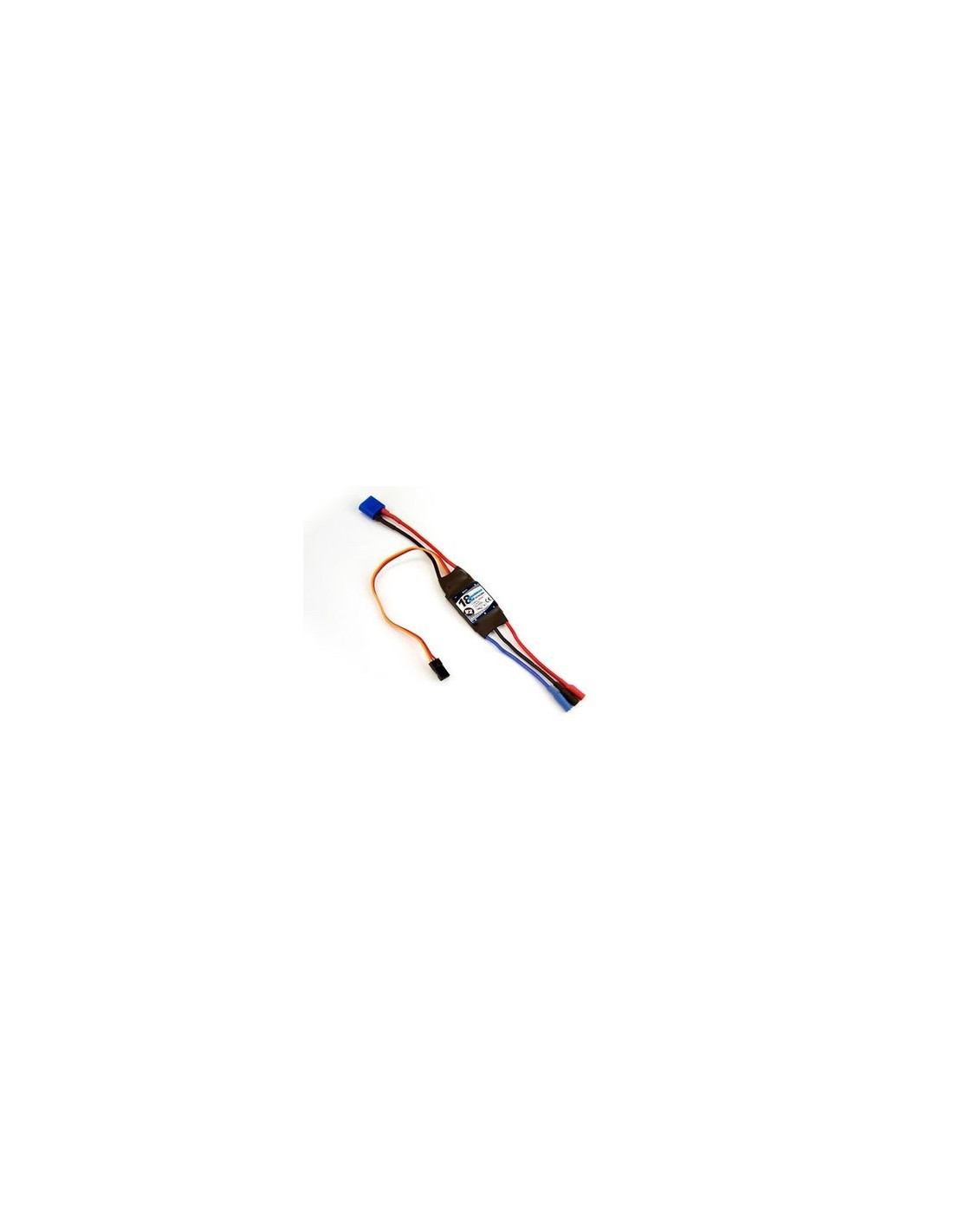

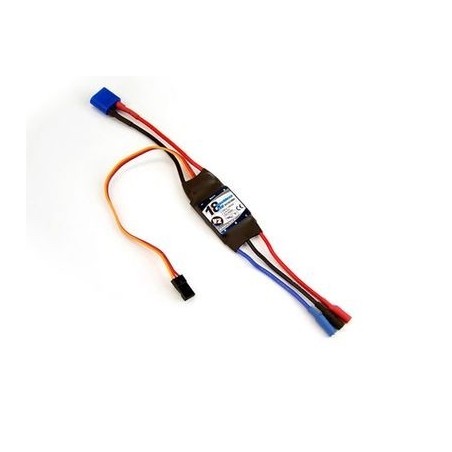

18A V2 Brushless Controller - XC1812BA Dualsky

Product description

• High rate of PWM modulation (10 KHz)
• Possibility to activate or deactivate the programmable dynamic brake ensuring the fast folding of the propeller.
• Thermal protection in case of overheating
• Easily programmable features via the throttle or with a programming card
• Low voltage protection - the cut-off value can be programmed.
• The cut-off voltage can be programmed for motor stop or reduced power.
• Secure "power on" to prevent unintentional start-up.
• Programmable "soft start" to prevent damage to the gearbox.
• Automatic shutdown after 4 seconds of signal loss or when receiving a bad signal.
• Controlled by a state of the art microprocessor

Technical data

Input voltage: 2-4LiPo / 6-12 NiXx

Continuous current:18A

Max current (15s.) :25A

BEC :2A- 5V (linear)

Dimensions :47 x 26 x 7 mm

Weight :19gr.

Socket on battery side :DC3

Socket on motor side:DB2
