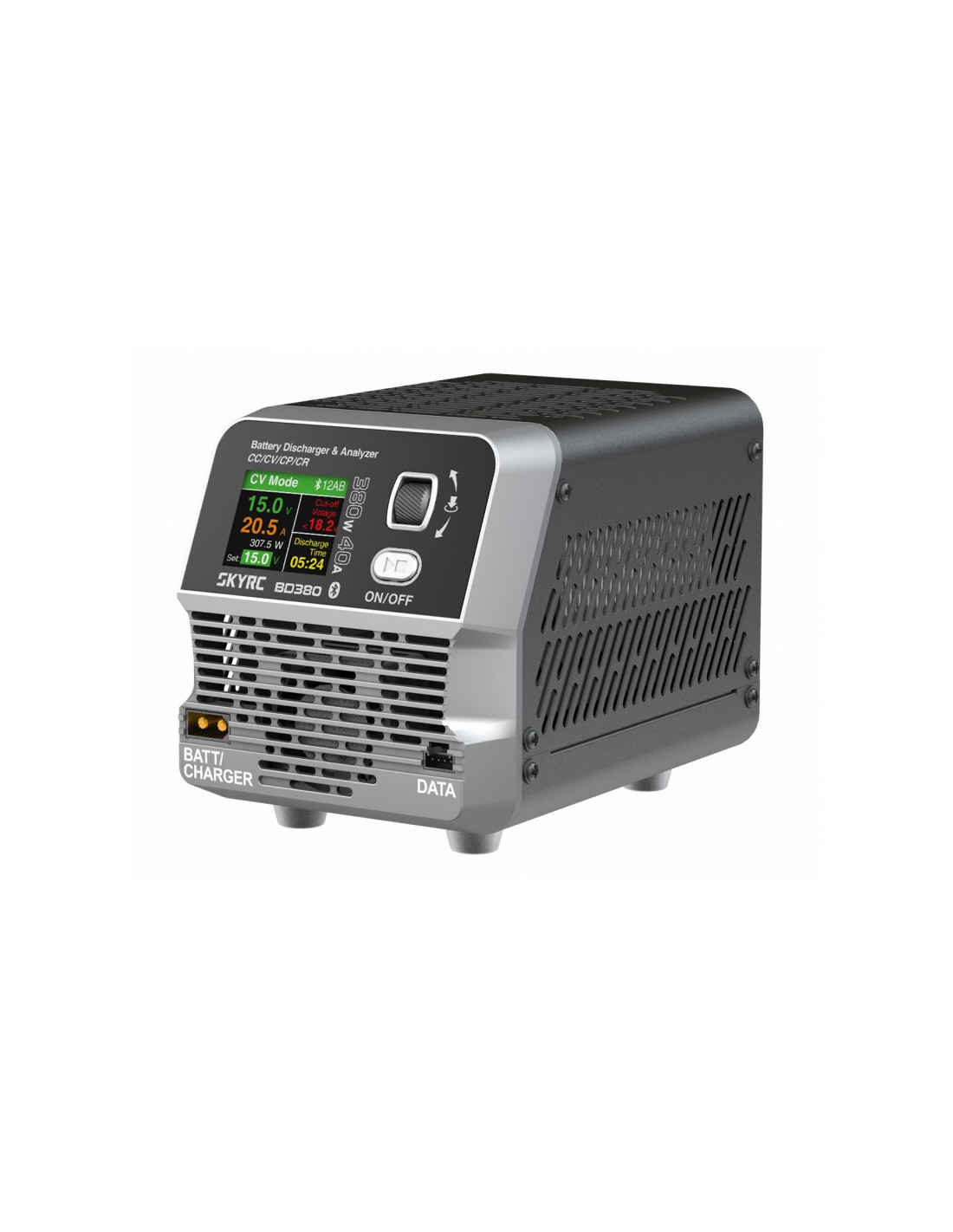

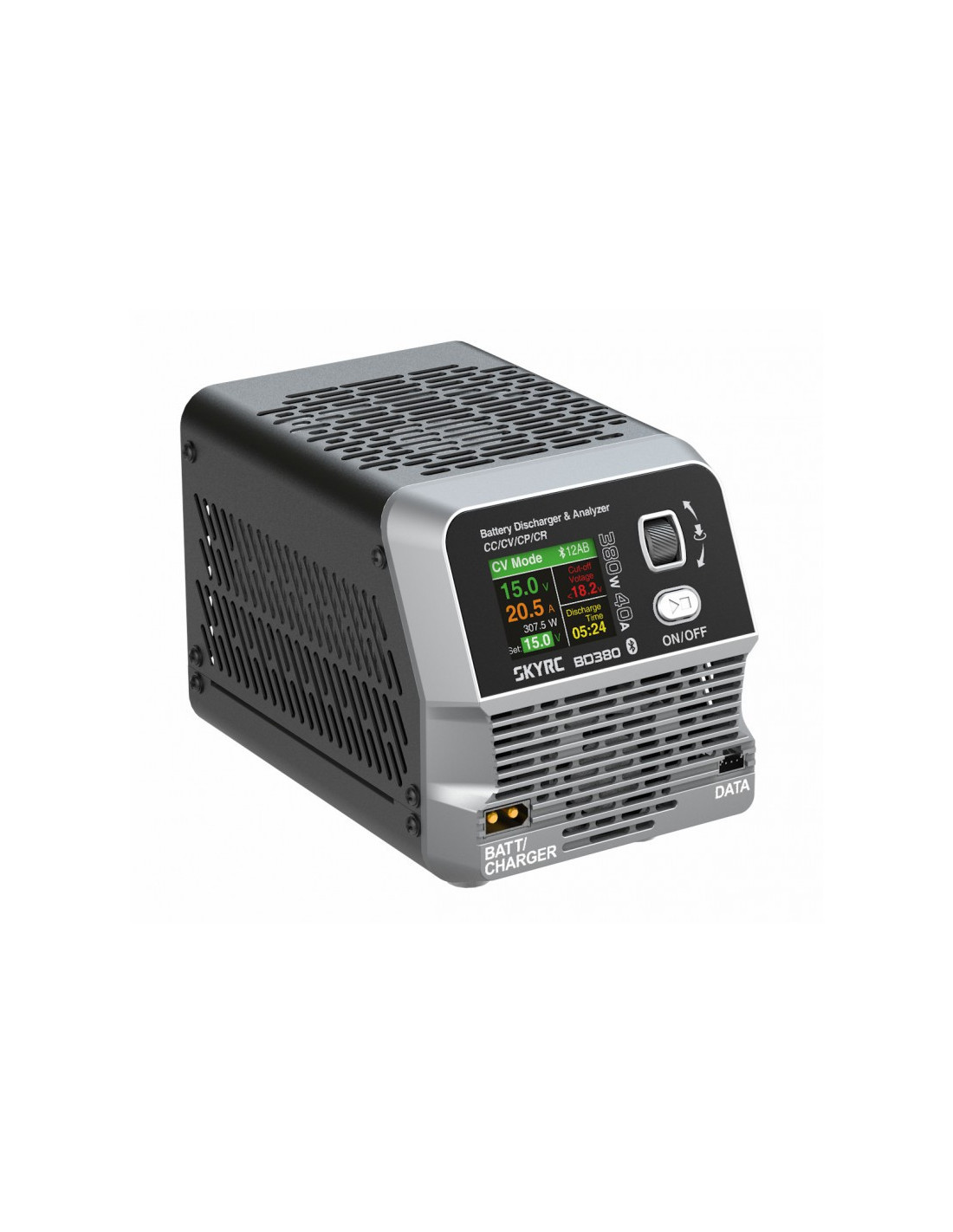

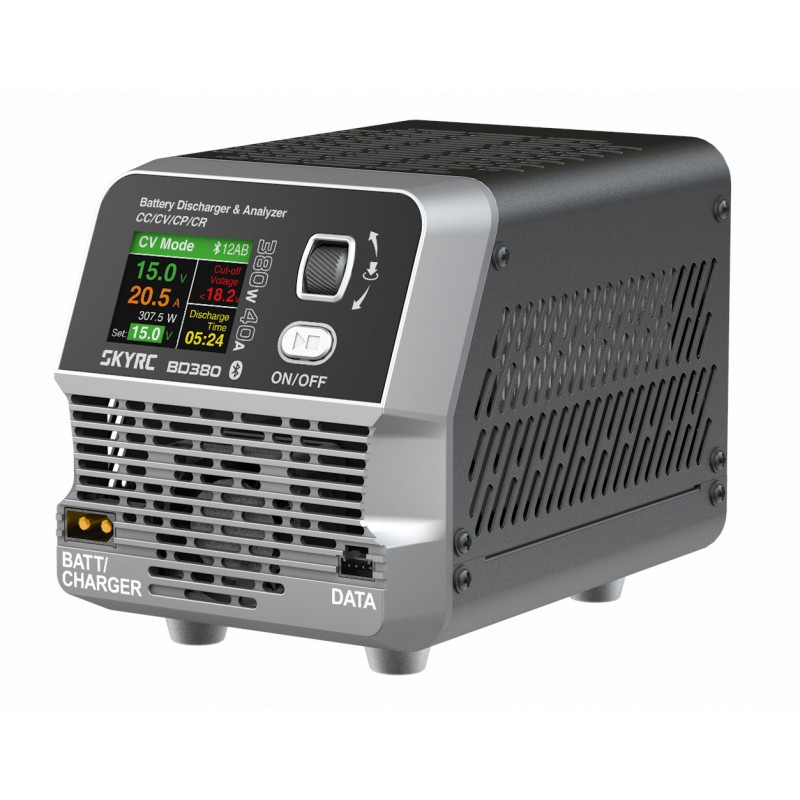

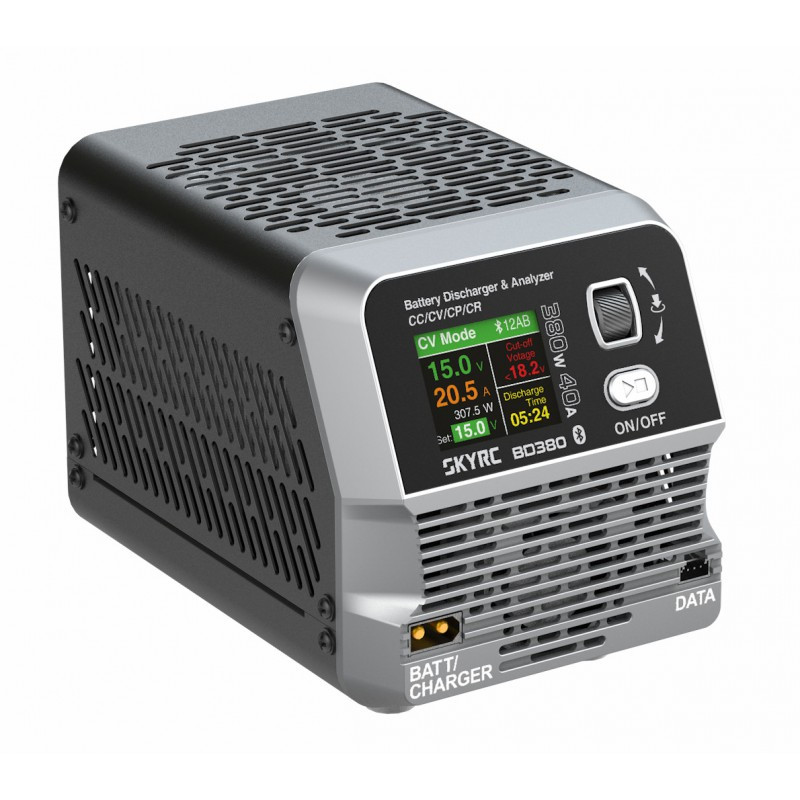

Sky-Rc BD380 Discharger & Analyzer
Last items in stock
€106.58
Tax included
The BD380 is a powerful discharging device, enabling the user to discharge a battery at up to 40 amps or 380 watts. It also enables battery performance to be measured and compared. The BD380 enables precise measurement of battery capacity, so there's no need to worry about which battery is best suited to your application.
The BD380 is much more than just a battery discharger or under-charge tester. It will test virtually any type or size of battery, whatever its chemistry or number of cells, at voltages up to 30 Volts.
The BD380 has a robust construction and uses an XT60 connector for battery connection.
It's a compact system, but with a high-performance cooling system. The display shows battery voltage, discharged capacity and discharge current.
Key features
- Displays battery voltage, discharged capacity and discharge current in real time.
- Allows battery capacity to be tested, helping to select batteries of the desired capacity.
- Saves time when putting high-capacity batteries into storage.
- Helps to activate your batteries' best performance for competition.
- Supports free Android and iOS apps for download
- Detects the quality of stabilized DC power supplies.
Technical specifications
| Parameter | Option | Specifications |
| Model | BD380 | |
| Supply voltage | Direct current | 3.0 to 30.0 V |
| Discharge voltage range | If connected to an external power supply : | 3.0 to 30.0 V |
| Main connector only : | 5.9 to 30.0 V | |
| Error thresholds | Low voltage | Less than 3.0 V |
| Voltage too high | Over 30.5 V | |
| Discharge power | 380 Watts maximum | |
| Discharge current | 0.3 A to 40.0 A | |
| Interface connector | XT60 | |
| Operating modes | DC - Constant current | 0.3 to 40.0 A |
| CR - Constant resistance | 1 to 100 Ω | |
| CP - Constant power | 1 to 380 Watts | |
| CV - Constant voltage | ||
| Note: do not connect a battery in this mode. | Maximum power 180 Watts | |
| Note: Set the maximum current allowed for the current input voltage. | ||
| Cooling | Heat sink and fan | |
| Overheating protection | Supported | |
| Communication | Bluetooth | Supported |
| Application | iOS/Android | Supported |
| Languages | Chinese/Japanese/German/English/French/Spanish | |
| Default: English | ||
| Operating environment | Temperature | 0°C to 40°C |
| Humidity | 5 % à 75 % | |
| Storage environment | Temperature | -10 °C to 70 °C |
| Humidity | 5 % à 75 % | |
| Dimensions | L x W x H | 159.69 x 121.6 x 110 mm |
| Weight | Approx. 1,100 g |
Product contents
- 1 x BD380 discharger
- 1 x User manual
- 1 x Cord
096-SKY600153-01
6930460008411
