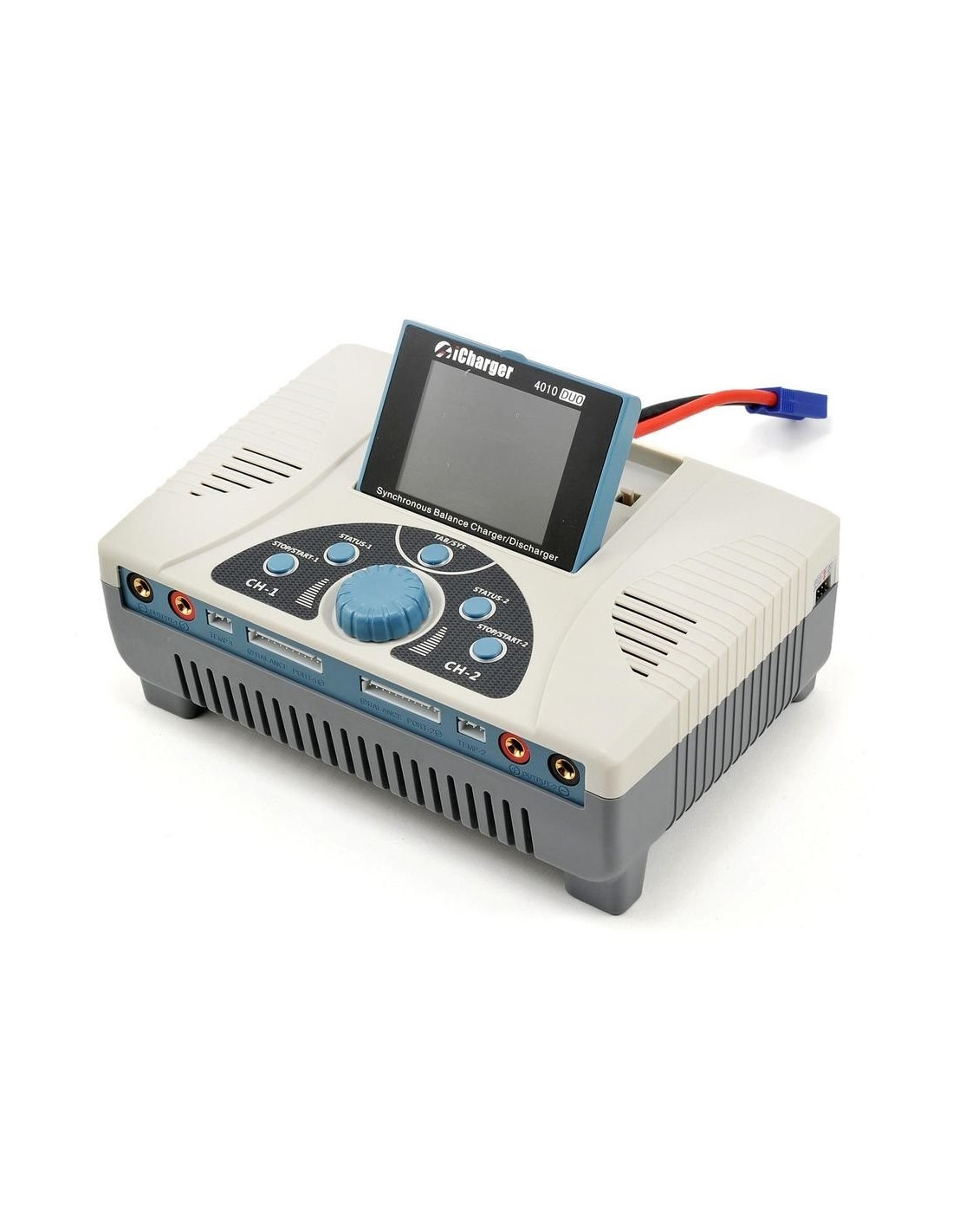

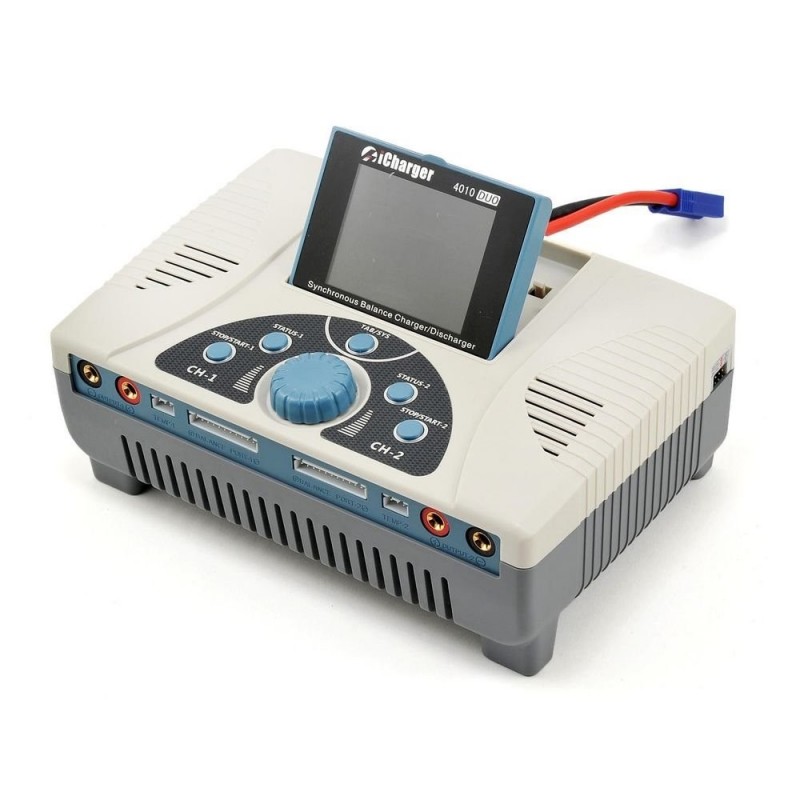

Charger 4010DUO 2000W 12V Icharger

More details in pictures

Navigation in the menus by pad	Retractable screen

The 2 outputs with balancing plugs	EC5 power plug

MicroSD card slot	USB 1A/5V output

Servo tester outputs	Side view

General characteristics

• Up to 10S LiPo, LiIo, LiFe and NiZn
• from 1 to 25 NiMh/NiCd cells, from 1 to 18 Pb cells
• 1A/5V USB output, suitable for charging a smartphone
• Spark protection
• Intelligent cooling by a sensor: control of the fan speed
• Internal temperature protection
• Possibility to save up to 64 parameters, import/export on MicroSD card
• Resolution in volts: 1mV (0.001V)
• 2.8" LCD screen displaying : current, voltage, power, capacity, internal resistance, duration ...
• Measurement of internal resistance of LiPo batteries / cells
• Reverse polarity protection
• Possibility to update the charger via USB or SD card. The "Logview" software can display, analyze the data of the charge or discharge (http://www.logview.info )

Technical specifications

• Dimensions : 210.0×140.1×80.2 mm
• Weight: 1470g
• Power supply voltage: 9-50V Dc
• Max. input current: <65A
• Max. charge/discharge current: 70A in synchronous mode 70A in synchronous mode, 40A in asynchronous mode
• Max. load power 2000W in synchronous mode (1400W per output at input voltage > 23.5V)
• Max. discharge power 200W in synchronous mode (130W per output)
• 2 regenerative discharge modes: input or output 1
• Max. regenerative discharge power 2000W in synchronous mode (1400W per output)
• Extra" discharge power for LiPo (by adding an external resistor on the "red" wire of the charge lead) : 3200W in synchronous mode (1600W per output @40V/40A)
• Max. balancing current 2.4A in synchronous mode, 1.2A in asynchronous mode

Contents of the box

• Charger 4010 DUO

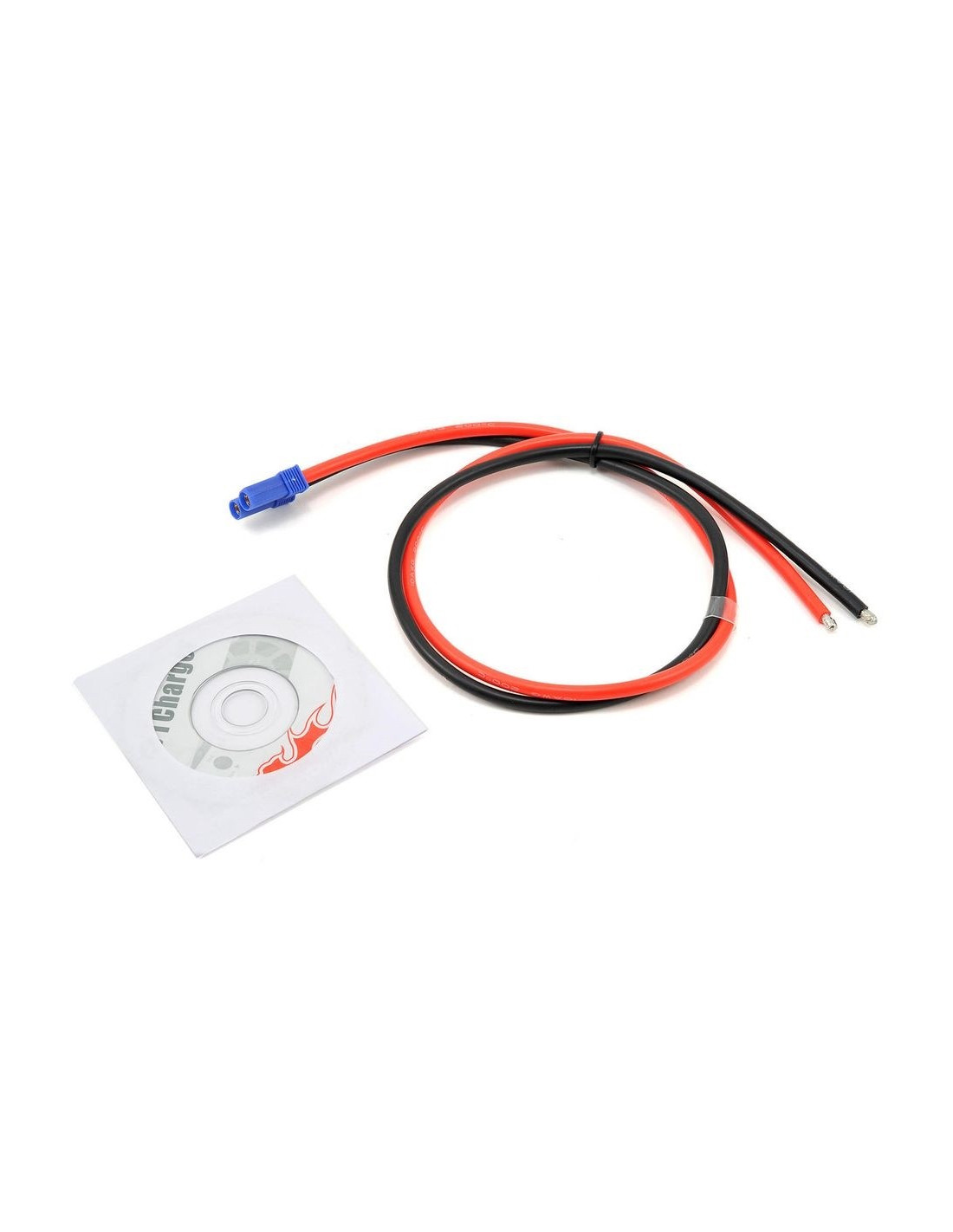

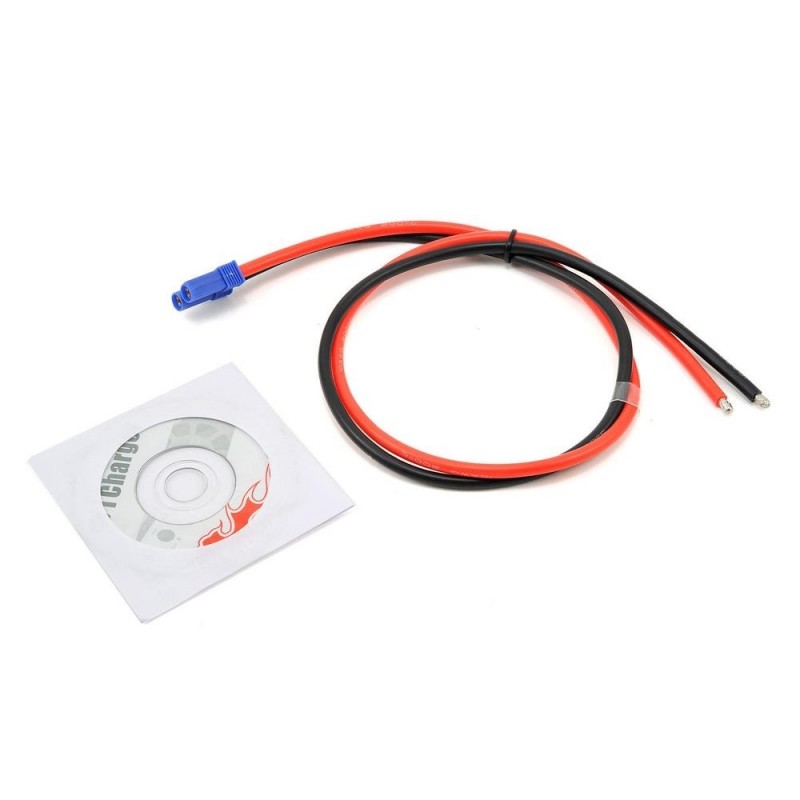

• 12V EC5 power cord (with stripped wires at one end)

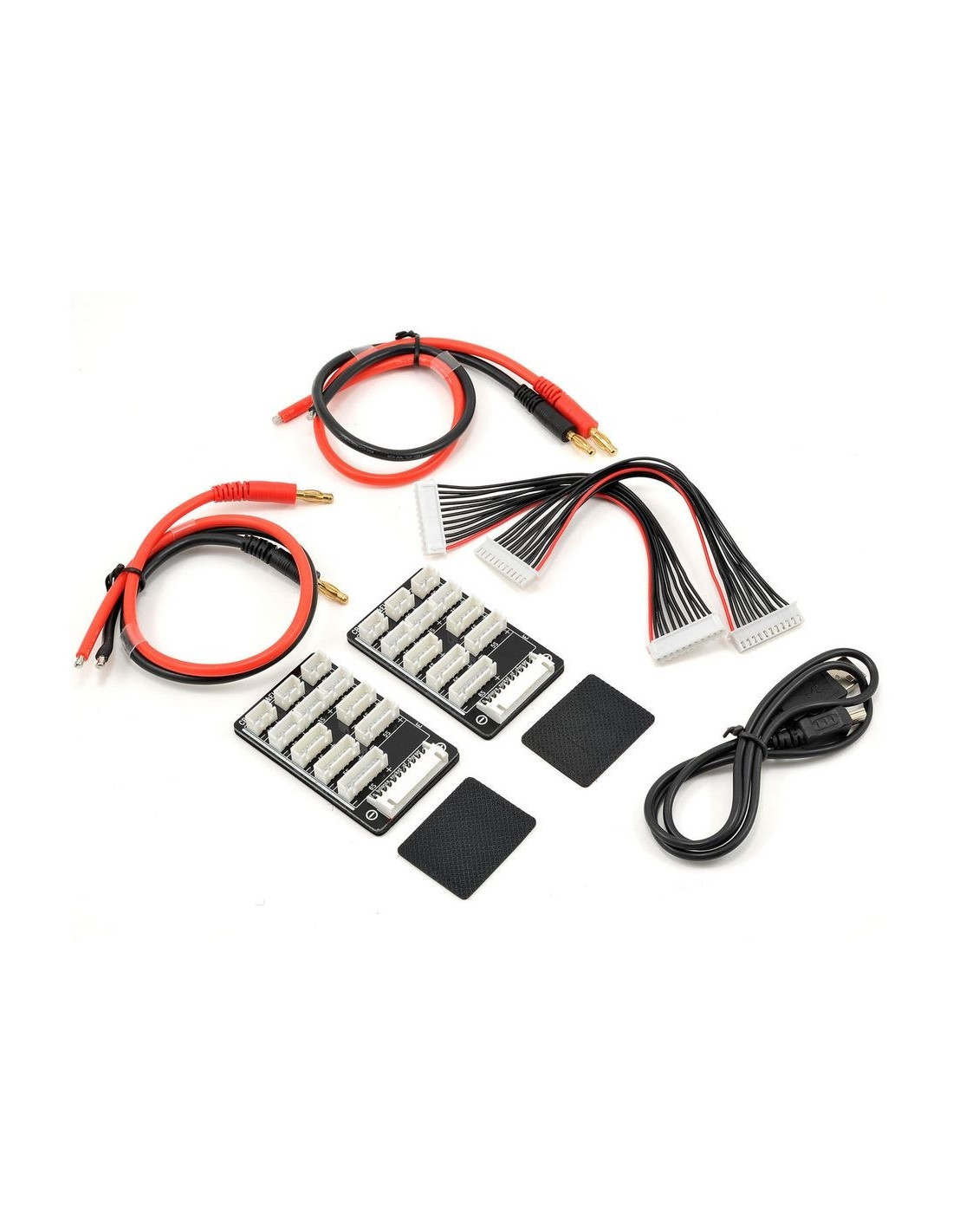

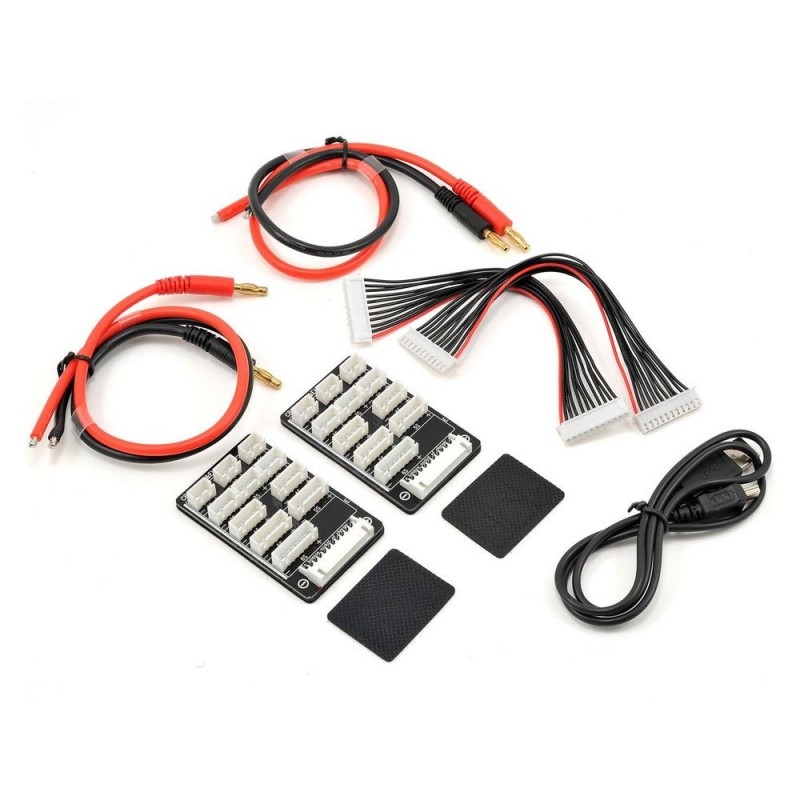

• 2 cords with banana plugs, other end stripped wires
• 2 balancing boards JST-XH
• 1 USB cable
• 1 CDROM containing the manual and the "Logview" software
