4744 - CONE Ø40mm (p.pales 45-size12x8, paddle base8-Ø3, motor shaftØ4)

Last items in stock

€9.08

Tax included

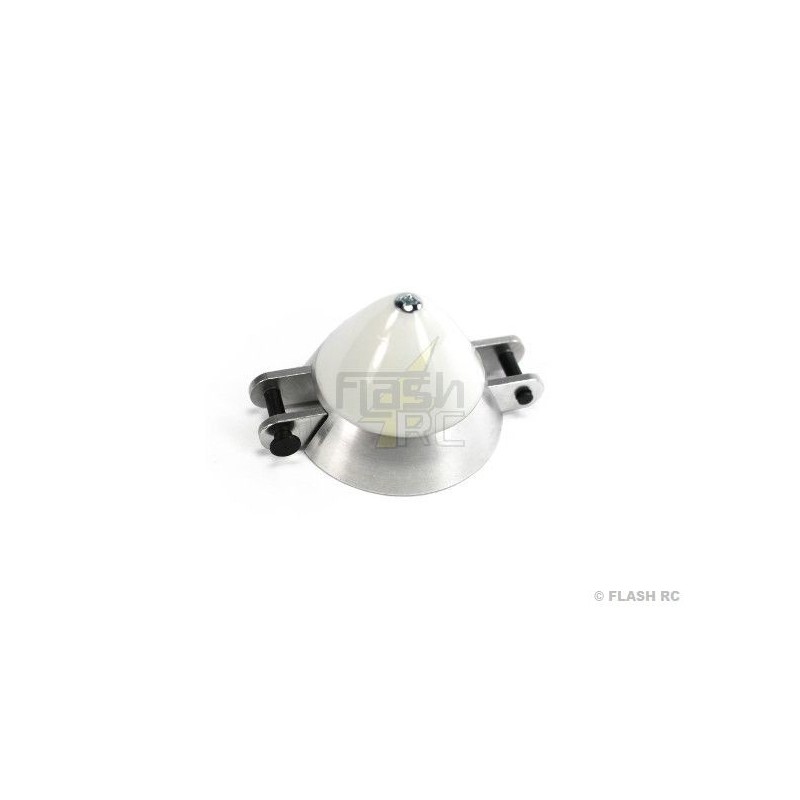

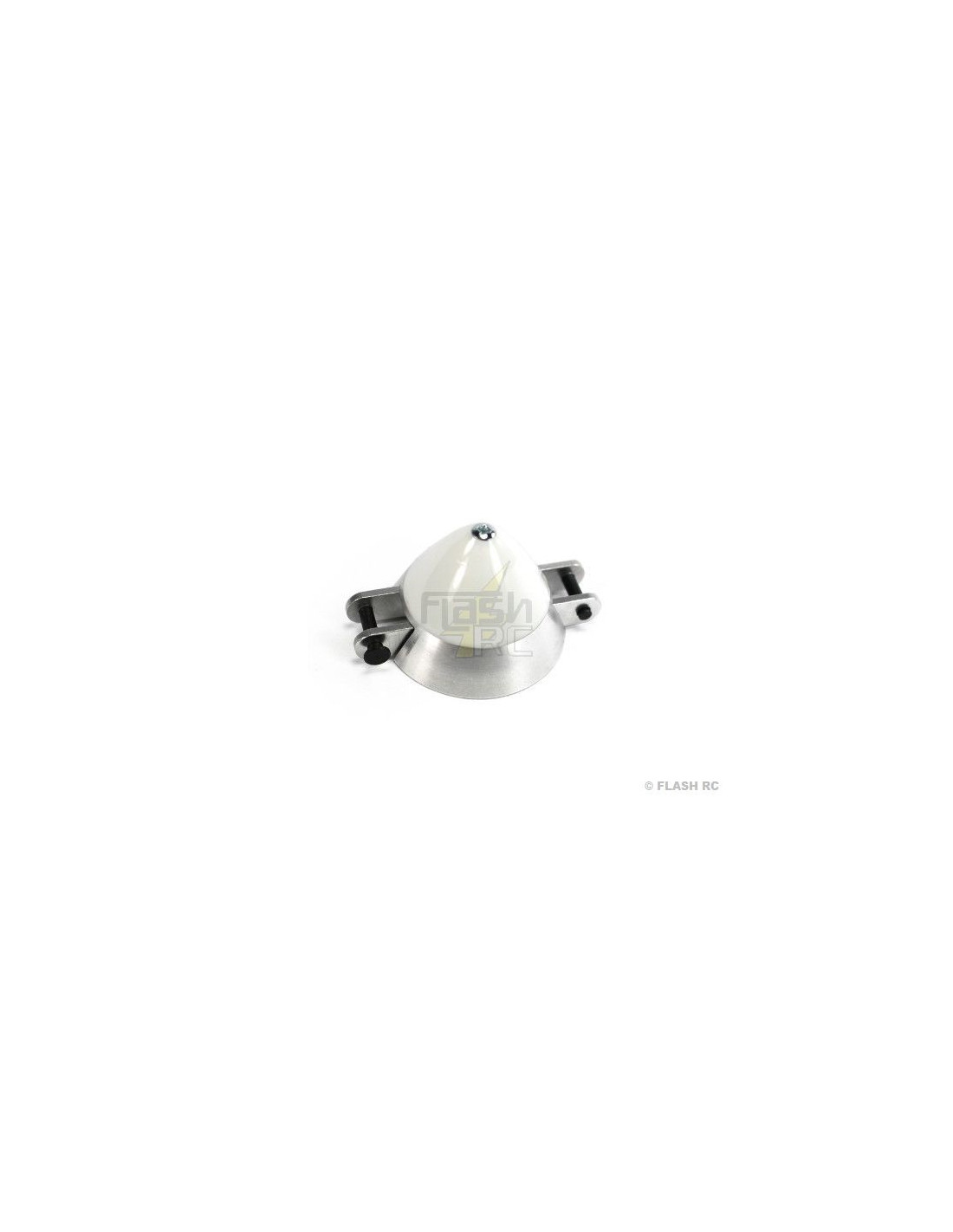

Precision cone for folding propellers

High quality cone made of aluminum and plastic for electric gliders.
Cone tip made of resistant plastic.
Cone flange machined on Cnc machines.
Aluminium propeller hub with blade feet fastened by pin and circlip.
Aluminium clamp system for high hold and perfect centering on the motor shaft.

Cone diameter A: Ø40 mm
Cone length B: Ø28 mm
For motor shaft of: Ø4 mm
Blade center distance C: 45 mm
Blade shaft diameter G: Ø3 mm
Blade root thickness F: 8 mm

Product Details
Reviews (0)

Type de cône: Cône pour hélices repliables

Reference 070-4744W

EAN13 8800223304617

MPN 8800223304617

No reviews

Comments (0)

No customer reviews for the moment.
