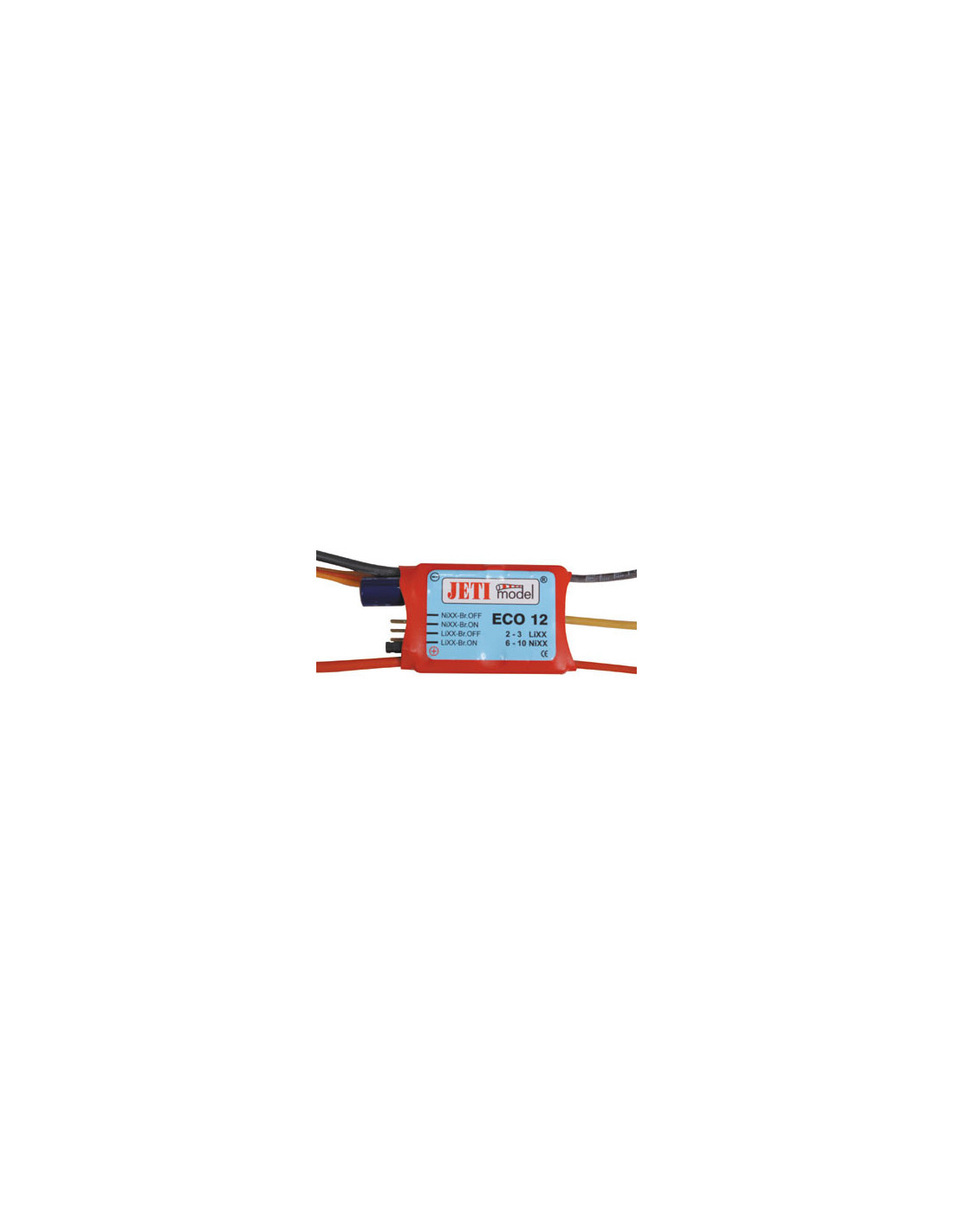

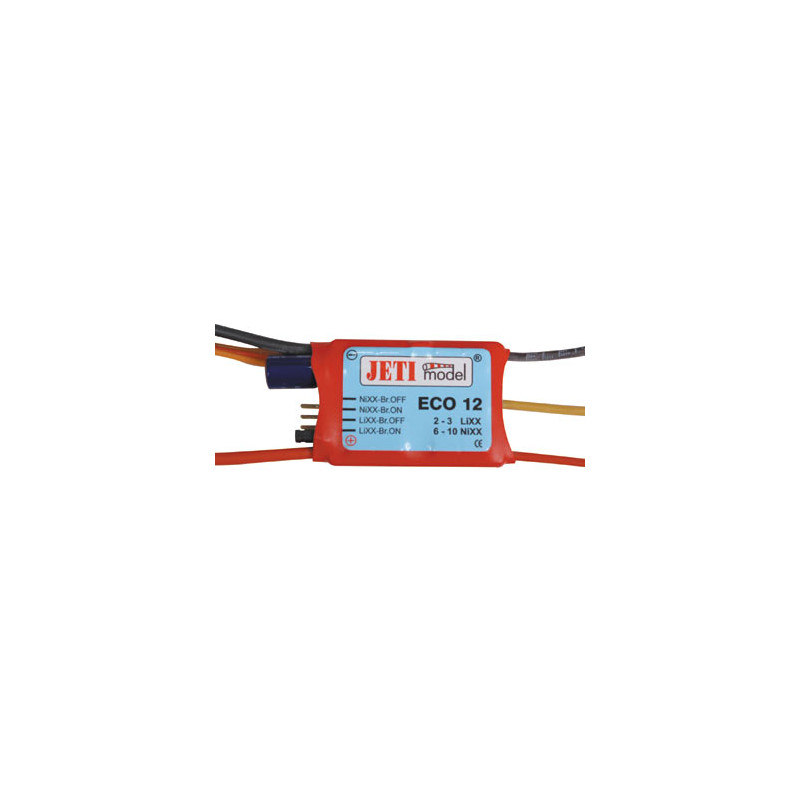

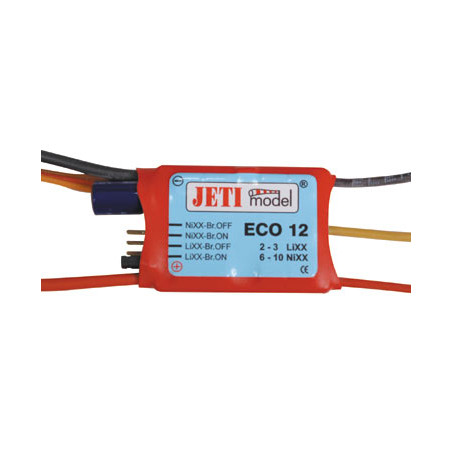

NEW LINE OF ECONOMICAL JETI CONTROLLERS FOR BRUSHLESS MOTORS JETI QUALITY AND RELIABILITY AT AN AFFORDABLE PRICE! 4 jumper-selectable modes. MODE1: NiXX-Br OFF= no brake, NiCd/NiMh type packs, slow cut-off at 5V or 0.7V per element (mode mainly reserved for aircraft). MODE2: NiXX-Br ON= brake activated, NiCd/NiMh type packs, fast cut-off at 5V or 0.7V per element (mode mainly reserved for motor gliders). MODE3: LiXX-Br OFF= no brake, Lilon or LiPo type packs, slow cut-off. Minimum voltage 6V for a 2S pack, 9V for a 3S pack (mode mainly reserved for aircraft). MODE4: LiXX-Br ON= brake activated, Lilon or LiPo type packs, slow cut-off. Minimum voltage 6V for a 2S pack, 9V for a 3S pack (mode mainly reserved for motor gliders). Technical specifications: ECO 12 MAX continuous current: 12A MAX peak current (30"): 15A Number of Ni-Cd, Ni-Mh / LiPo cells: 6-10/2-3 BEC: YES (up to 4 servos, consult manual) OPTO: NO BRAKE: Jumper selectable Weight: 10g Dimensions: 32X23X6mm Use: brushless motors up to 12A JETI CONTROLLERS ARE THE BEST SELLING IN THE WORLD! THERE'S NO CHANCE!
