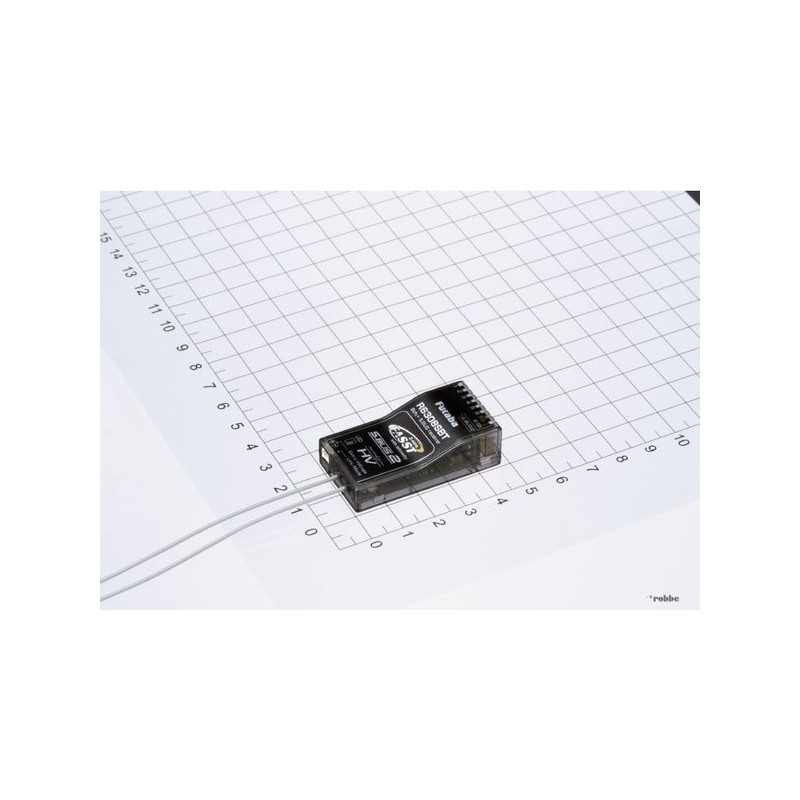

Futaba R6308SBT FASST 8 Channel Receiver
Out-of-Stock
€119.08
Tax included
Compact, lightweight 8-channel R6308SBT 2.4 GHz FASST receiver with integrated FASSTest telemetry transmitter.
Compatible with FASST or RASST (Robbe) transmitters.
NOTE: Telemetry is only compatible with the telemetry Box (telemetry not compatible with the 14SG or 18MZ).
FASST Receiver Compatibility
General characteristics
- Integrated telemetry transmitter for transmitting up to 32 telemetry data to the ground with a range of over 1000m.
- 8 PWM channels for connecting conventional servos.
- Possibility to operate two receivers in parallel allowing to double the number of channels (up to 16 channels), but also the number of telemetry data (64).
- Channel 8 can be used in S-BUS mode allowing to connect up to 18 S-BUS servos.

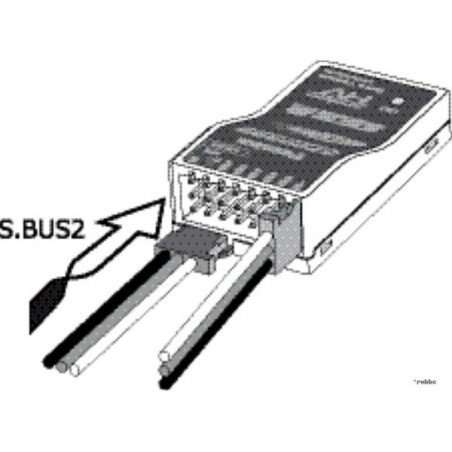

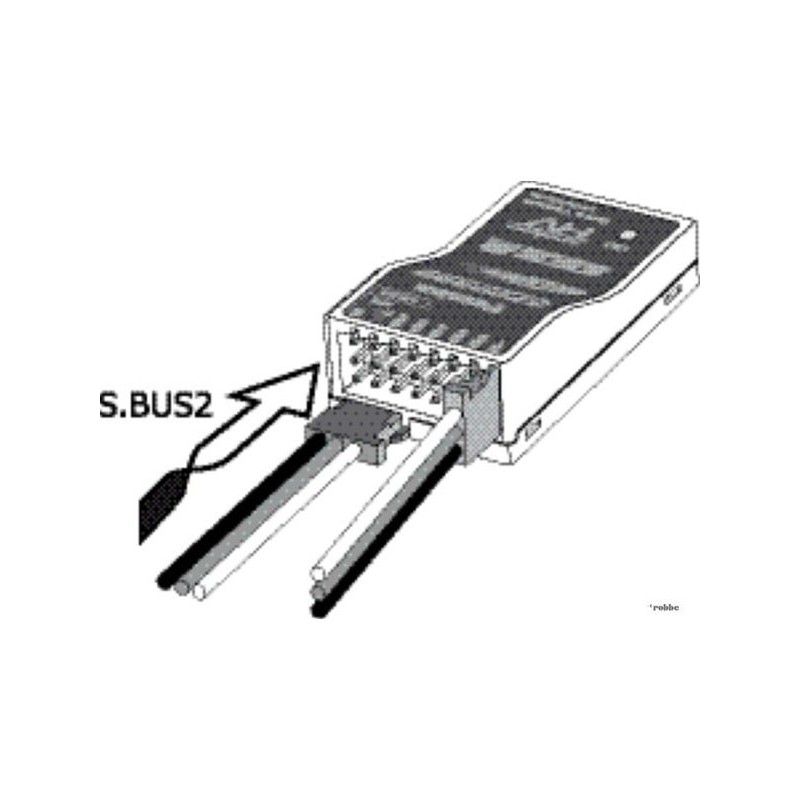

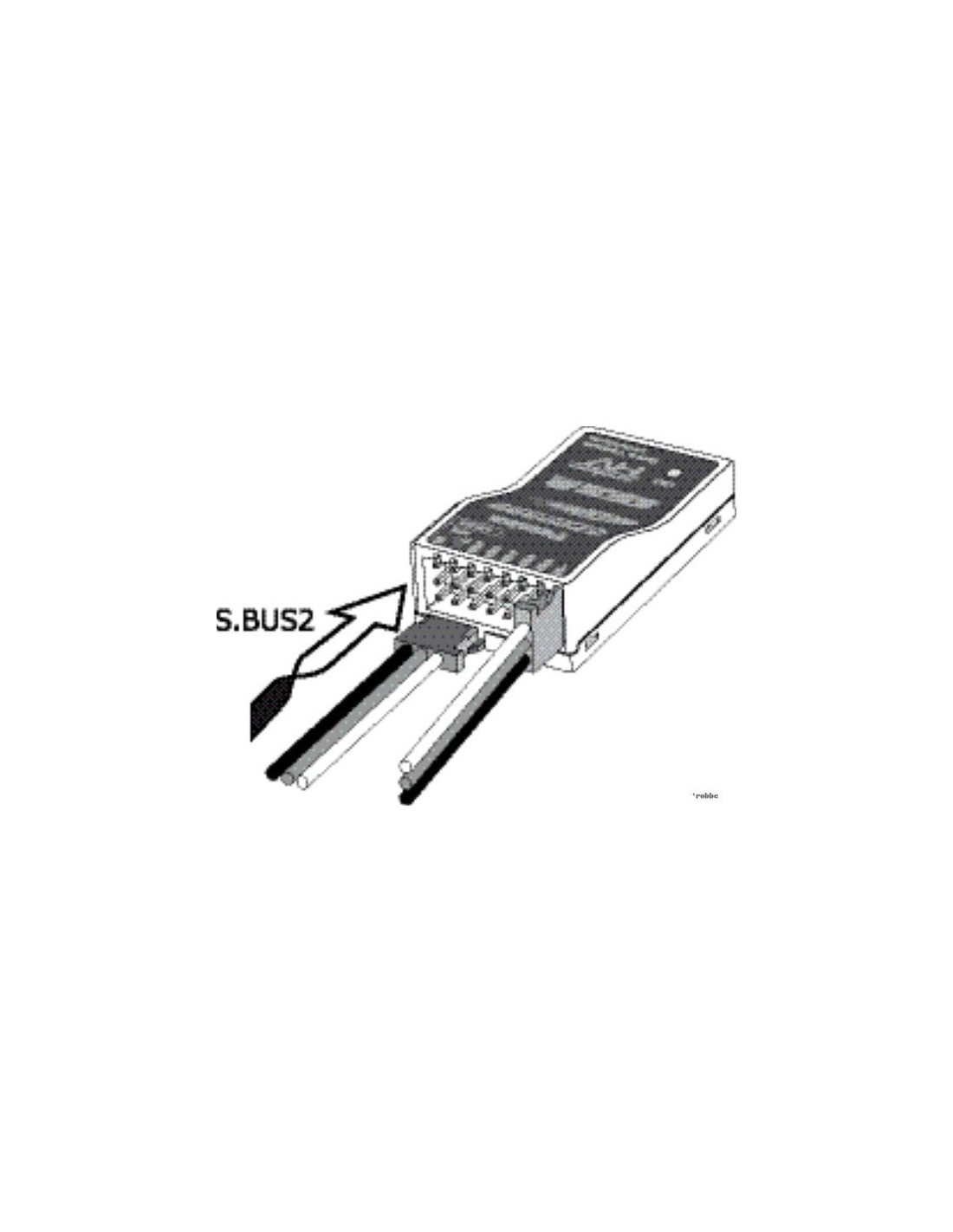

- S-BUS plug 2 to connect probes (the data collected by these probes will be transmitted to the ground via the FASSTest receiver which will display them on a screen or in the form of audible announcements
Technical specifications
- Frequency band : 2.4 - 2.4835 Ghz
- Number of channels : 18
- Transmission system: FASST/ FASSTest

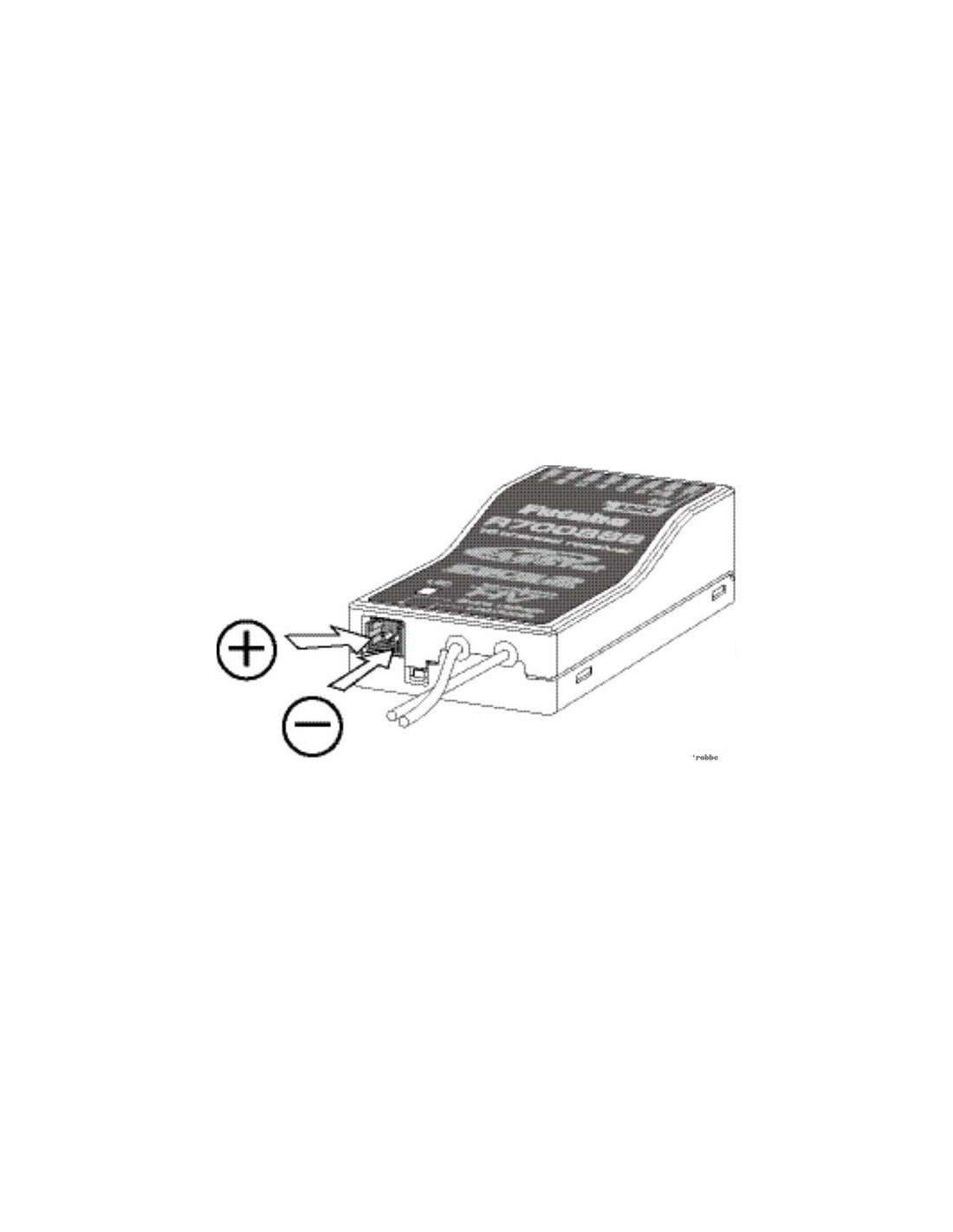

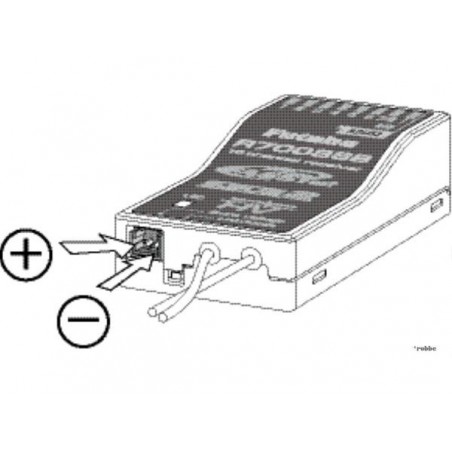

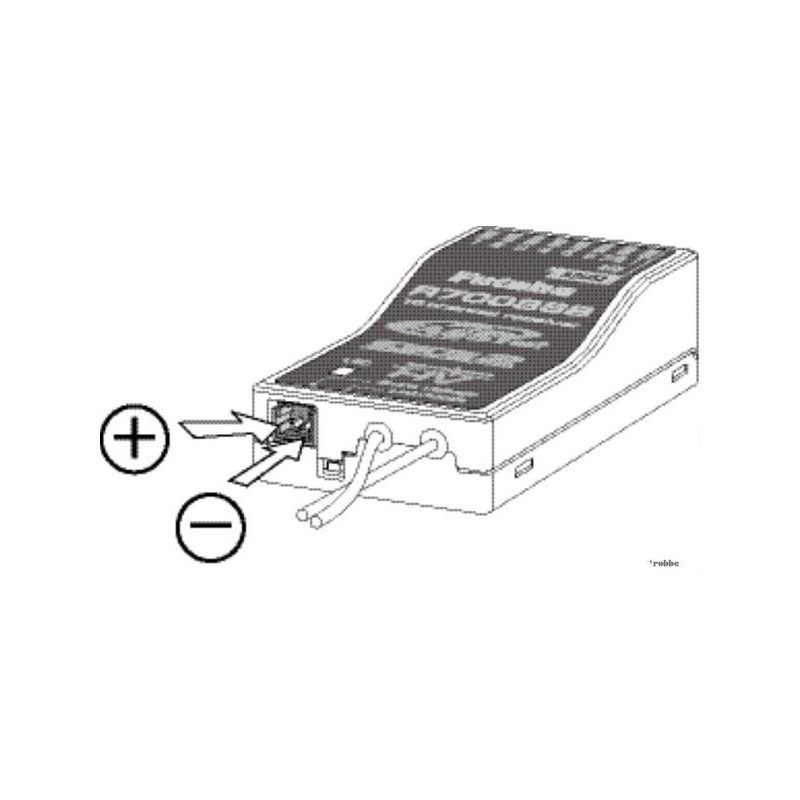

- Supply voltage: 3.7 - 7.4 V (4-5NiMh, 2LiFe, 1-2LiPo)
- Power consumption: 50mA

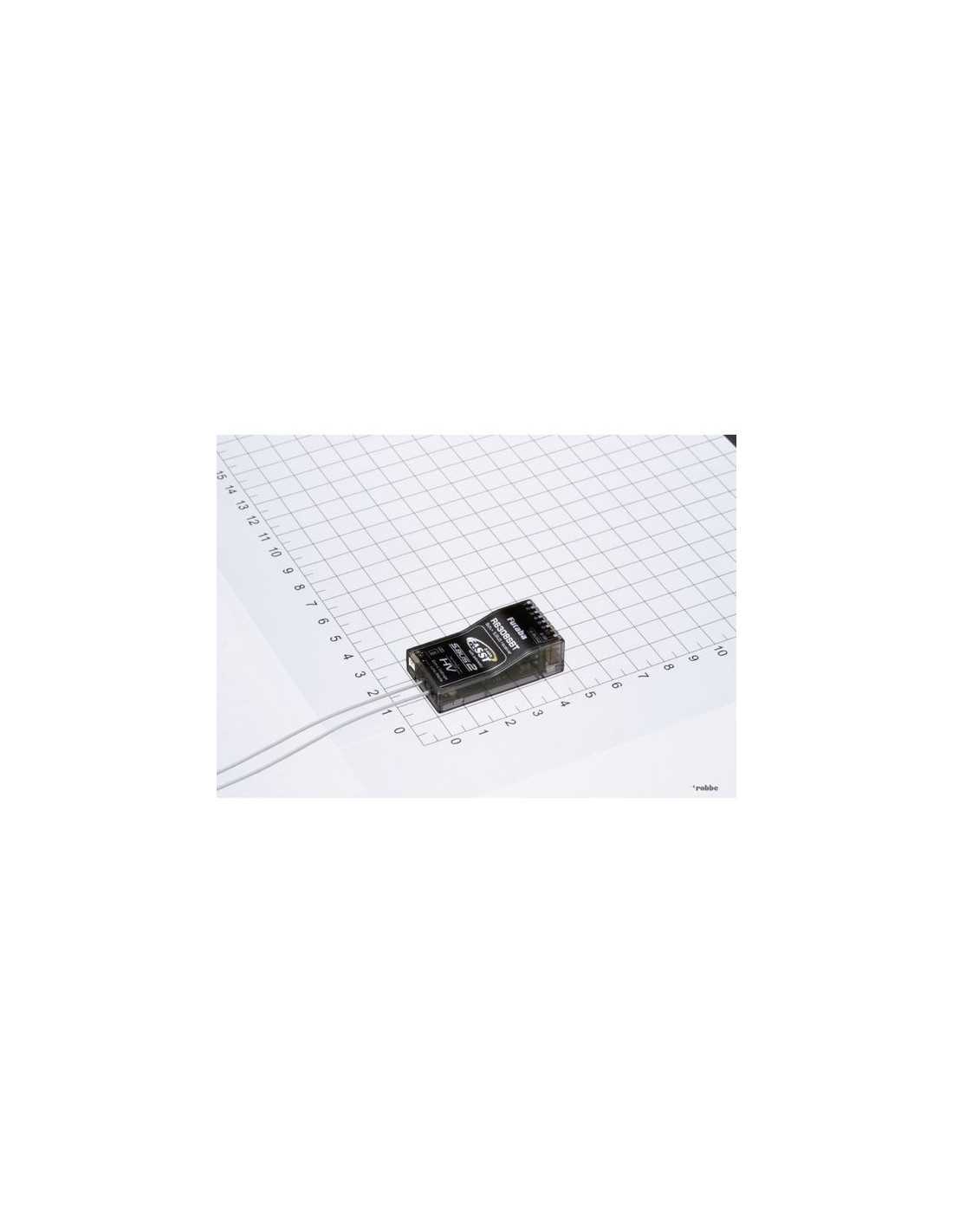

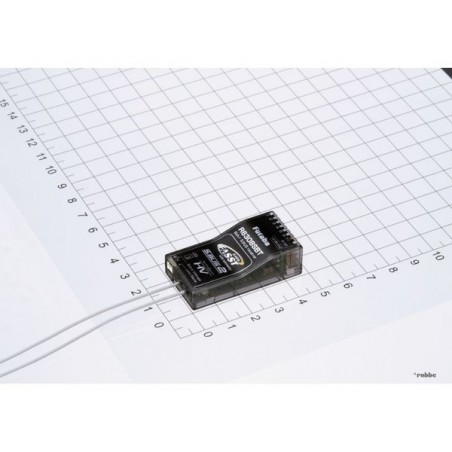

- Dimensions: 47x25x14.3mm
- Antenna length: 14cm
- Weight: approx. 13g
French manual
066-01000674
4513886023804
4513886023804
