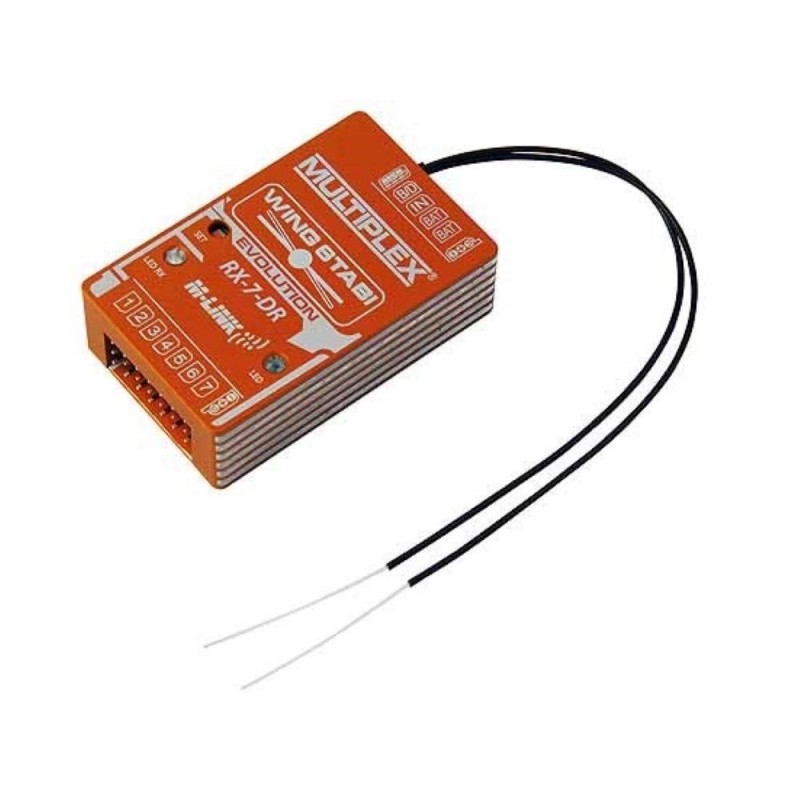

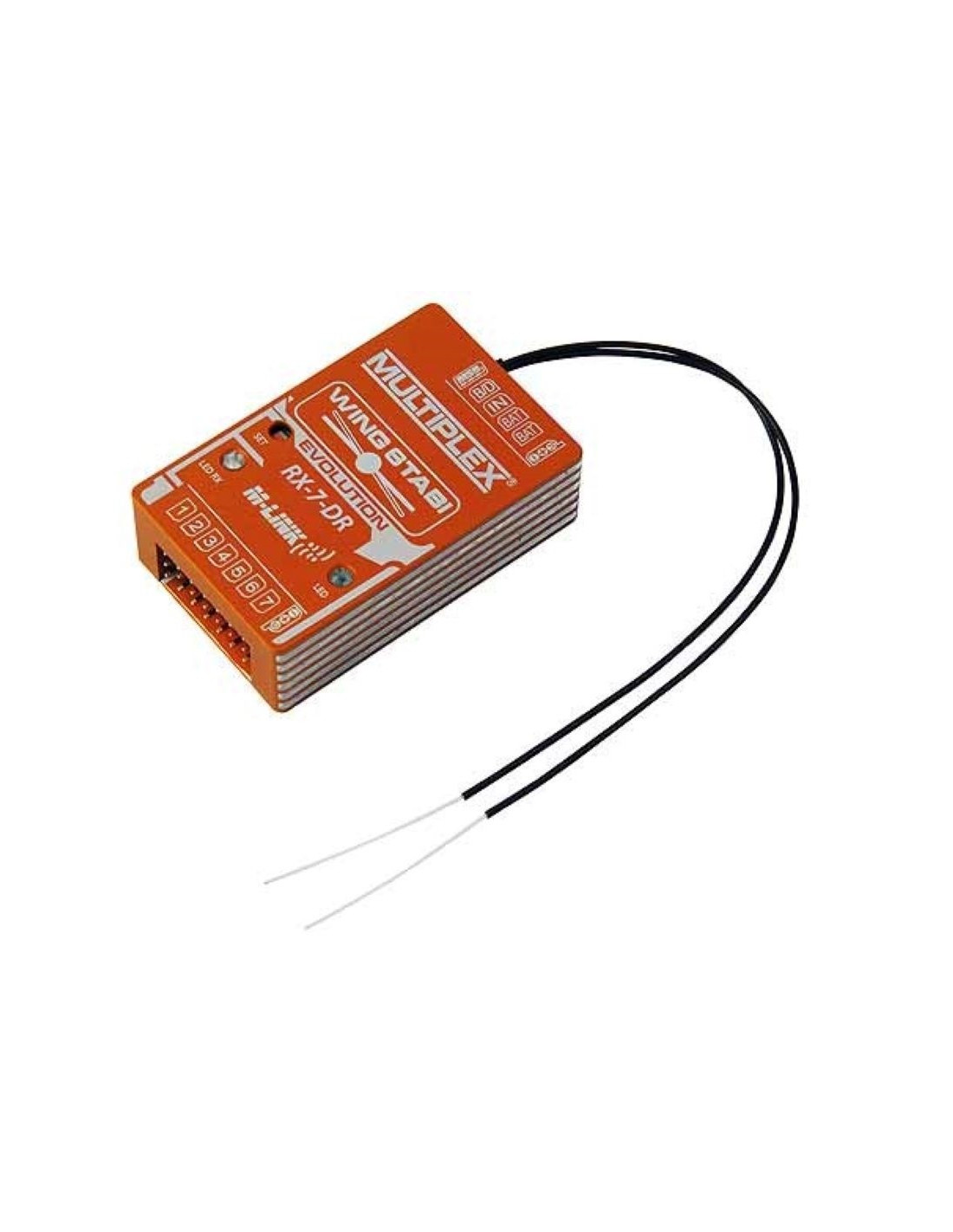

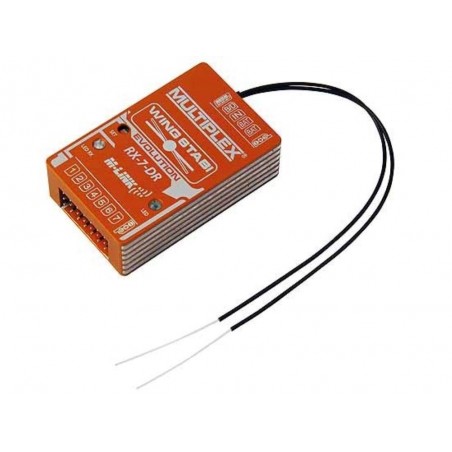

Wingstabi EVOLUTION 9 Channels + M-Link Multiplex

Some details:

• A greatly improved base configuration for immediate takeoff
• The introduction of optional speed-dependent control for optimal performance in all flight conditions
• The introduction of a stop function for a natural and smooth flight stabilization effect
• The possibility of dual receiver operation via SRXL for absolute safety in every flight
• Support for 8-flap wings, canards, optimized FAIL-Safe and much more.
• WINGSTABI Evolution EasyControl mode
  - Fully programmed model on the transmitter (deflections, flaps, expo, phases of flight...)
  - Requires a free channel with a proportional channel
  - Very simple parameterization even without a PC
• WINGSTABI Evolution Classic mode
  - Almost entirely programmed in the WINGSTABI (deflections, mixer, flaps...)
  - Requires a free 3-position switch and at least one free proportional control
  - Complete configuration on PC or via APP.
• Every new Wingstabi Evolution is always delivered as "Evolution EasyControl" and can be reconfigured to "Evolution classic" free of charge using the MPX Launcher.
• Speed compensation via pitot tube or GPS patent: DE 10 2013 201 554 B3 PowerboxSystems.
• WINGSTABI EVOLUTION 7-channel 3-axis gyro system freely programmable for all RC planar models.

Technical data:

• No. of control channels: 7
• Integrated M-Link Multiplex receiver
• Weight: 35 g
• Dimensions (L x W x H): approx. 54 x 34 x 15 mm
• Operating voltage 3.5 to 9.0 V
• Power supply 4 to 6 NiXX, 2S LiPo/Lilo cells
• Permitted operating temperature range -20°C to +55°C

Contents of the box:

(1) WINGSTABI-7 M-LINK
(1) Instructions
(7) 320 mm patch cable
(1) WINGSTABI Easy Control learning plug
