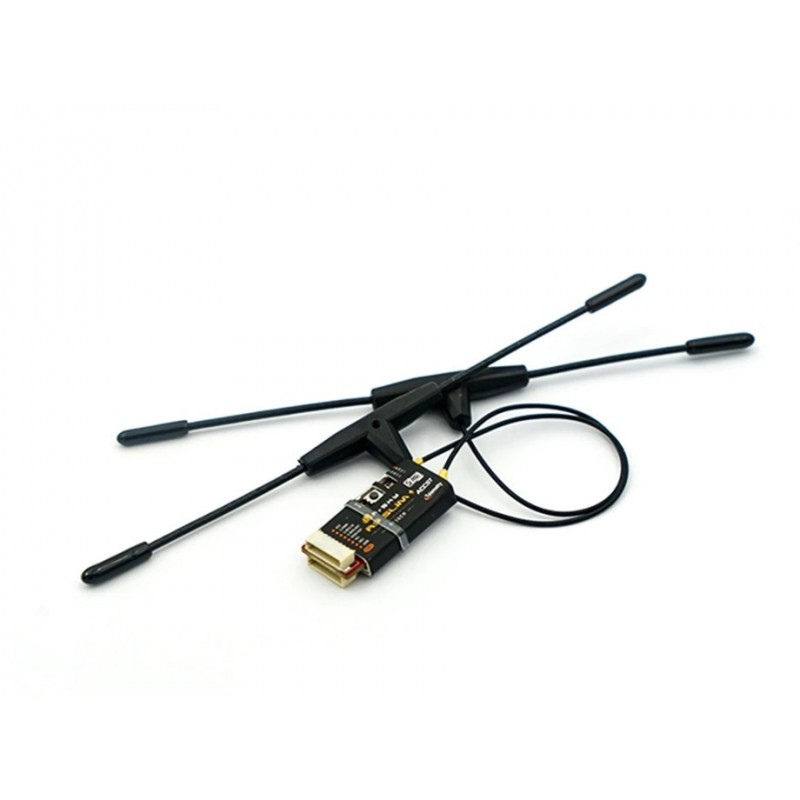

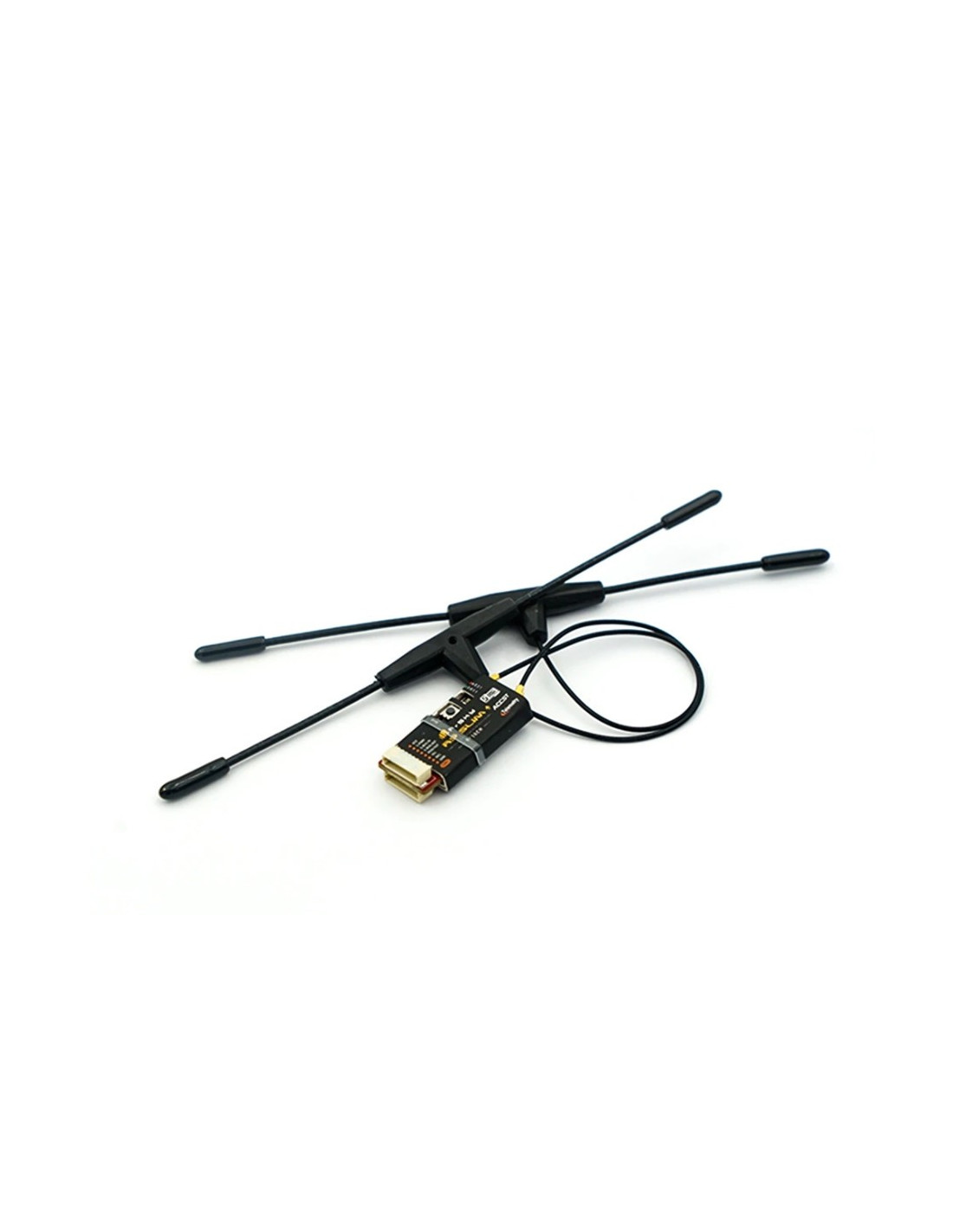

The FrSky R9 Slim + receiver is the updated version of R9 Slim, with optimized performance and 2 detachable antennas. The R9 Slim + has all the features of the R9 Slim with the flexibility to work with more external devices by integrating the SBUS and S.Port reversed outputs.
Specifications
- Dimension: 32*13.5*5mm (L times W times H)
- Weight: 4.3g (with antennas)
- Number of Channels:
- Non-EU version: 6/16CH (telemetry)
- EU version: 6/8CH (telemetry) / 6/16CH (telemetry) / 6/16CH (no telemetry)
- With RSSI output: analog 0 ~ 3.3V
- Operating voltage range: DC 3.5V ~ 12.6V(3s li-battery)
- Operating current: 100mA @ 5V
- Operating range: up to 10km or more
- Upgradeable to new firmware
- Compatibility: R9M and R9M Lite
Specifications
- 915MHz (non-EU version) / 868MHz (EU version)
- Optimized performance
- 2 detachable ipex connector antennas
- Small and conveniently configured
- Low latency and high accuracy
- Support redundancy function
- Smart port enabled and support telemetry data transmission
- Battery voltage detection
- With RSSI output
- With reversed SBUS and S.Port outputs
