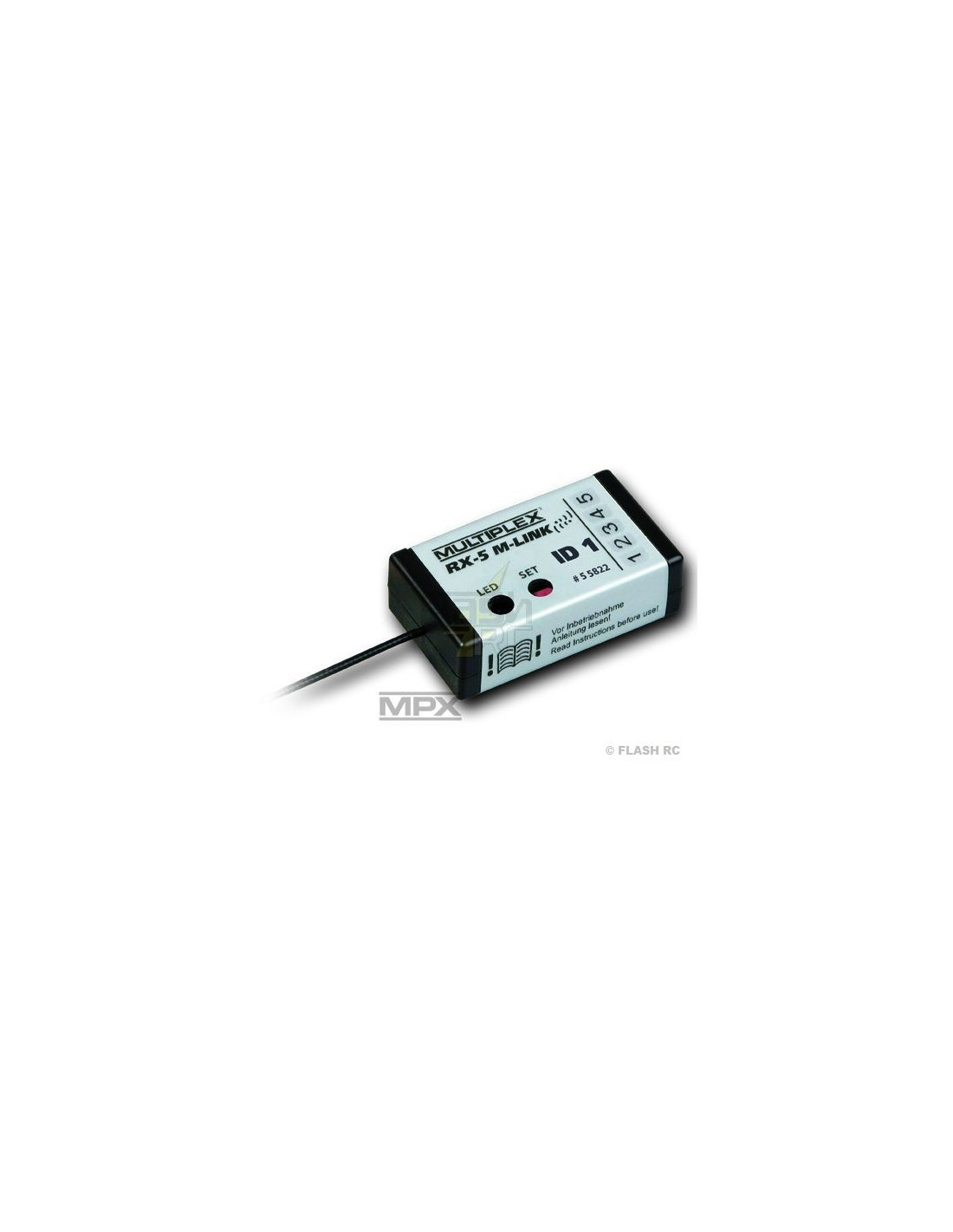

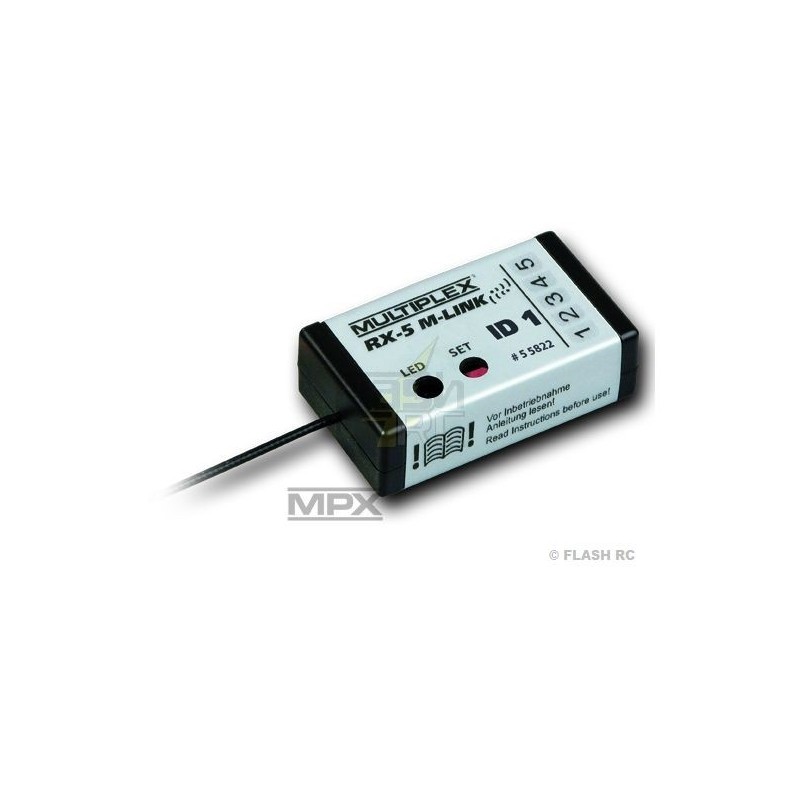

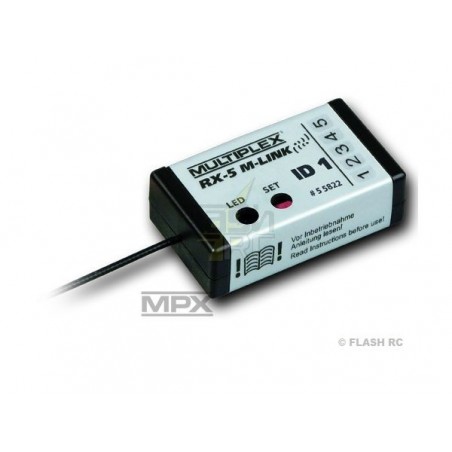

RX-5 M-LINK ID 1 free, 2.4 GHz Multiplex receiver

Technical specifications

• Number of channels : 5
• Modulation : 2.4Ghz FHSS
• Supply voltage : 3.5V ... 9V
• Battery type : 4-6 cells NiXX, 2S LiXX
• Operating temperature : -20°C ... + 55°C
• Dimensions: 34 x 19.5 x 11 mm
• Weight: approx. 7g
• Usage : Helicopter up to 80 cm rotor diameter, Electric or thermal model up to 1.30 m wingspan, Glider or motorglider up to 2m wingspan, Radio controlled cars, Radio controlled boats


General operation

Our SMART SX beginners' transmitter recognizes the memory to be activated via the receiver ID. This means that when a model is changed, the model-specific settings stored in the SMART SX transmitter are automatically activated (e.g. trim position, servo direction of rotation, dual rate). Checks and verifications of the direction of rotation of the servos or a new readjustment of the trim positions, as was known with entry-level transmitters, are therefore no longer necessary.

The following receivers / IDs are available:

ID1 (active SMART SX Model Memory 1)

ID2 (active SMART SX Model 2 memory for EasyStar II)

ID3 (active SMART SX Model 3 memory for EasyGlider PRO)

ID5 (active SMART SX Model 5 memory for RAZZOR)

ID6 (active SMART SX Model 6 memory for FunCopter)

ID21 (active SMART SX Model 21 memory)

ID22 (active SMART SX Model memory 22)

The data set of a model can be overwritten on the transmitter side (SMART SX), or adapted so that the receivers are versatile.
.

The RX-5 ID receivers are compatible with all other M-LINK transmitters even if they do not have ID recognition and correspond, in this case, to an RX-5 light M-LINK 2.4 Ghz receiver.
