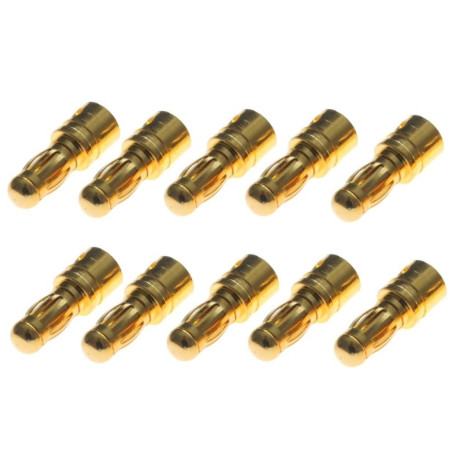

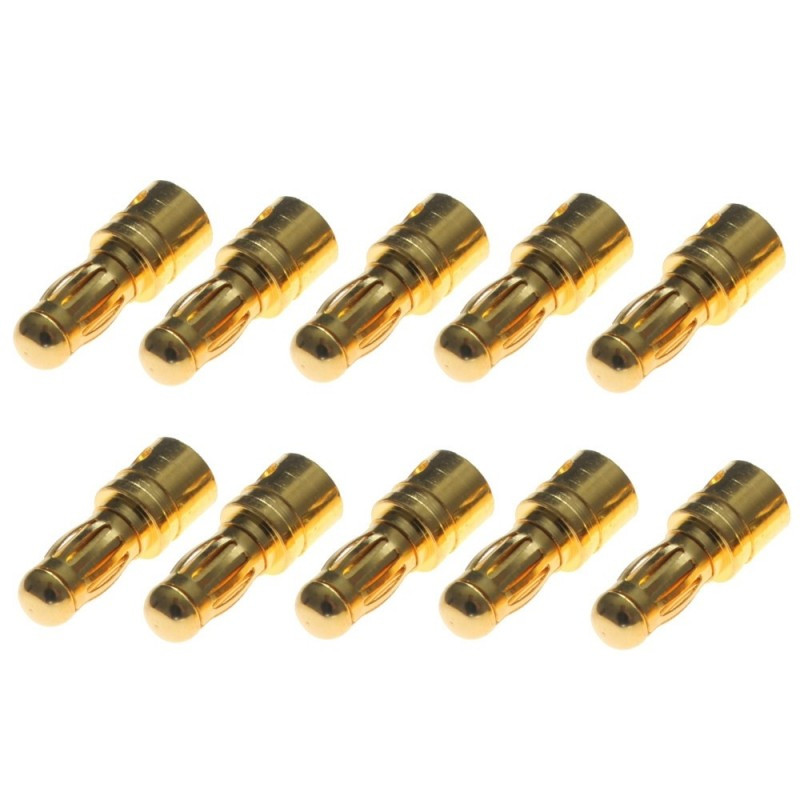

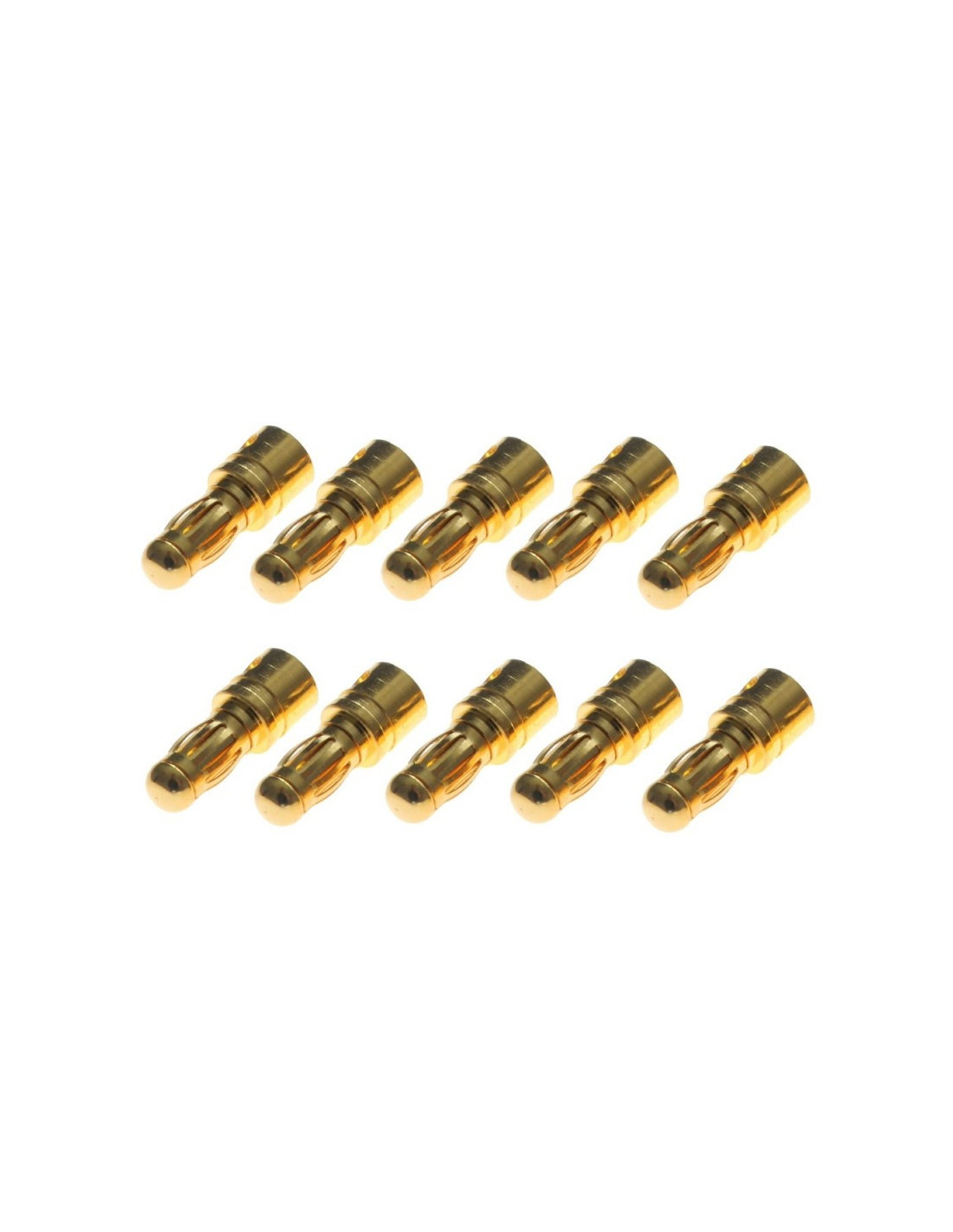

Ø 3.5 mm gold-plated contact connector system

Connectors with a contact diameter of 3.5 mm are made of gold-plated brass. Gold plating improves conductivity and corrosion resistance while reducing wear due to frequent plugging and unplugging, thus extending service life. At just 0.45 mOhm, the connector's electrical resistance is very low, enabling a short-term current load capacity of up to 50 A. To achieve this performance potential, the use of high-quality silicone cables with 14 AWG copper strands or a wire diameter of 2.5 mm² is recommended.

Product features

• Gold-plated contacts: Excellent conductivity and corrosion resistance for long-lasting connections.
• High-quality materials: Made from gold-plated brass for reliability and long life.
• Minimized wear: Reduced wear due to frequent connection and disconnection.
• Low Electrical Resistance: Only 0.45 mOhm, ideal for high current loads up to 50 A.
• Recommended cables: High-quality silicone cables with 14 AWG (2.5 mm²) copper strands.

Applications

Our 3.5 mm diameter gold-plated contact connectors are ideal for :

• RC models (cars, planes, boats)
• Drones
• DIY electronics projects
• Industrial applications
• DIY projects
