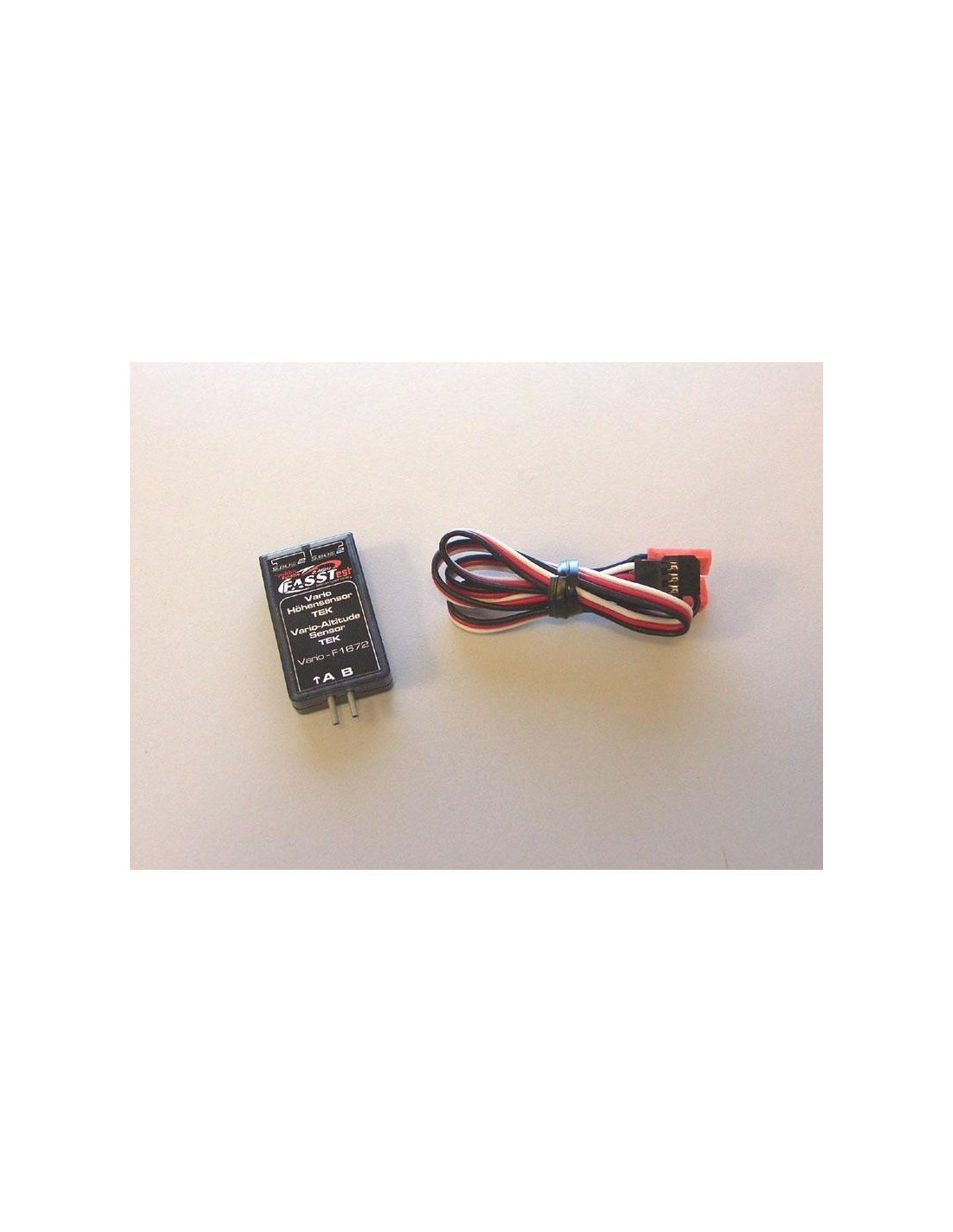

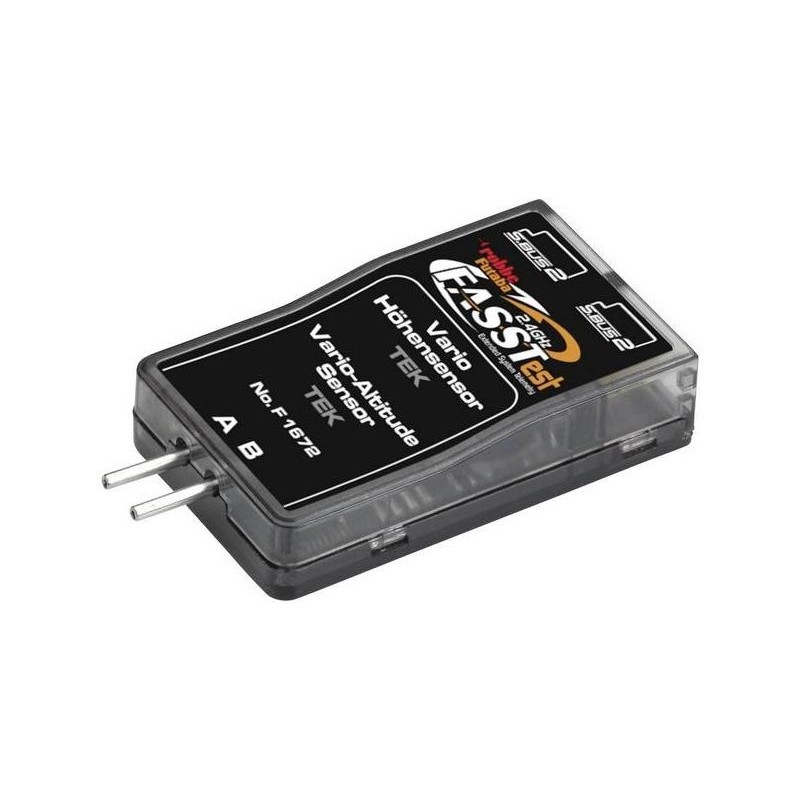

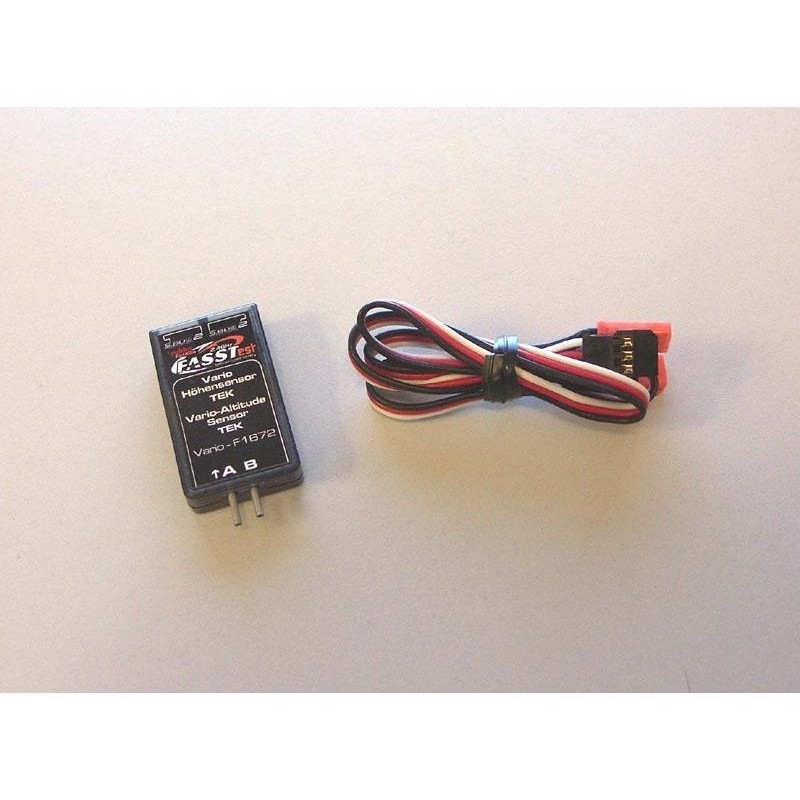

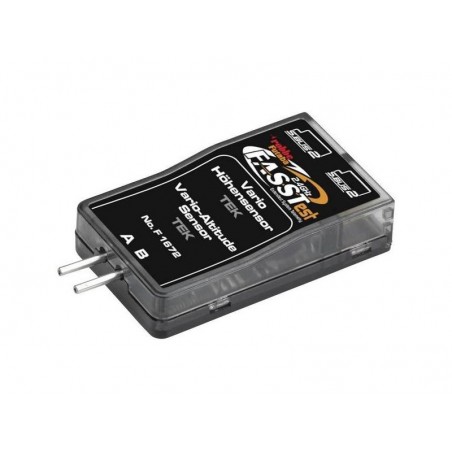

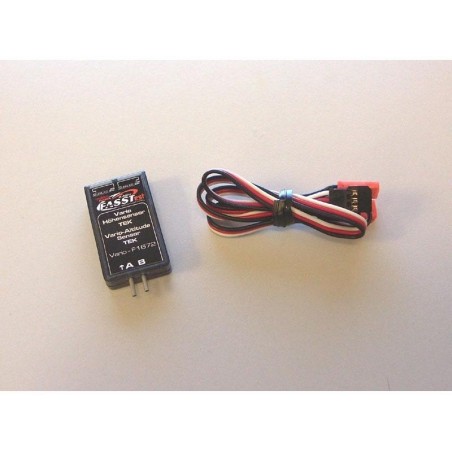

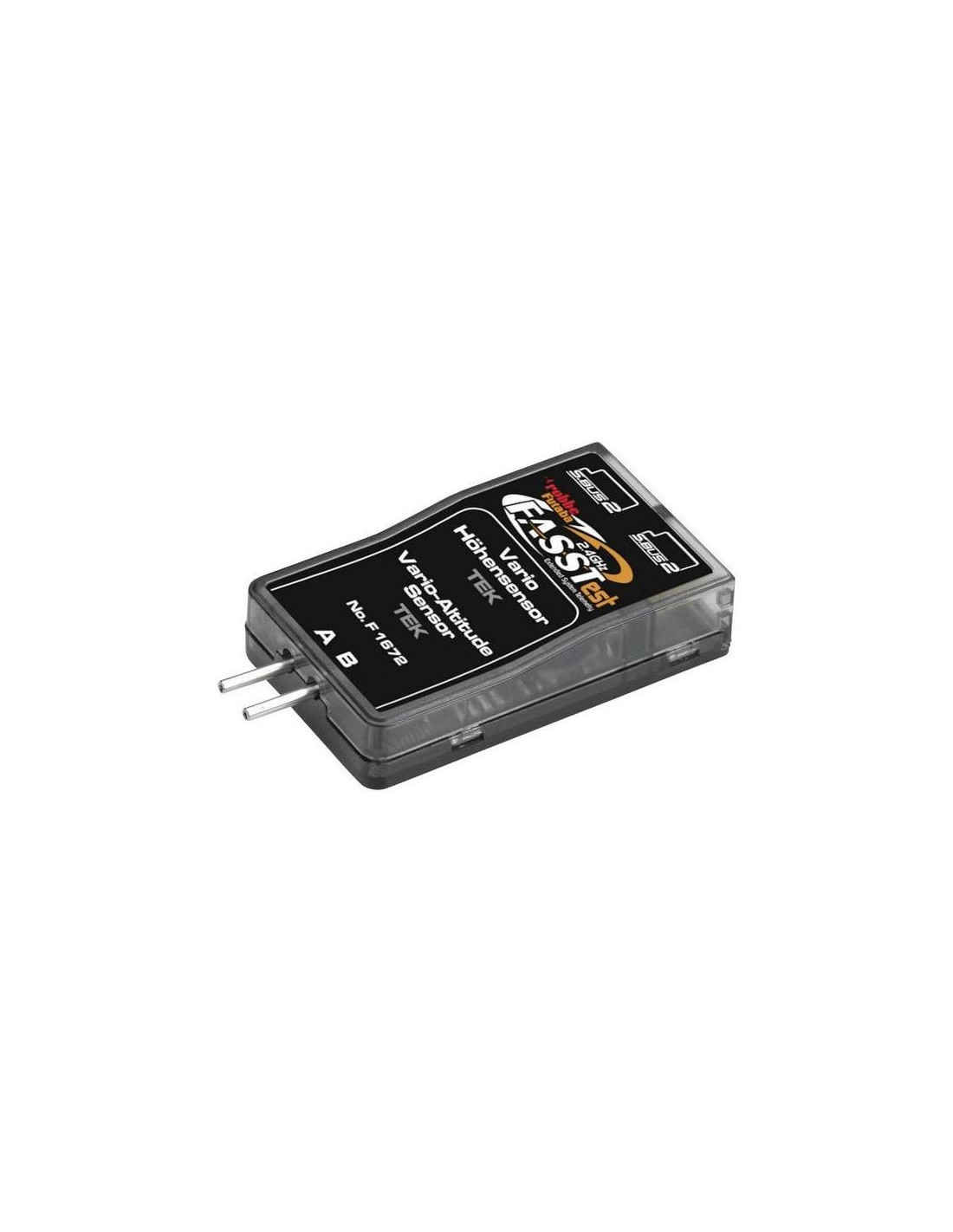

TEK Futaba Variometer Sensor

Features of the vario-altimeter unit:-

A high sensitivity of 2cm/s allows the use of the lowest thermals.
- The smallest altitude variation of the model is indicated.
- The TEK connection allows compensation of "stick thermals", so that speed changes are almost without effect with the vario output, sound and language.
- The second additional pressure sensor allows to give very precise altitude characteristics despite the TEK compensation of the variometer, which also induces an increase in sensitivity.
- This variometer is naturally altitude-compensated (a pressure change of 1mbar at sea level naturally corresponds to another altitude value at 3000 m altitude)
- Pressure to altitude conversion according to the ICAO atmospheric standard with meter accuracy.
- The vario TEK altimeter is particularly insensitive to radiation from 2.4 GHz telemetry transmitters.
- Software update capability via USB connector, i.e. updates and developments can be done by the user himself.
- Very low thermal and long term drift of the pressure sensor by mounting the pressure element on a ceramic support

.Technical data:-

Vario metrological range: -300m/s ...+300 m/s
- Vario resolution: ≤ 2 cm/s
- Altitude measurement: -1000 m ... +9000 m
- Altitude resolution: 1m
- Dimensions: approx. 37,5 x 22,5 x 9,3 mm
- Weight: approx. 6,5 g
- Operating voltage: 3,6 ... 8.4 V
- Power consumption: approx. 5 mA
