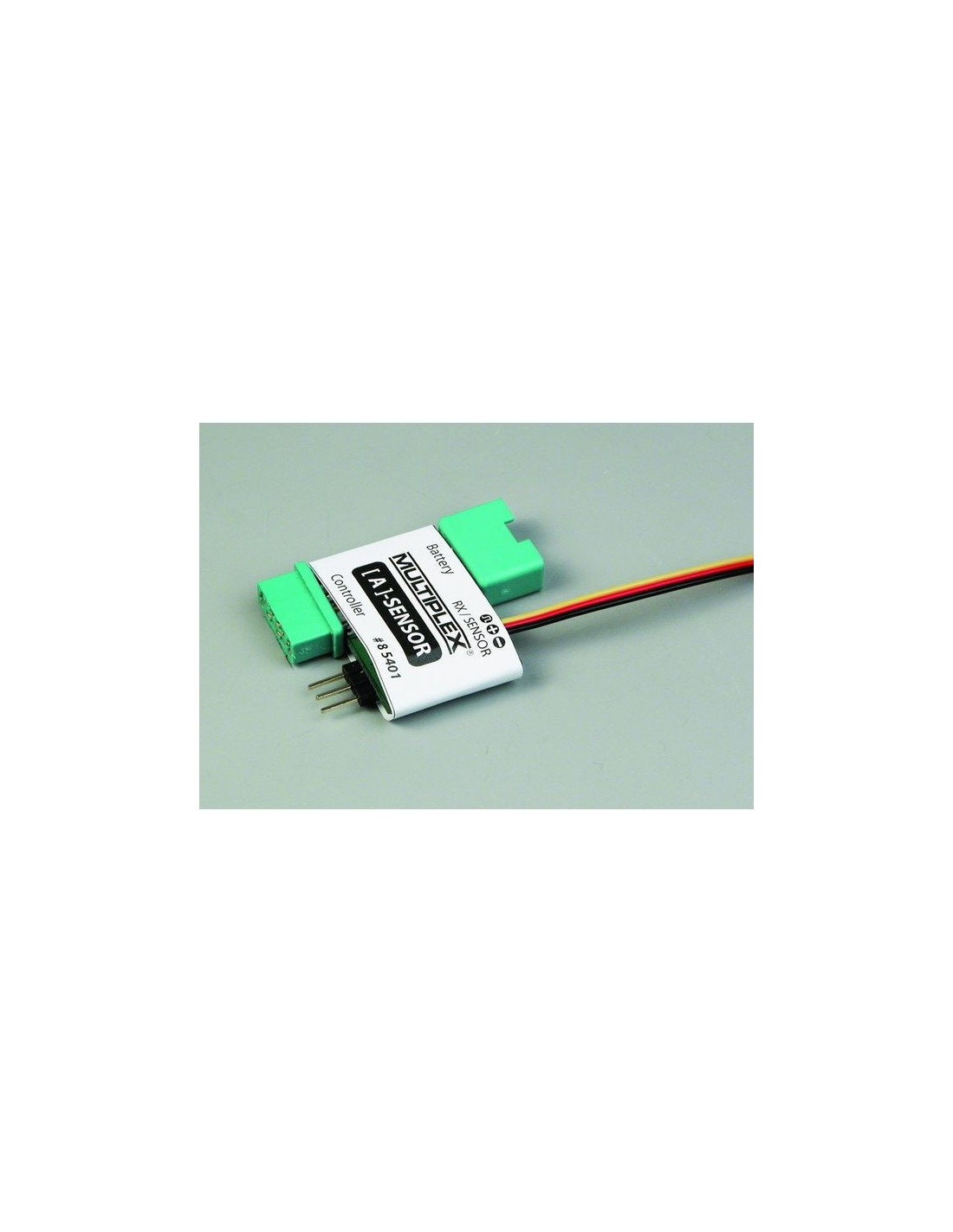

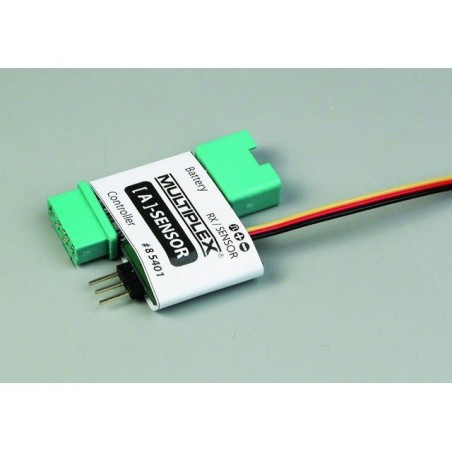

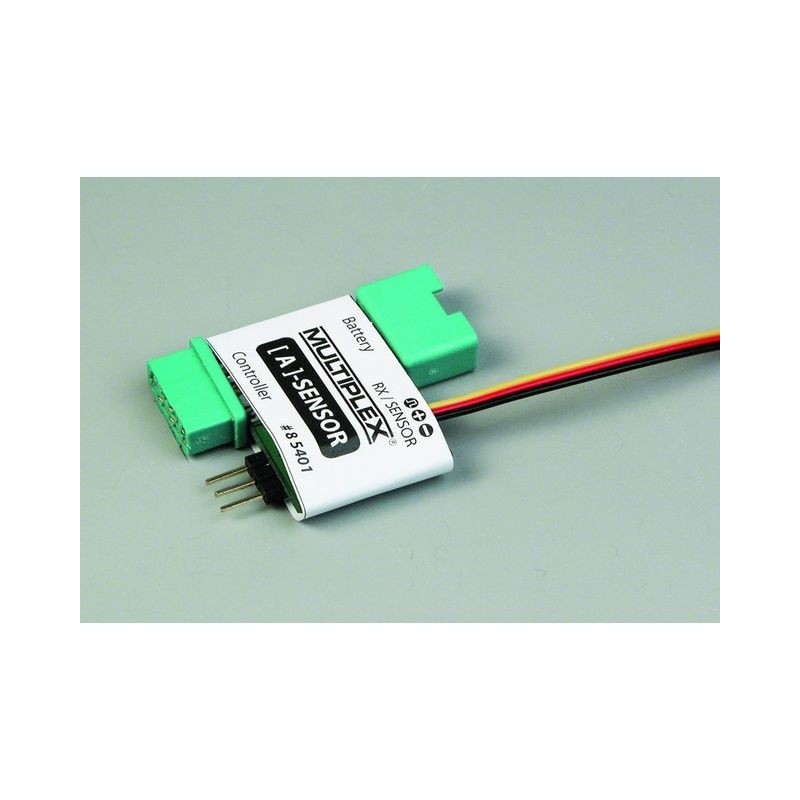

Current sensor for M-LINK receivers, M6 (35A) Multiplex

Activation and settings can be made with the MULTImate or with the Sensor Data Manager on the PC:

Address Address (line of the transmitter display), under which the intensity is displayed
High alarm threshold Upper intensity threshold, above which an alarm is triggered on the transmitter
Low alarm threshold Lower intensity threshold, above which an alarm is triggered on the transmitter
Option Additional display of the min, average or maximum currents
Option Address Address (line in the transmitter display), under which the optional value is displayed
Address (line in the transmitter display), under which the battery capacity is displayed,
consumed capacity or remaining capacity
Battery capacity Capacity of the battery that is connected
Display What should be displayed? the battery capacity, the consumed capacity or the remaining capacity
Alarm Capacity threshold, above which the alarm should be triggered

Technical data:

Max. current 35 A
Resolution 0,1 A
Housing dimensions 33 x 31 x 7 mm
Weight approx. 12 g
