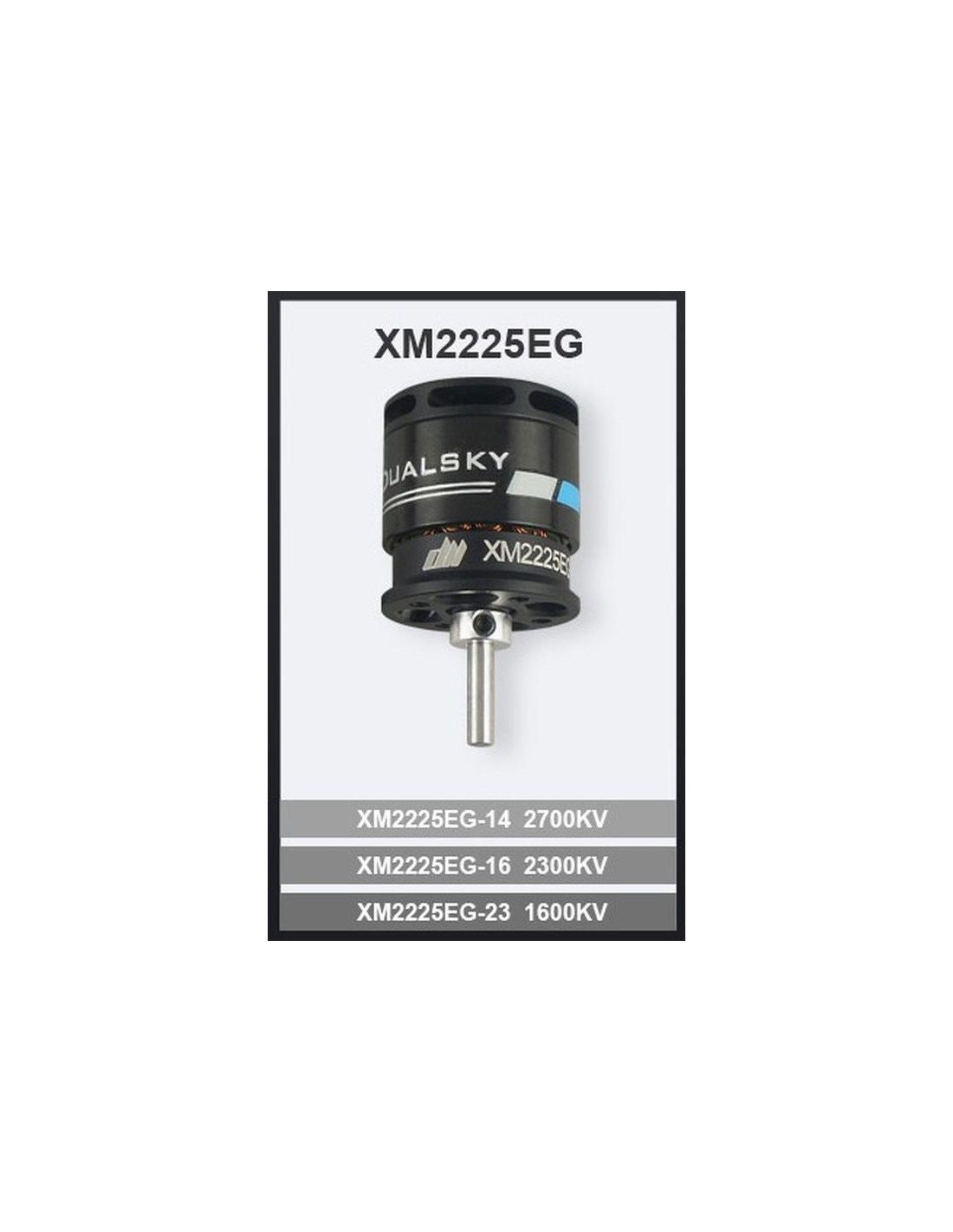

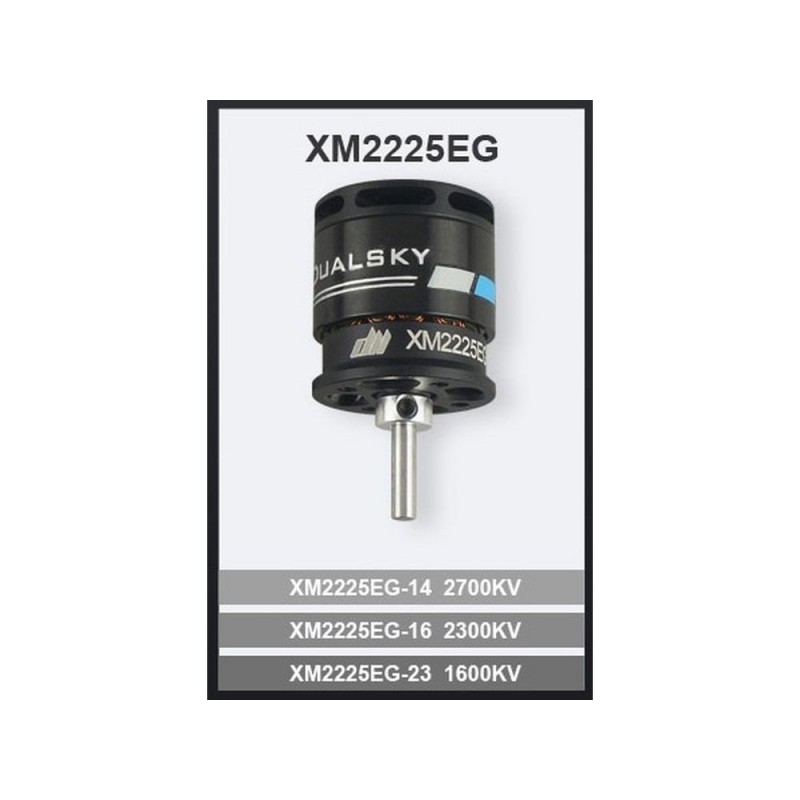

Dualsky XM2225EG-16 motor (32g, 2300kV, 178W)

Last items in stock

€39.16

Tax included

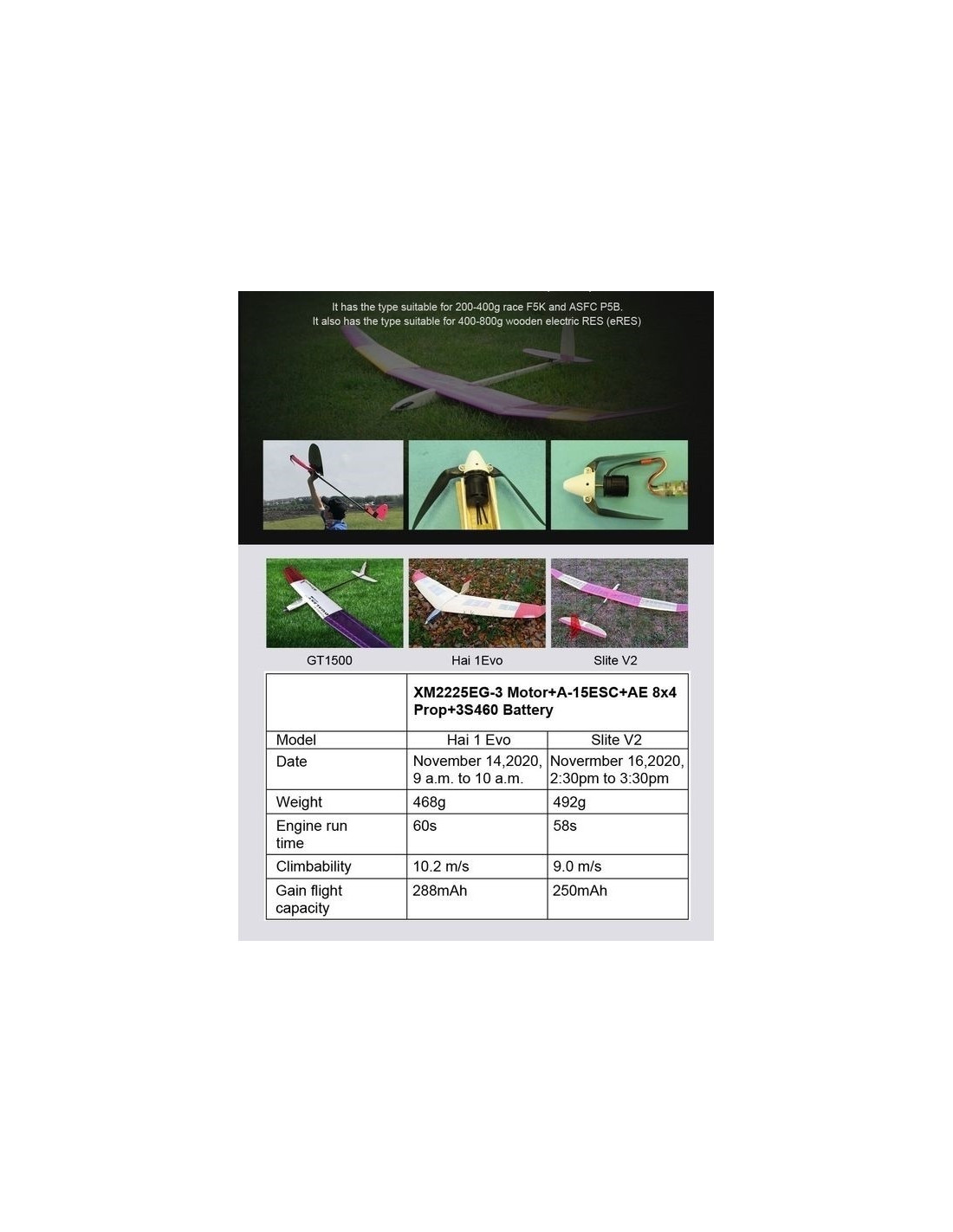

The Dualsky XM2225EG-16 motor is particularly suitable for the 300g F5K glider

Dualsky was founded in early 2004.
Dualsky produces Xmotor brushless motors, Xcontroller brushless ESCs, Xpower high-speed Lipo batteries and other accessories.

Some details:

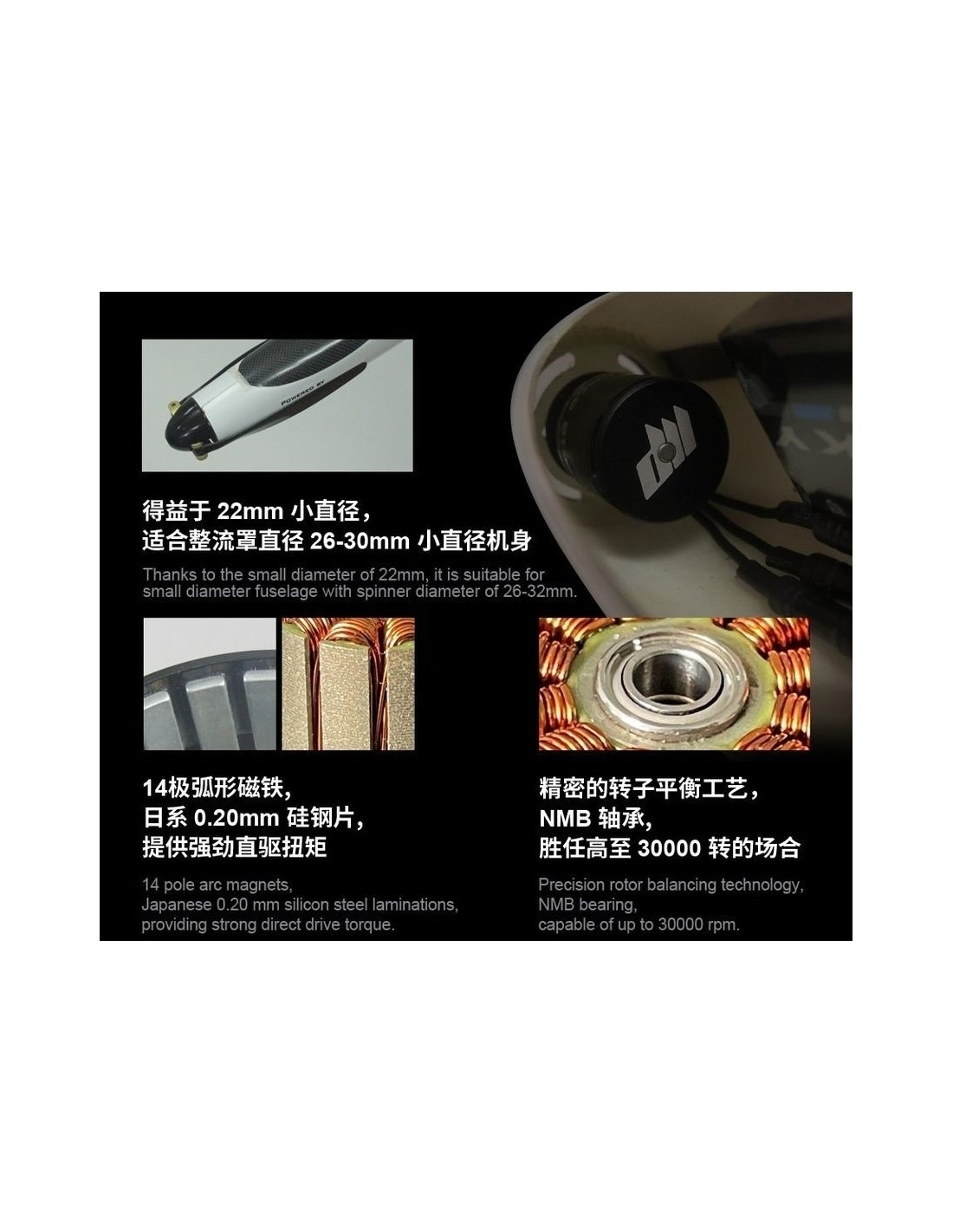

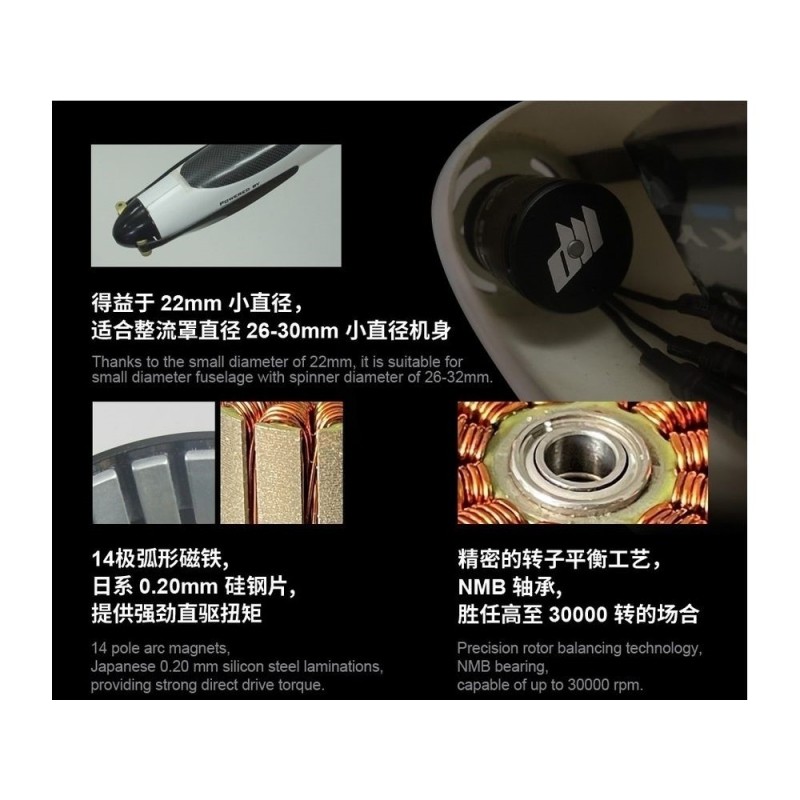

14 poles composed of curved magnets, Japanese 0.20mm silicon laminated steel, offering high direct drive torque.
Precision rotor balancing technology, NMB bearing, up to 30000 rpm

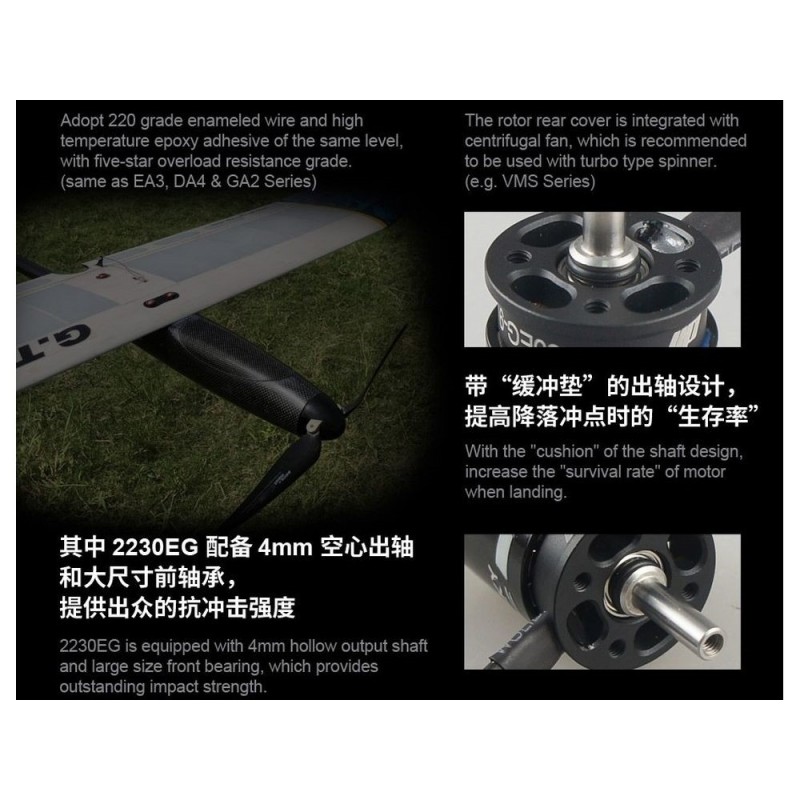

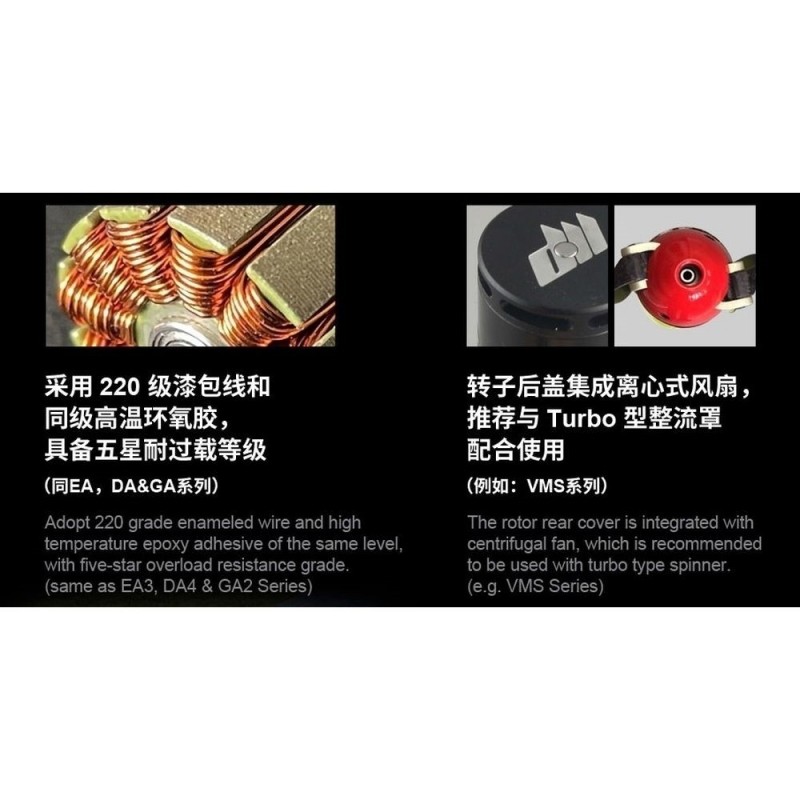

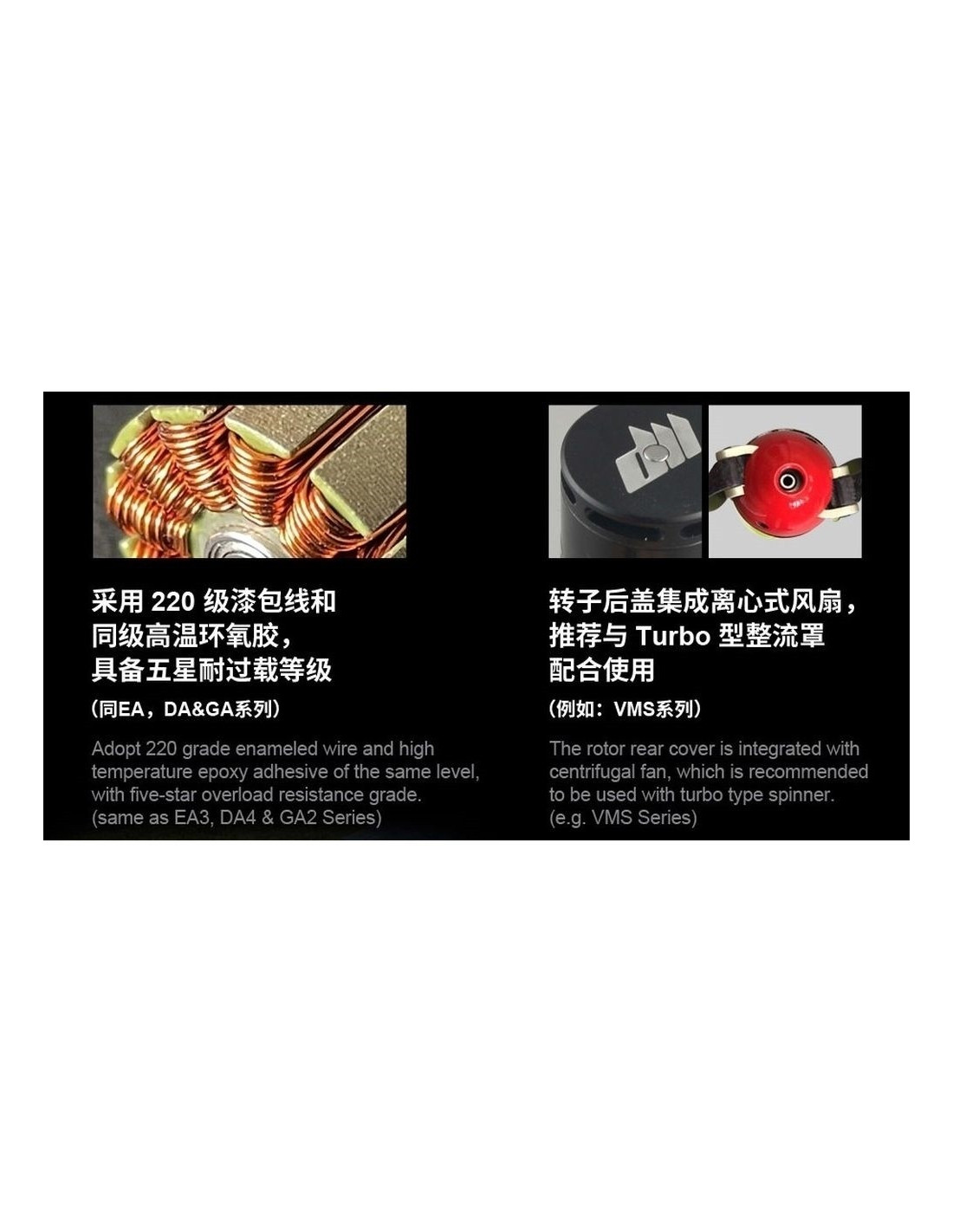

Uses 220 grade enameled wire and the same level of high temperature epoxy adhesive, with five-star quality overload resistance
The rear rotor flange incorporates a centrifugal fan, which is recommended for use with a vented cone propeller (Aeronaut for example)

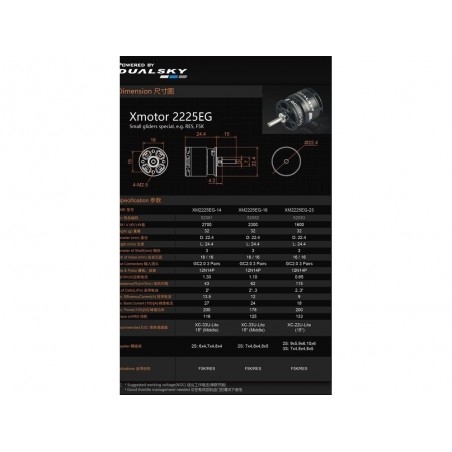

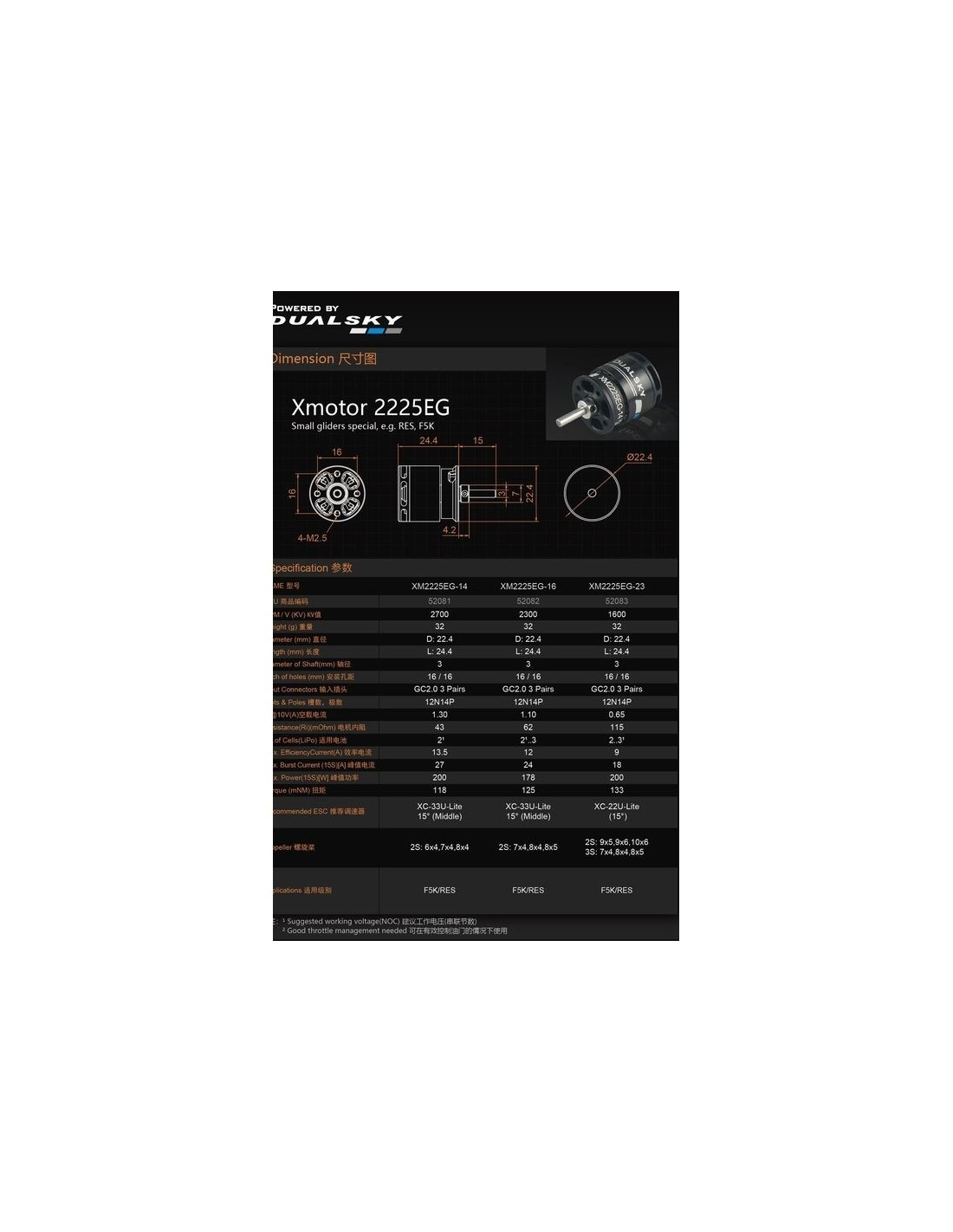

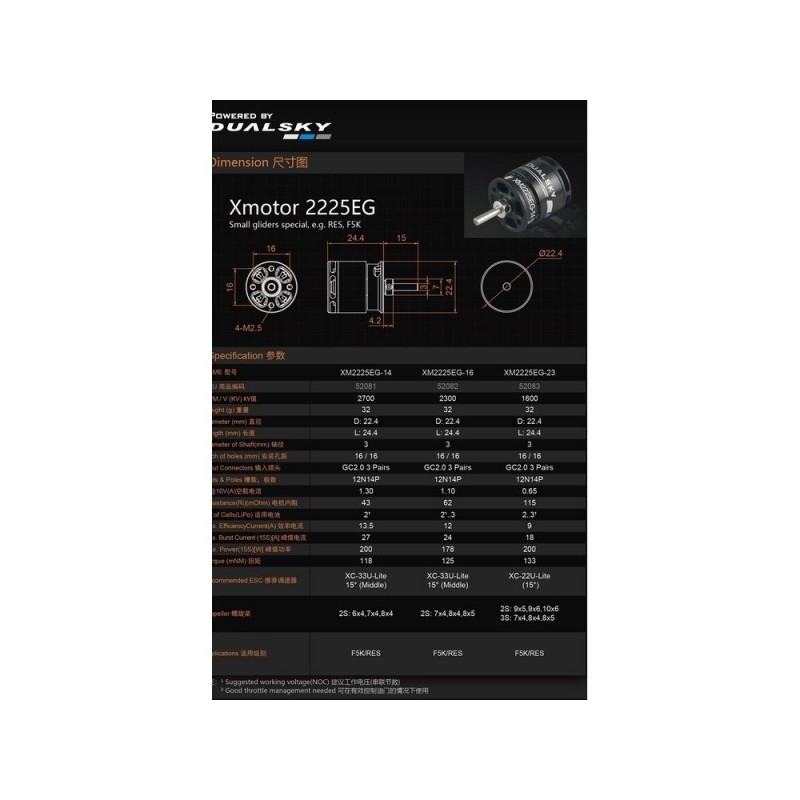

Technical data :

Recommended application: F5K / RES
Diameter: 22.4mm
Length: 24.4mm
Weight: 32g
kV : 2300 rpm/V
Shaft diameter : 3,00mm
Connectors: GC2.0 (3 pairs)
Recommended voltage: 2S LiPo
Max current (15s) : 24A
Max power (15s) : 178W
Recommended propeller: 2S 7x4, 8x4, 8x5

Contents of the box:

(1) XM2225EG-16 motor
(3) Pair of GC2.0 connectors

Additional product(s) needed

Brushless controller 24A or more

Engine weight: from 25g to 99g
Motor power in Watts: 178
Revs/ minute Kv: 2300
Type of tree: standard

Reference 016-XM2225EG-16

EAN13 6941047120822

MPN 6941047120822
