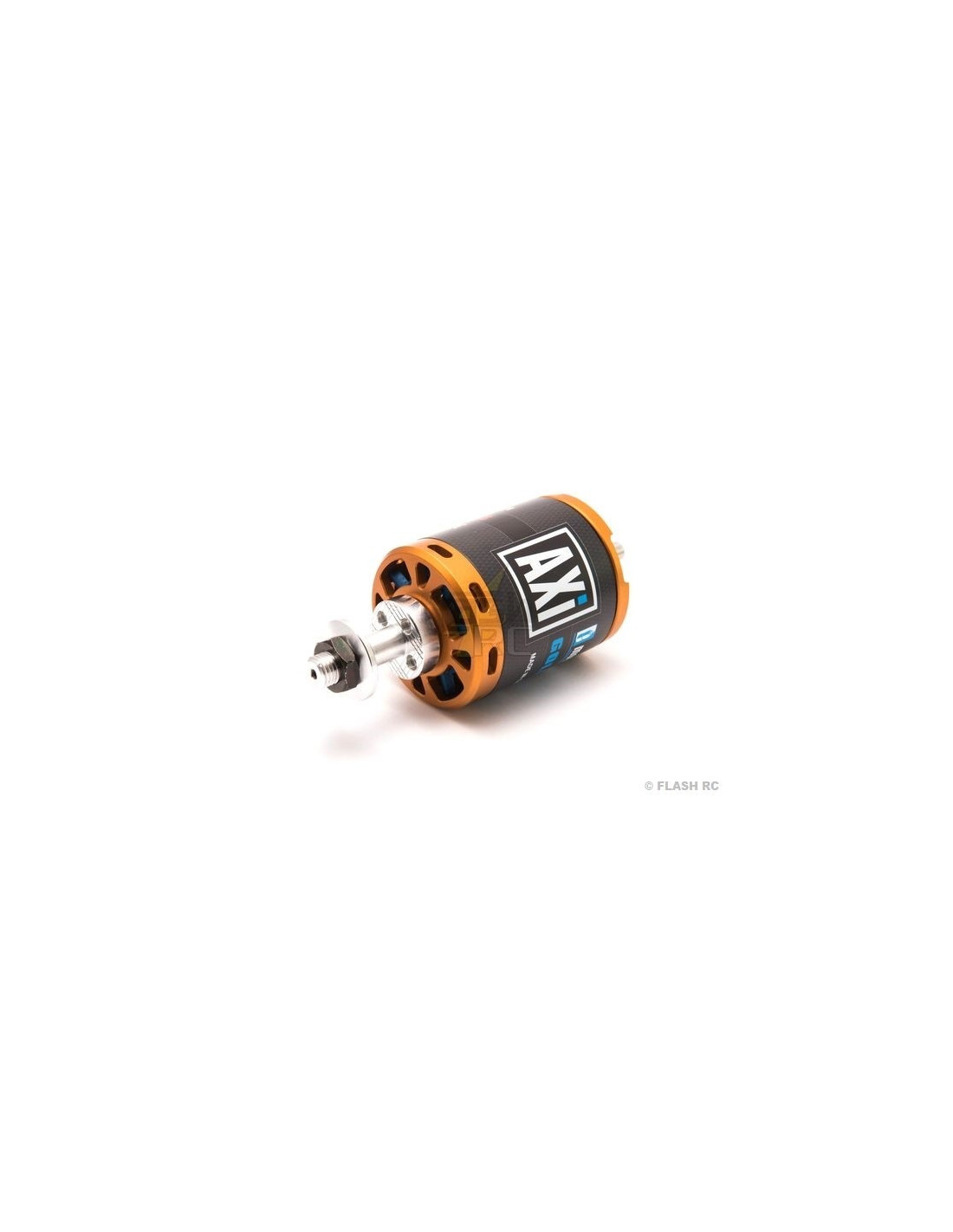

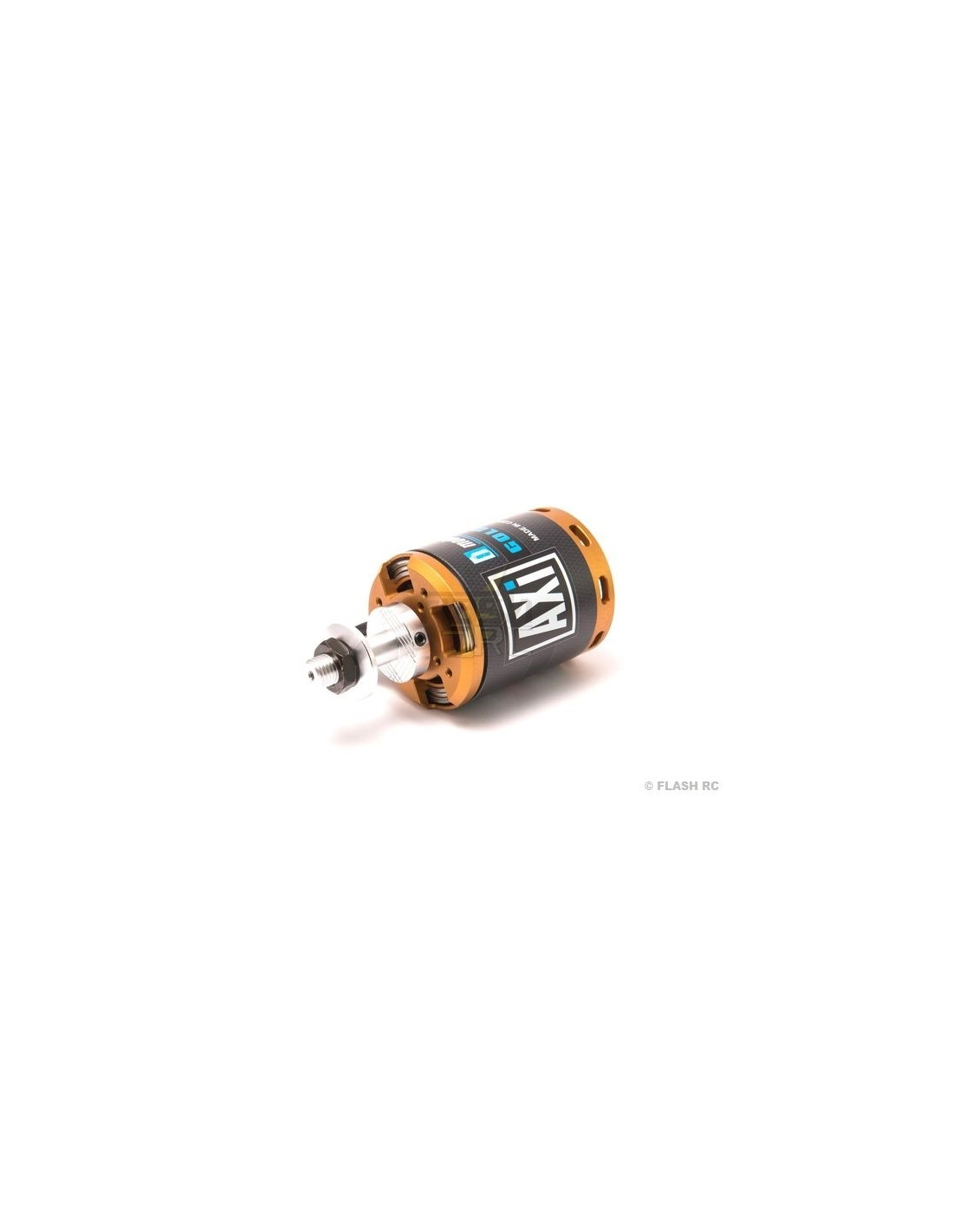

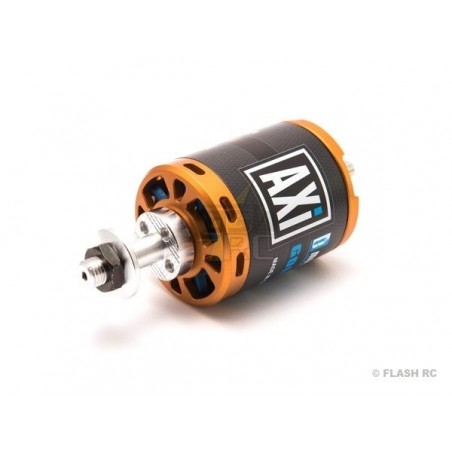

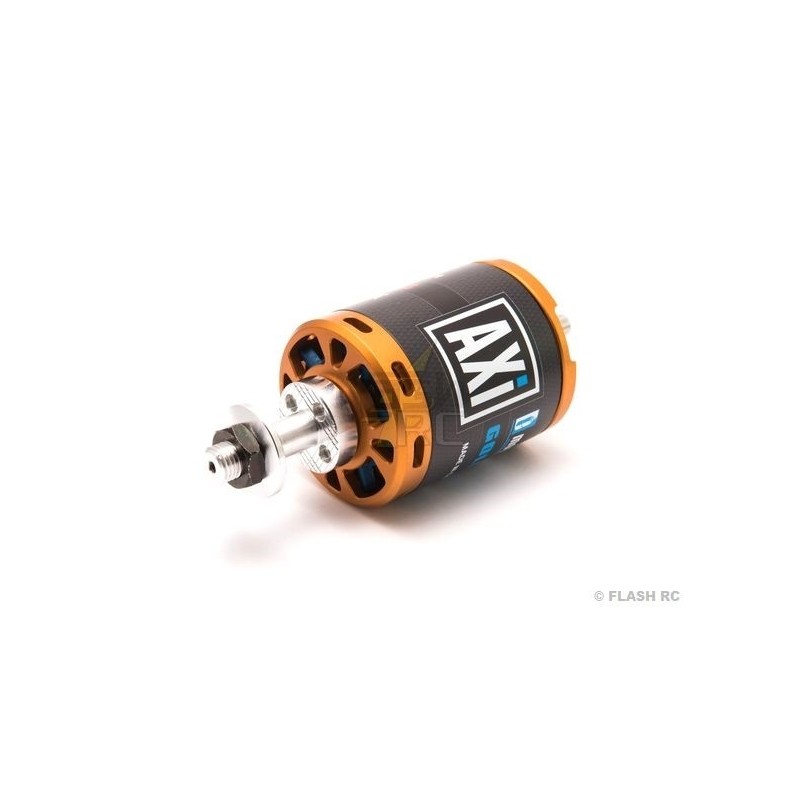

AXI 5345/18HD V2 GOLD LINE motor (995g, 171kv, 3510W)

Last items in stock
€291.58
Tax included

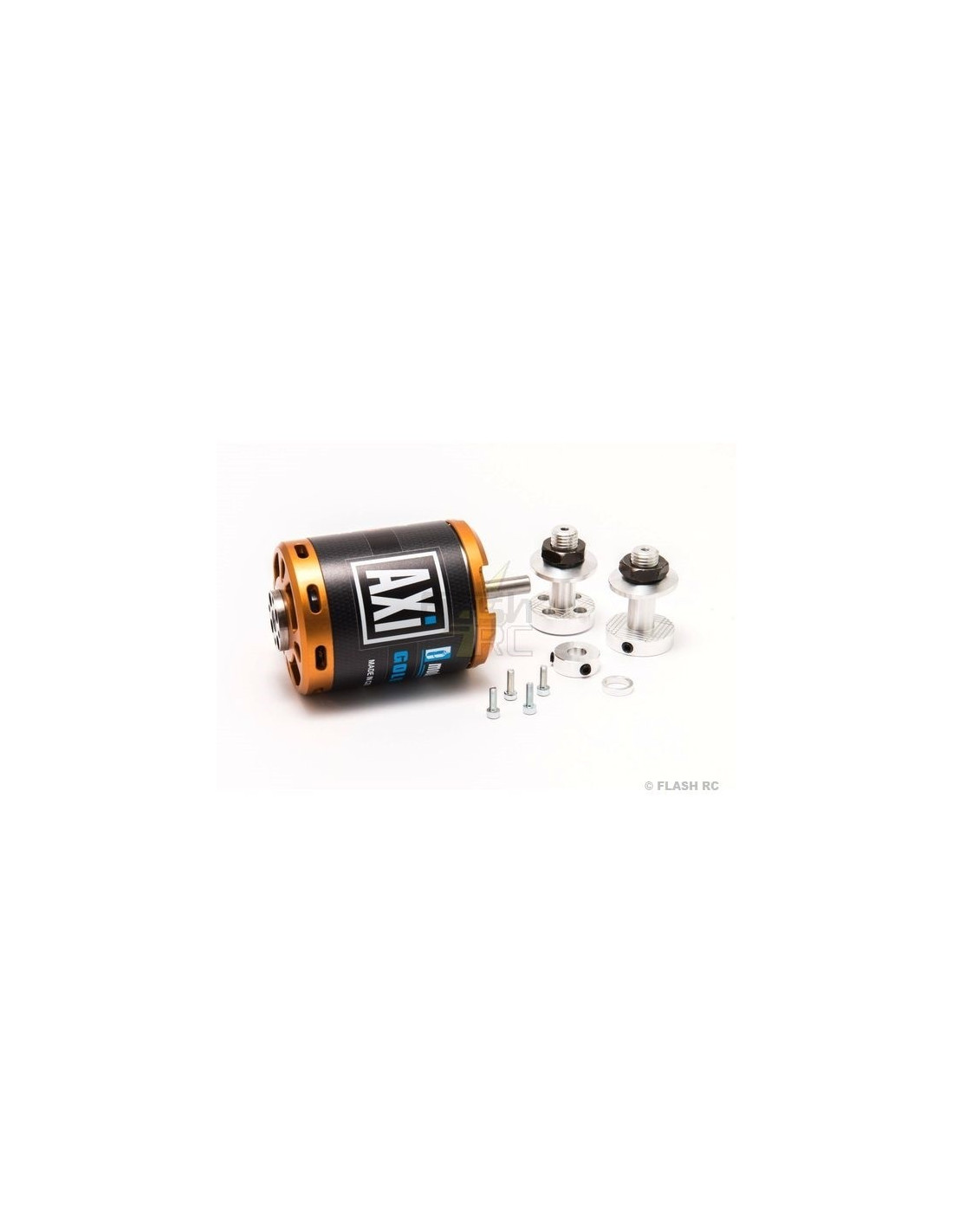

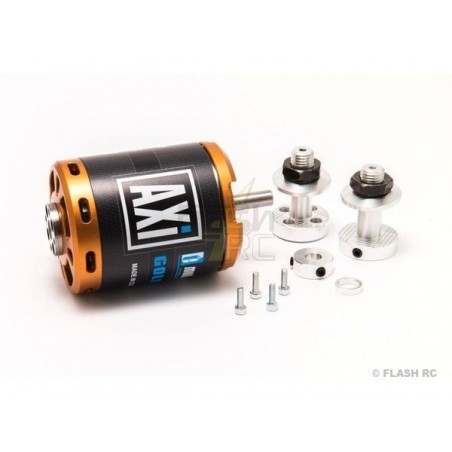

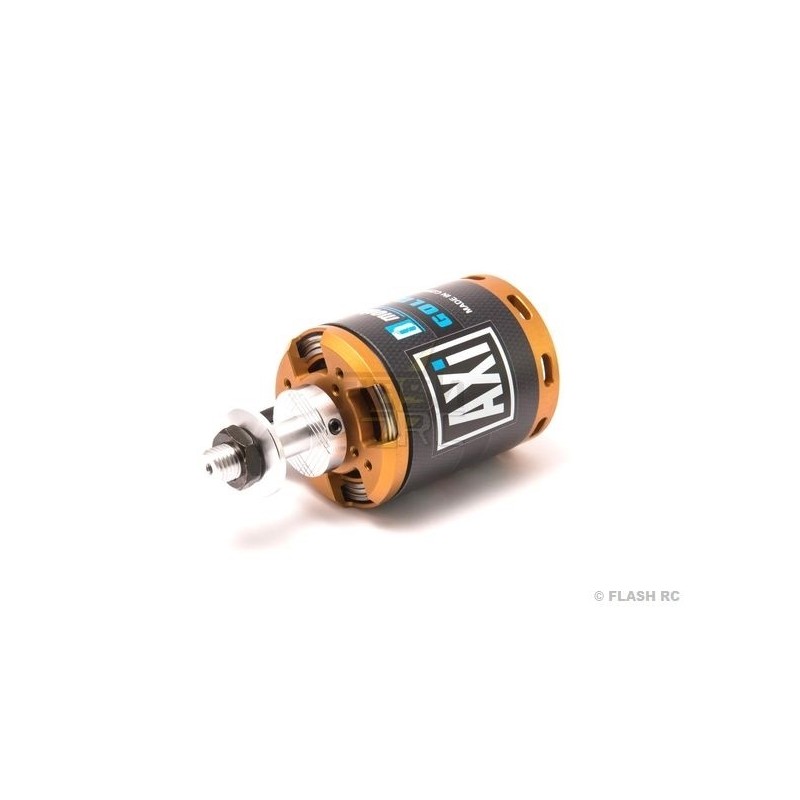

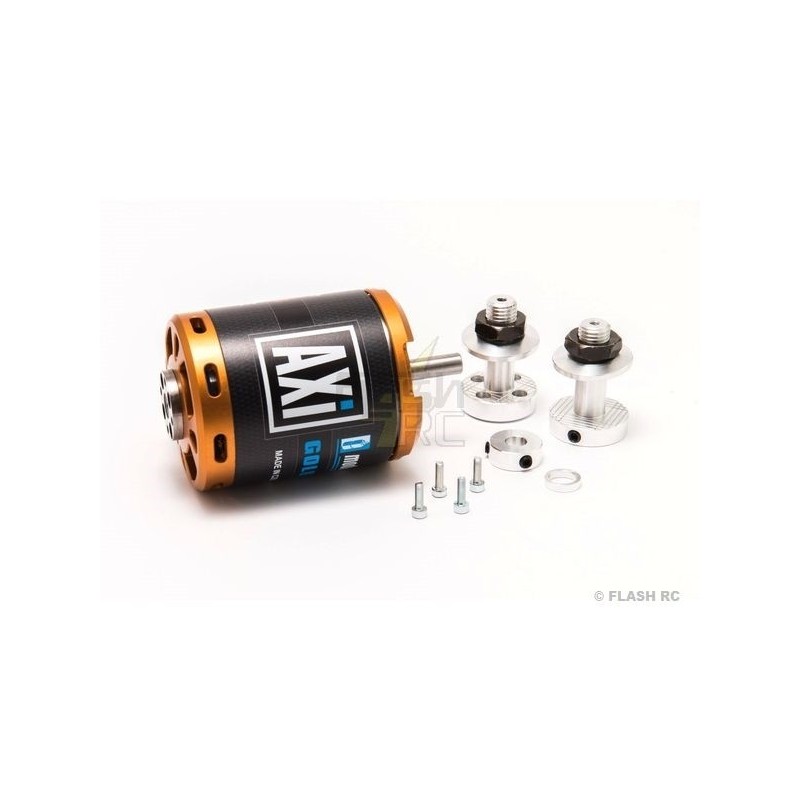

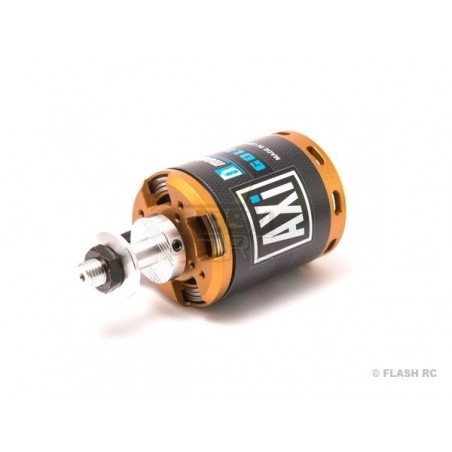

The AXI 5345/18 HD V2 GOLD LINE is recommended to be powered by 8 to 12S LiPo batteries for 3D type models up to 8000g and trainers up to 15000g at take-off.This highly efficient brushless motor with neodymium magnets and rotating cage is manufactured using the latest technology of the finest quality materials. The 8mm hardened steel shaft is supported by three ball bearings, and the overall robust construction ensures a long service life.Due to its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox.The quiet operation makes these motors particularly suitable for model aircraft.axi 5345/xx V2 motors are supplied for front and rear mounting with two ad'hoc propeller adapters as standard.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option

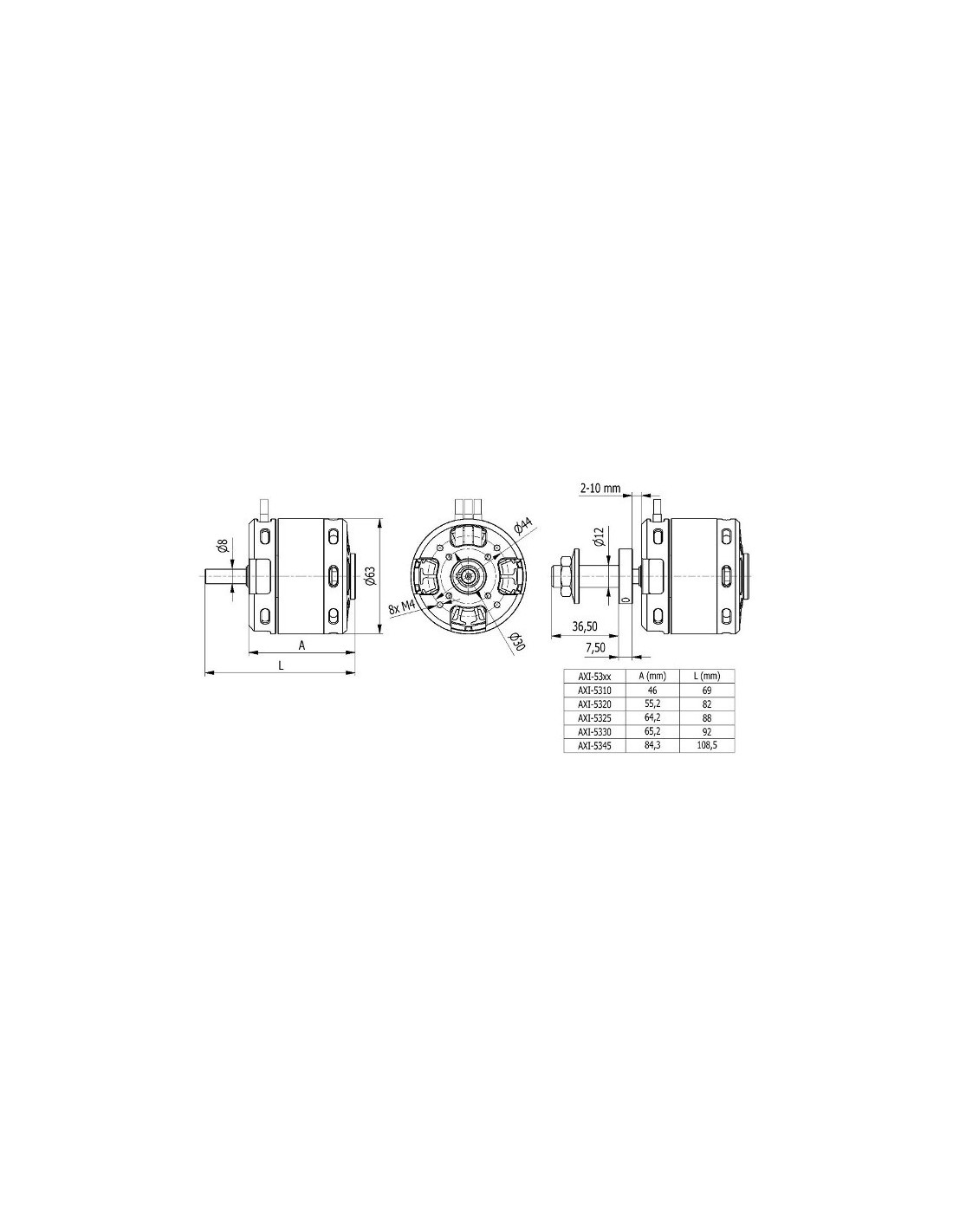

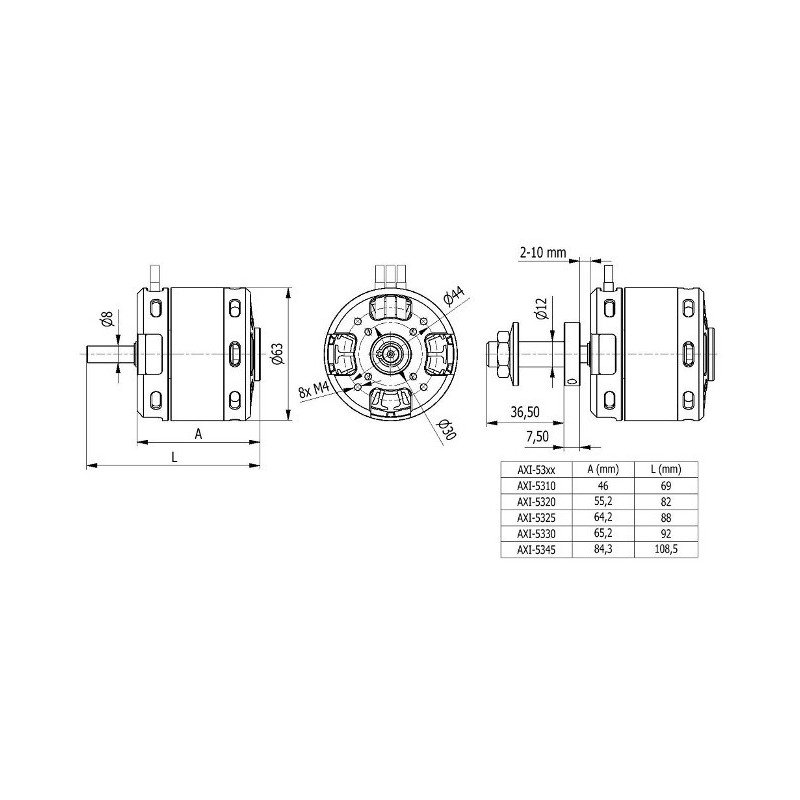

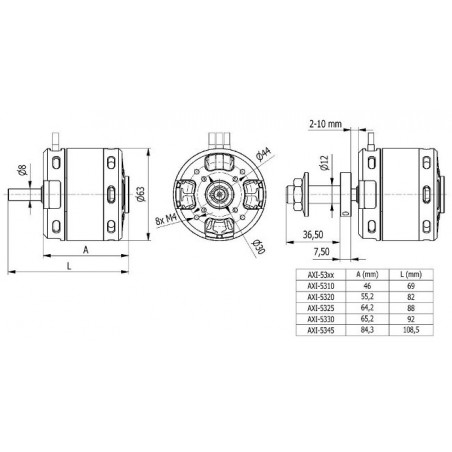

Dimensions

Technical specifications:

  • Recommended number of cells: 10-12S LiPo
  • Revolutions per Volt: 171 RPM/V
  • Max. efficiency: 95%.
  • Max. power consumption: 25-63A (>85%)
  • No load current: 1,5A
  • Max current: 77A/60S
  • Internal resistance: 26 mOhm
  • Dimensions: Ø63x84,3 mm
  • Motor axis diameter: 8 mm
  • Weight: 995 g
  • Max power: 3510 W
  • Recommended propellers: 22 "x12" (12S) to 24 "x12" (10S)
Engine weight
More than 1000g/1kg
Motor power in Watts
3150
Revs/ minute Kv
171
Type of tree
standard
123-5345/18HD-V2
8595247302106
8595247302106
