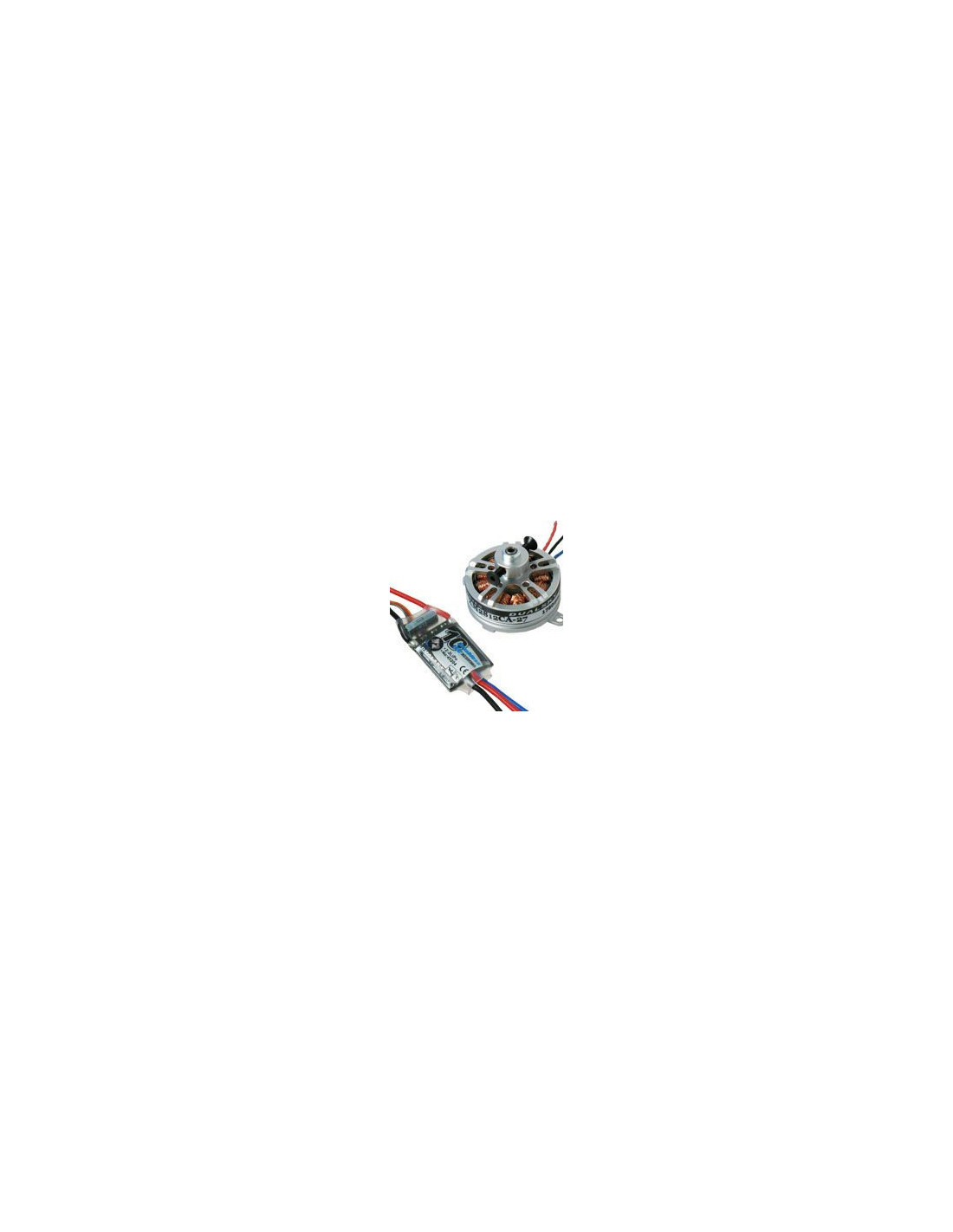

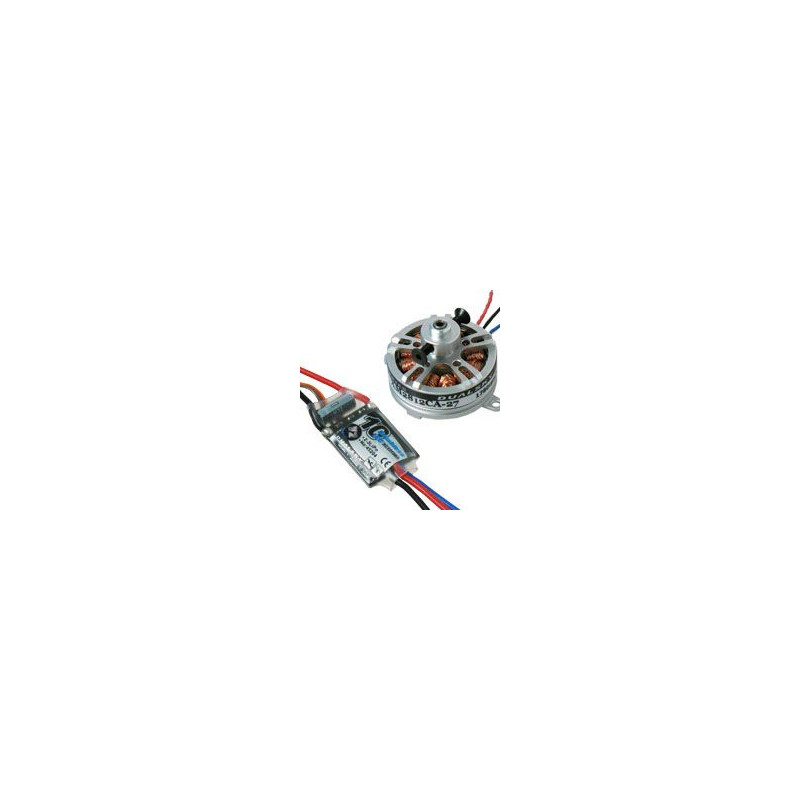

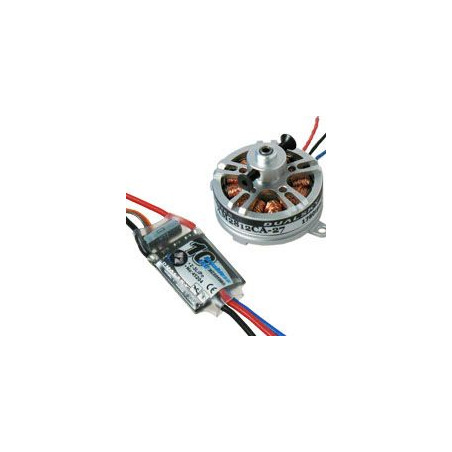

Combo XM2812CA-27 (19g, 1780kV, 80W) + 10A Controller

Last items in stock
€29.16
Tax included
This engine+controller combo is suitable for aerobatic aircraft up to 0.20Kg.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data of the motor

  • KV: 1780RPM/V
  • Mass: 19g
  • Diameter: 28mm
  • Length: 12mm
  • Shaft diameter: 3.2mm
  • No load current (Io) @10V: 0.52A
  • Internal resistance (Ri): 256mOhm
  • Peak power consumption [15s]: 10A
  • Peak power [15s]: 80W
  • Recommended propeller: 2S LiPo, 8x4 - 3S LiPo, 6x3

Technical data of the controller

  • Dimensions: 28x 18x 6mm
  • Weight: 7.5g
  • Supply voltage: NiXX 5-10, 6-12V, LiPo 2-3, 7.4-11.1V
  • Internal resistance (Ri)(Ohm): 0.0186
  • Max. current & Max. power 10A, 105W
  • Max. peak current & max. peak power: 15A, 153W
  • BEC (linear): 5V/1A
  • Programmable: with the motor handle or with the ProgCARD V2
  • Receiver wire: 120MM JR
  • Input cable (battery side): 100mm, 20AWG, JST (BEC)
  • Output cable (motor side): 65mm, 20AWG, DB2

Motor power in Watts
80
Revs/ minute Kv
1780
016-TC.2A.180
6941047191013
6941047191013
