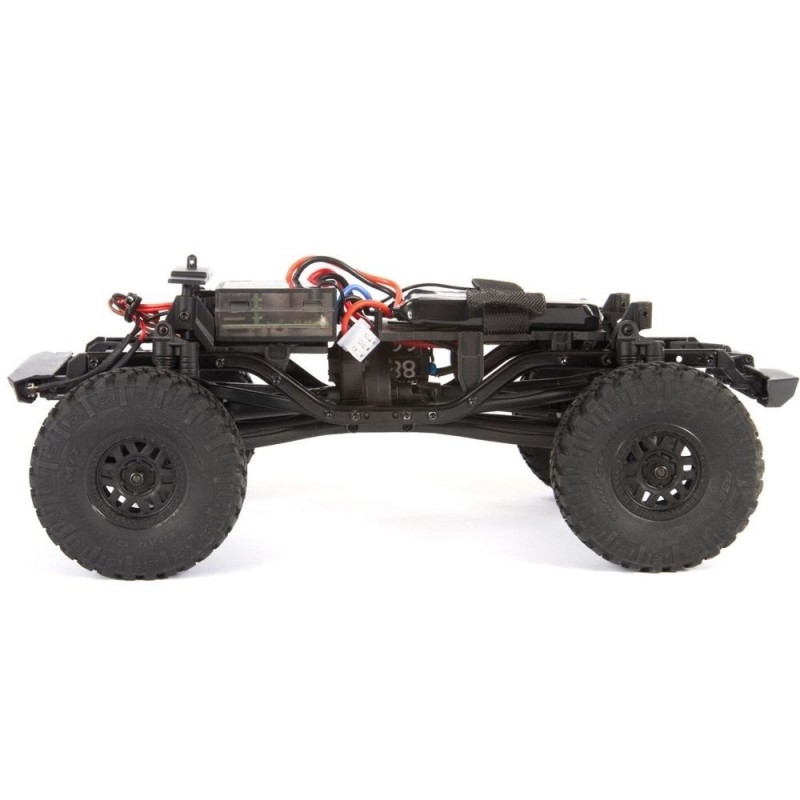

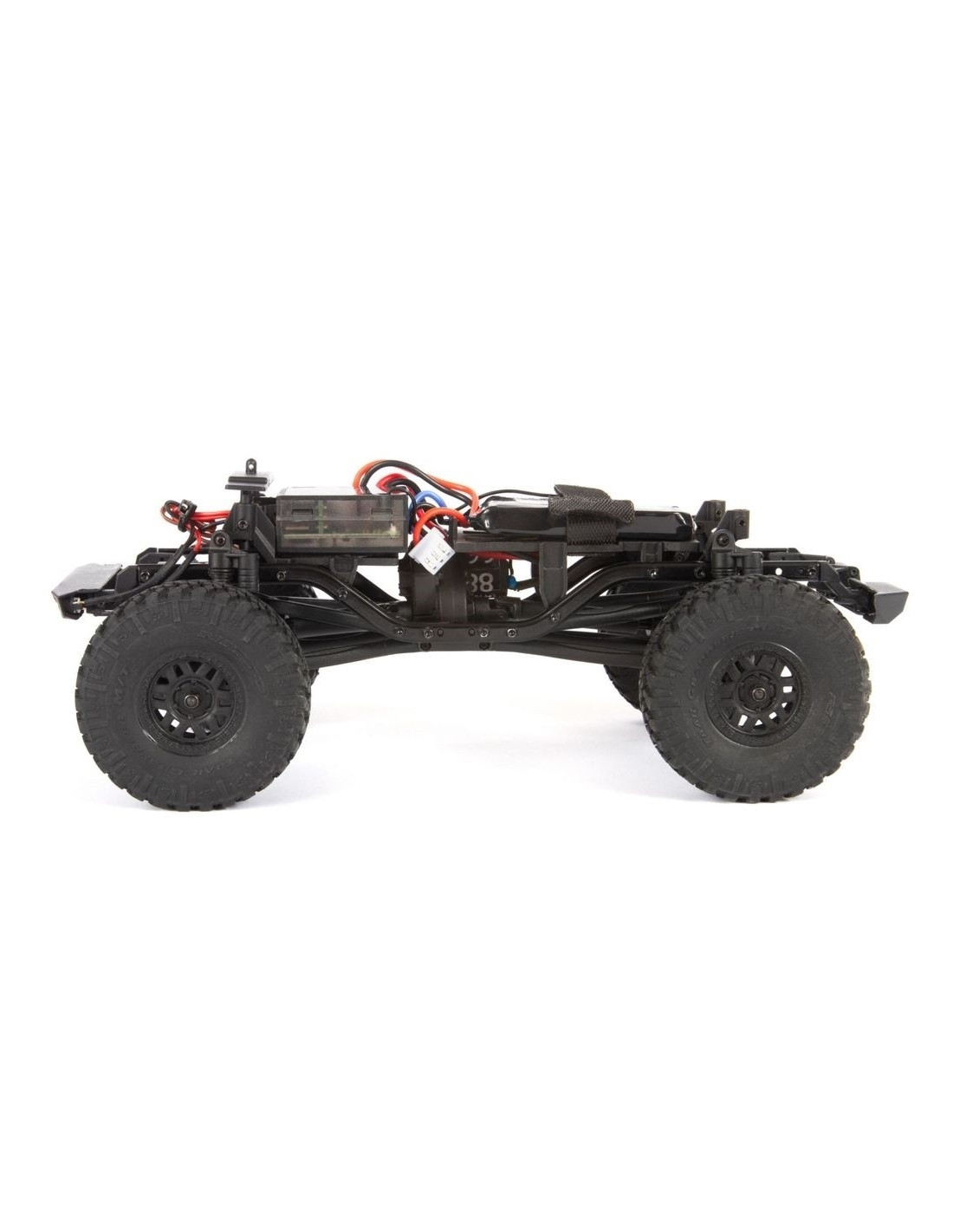

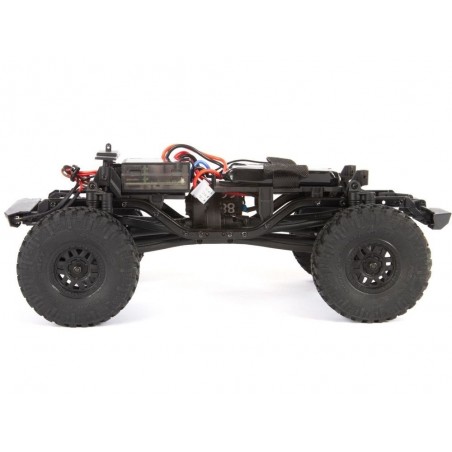

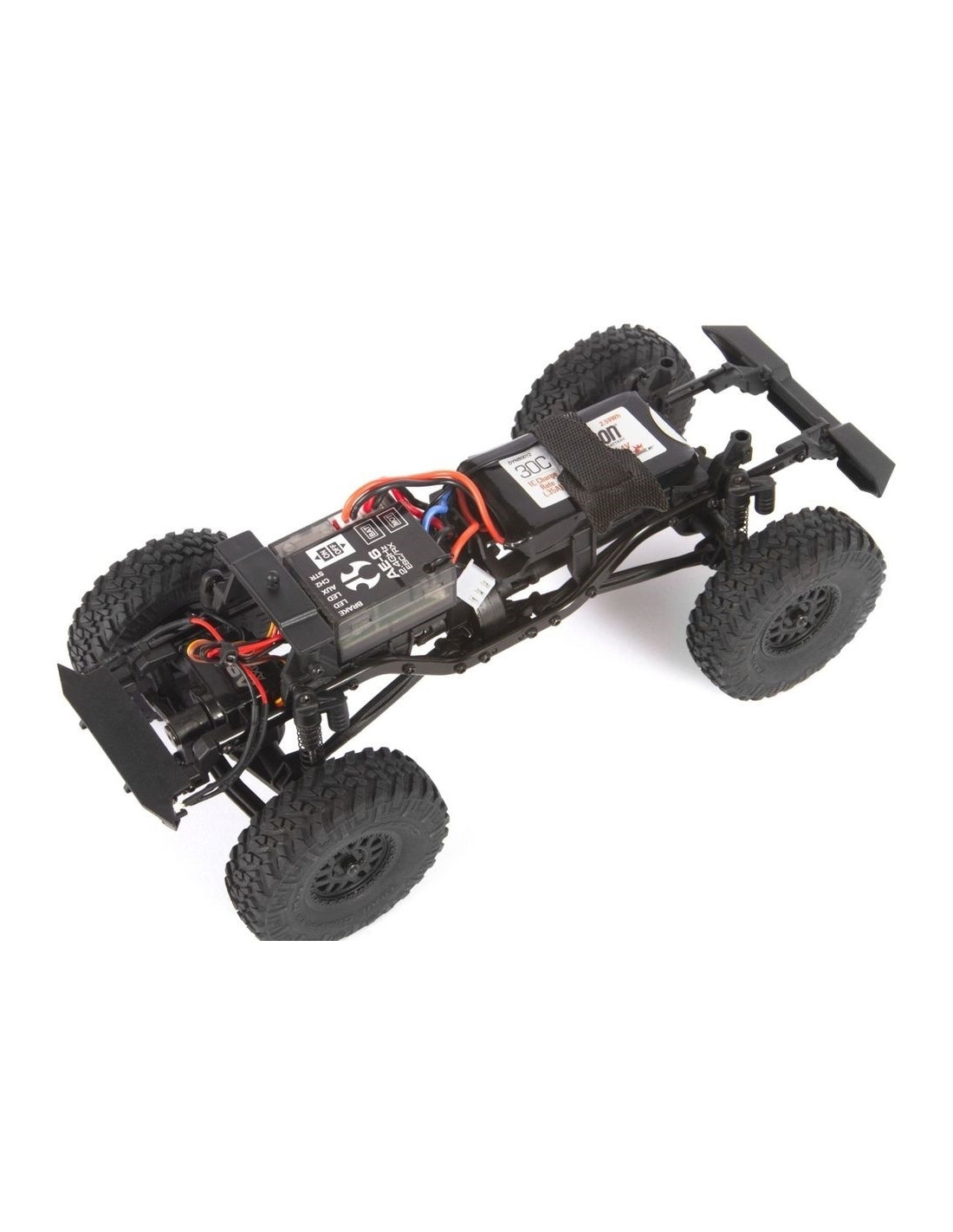

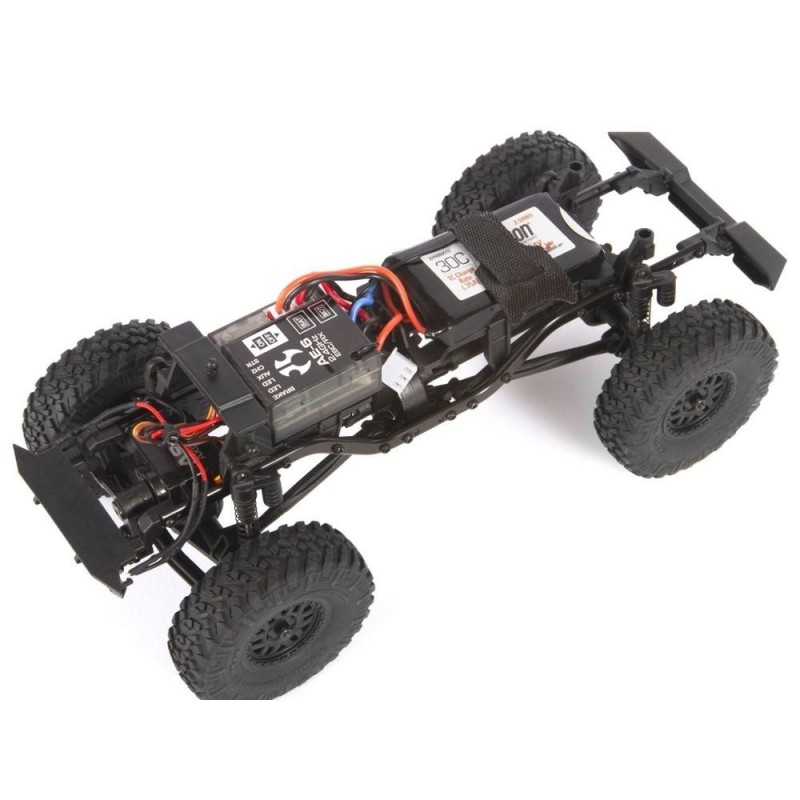

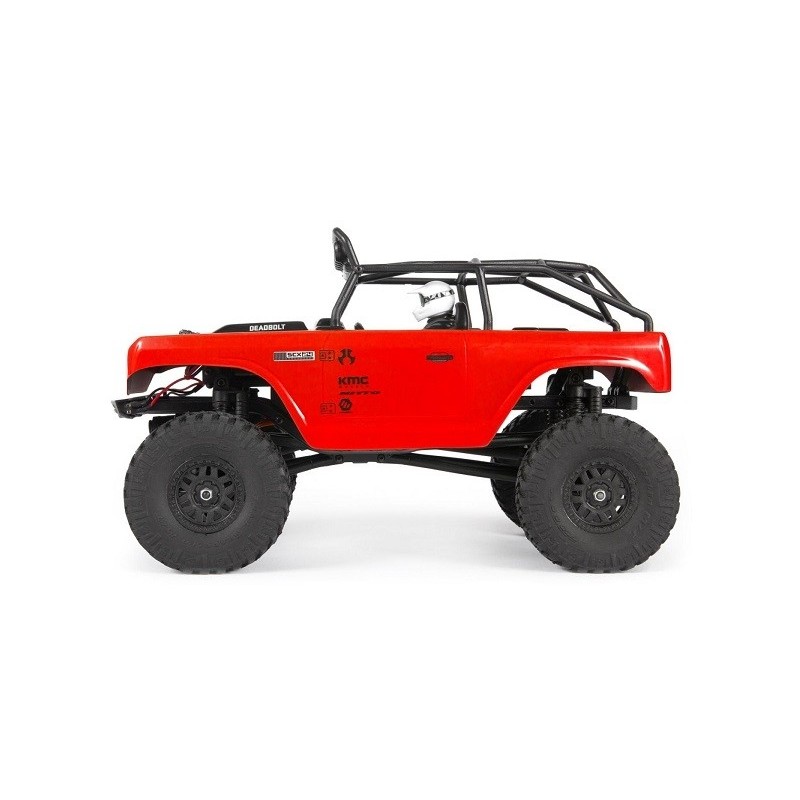

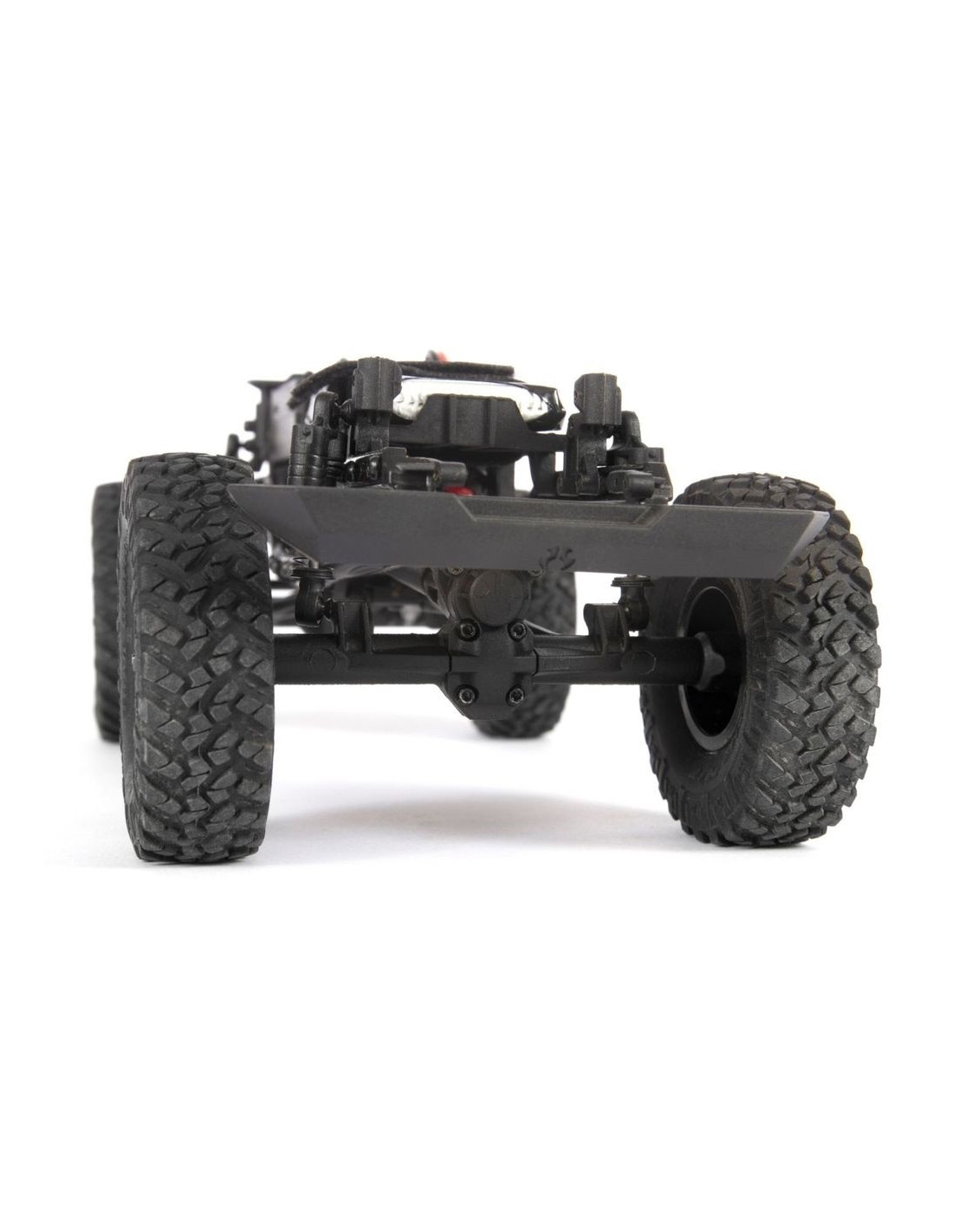

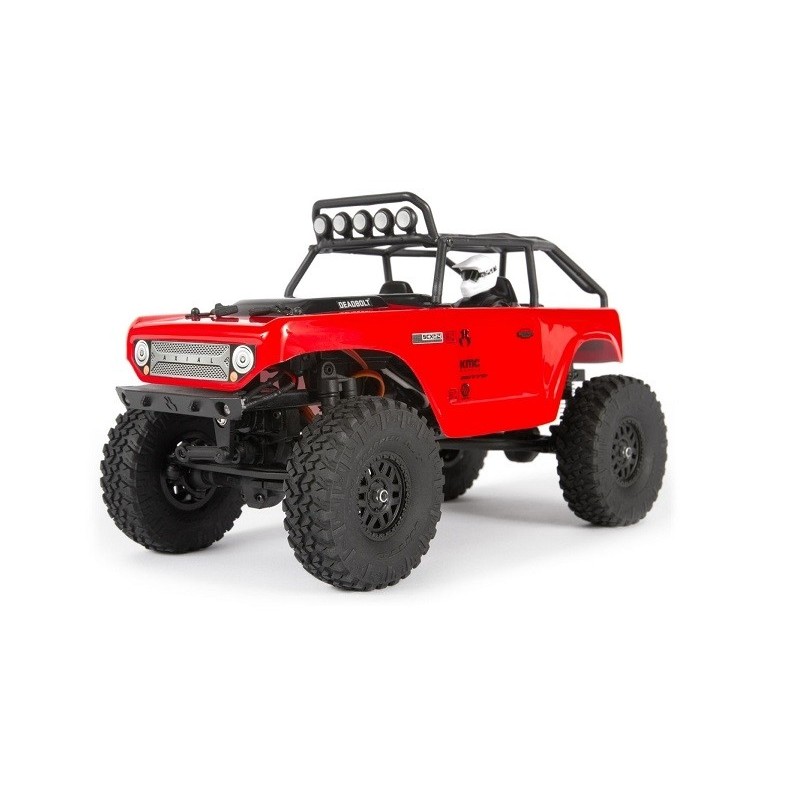

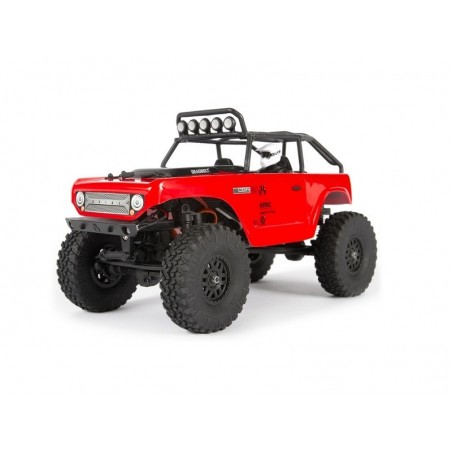

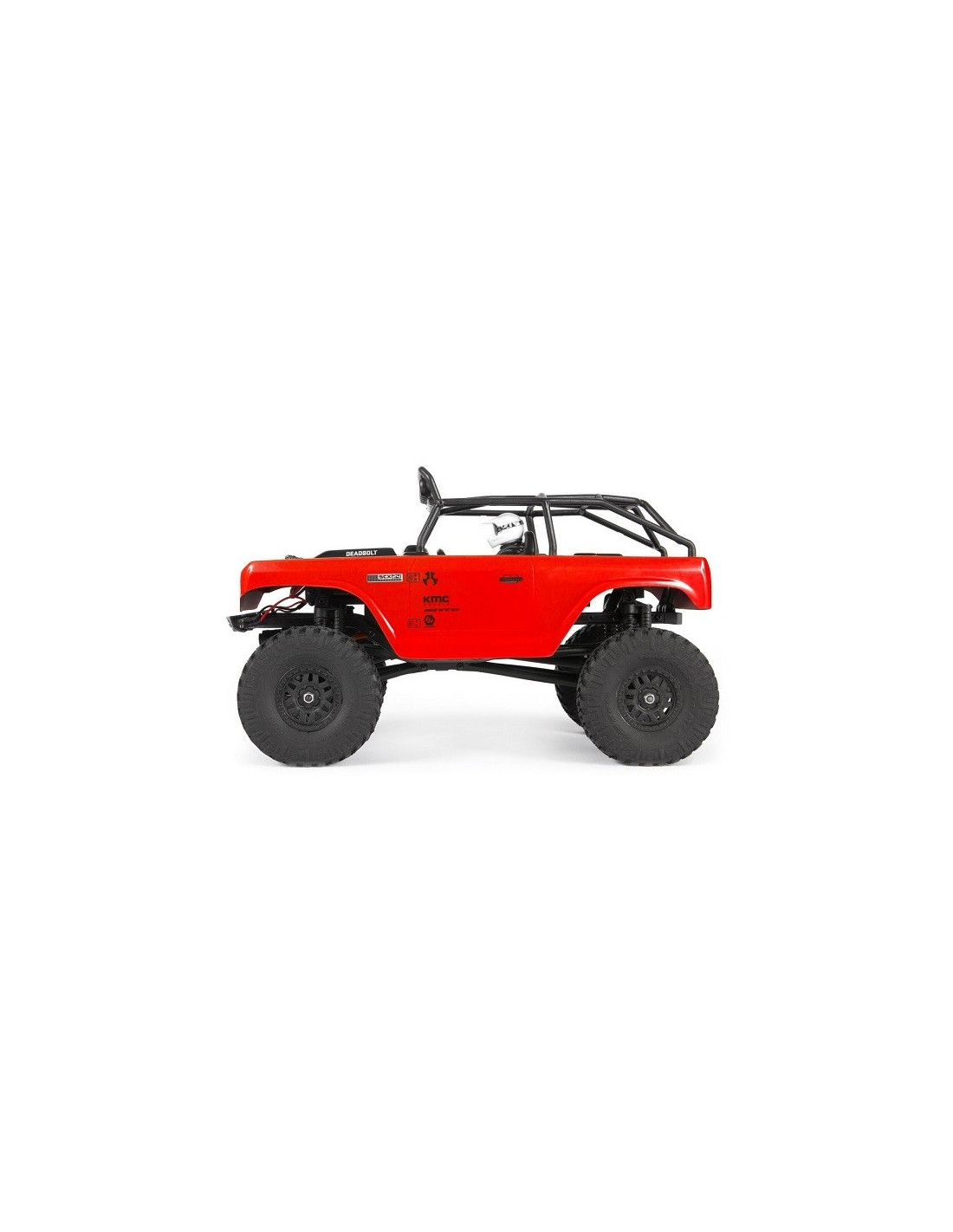

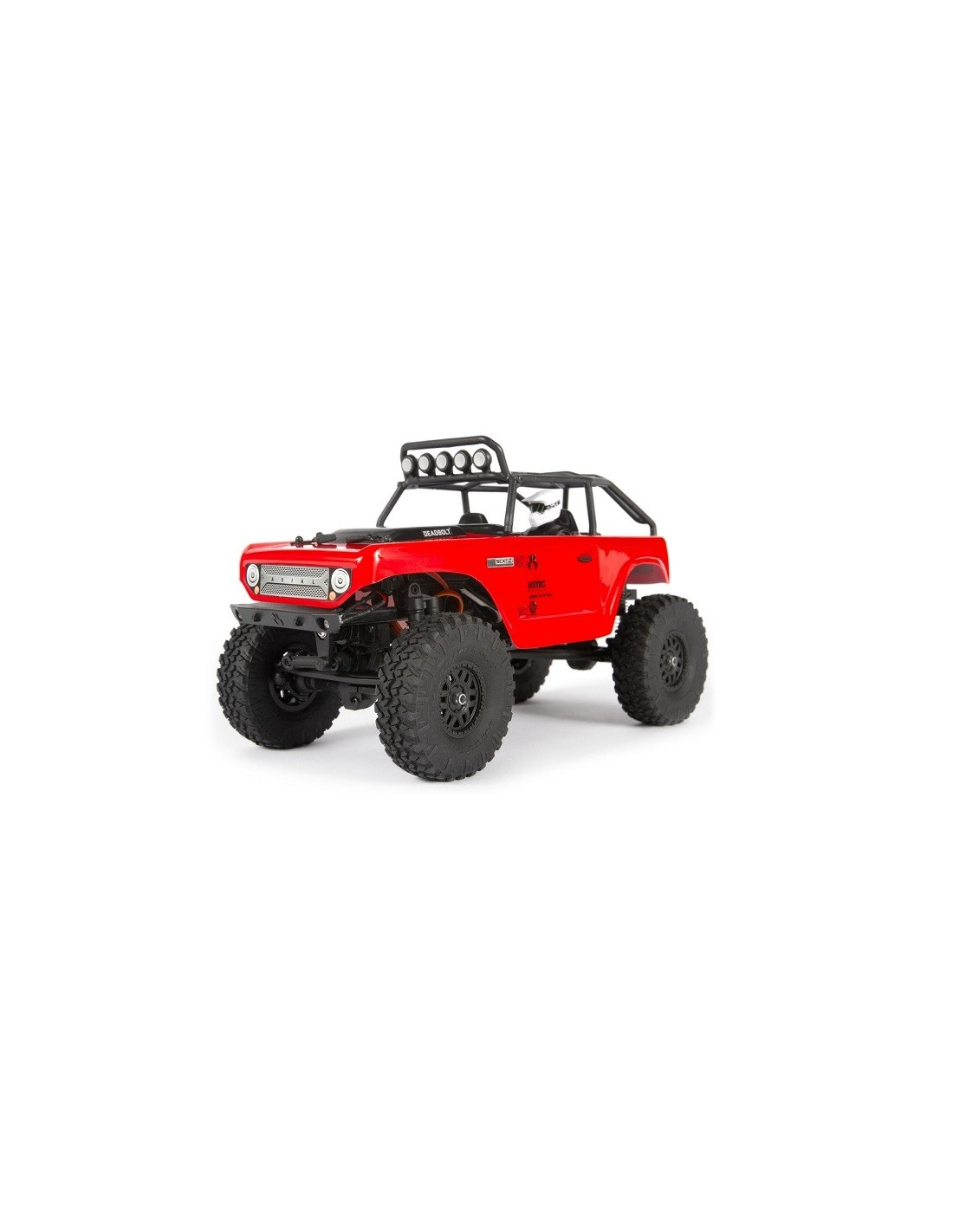

Axial SCX24 Deadbolt 1/24th Scale 4WD RTR red

General Specifications

• Includes transmitter and receiver and battery
• Comes with ESC, motor and servo already installed
• Features a new realistic body design
• 3-link front suspension and 4-link rear suspension for optimal handling
• Two LED lights included in the front bumper for night driving.
• Worm gear on front and rear axles creates extra ground clearance
• Realistic steel frame rails for added strength
• Full-time, real-world 4-wheel drive
• Single clip removal allows the body to be tilted for easy access to the battery.

Box Contents

• (1) Axial® SCX24™ Deadbolt RTR with:
• (1) AX-4 2.4GHz 2-way radio
• (1) ESC/Rx AE-6 Forward/Reverse
• (1) SCX24 88T motor
• (1) AS-1 Micro Servo
• (1) Dynamite® 7.4v 350mAh 2S LiPo battery
• (1) USB charger
• (4) AA batteries
• (1) Product manual

Technical Specifications

• Finish level: Ready to run (all included)
• Scale: 1/24
• Length: 199.5 mm
• Width: 99.5 mm
• Height: 120.2 mm
• Ground clearance: 27 mm
• Wheelbase: 133.5 mm
• Track: 99.5 mm Front track: 99.5 mm
• Rear track: 99.5 mm

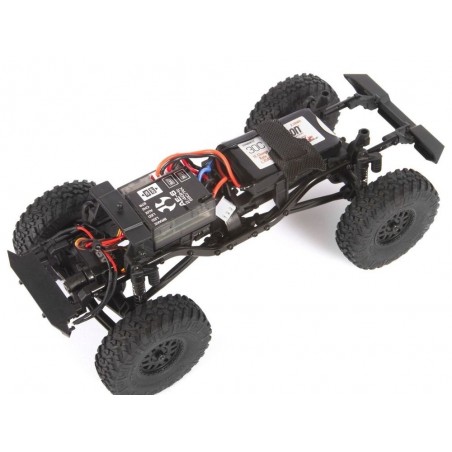

• Chassis: Steel frame rails

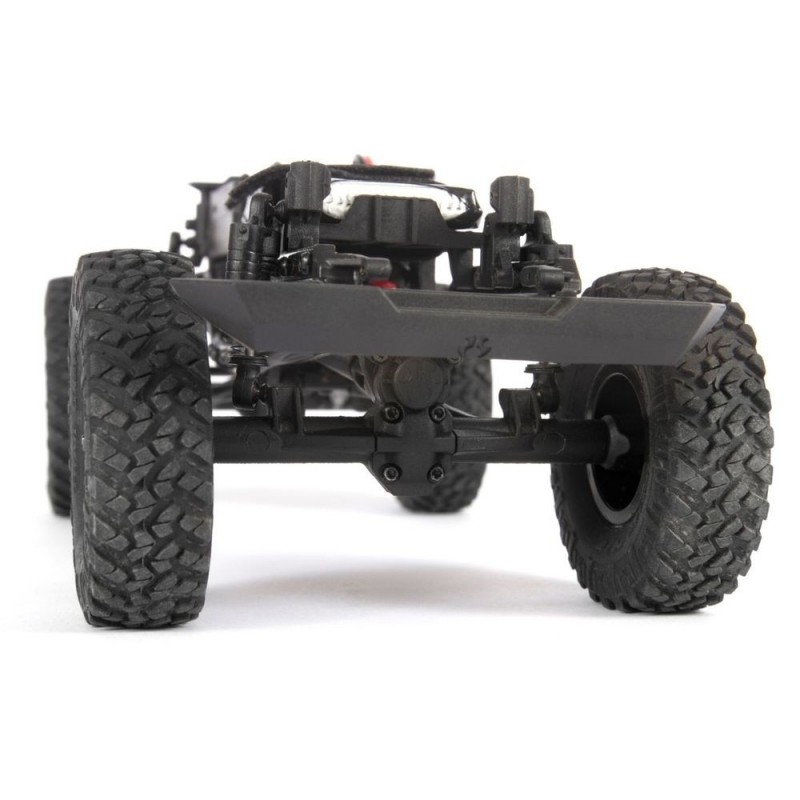

• Suspension: Solid axle, front and rear
• Shock type: 24-33.4mm, plastic
• Transmission: 4X4 integral
• Differential: 16T/4T worm gear
• Wheel type: Black plastic
• Wheel diameter: 26 mm
• Wheel width: 12.4mm
• Tire Tread: Nitto Trail Grappler M/T
• Tire diameter: 51 mm
• Motor type: Coal-fired
• Motor size: 180 Motor size: 88T
• Pinion: 10T Spur gear: 55T
• Speed control included: Yes
• Radio: Axial® 2.4GHz, 2 channels
• Servos included: Yes
• Batteries : 7.4V 350mAh 350mAh 30C LiPo
• Charger : USB LiPo charger
• Body : Axial Jeep JL Hardtop Bearings : Full
• Experience Level: Beginner
• Recommended environment : Off-road
