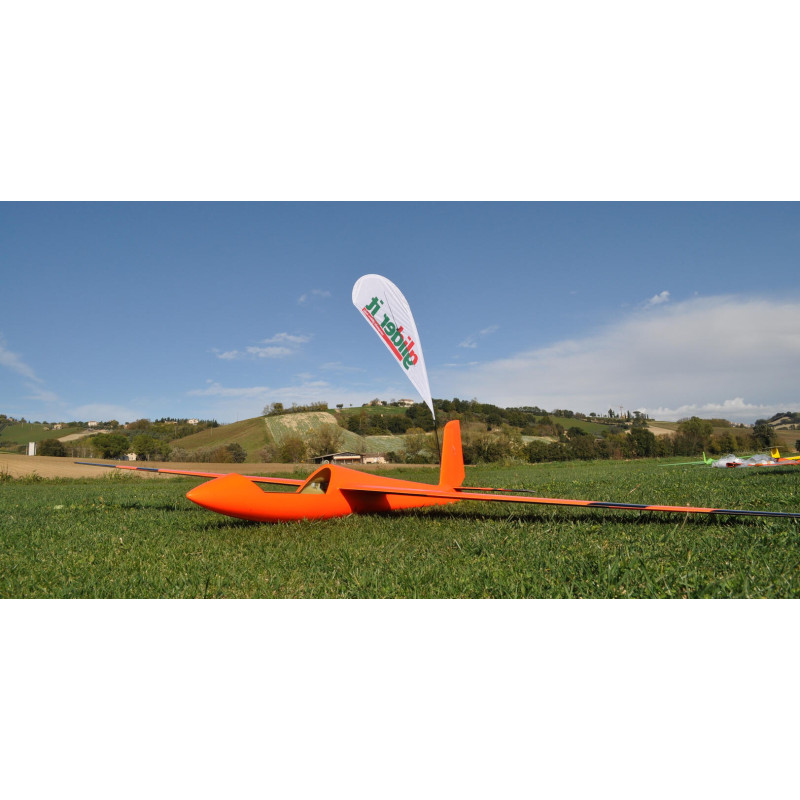

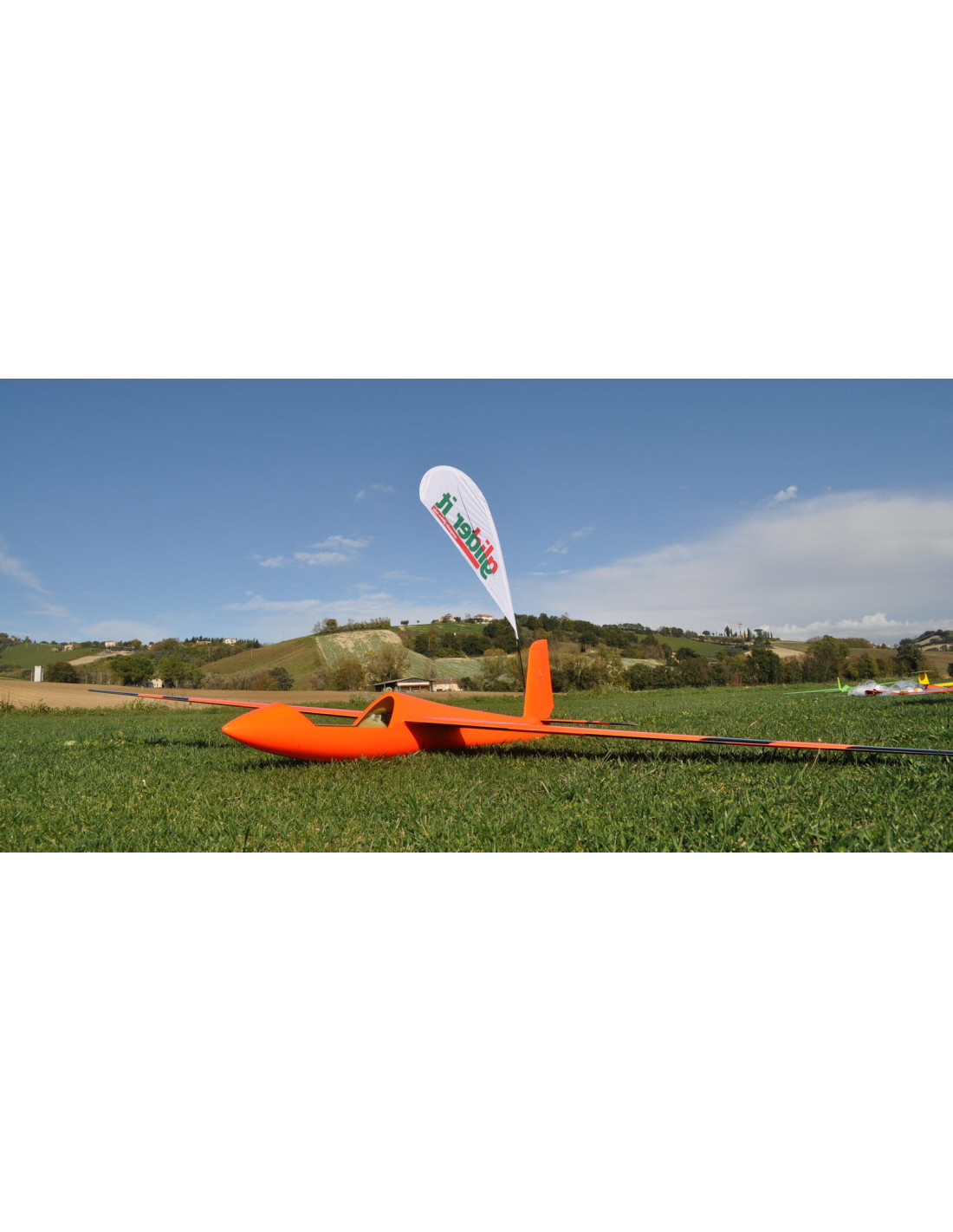

Since the beginning of the 90's, many RC glider manufacturers have presented their own version of this high performance glider.
Glider IT has developed this project together with its engineers and pilots.
The result is a pure acrobatic machine with a profile thickness of 8.7% capable of guaranteeing exceptional maximum speed and very high energy restitution.
Some details :
- All white canvas finish
- Carbon wing key 40x20mm
- Articulated fins and flaps on the bottom surface
- Fiberglass lip at the aileron and flap joints
- 2.4ghz compatible fuselage (fiberglass on the nose, carbon fiber on the back)
- Overall dynamic layout (OD):
- Fuselage: fiberglass (nose) and carbon to achieve full 2.4Ghz usability
- Wings: fiberglass with carbon spar and carbon reinforcements
Technical characteristics :
- Wingspan: 3140 mm
- Wing area : 68 dm²
- Fuselage length : 1740 mm
- Weight (OD, glider config): ∼5.5 kg
- Mass (OD, extralight tech., glider config.): ∼5.0 kg
- Wing loading (OD, extralight tech., glider config.): 73 g/dm²
- Profile: XHN 1054
Contents of the box:
(1) Fuselage
(2) Wings
(1) Stabilizer
(1) Drift
Additional products needed:
- Lipo battery : 6S 4000 mAh
- Brushless controller : 70A
- Brushless motor: A40-10S V2 8 pole 1600kV Hacker + reduced 6,7:1
- Propeller : carbon 20x13
- 6 Servos
- Fittings : clevises,...
