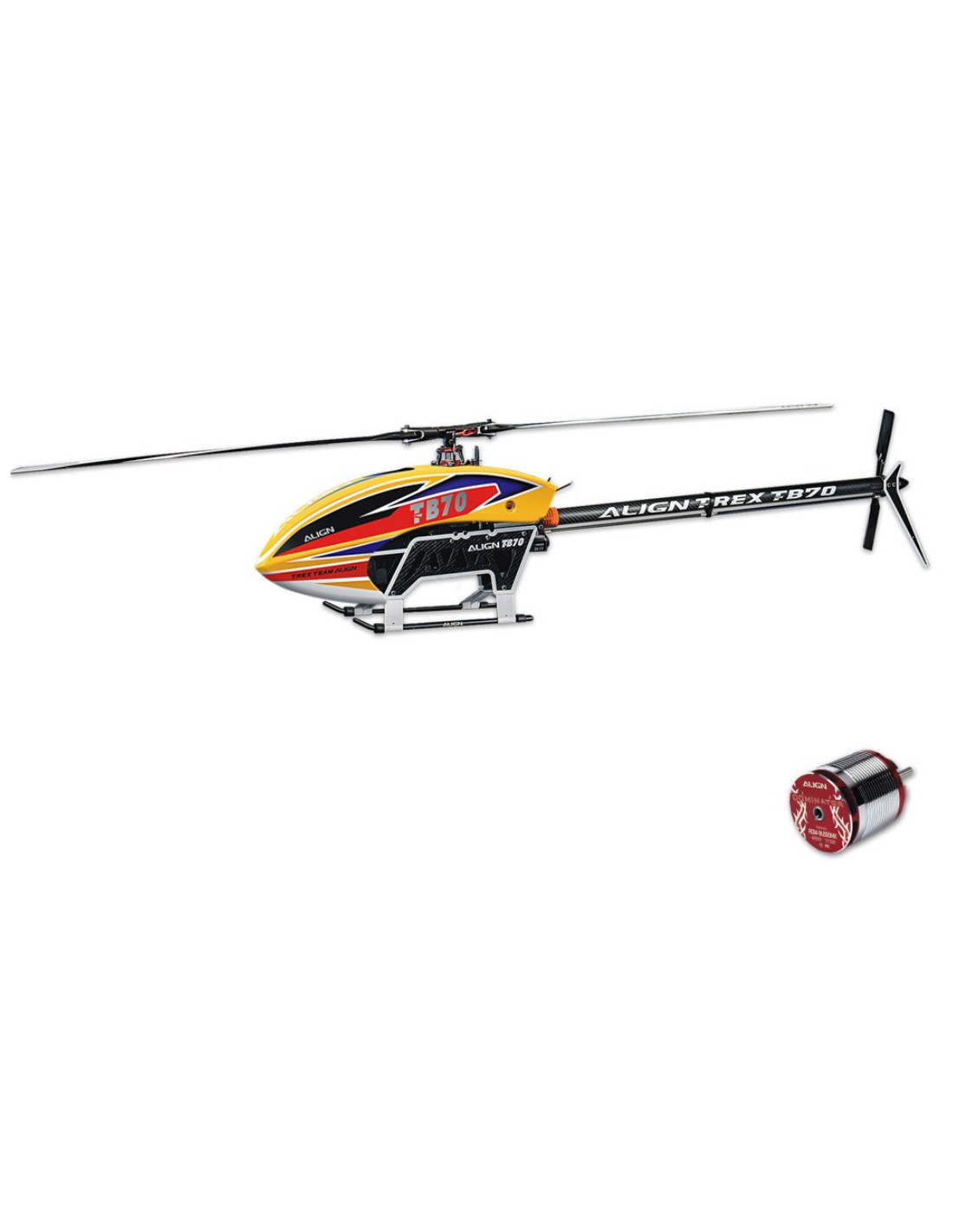

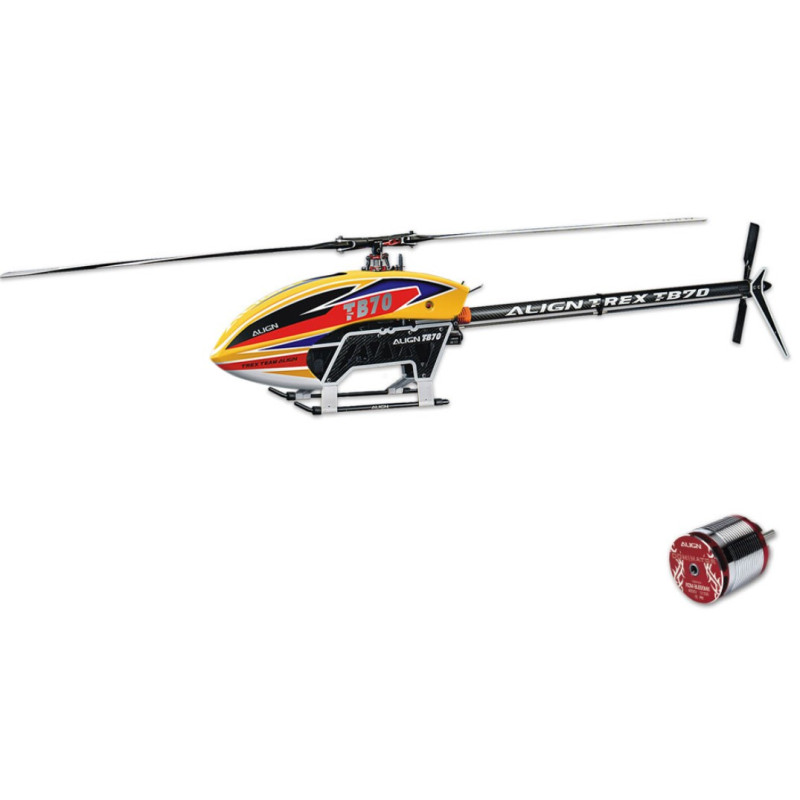

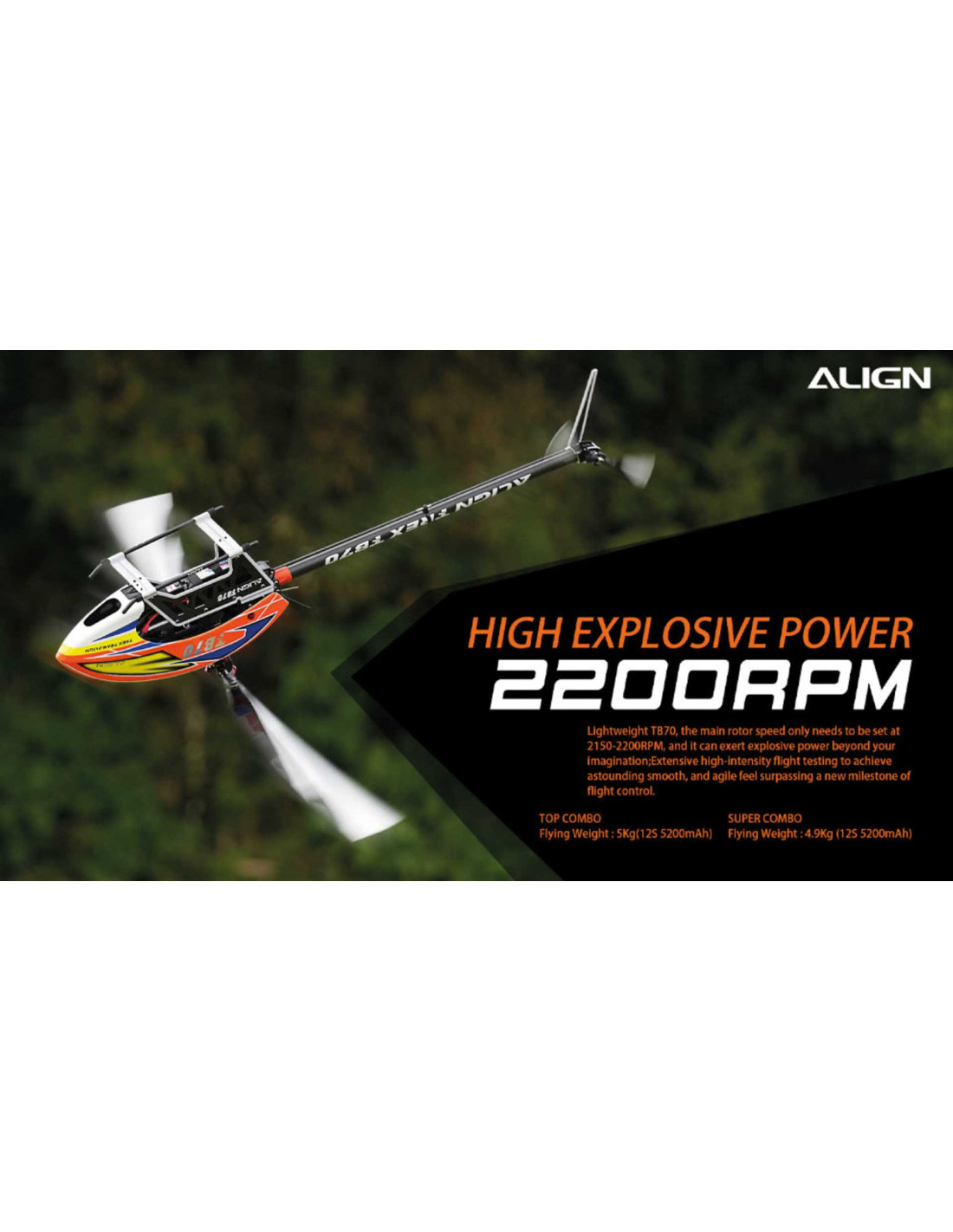

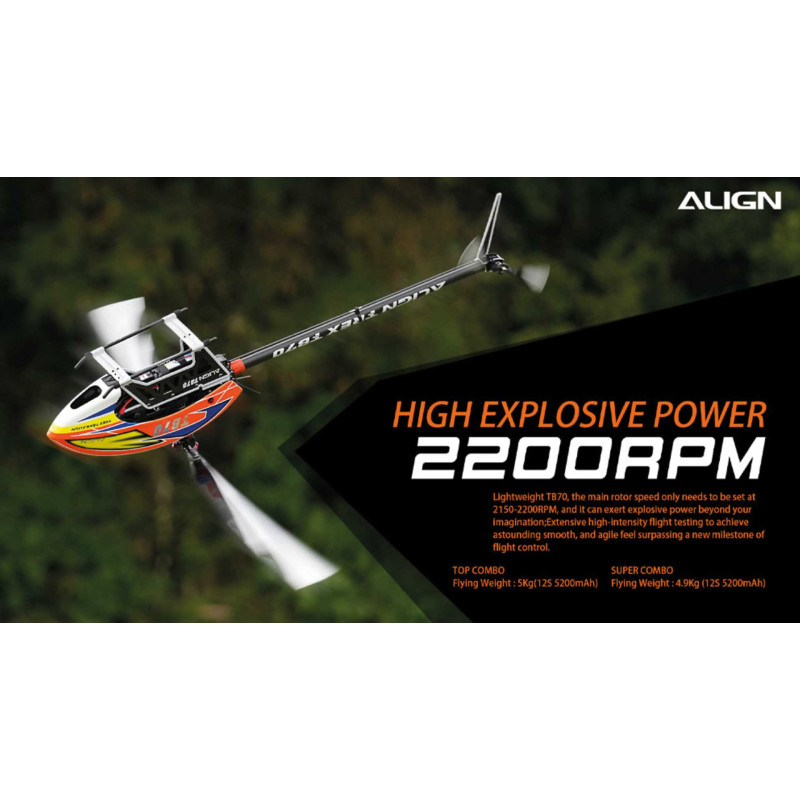

Discover the Align 2023 innovation with the brand new TB70 model. A radio controlled helicopter designed for sport flying, aerobatics or 3D.

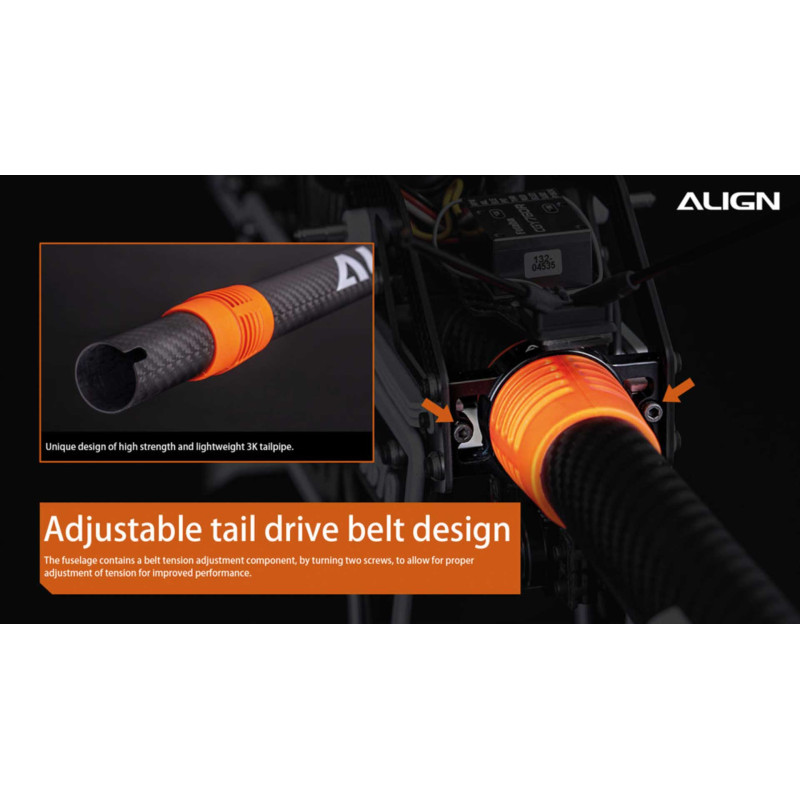

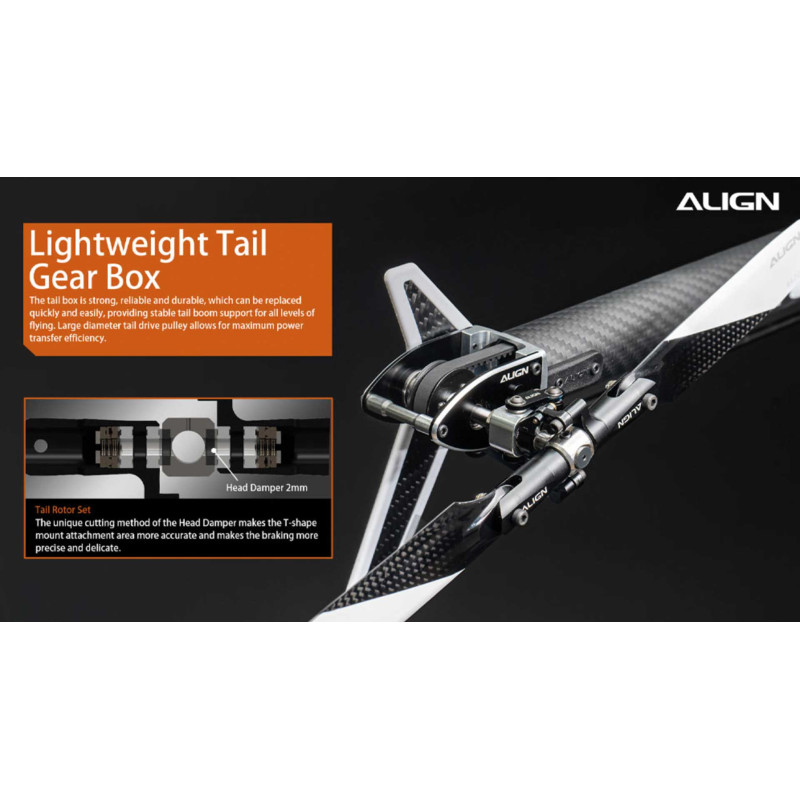

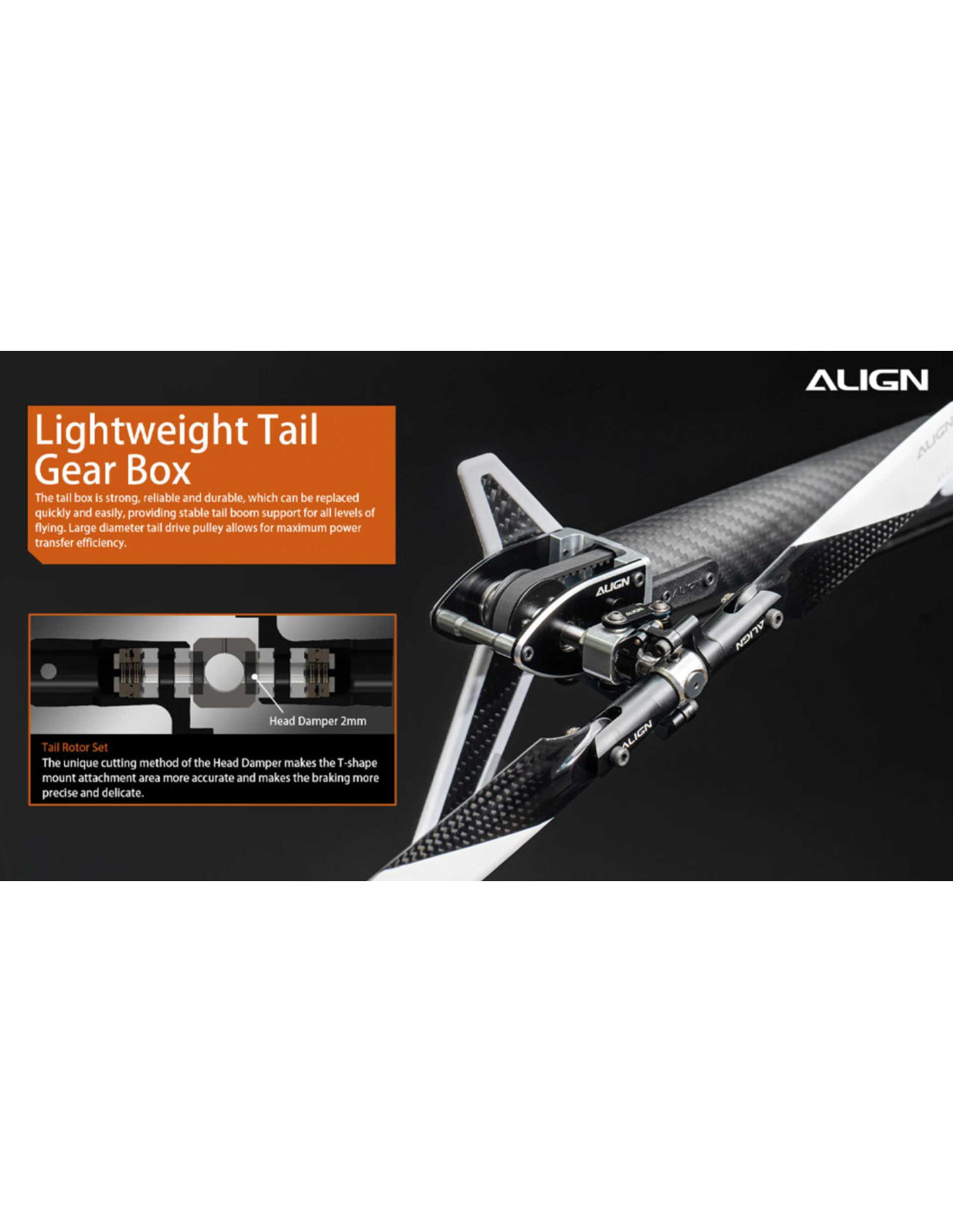

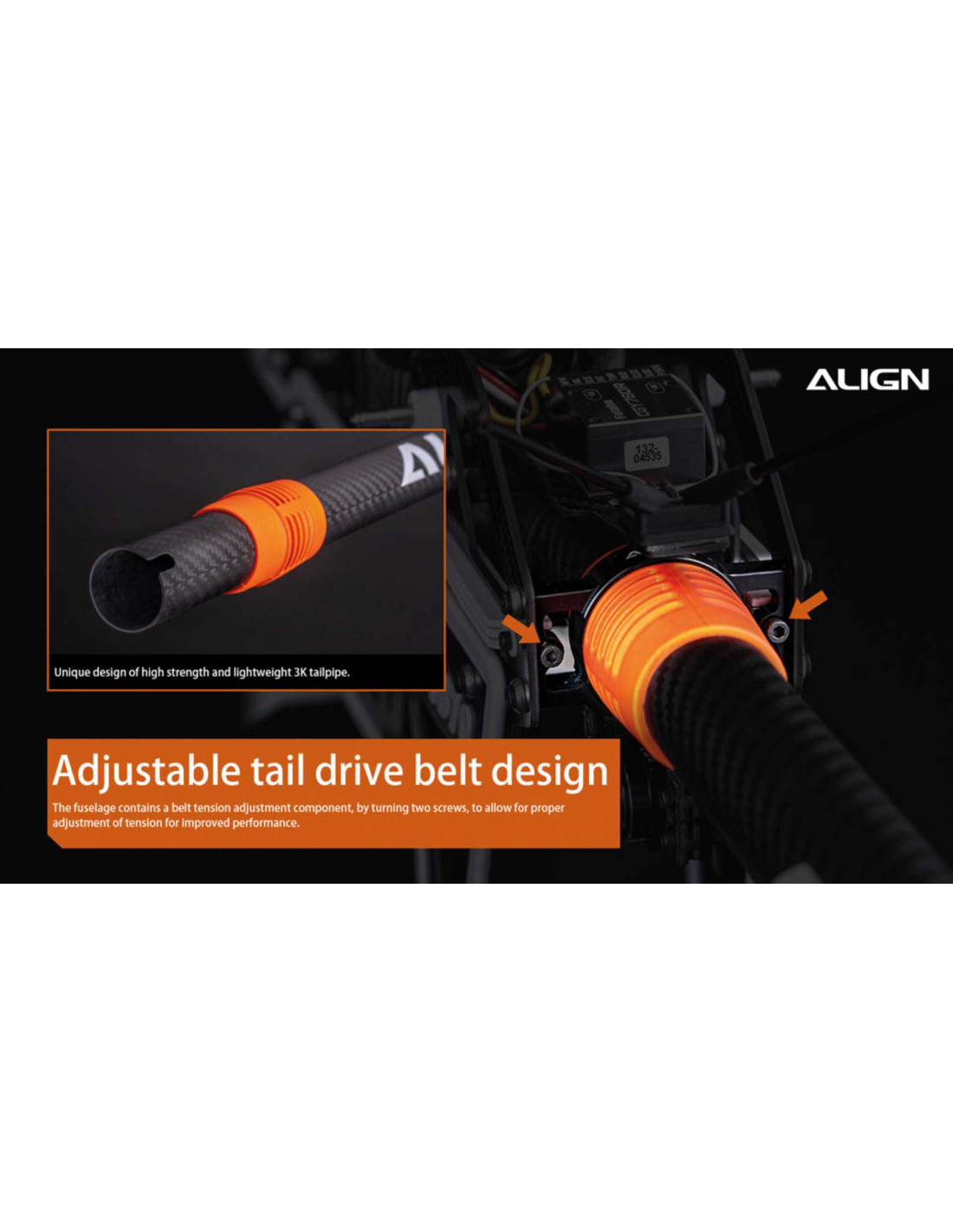

You will love this concept: new type of gearbox, belt driven tail rotor, tail boom without reinforcement.
Lighter, more powerful and quieter than the T-Rex 700!
Technical specifications
- Length : 1356 mm
- Height: 358 mm
- Width: 187 mm
- Length of the main blade: 650-730 mm
- Main rotor diameter: 1542 mm
- Tail length: 105-115 mm
- Tail rotor diameter: 279 mm

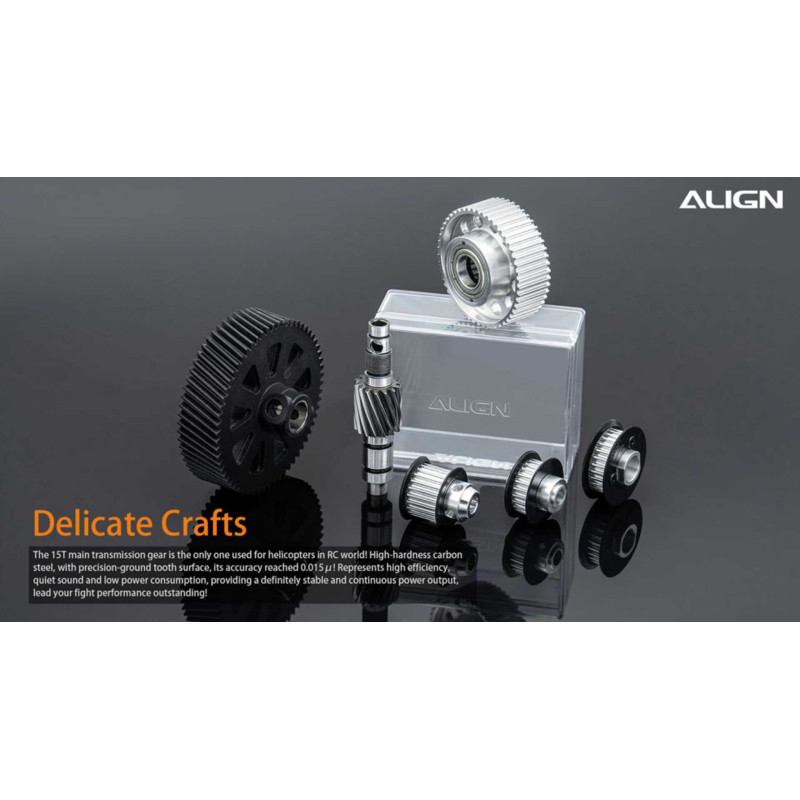

- Motor belt pulley: 23T
- Belt pulley: 50T

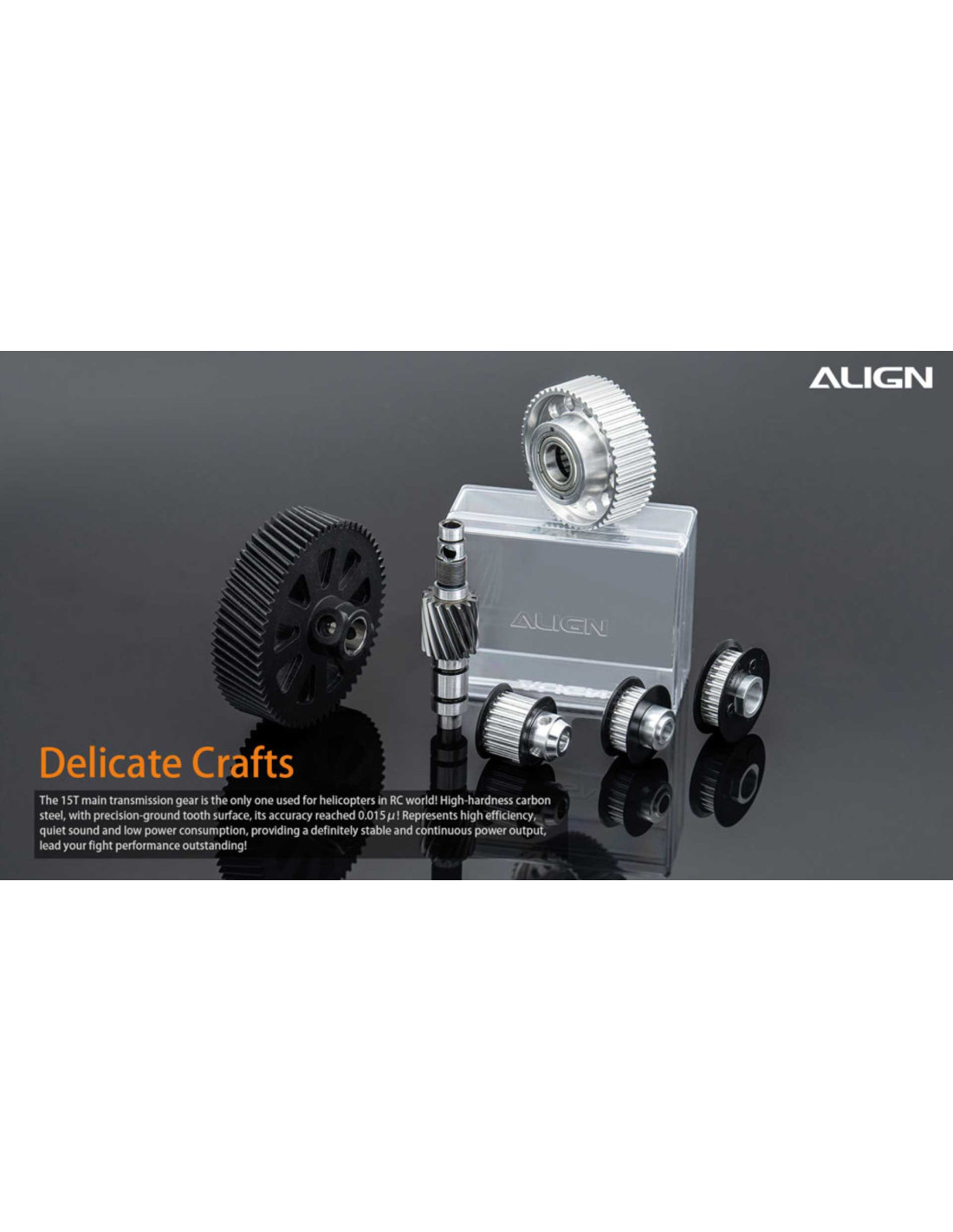

- Front drive main shaft: 15T
- Main drive sprocket: 62T
- Tail drive in autorotation: 27T
- Tail drive: 23T
- Transmission ratio: 8.96:1:4.83
- Maximum rotation speed (approx.): 2290RPM
- Chassis weight: Approx. 2.3 kg
Contents
- 1x TB70 Kit Set
- 1x 700 Carbon Fiber Blades Set
- 1x 105mm 3K Carbon Fiber Tail Blades Set
- 1x Brushless Motor 850MX (490KV/4535)
Necessary for assembly
- Transmitter (6 or more channels, helicopter system)
- Receiver (6 or more channels)
- Smart charger RCC-6CX
- 2x 22.2V 6S 4000~4800mAh Li-Po Battery
- Digital pitch indicator
- Multi-function tester
- Flybarless system
- 3x CCPM Brushless Servo
- 1x Brushless rudder servo
- 1x Brushless ESC
