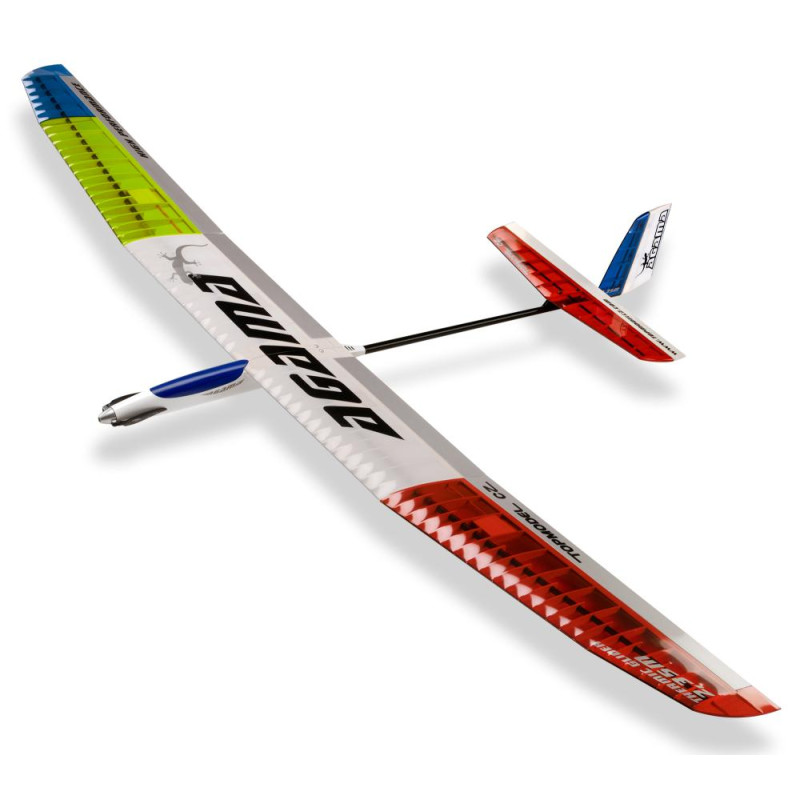

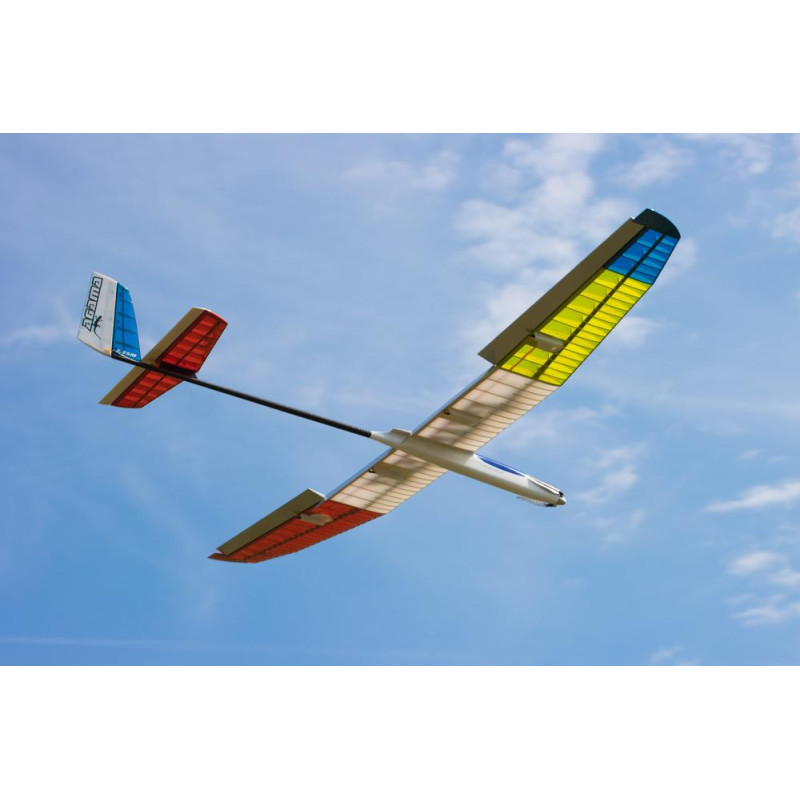

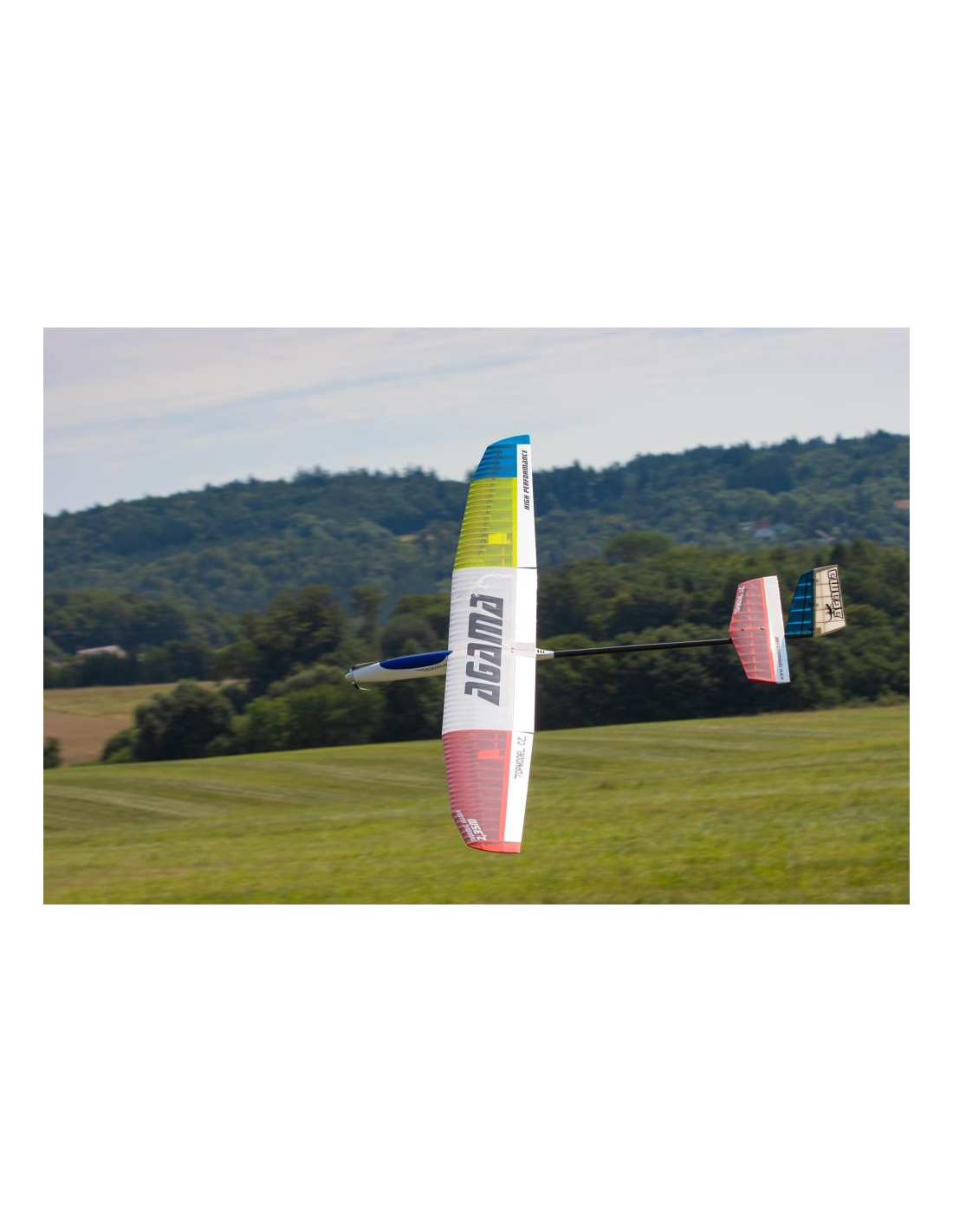

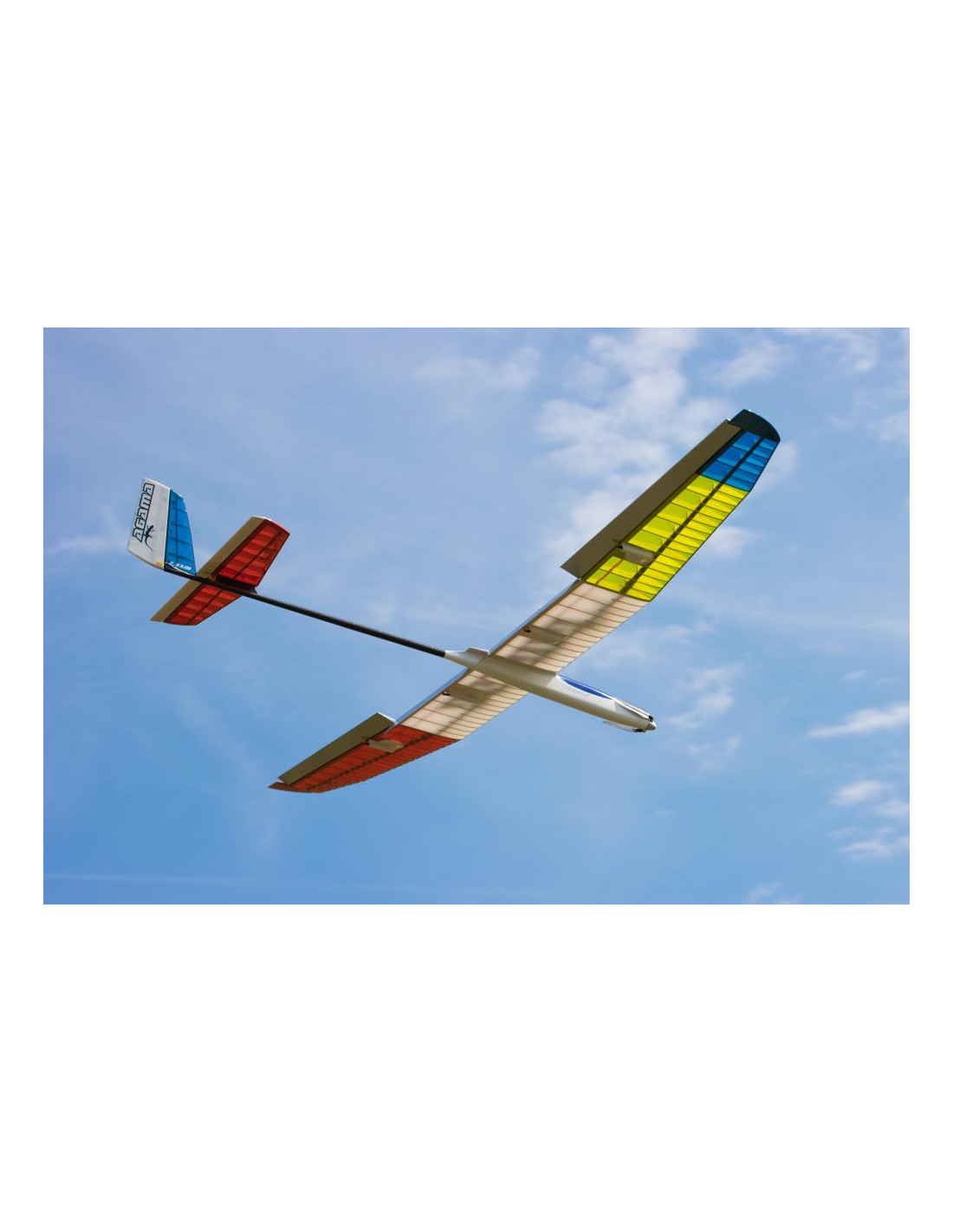

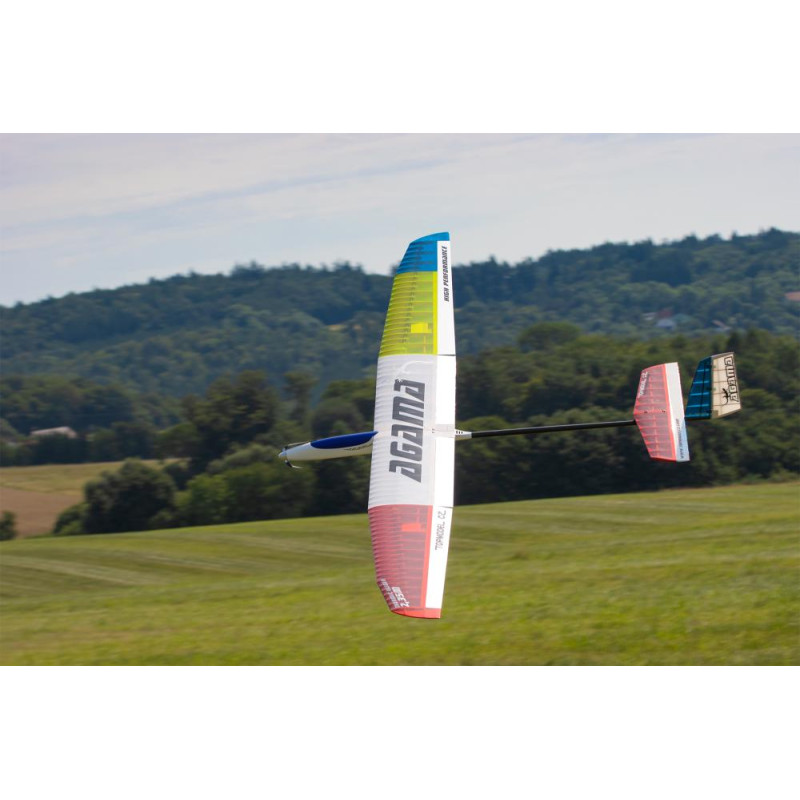

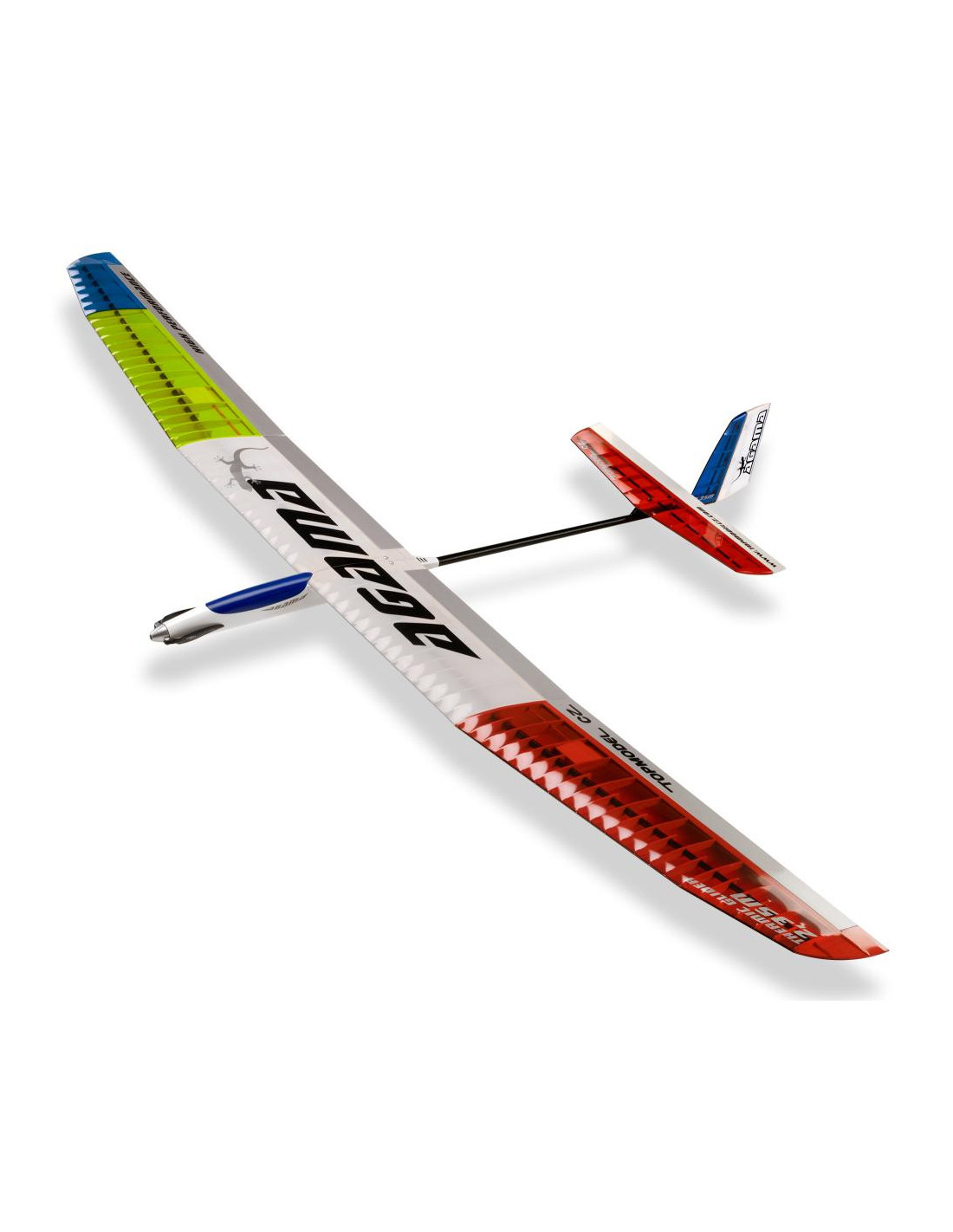

Agama 2.35m ARF TopModel CZ

The Agama is a lightweight, high-performance electric glider, controlled in all axes, with a classic tailplane (rudder and detachable elevator). The large wing area and the profile used give the model absolutely perfect flight characteristics in thermal conditions, even in the evening calm. At the same time, it has good wind penetration and excellent handling. The complete mechanization of the wing, in the hands of an experienced pilot, allows a wide range of settings to take advantage of all its characteristics. Landings are a delight when using the butterfly mix. The Agama features a two-part AG profile wing. The wing is attached to the fuselage by two screws, and even with the horizontal tail, it can be easily disassembled and stored for easy transport to the airport.

The precision-crafted fuselage is made of painted laminate. It is reinforced with carbon fabric, has a cut nose ready for insertion of the engine bulkhead and installation of a Ø 28mm engine with Ø 32mm cone and folding propeller. The rear of the fuselage features a tapered tail tube in carbon fabric. The carbon wing spar (made from carbon stock) and carbon hub give the wing sufficient strength and rigidity. The wing is connected by a carbon-filled aluminum connector. The elevator and rudder have a carbon main spar and leading edge, and are controlled by servos located under the wing.

The Agama will be appreciated not only by fans of competition flying, but also by all pilots who like to enjoy a fun and enjoyable flying experience.

You'll be amazed by the truly excellent flight characteristics, and you'll be looking forward to every next flight!

This model is designed and manufactured in the Czech Republic. Spare parts are in stock.

If you're interested in a color combination other than the one suggested, please contact us - we'll be happy to accommodate you.

The kit contains

• Lightweight, carbon-fiber-reinforced, colored fiberglass fuselage with Ø32mm cut tip and carbon tail spar.
• Blue-painted fiberglass cockpit
• Two-piece balsa structural wing with carbon-tube spar and leading edge, and carbon-filled aluminum coupling covered with aluminum foil.
• Balsa tail, with carbon fiber spar and leading edge, all covered with film.
• Plotter-cut decals with transfer film
• High-quality small accessories (engine bulkhead, servo covers and mounts, rods, rod ends, steering levers, screws, nuts, locking pins, hinges, tape for gluing ailerons and flaps, ...)
• Fully illustrated assembly instructions

Recommended equipment :

• Servos: 6x micro servo pro - 2x ailerons (BMS-115wv+ Blue Bird)

2x flaps (BMS-115wv+ Blue Bird)

1x elevator (BMS-125wv+ Blue Bird)

1x rudder (BMS-125wv+ Blue Bird)

• Engine: DUALSKY XM2838EG-9L
• Controller: KAVAN R-40SB Plus
• Cone: "turbo" Z diameter 32/5mm - 02032048TZ
• Propeller blades: 10/4 " Cam carbon (Aeronaut)
• Battery: 3S LiPol 2,2- 2,7Ah
