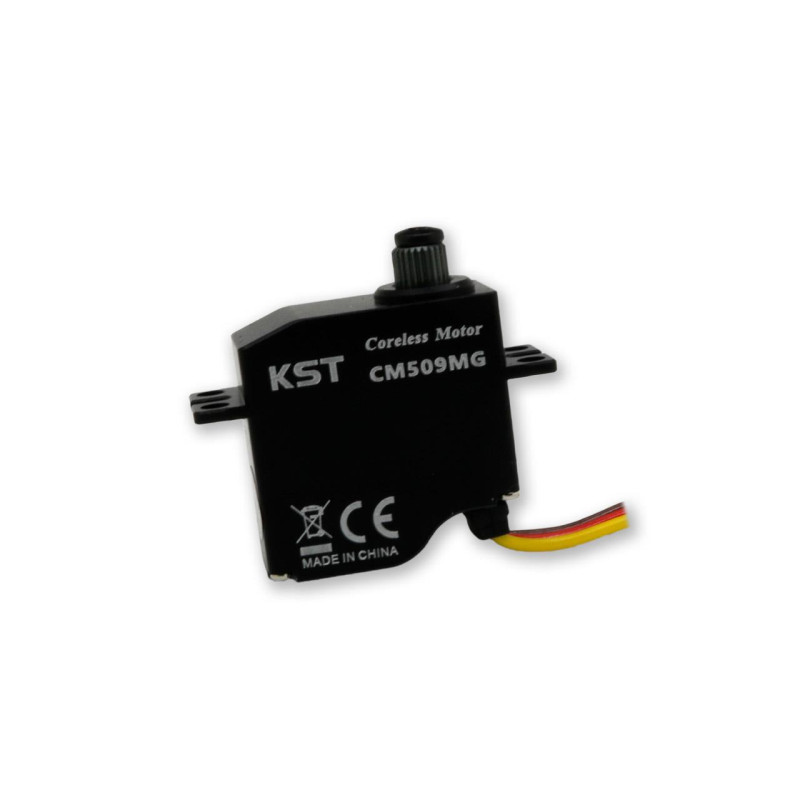

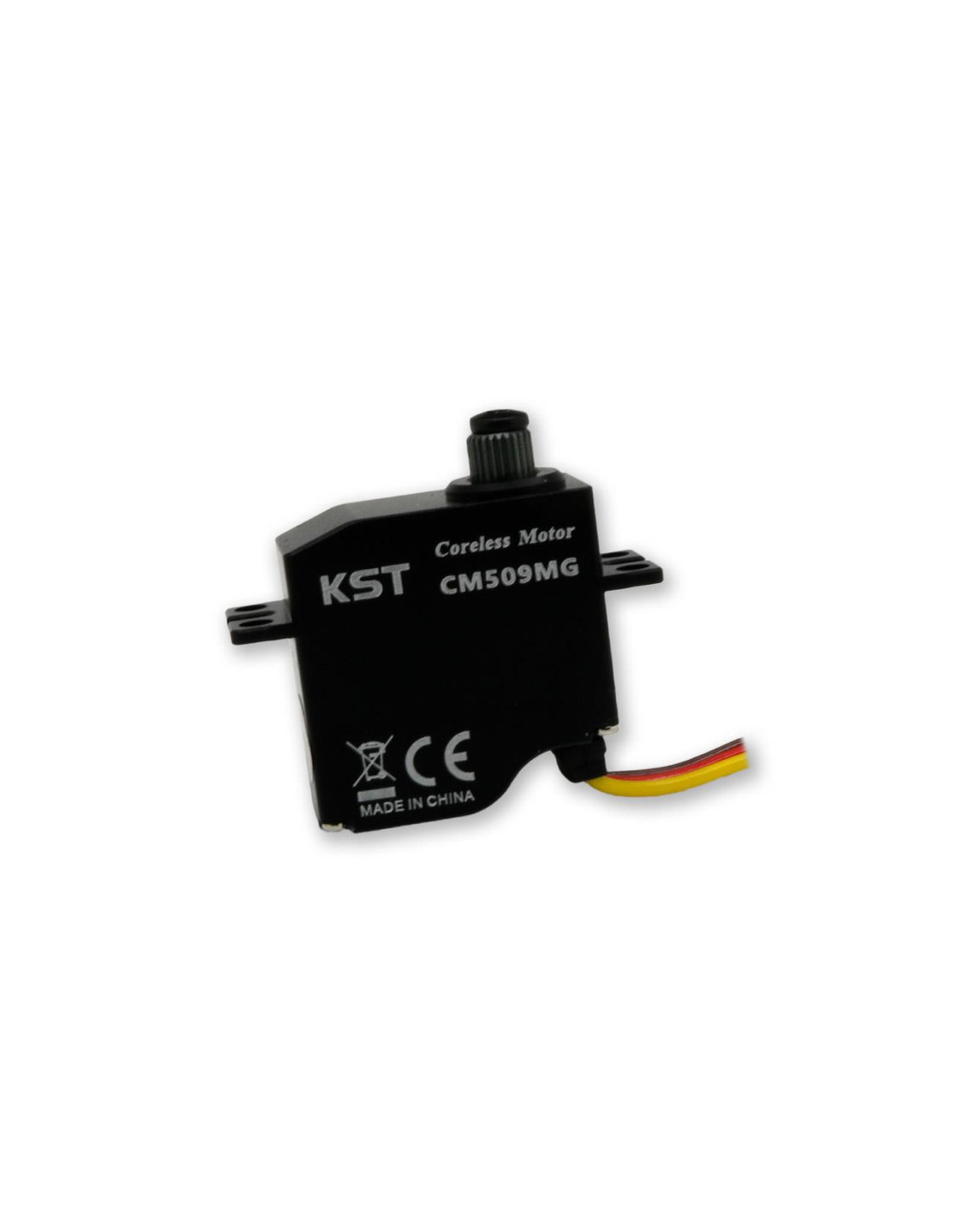

The KST CM509MG is a powerful mini servo with an aluminum housing and robust metal gearing.
This makes it particularly powerful despite its small size and light weight.
This inexpensive and precise servo is well suited to foam models, but also to small aerobatic and thermal glider models.
The KST CM509MG is a powerful mini servo with an aluminum housing and robust metal gearing.
This makes it particularly powerful despite its small size and light weight.
This inexpensive and precise servo is well suited to foam models, but also to small aerobatic and thermal glider models.
Technical details:
Operating voltage [V]: 4.8 - 8.4
Torque [kgf.cm]@4.8V : 3.6
Torque [kgf.cm]@6.0V: 4.8
Torque [kgf.cm]@7.4V: 5.5
Torque [kgf.cm ]@8.4V: 6.0
Actuation time [s/60°]@4.8V: 0.13
Actuation time [s/60°]@6.0V: 0. 11
Actuation time [s/60°]@7.4V: 0.09
Actuation time [ s/60°]@8.4V: 0.08
Blocking current [A]@4.8V: 0.95
Blocking current [A]@6. 0V: 1.15
Blocking current [A]@7.4V: 1.35
Blocking current [A]@8.4V: 1.60
Width [mm]: 11.0
Length [mm]: 23.0
Height [mm]: 24.0
Weight [g]: 15.0
Motor type: Coreless
Frequency range: 1520us/333Hz, 1000us-2000us
Gear type : Metal
Bearing type: 2BB
Gear: 25T-5
Servo type: Mini
Electronics: Digital
Position sensor: Potentiometer
Sealing: No
Soft start :
Programmable Programmable: Yes
Manufacturer: KST
Programmable with KST-Tool #3 and KST-Tool #5.
