Servos - Servo Pro-Tronik digital 9497 MG-D - FLASH RC
Servos - Servo Pro-Tronik digital 9497 MG-D - FLASH RC

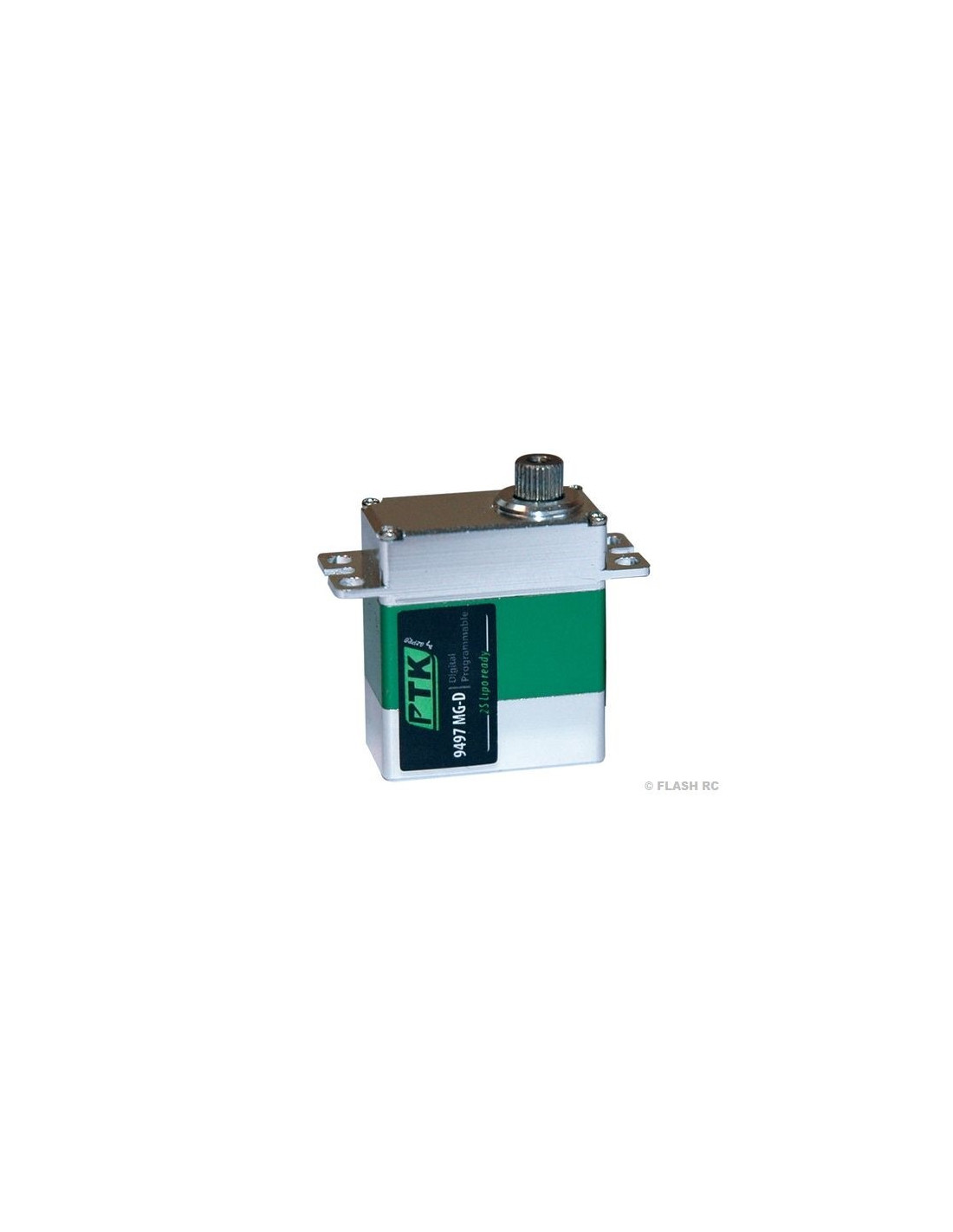

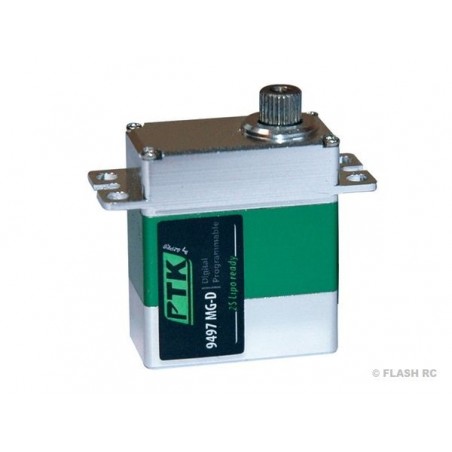

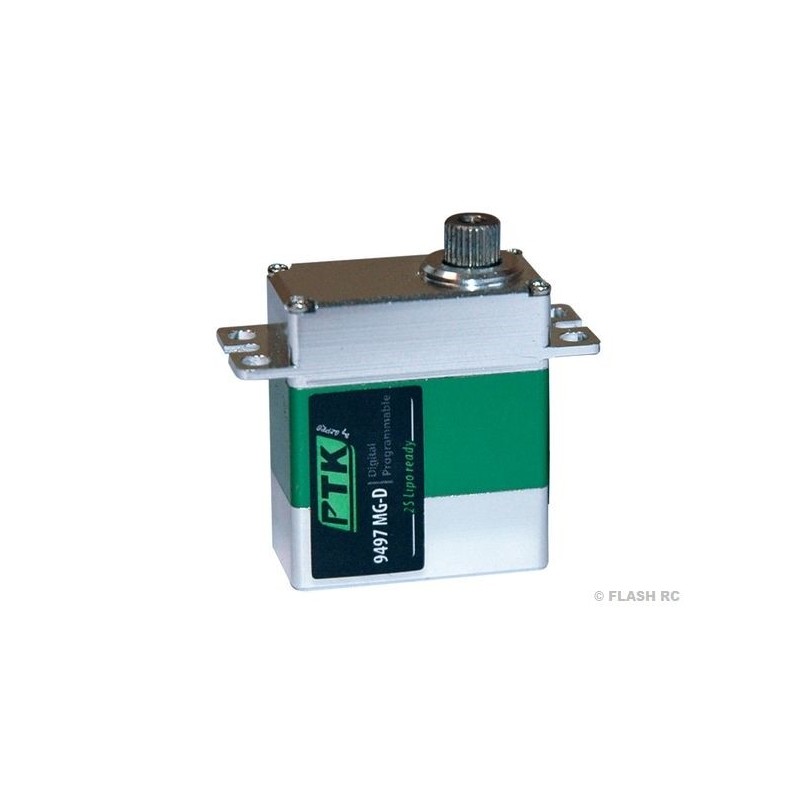

Pro-Tronik digital servo 9497 MG-D

Out-of-Stock
€29.08
Tax included
Pro-Tronik Digital 9497 MG-D Ultra high end servo specially developed for use in gliders or any other application requiring power, precision and reliability.The 9497 MG-D is the most powerful servo on the market in its category.Everything in this servo has been thought to offer the best performance.Its thinness allows it to be mounted in composite glider wings.High quality electronics, potentiometer and motor. Metal gears mounted on two bearings combining robustness, precision and reliability.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical characteristics

  • Sprockets : METAL
  • Bearings : YES 2
  • Motor: Coreless
  • Weight: 19.2g / 0.68oz
  • Dimensions: 22.9 x 26 x 11.9 mm
  • Torque / Speed at 4.8V : 5,4kg/cm - 0,11s/60°.
  • Torque / Speed under 6.0V : 6,8kg/cm - 0,09s/60° (0,09s/60°)
  • Torque / Speed under 7.4V : 8,6kg/cm - 0,08s/60°
  • Operating voltage: 4.8V - 8.4V
  • Cord: 225mm
  • Compatibility: universal connectors
  • Dead band: 1μs
Thickness in mm (Servos)
11.9
Torque in kg.cm (servos)
8.6
Speed sec / 60° (servos)
0.08
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
no
Weight in g (servos)
19.2
272-S04379497
3701383606298
3701383606298
No reviews
Comments (0)
No customer reviews for the moment.
