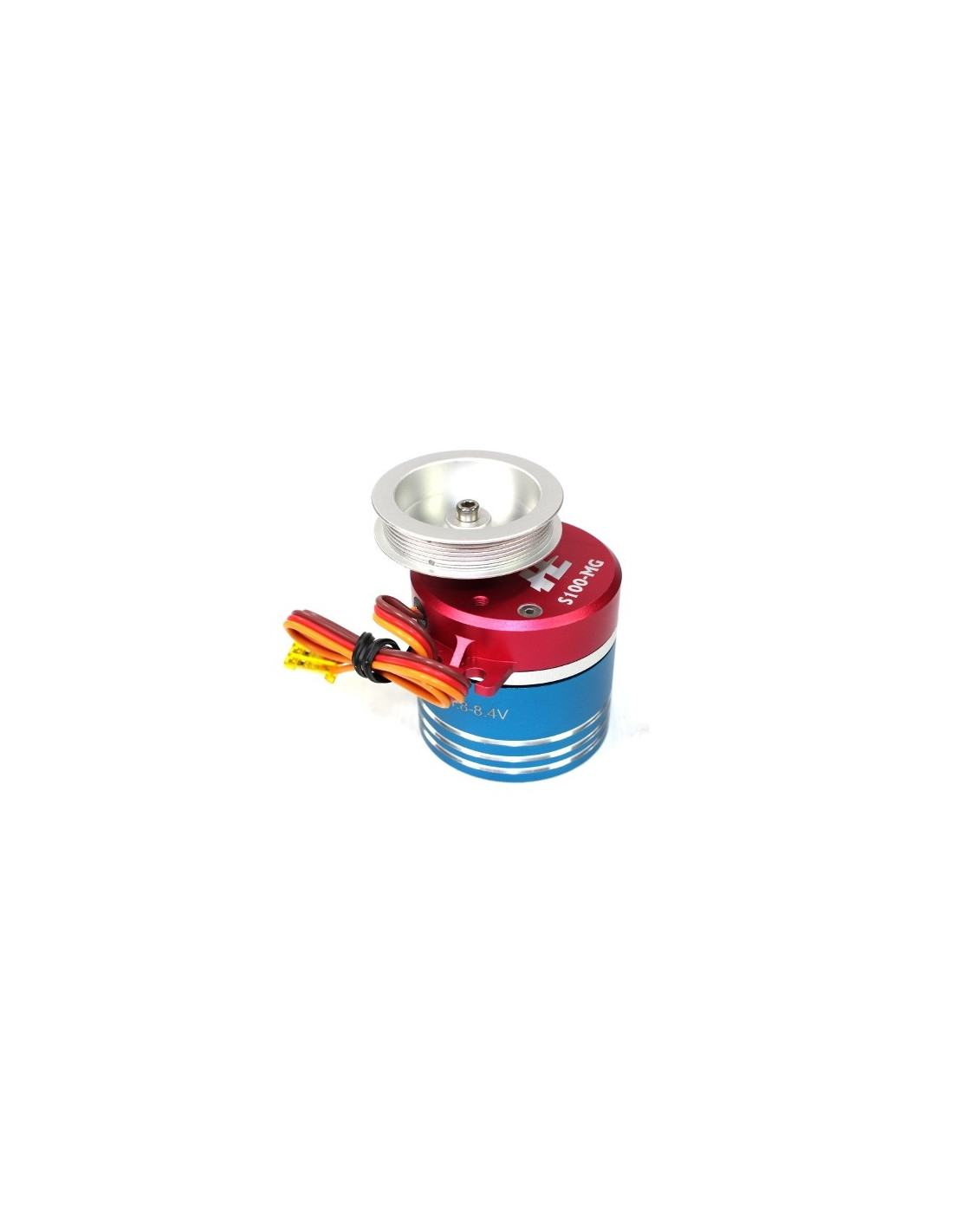

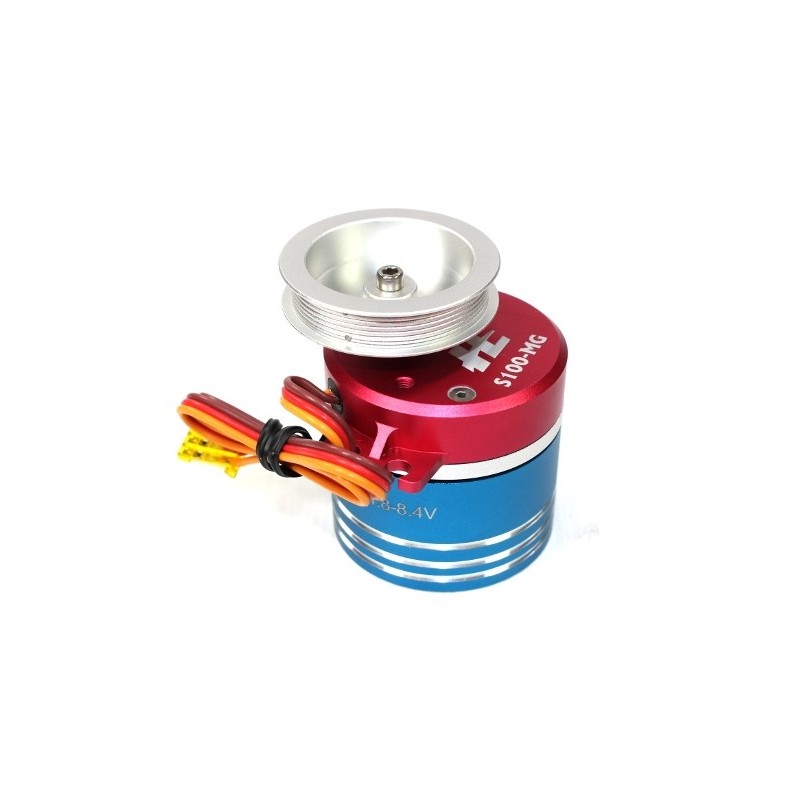

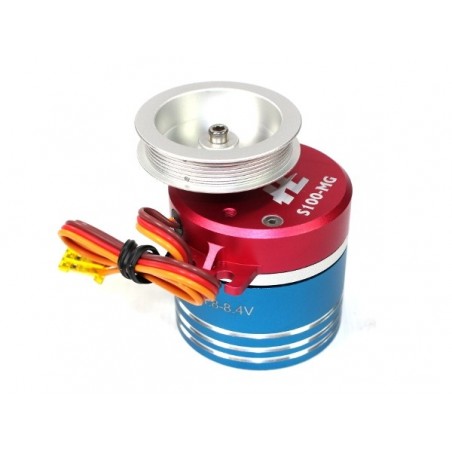

Servo winch HE S100MG Brushless 4 turns - single pulley 35mm

Out-of-Stock
€120.75
Tax included
This Brushless HE S100MG servo winch is a high torque (22kg/cm) and 4 turns servo designed for sailboats.Delivered with a 35mm diameter pulley and single groove.This high performance servo will delight all RC sailboat enthusiasts looking for a quality product and extremely fast 1.68s for 4 turns.This servo is not adjustable for speed. The rotation of the servo is nevertheless proportional to the position of your stick.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical data

  • Voltage: 4.8-8.4 Volts
  • Speed (8.4v): 1.68sec/1440° at no load
  • Maximum power consumption with a weight of 5kg, 1.9A peak
  • Locking torque (8.4V): 22kg.cm
  • Rotation: 4 turns in total
  • Pulley diameter: 32mm (at the bottom of the groove)
  • Bearing: yes
  • Sprockets: Metal
  • Dimensions: 64 x 56 x 45mm
  • Weight: 108g

Thickness in mm (Servos)
45
Torque in kg.cm (servos)
22
Speed sec / 60° (servos)
0.07
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
108
259-HE-S100MG-D35-S
8800223400494
8800223400494
No reviews
Comments (0)
No customer reviews for the moment.
