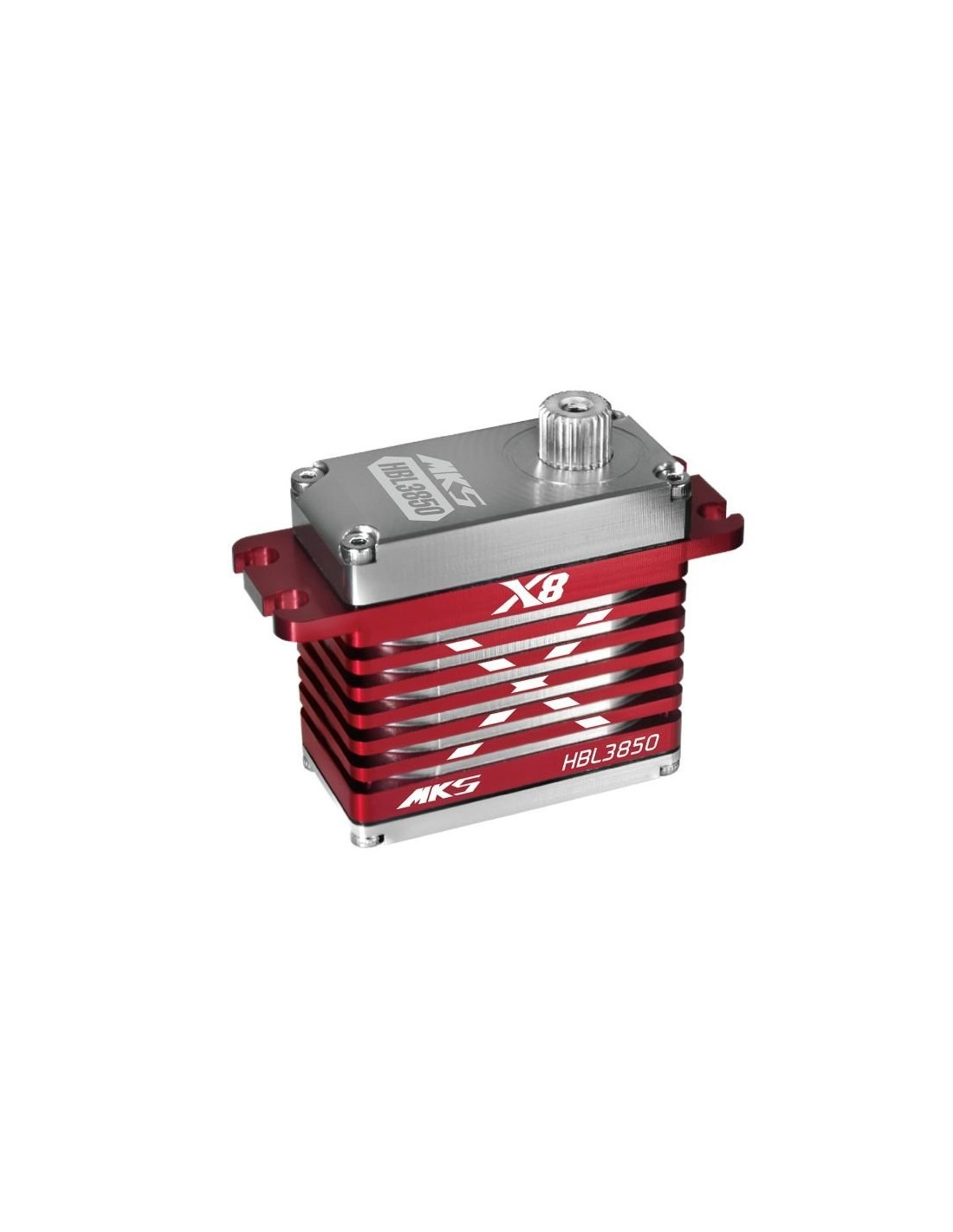

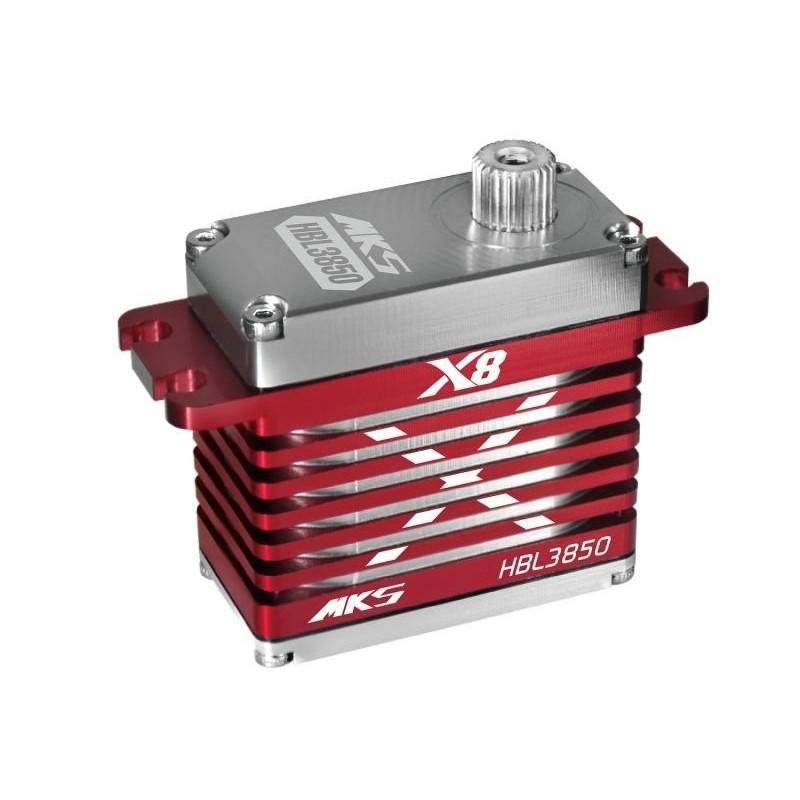

Standard servo Mks HBL3850 MG digital Brushless

Out-of-Stock
€174.17
Tax included
The MKS HBL3850 servo is part of the X8 series. It has a standard size, brushless motor and accepts a 2S LiPo battery. The MKS HBL380 is particularly suitable for aircraft and large scale jets. This servo is very durable, with aluminum housing and cooling fins, metal gears, and a consistent torque of 57kg/cm at 8.2V


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

  • Torque : 42kg.cm (6.0V), 51Kg.cm (7.4V), 57Kg.cm (8.2V)
  • Speed : 0.142s (6.0V), 0.115s (7.4V), 0.104s (8.2V)
  • Blocking current : 5.8A (6.0V) 7.4A (7.4V) 8.2A (8.2V)

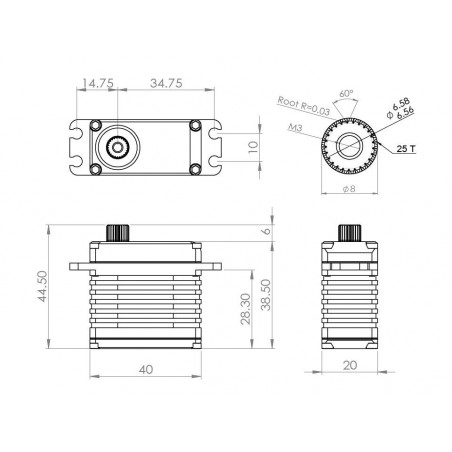

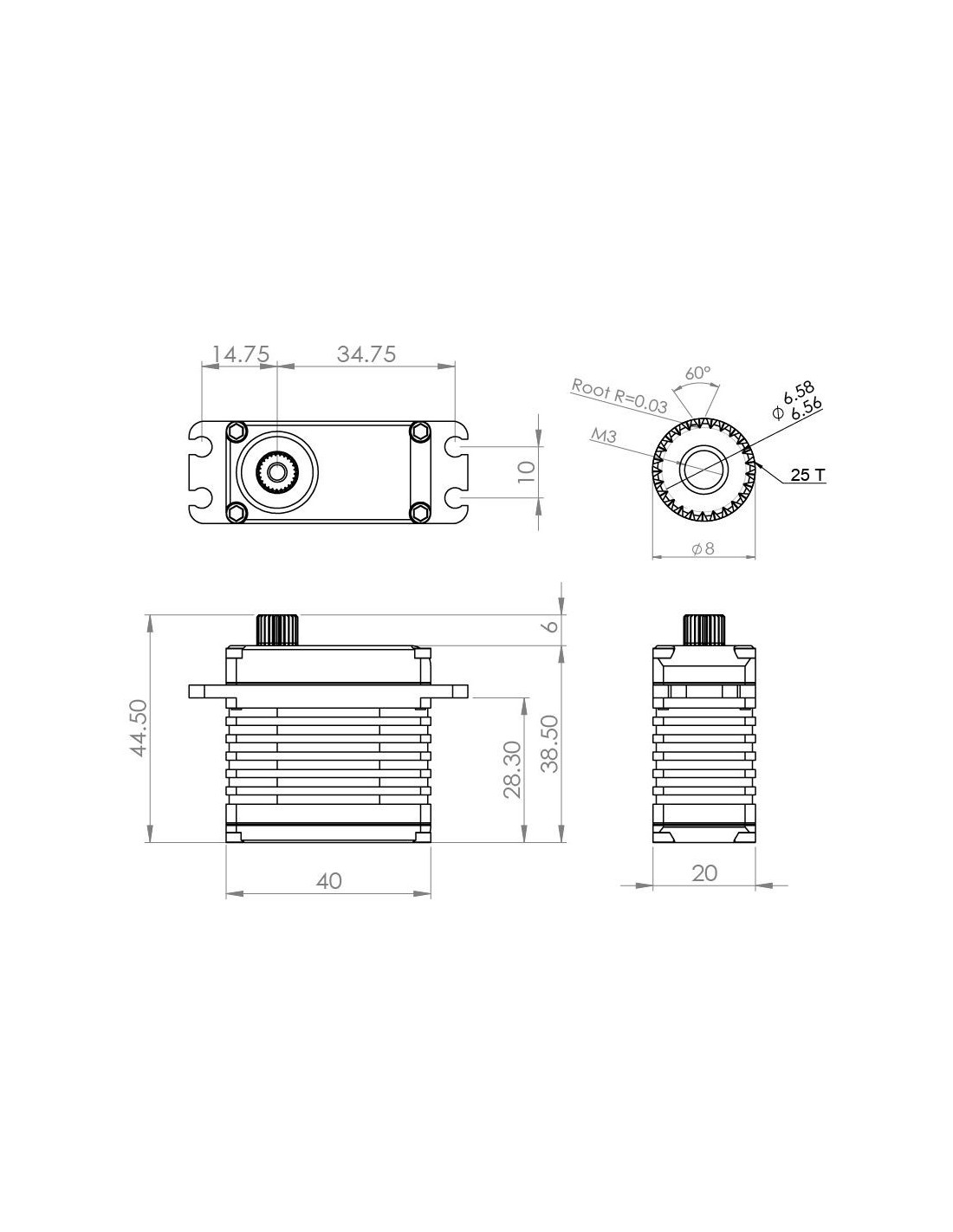

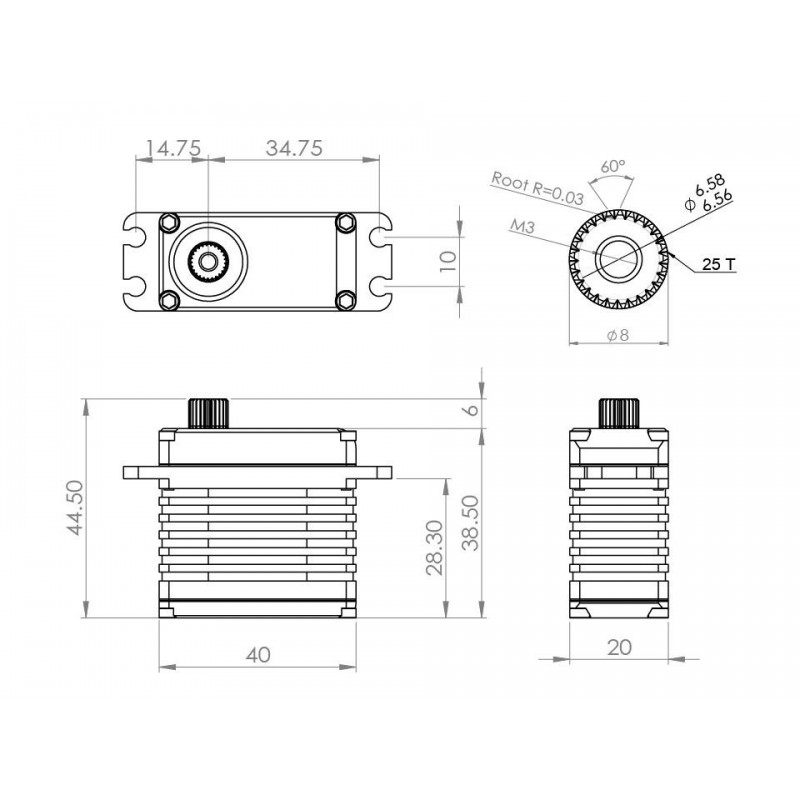

  • Dimensions: 40x20x38.5mm
  • Weight: 81g
  • Input voltage: 3.5 - 8.4V
  • Recommended operating voltage: 6.0 - 8.4V
  • Max. frequency / pulse width: 333Hz / 1520µs
  • Bearing 12x8mm
  • Output diameter: 8mm
Thickness in mm (Servos)
20
Torque in kg.cm (servos)
57
Speed sec / 60° (servos)
0.1
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
81
128-S0010016
4710150350721
4710150350721
No reviews
Comments (0)
No customer reviews for the moment.
