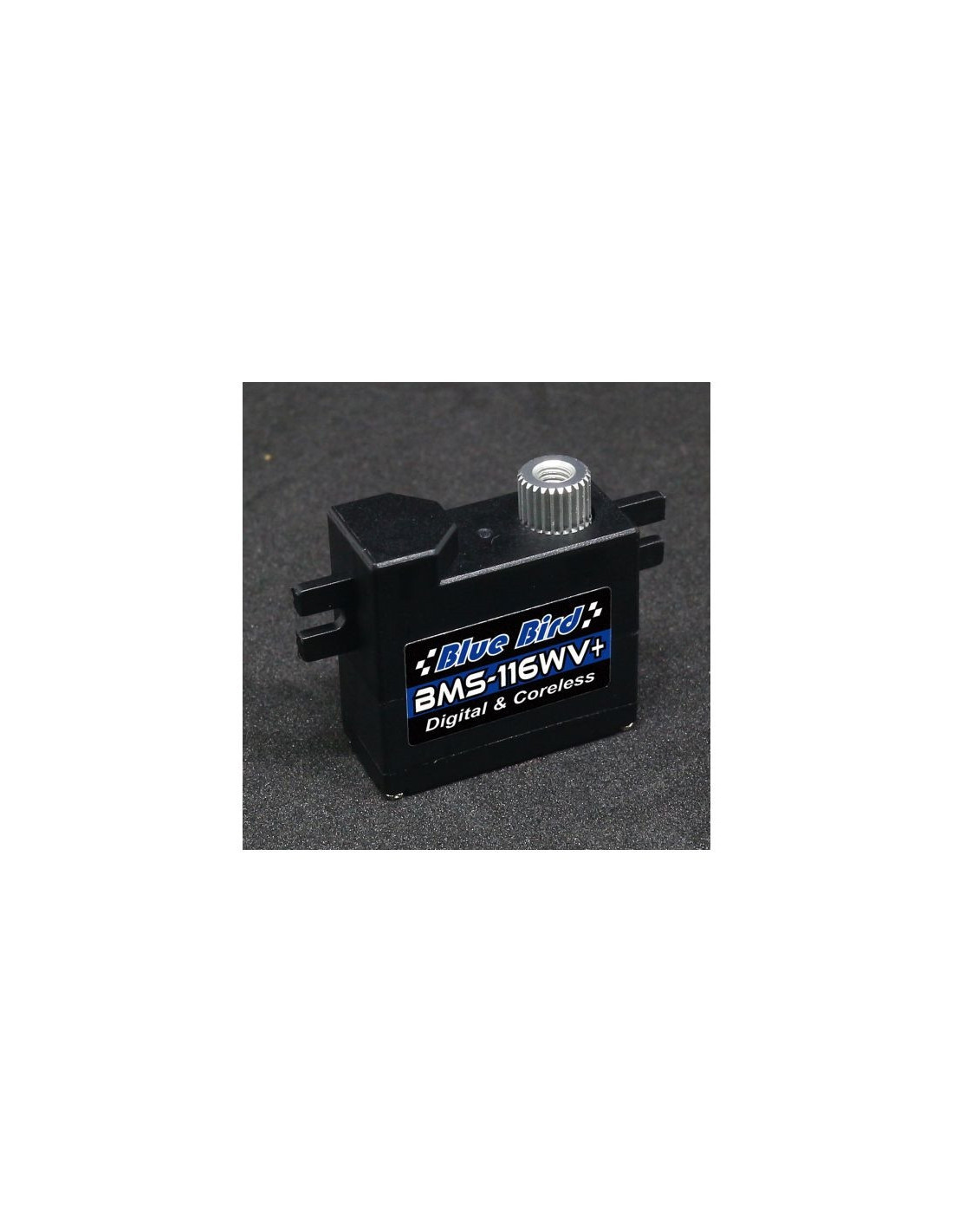

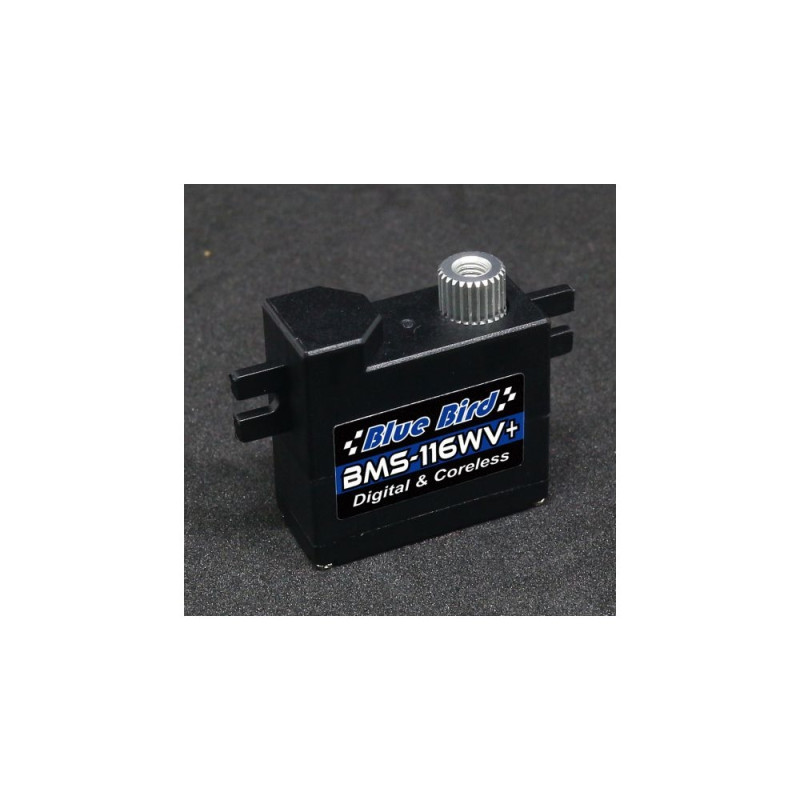

Blue Bird servo BMS-116WV+ 6.5Kg.cm 0.07s 11.3g 10mm

The Blue Bird BMS-116WV+ is a digital micro servo of only 11gr but delivering a torque of 6.5kg/cm under 8.4V
The Blue Bird BMS-116WV+ is a HV servo, it accepts to be powered from 6.0V to 8.4V, that is to say under 5 NiMh cells or under 2 LIPO cells with or without voltage regulator.
It is equipped with a metal gearing and a Coreless motor.

It is very easy to install in the wings thanks to its vertical mounting brackets (flat mounting).

This servo has the same footprint as a MKS DS6100 or HV6100 servo.

With a thickness of 10mm and a high torque, this servo will find its place especially for the ailerons of the F3J and F5J, in thin wings or narrow fuselages.

Specifications

Operating voltage : 6.0V to 8.4V DC
Speed : 0.10sec/60° (6.0V) - 0.08sec/60° (7.4V) - 0.07sec/60° (8.4V)
Locking torque : 4.7kg/cm (6.0V) - 5.8kg/cm (7.4V) - 6.5kg/cm (8.4V)
Sprockets: Metal
Cable length: 16 cm

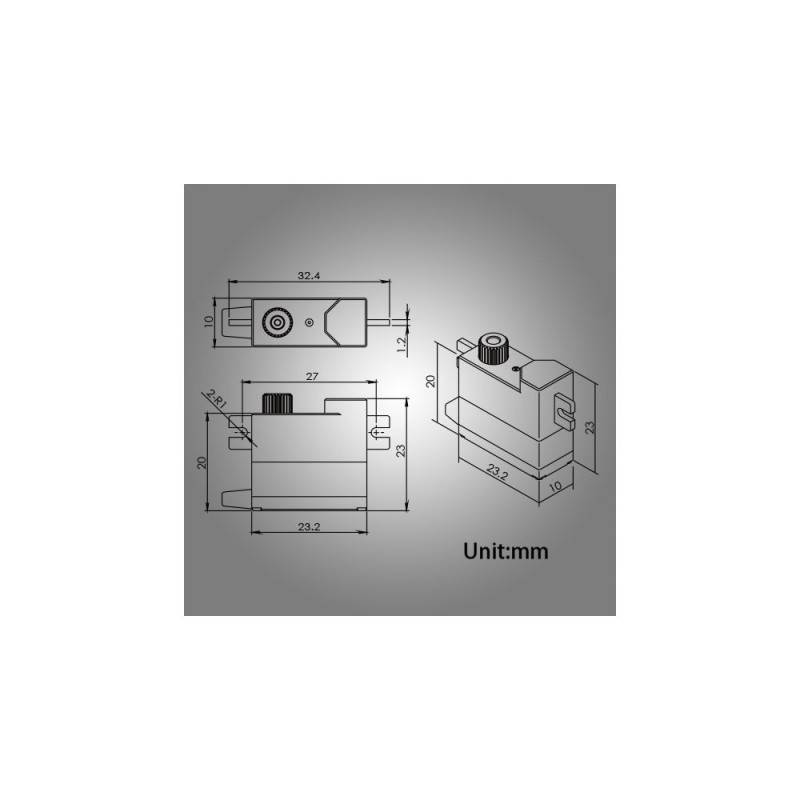

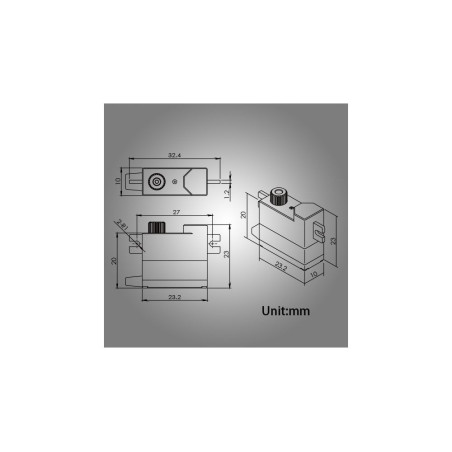

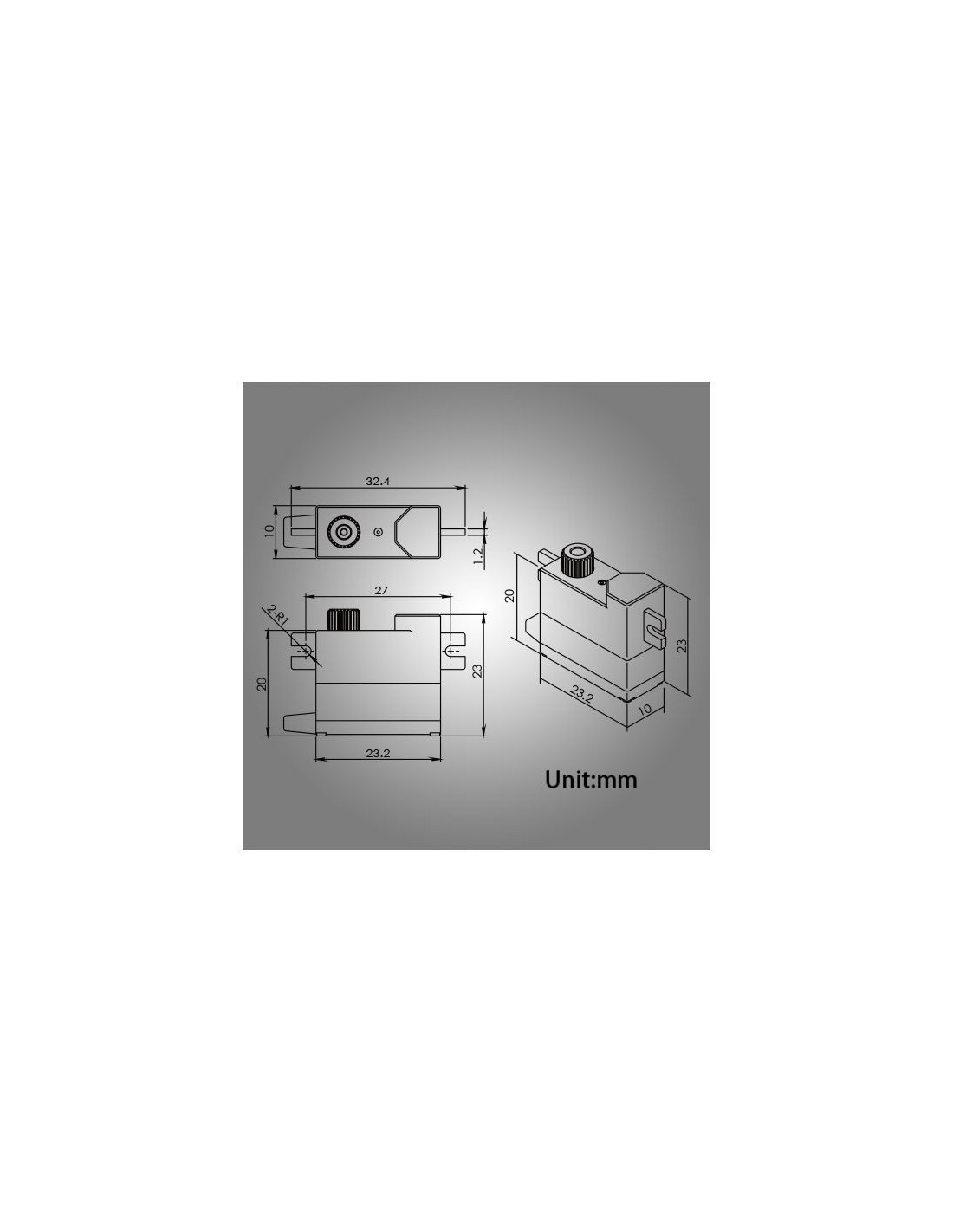

Dimensions: 23.2X10X23 mm
Weight: 11.3 gr
Number of teeth: 25 (like Futaba)
