Remote control MT12 ELRS LBT module
Remote control MT12 ELRS LBT module
Remote control MT12 ELRS LBT module
Remote control MT12 ELRS LBT module

Remote control MT12 ELRS LBT module

Out-of-Stock
€116.58
Tax included

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. With 10 physical inputs and the ability to handle 16 or 32 channels*, the MT12 is ready for a wide range of surface models, from cars and trucks to boats and beyond. With a high degree of customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, ready to excel in virtually any scenario.


custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features

  • Available with integrated ExpressLRS backpack or MPM 4in1 RF modules
  • Featuring a powerful STM32F407VGT6 with 1MB Flash
  • EdgeTX firmware pre-installed
  • QC3.0 fast charging supporting 2.0A MAX
  • Compact design with excellent ergonomics
  • Oversized battery compartment - 2 18650 batteries or a 2s 7.4v 5000mah battery pack (batteries not included)
  • Standard compartment for Nano module
  • Standard RadioMaster button layout
  • Rotating antenna
  • Customizable basic switches or 4-way joystick included

MT12 specifications

  • Item: MT12 surface-mounted radio
  • Physical dimensions: 177.8*118.4*207.8mm
  • Weight: 480 grams
  • Operating frequency: 2.400GHz-2.480GHz
  • Internal RF options: 4-in-1 multi-protocol / ELRS 2.4GHz
  • Supported protocols: Module-dependent
  • Operating current: 160mA for 4in1 / 320mA for ELRS
  • Operating voltage : DC 6.6-8.4V
  • Operating system: EdgeTX
  • Control channels: 16 as standard, expandable to 32 channels (4in1 only)
  • Display: 128*64 monochrome LCD
  • Battery: 2 x 18650 or a 2s 7.4v 5000mah battery (batteries not included)
  • Charging: Integrated USB-C charging
  • Firmware update method: Via USB or SD card
  • Wheel and trigger sensor: Hall effect
  • Module bay: Nano size (RadioMaster Ranger Nano module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

ER3C-i specification (included with ExpressLRS version)

  • Purpose: ER3C-i 2.4GHz ELRS PWM Receiver
  • Power supply: DC 4.5 - 8.4V
  • Antenna type: Integrated high-sensitivity ceramic antenna
  • Wireless protocol: ExpressLRS 3.3.0 pre-installed
  • Output channel: 3CH PWM
  • Telemetry power: 10mW
  • Battery voltage detection range: DC 4.0 - 35V
  • Weight: 4.2 grams
  • Dimensions: 26.1*18.5*13.0 mm 26.1*18.5*13.0 mm
  • Firmware: Device category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i

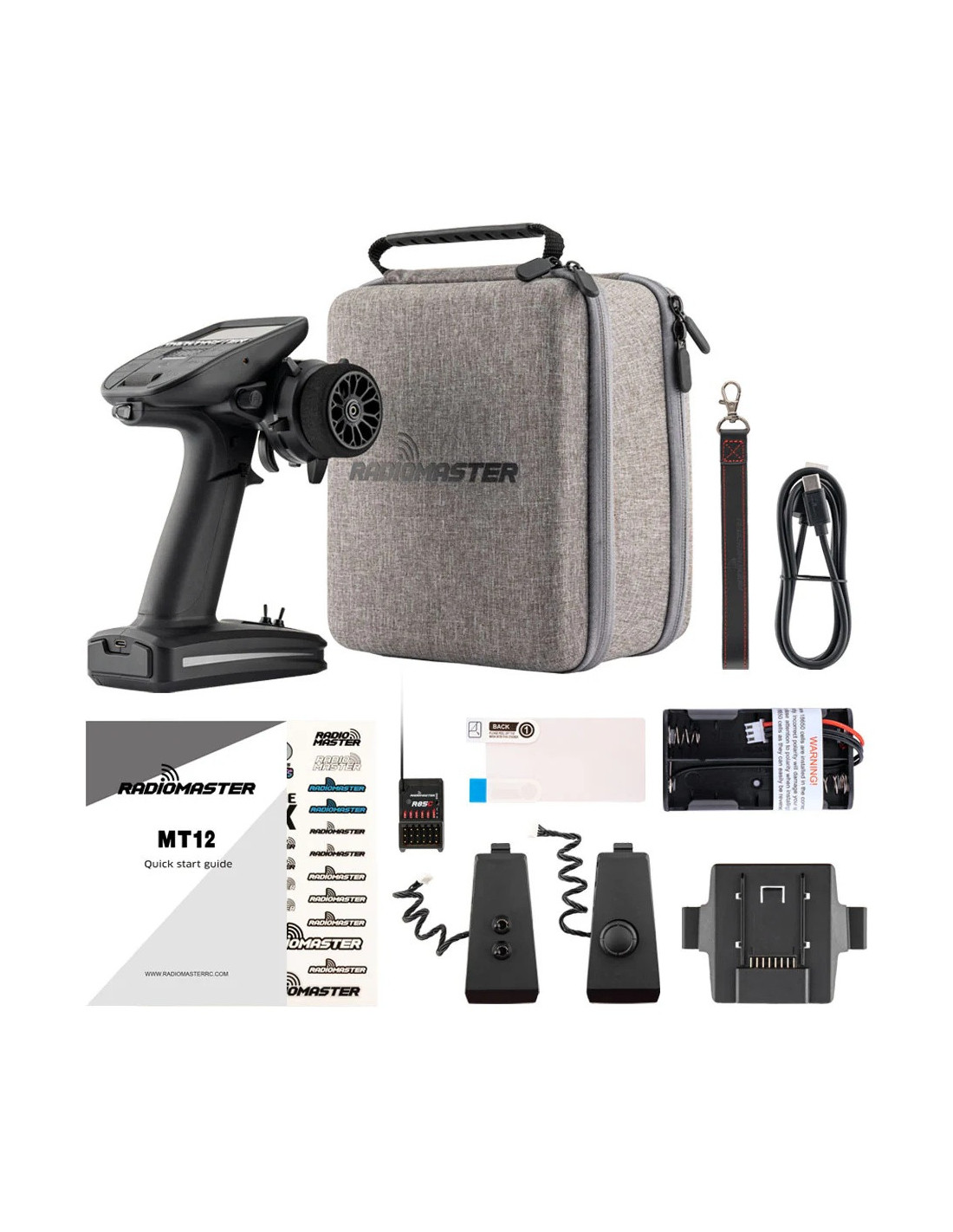

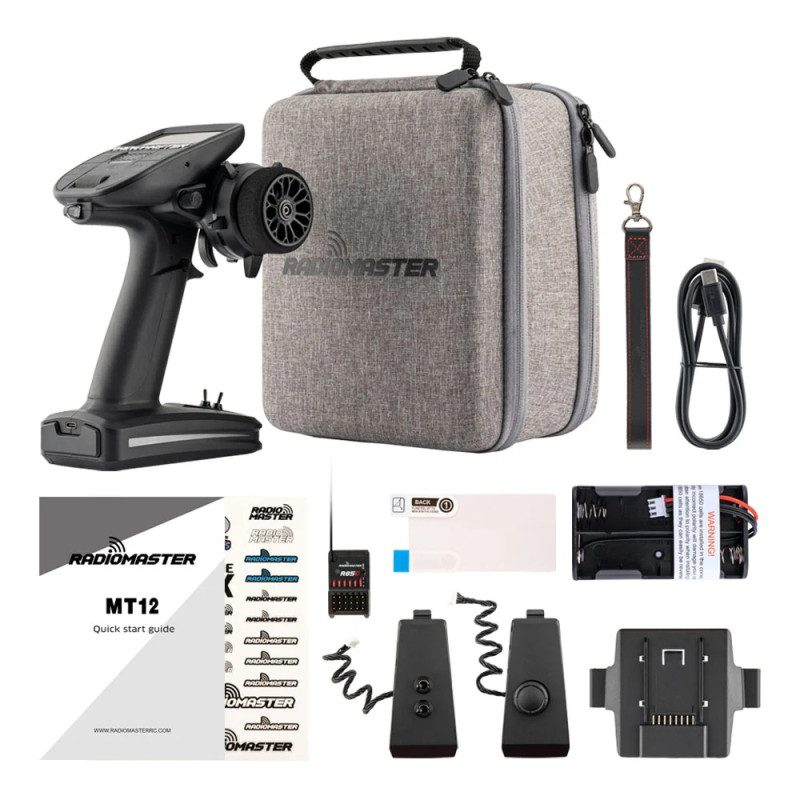

Package includes

  • 1 * MT12 Surface Radio ExpressLRS Version
  • 1 * ER3C-i 2.4GHz ELRS PWM Receiver
  • 1 * Expansion module for double switch
  • 1 * 4-way joystick expansion module
  • 1 * Nano adapter
  • 1 * USB-C cable
  • 1 * Leather strap
  • 1 * Customized RadioMaster carrying case
  • 1 * 18650 battery holder
  • 1 * Screen protector
  • 1 * Stickers
  • 1 * Manual
with handle / with steering wheel
with steering wheel
Number of radio channels
16
275-HP0157.0067-LBT
