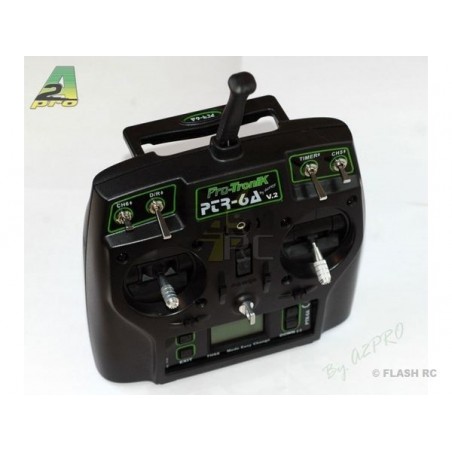

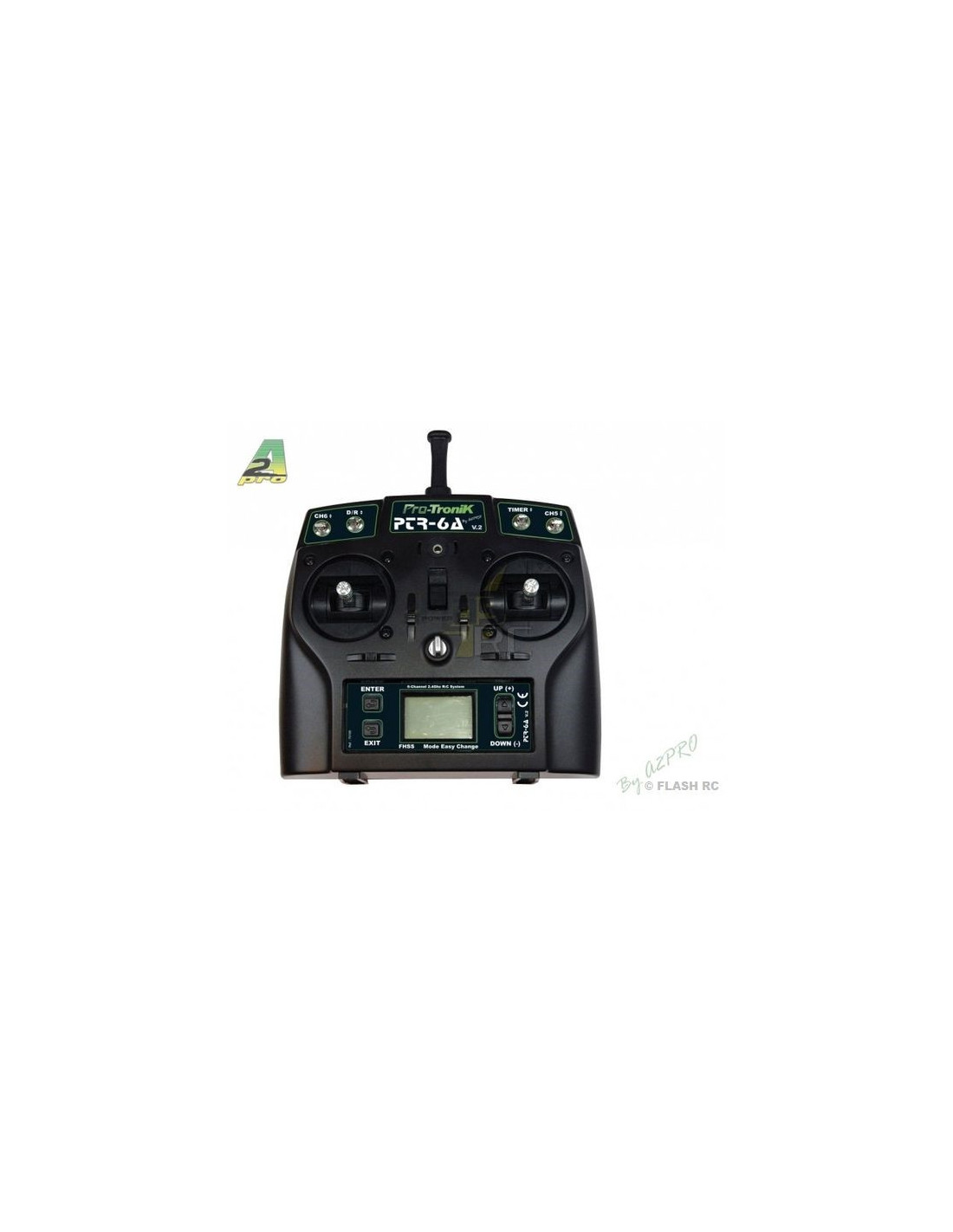

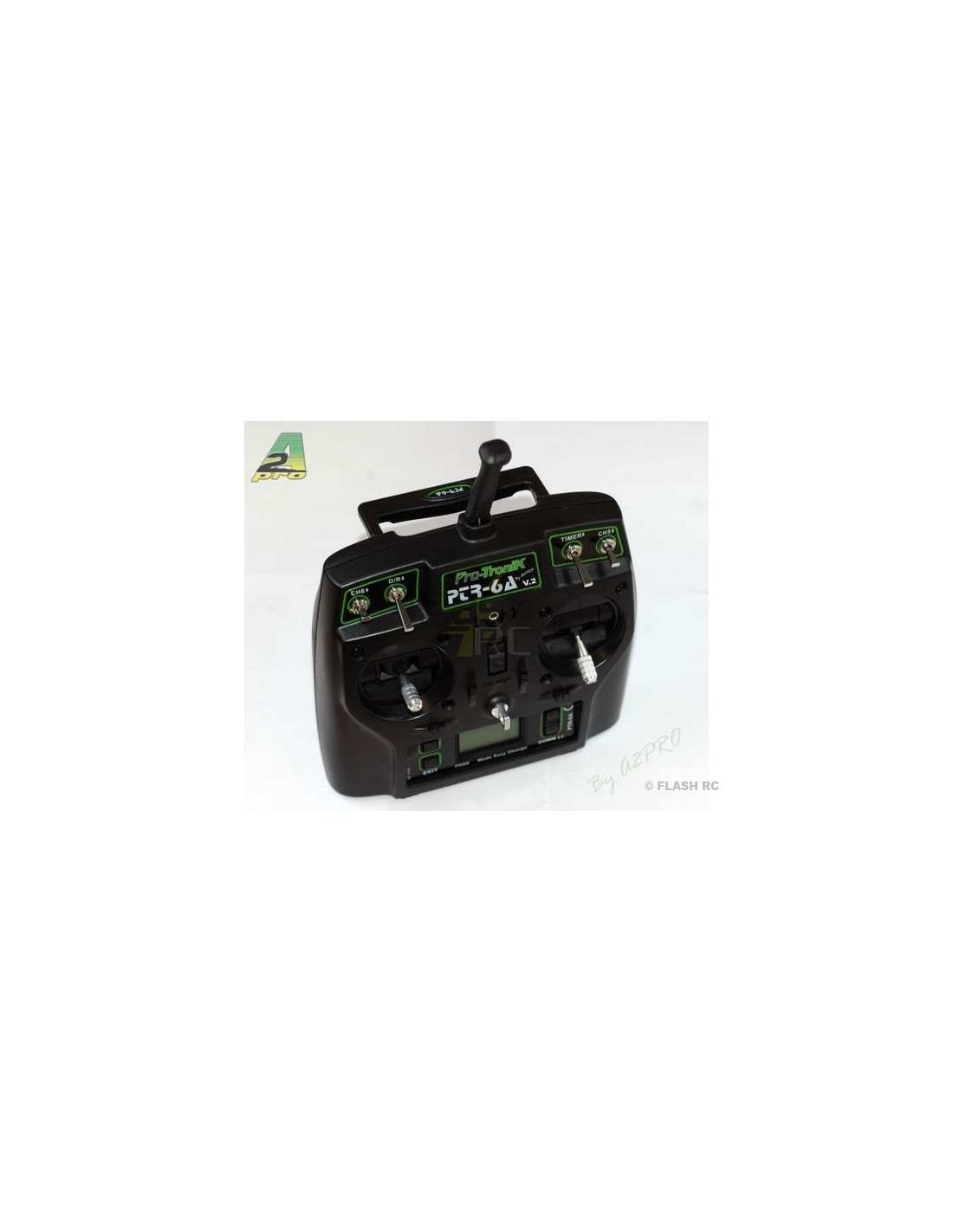

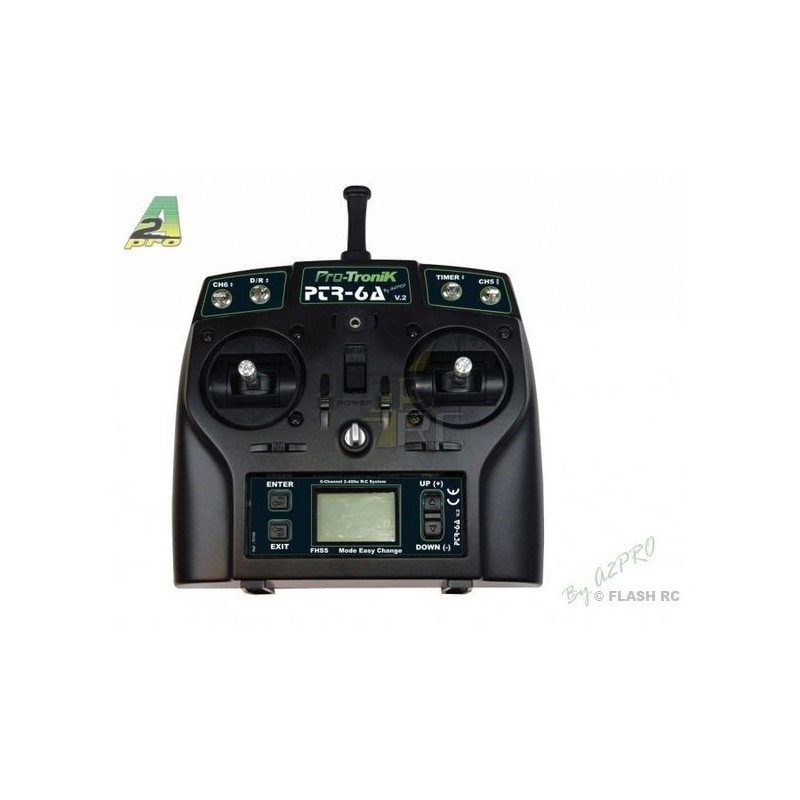

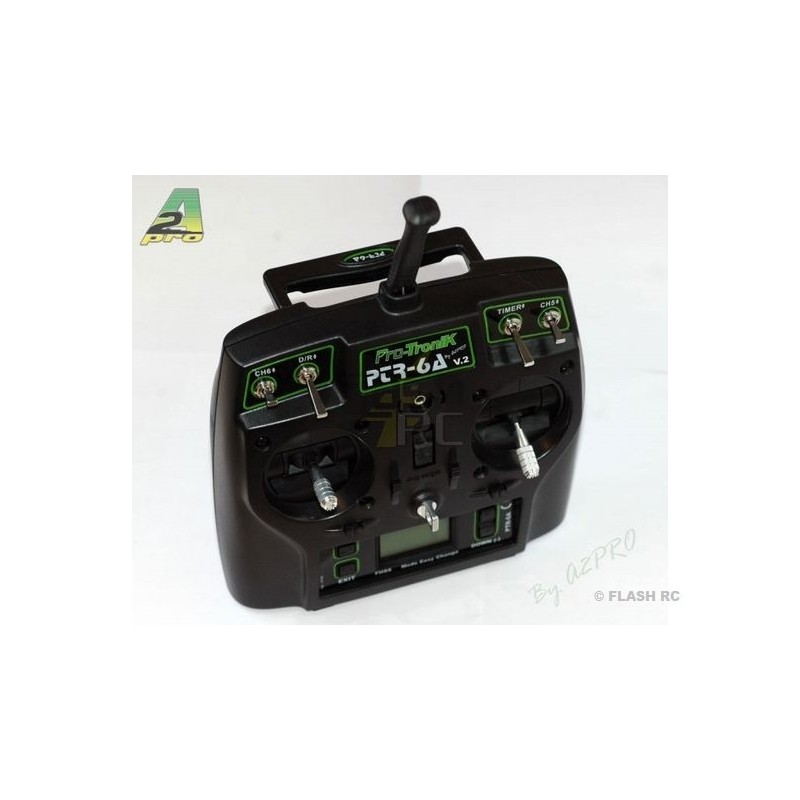

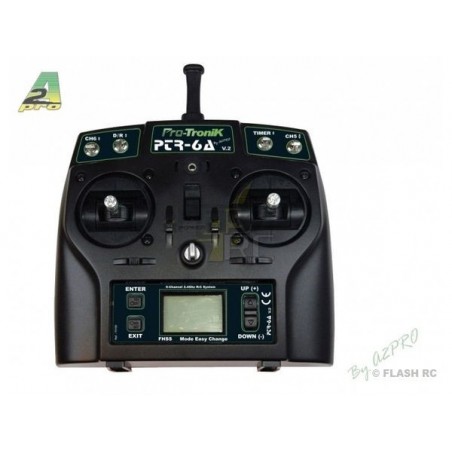

Transmitter PTR-6A 6 Channels V2 2.4Ghz 6/8/0 PROTRONIK - NiMh battery

General characteristics

Programmable transmitter	800mAh transmitter battery

Works in MODE 1 or MODE 2	Quick mode change

Technical characteristics

• Radio 6 programmable channels type AIRPLANE/PLANER (no heli mode for the moment)
• Adjustment of the direction and travel of each channel, as well as DualRate and exponential function.
• Aircraft mixes (delta, ailerons and V-tail)
• 2.4GHz FHSS not compatible with other brands. Extremely reliable and secure.
• Switching from MODE 1 to MODE 2 with a simple switch without dismantling anything.
• Channel 5 by three-position switch and channel 6 by two-position switch.
• Easy to read backlit display with automatic shutdown after a few seconds of inactivity.
• Timer available.
• Digital trimming on the 4 channels.
• 8 model memories available with the possibility of naming the models on 4 characters.
• Approved emission power.
• DSC socket for training/simulation.
• Wireless training compatible with the majority of the brands on the market*.
• Power supply by 4.8V 800mAh NiMh BATTERY (ref : 4080F) offering an excellent autonomy of about 10 hours (LiPo power supply possible in option).
• Retractable antenna and handle.
• Lightweight transmitter with excellent ergonomics, robust and sober material.

*Details of the schooling

The R6Xl receiver still offers 6 channels on universal connectors, but also has a permanent PPM type output whose polarity is left to the user's choice (positive or negative by programming). This output, available on the "BATT/PPM" connector, can be used to directly control a MultiRotor control unit, for example. Even better, it now allows wireless schooling with virtually any brand of master transmitter.

Kit Contents

• PTR-6A V2 6-channel transmitter
• 8-channel receiver R8X
• Transmitter battery NiMh 4.8V 800mAh
