Technical specifications
- 16 channel transmitter
- Wheel for easy menu navigation
- Backlit LCD display 212x64 mm
- All handles, sliders, potentiometers and switches can be freely assigned
- 60 model memories
- Internal HF module with telemetry capable of transmitting up to 16 channels with a refresh rate of 9ms
- 3 customizable telemetry displays, data log (requires micro SD card)
- 64 mixes
- 9 flight modes
- Multimode transmitter (1-4)
- Smart Port" telemetry compatible
- 16 customizable curves from 3 to 17 points
- JR standard jack capable of receiving up to 8 channels and sending up to 16 channels.
- Audio jack to connect a headset (telemetry voice announcement)
- Mini USB socket to connect the transmitter to the PC
- Multi language : the transmitter is originally in English but you can reflash it with the language of your choice
- Open source firmware: http: //www.open-tx.org
Delivered without battery, without SD card, without charger.
The size of the battery compartment is 108x31x28mm.
Content of the delivery

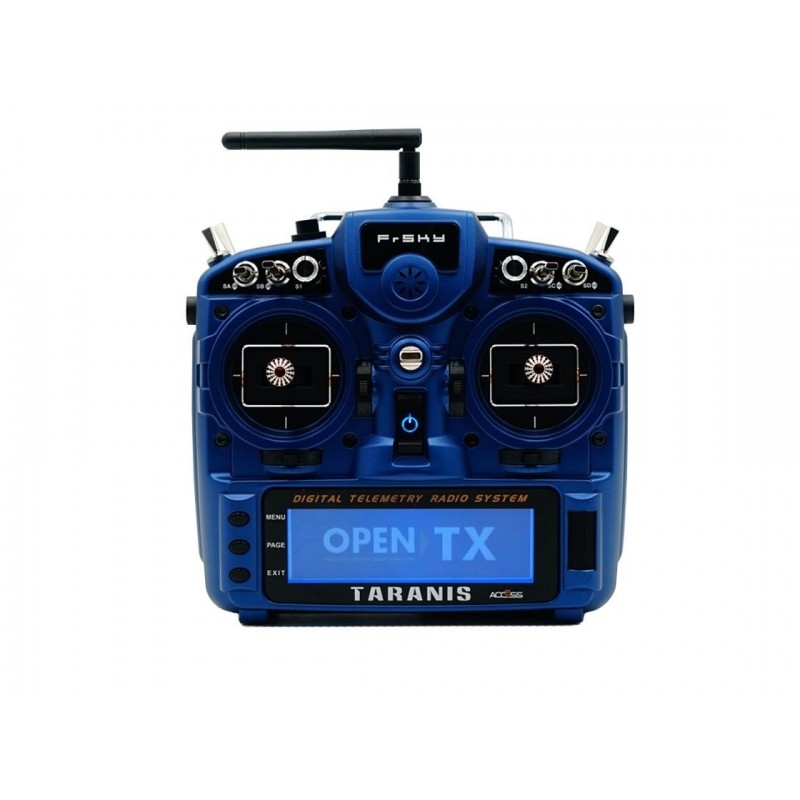

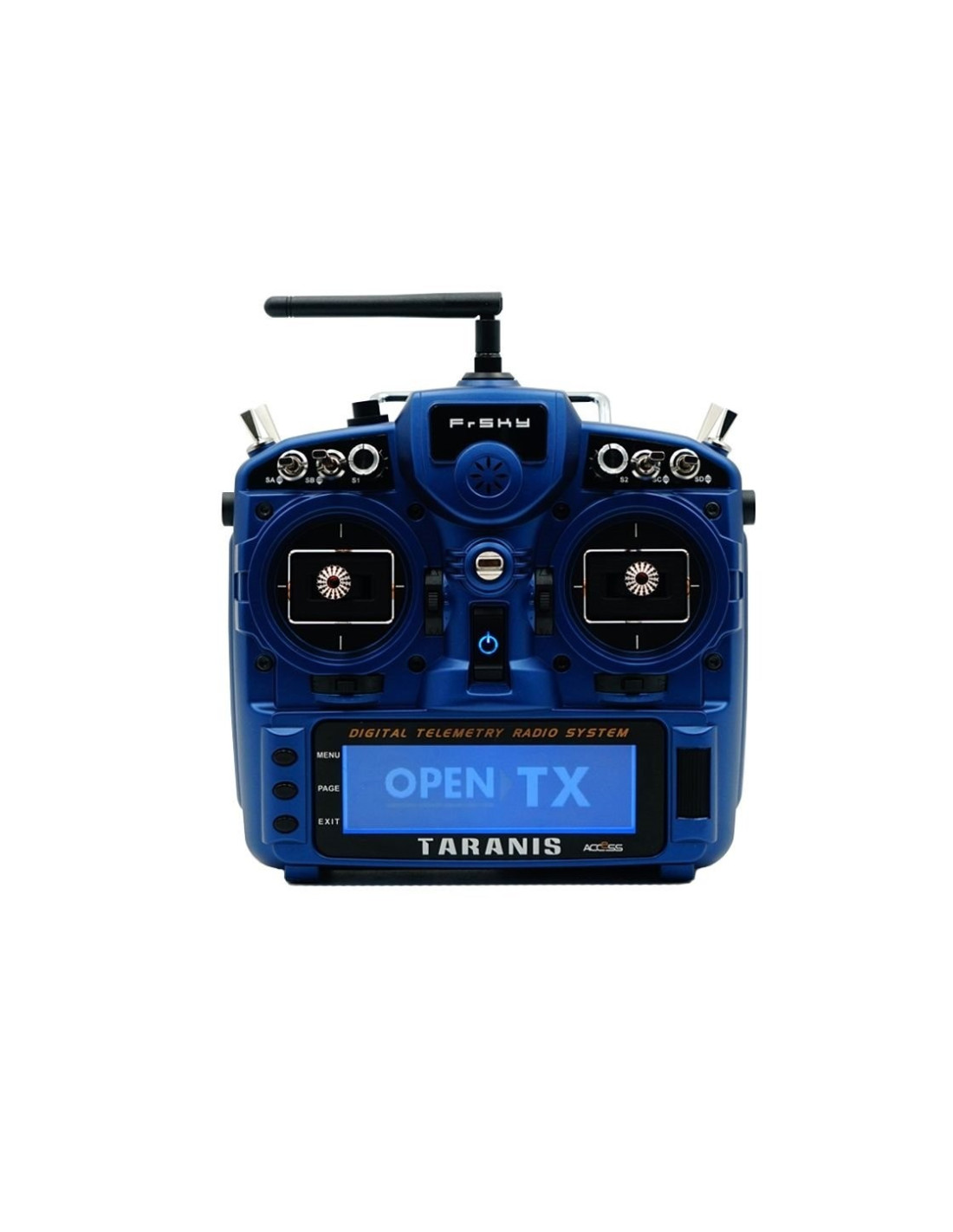

- 1x Taranis X9D PLUS SE 2019 Night Blue transmitter in mode 2 - Transmitter only (gas left)
- 1x neck strap
