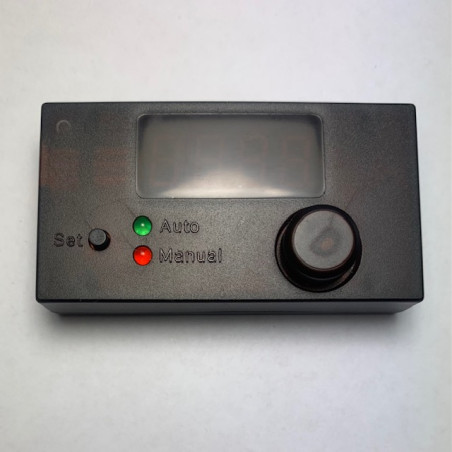

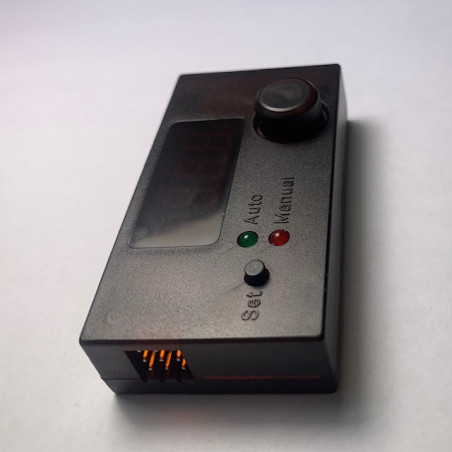

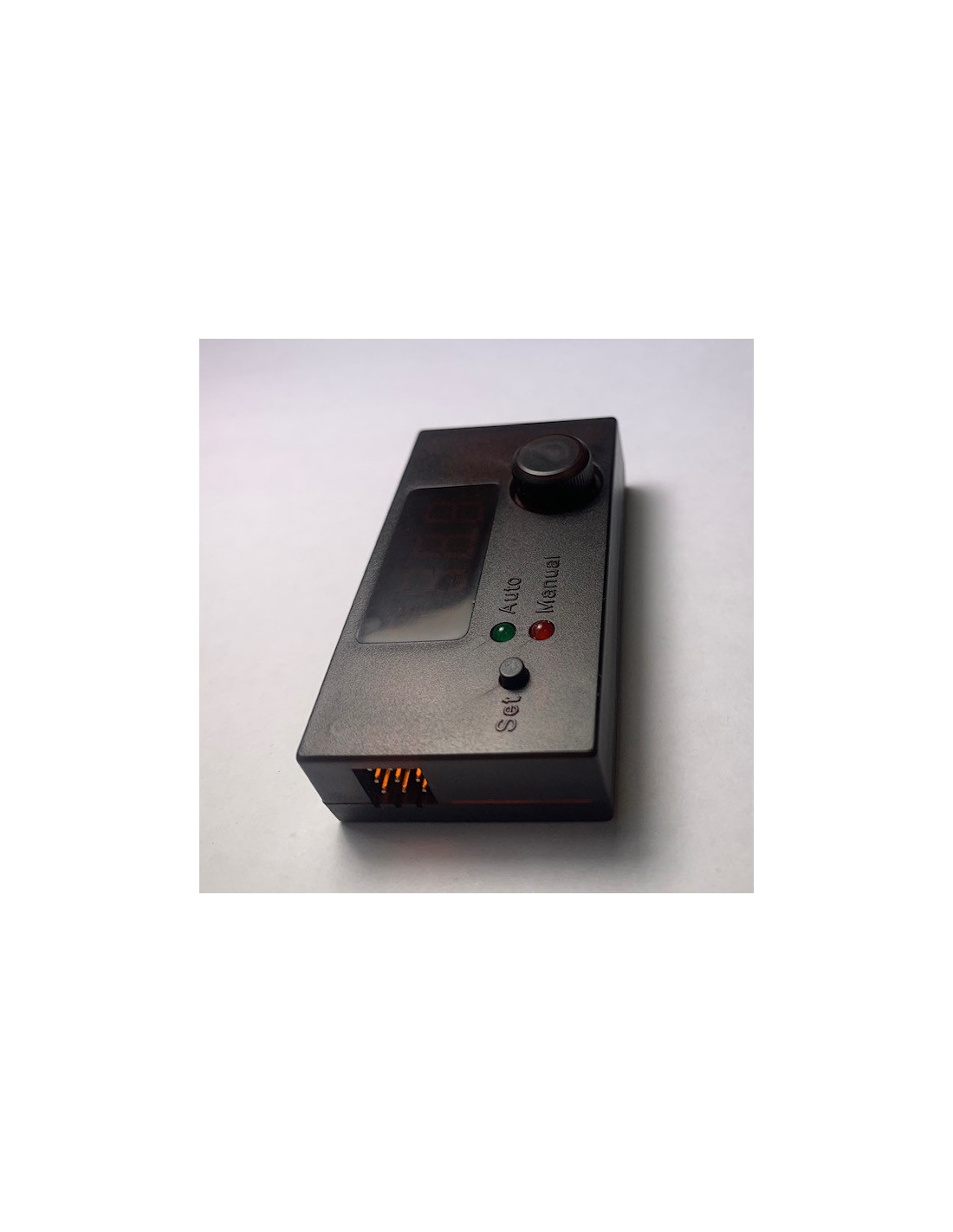

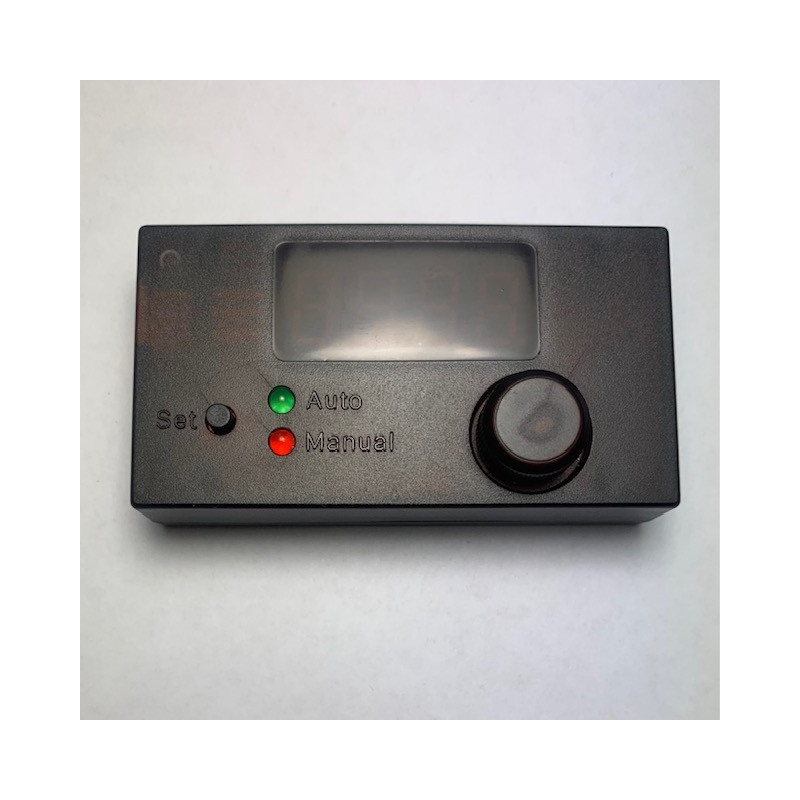

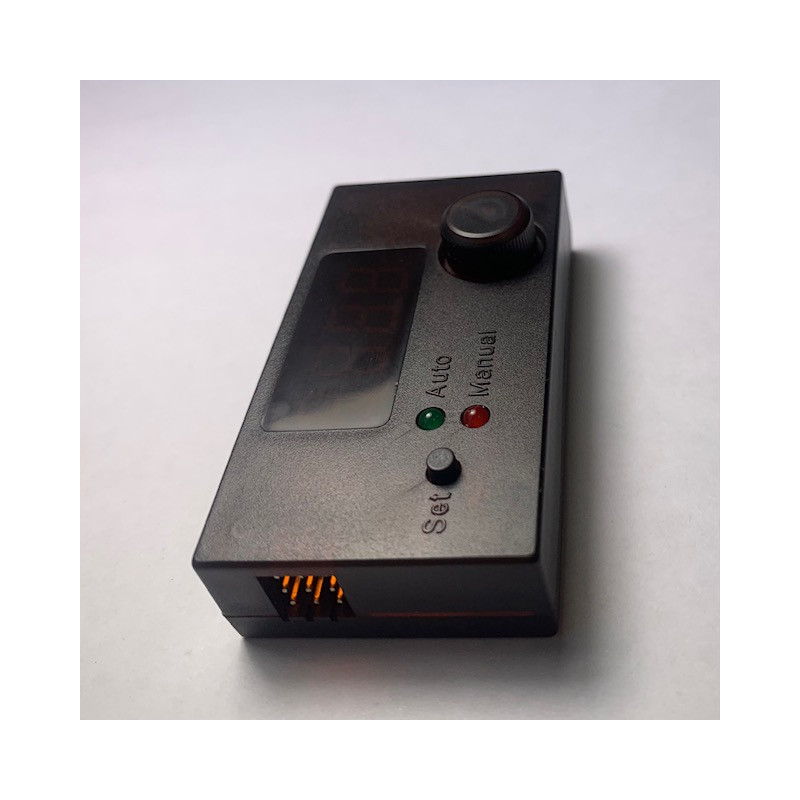

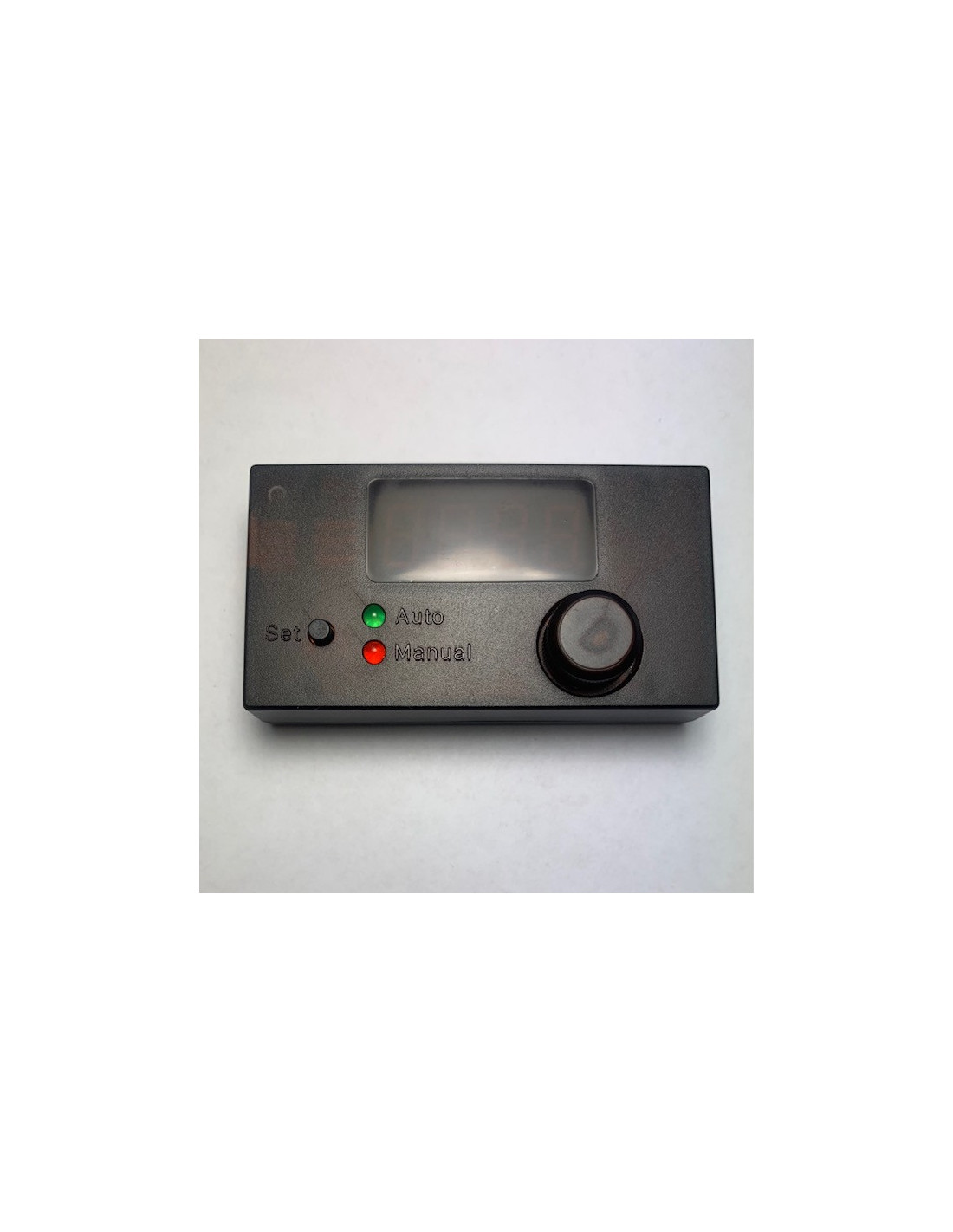

The Rcexl Servo Tester/Simulator will allow you to test your servos without the need for a radio/receiver.
Parameters
Voltage: 4.8 ~ 8.4V
Weight: 27g/0.9oz
Size: 66*36*22mm
Instructions for use:
1. Press the "Set" switch to set the unit to automatic or manual mode.
After the battery and 1 to 3 servo connected to the device, you choose the mode you want to use.
2. In automatic mode, the green LED will light up; The unit will automatically generate a full range pulse and the servo/s will start to switch from full CW to continuous CCW, the digital display will show the numbers switching from one end of the spectrum to the other.
3. In manual mode, the red LED lights up; The unit will allow you to move the servo to the desired position by turning the round knob, the display will show the pulse width at that position.
