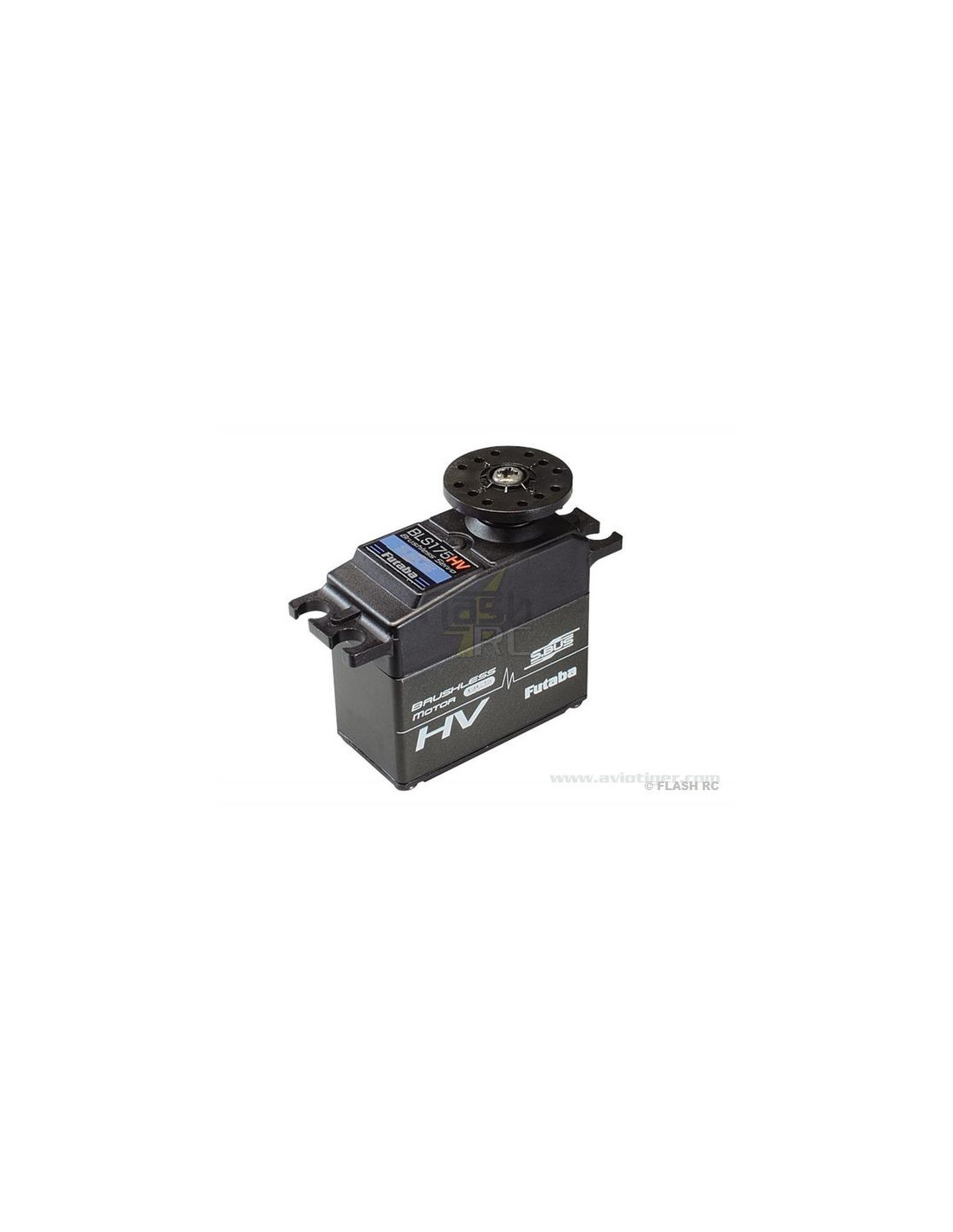

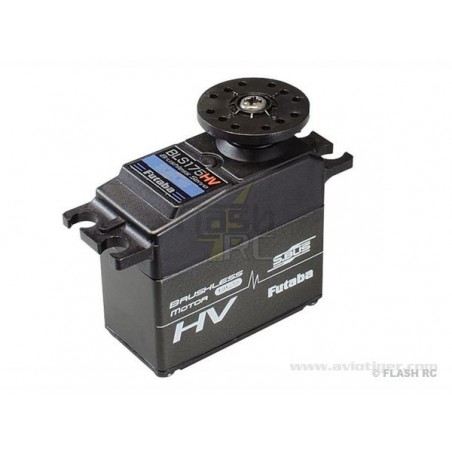

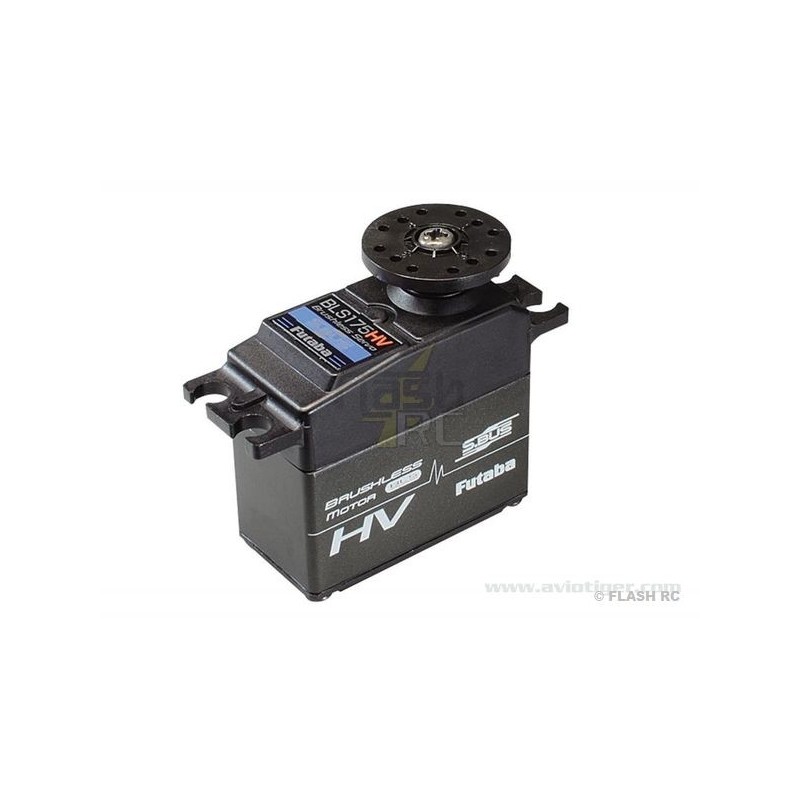

Futaba BLS175HV MG HV Brushless SBUS standard servo (66g, 21kg/cm)
Out-of-Stock
€115.25
Tax included
BLS175HV digital servo SBUS HV (high voltage) brushless FUTABA, metal gears, double bearings.

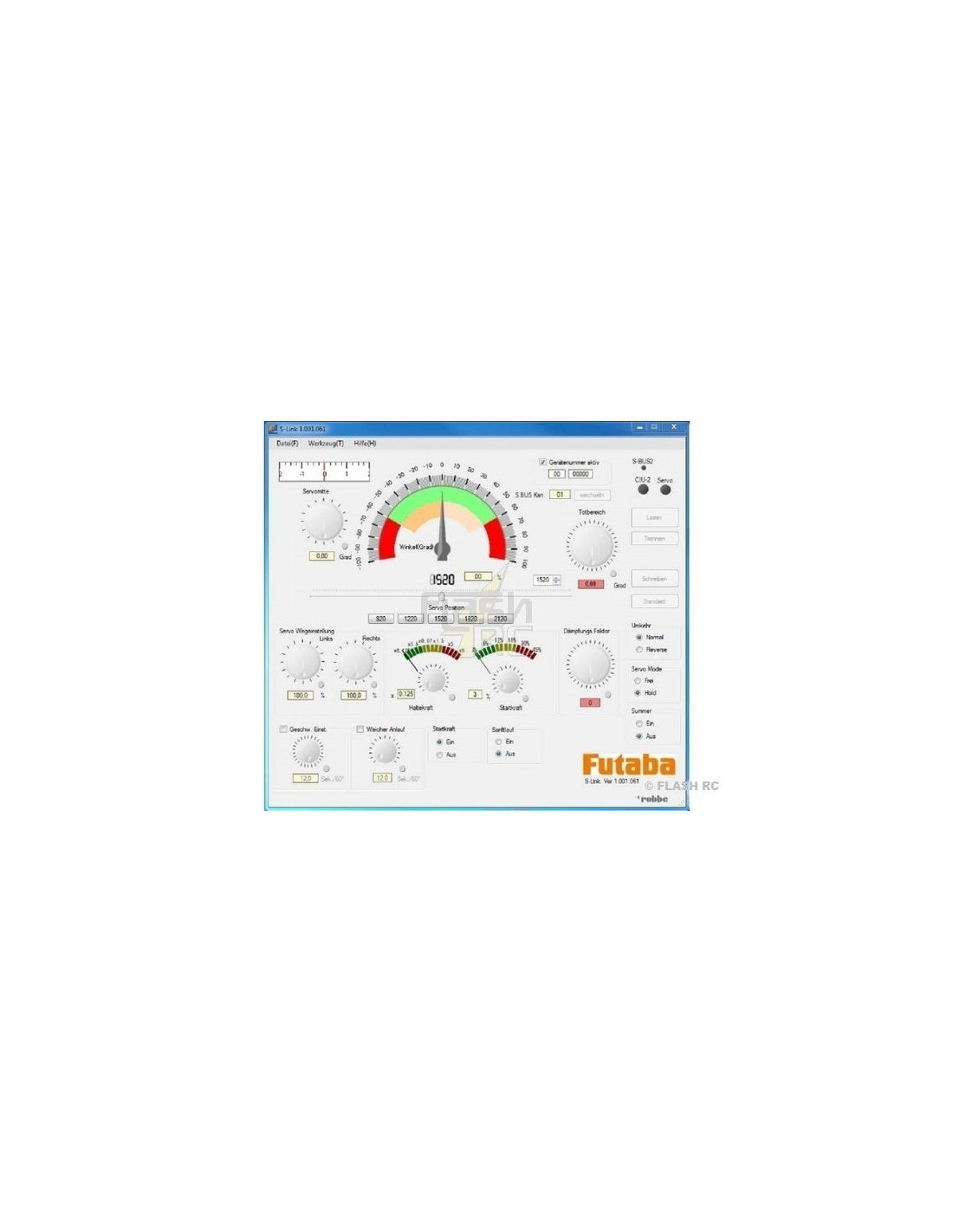

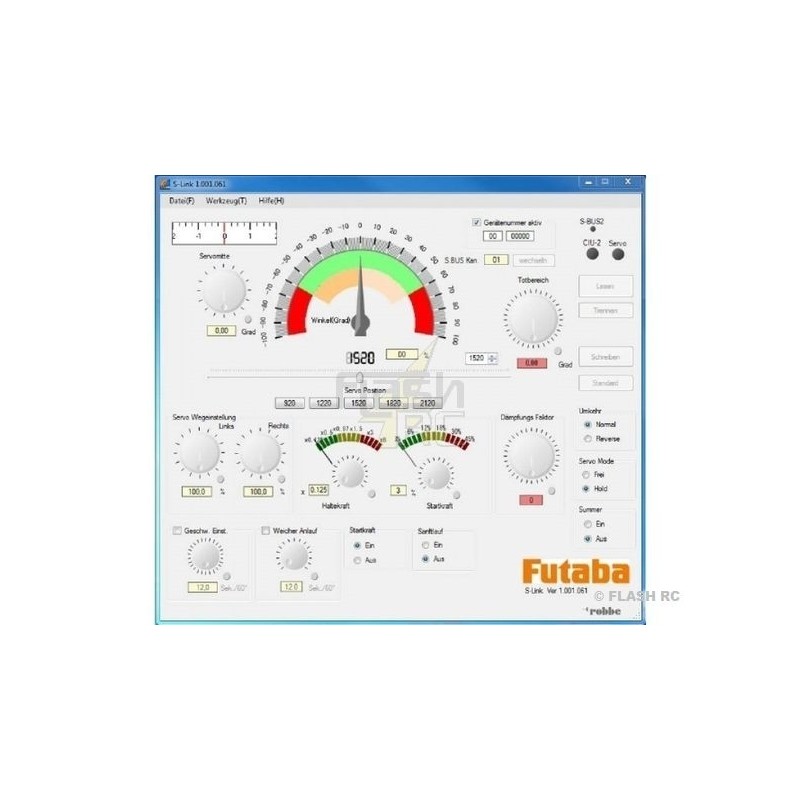

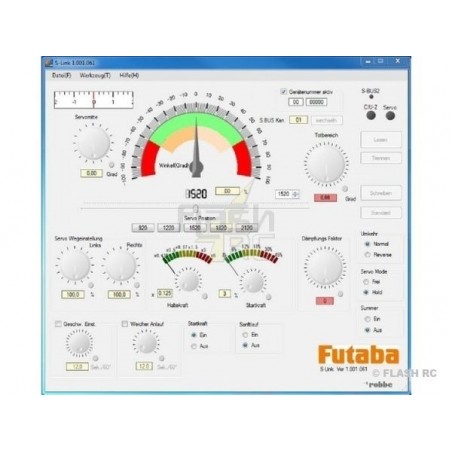

This robust servo is ideal for cars, but can also be used for other applications. This servo can be connected to the SBUS port of Fasst and Fasstest receivers. Like all SBUS servos, it can also operate on a traditional PWM channel. The following functions can be programmed by software: Direction of rotation, rotation mode (normal or retracted), faster or slower start, rotation speed, limit switch, neutral position ...
Technical characteristics
- Dimensions: 40x20x36.8 mm
- Weight: 66g
- Power supply voltage : 6.0 - 7.4V
- Torque : 19.4Kg.cm under 6.6V, 21Kg.cm under 7.4V
- Speed : 0.13 sec/60° under 6.6V, 0.12 sec/60° under 7.4V
- Metal gears
- Double bearing
- Digital SBUS
- Programmable
- Thickness in mm (Servos)
- 20
401 - Torque in kg.cm (servos)
- 21
- Speed sec / 60° (servos)
- 0.12
- Bearing (servos)
- yes
- Technology (sevos)
- Digital
- HV (servos)
- yes
- Weight in g (servos)
- 66
