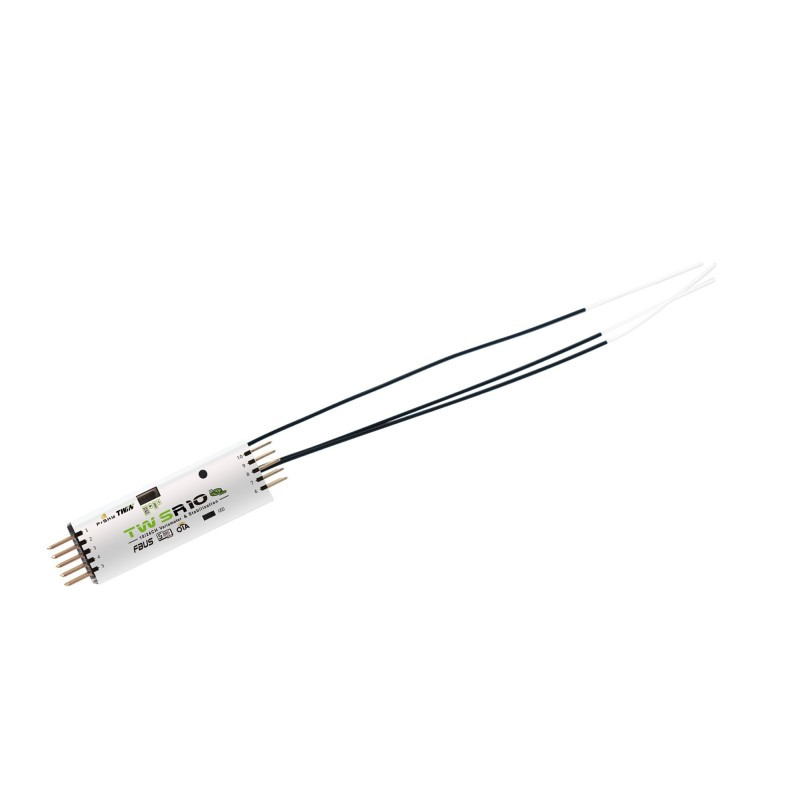

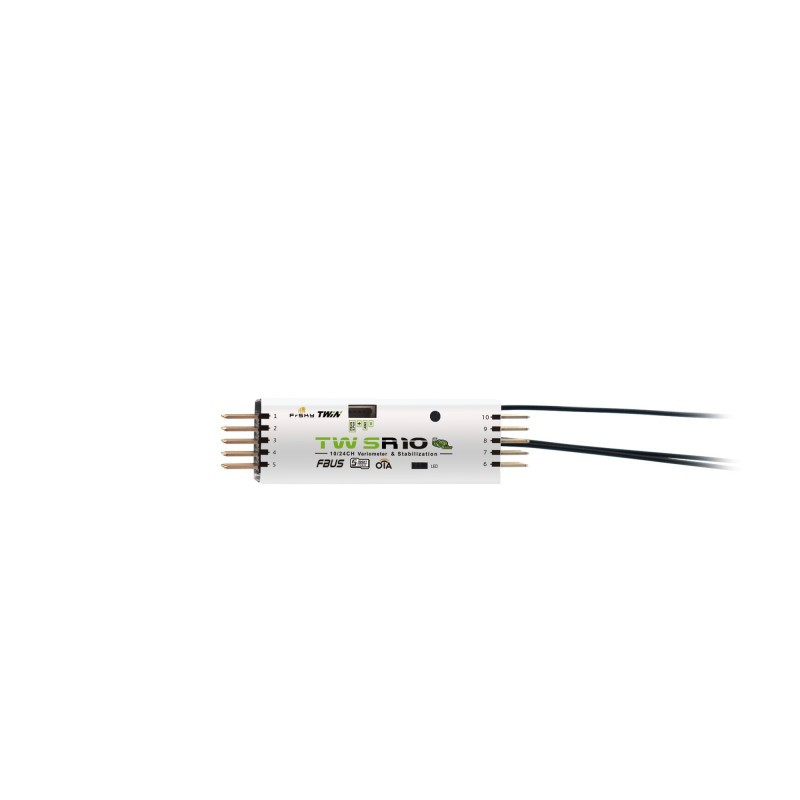

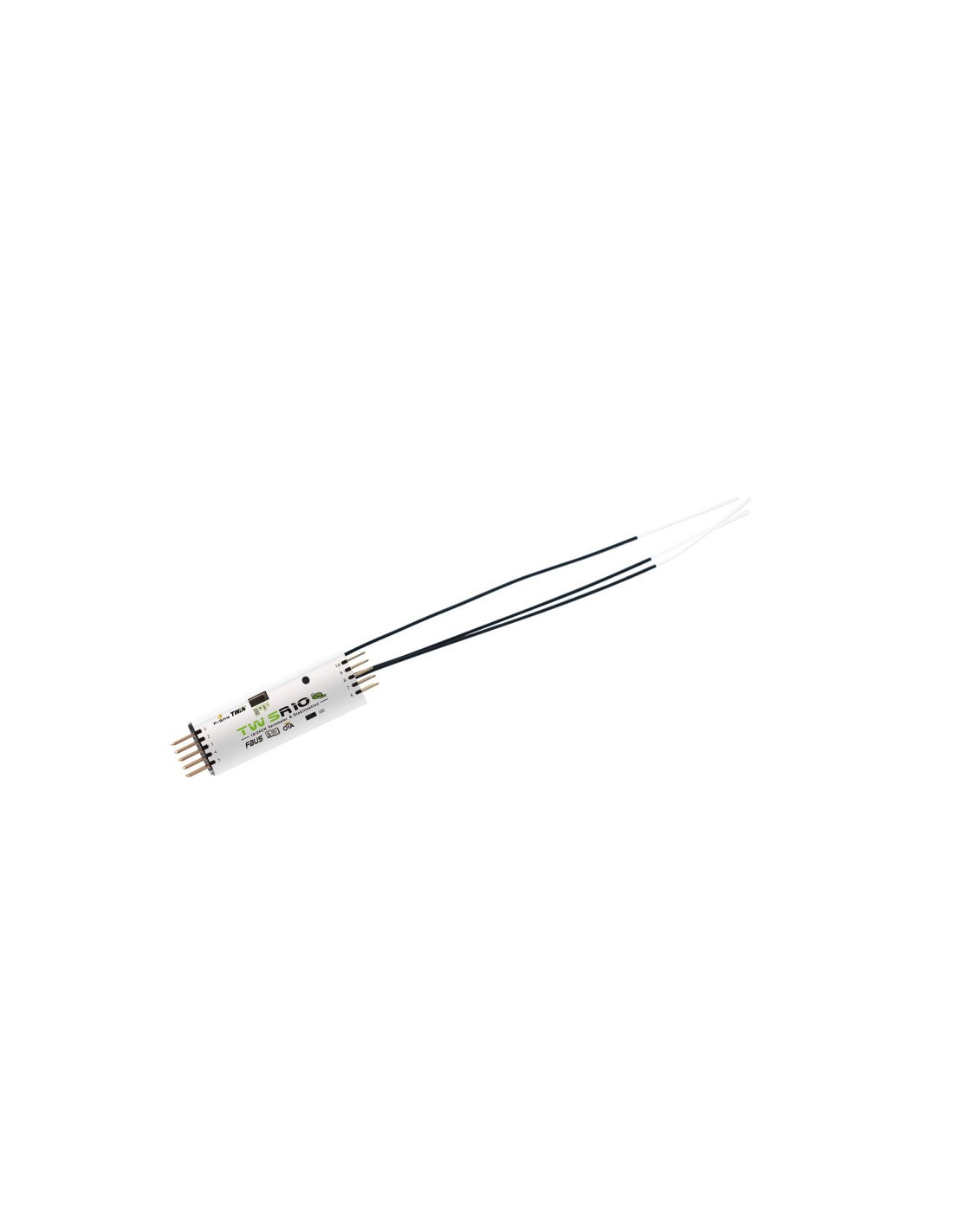

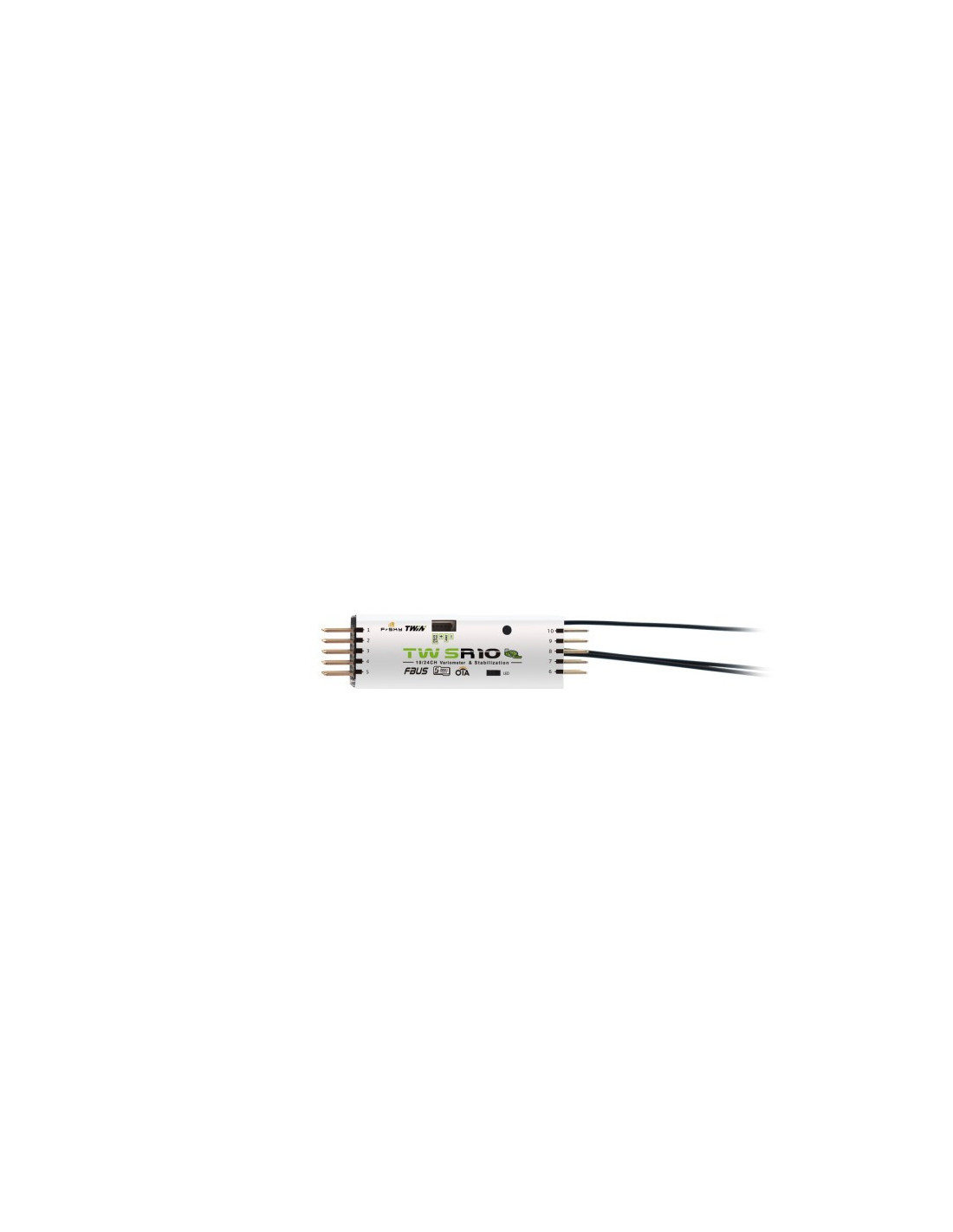

TW SR10 Frsky receiver

ADV stabilizer

The TW SR10 offers an ADV stabilizer function that represents an upgrade over the conventional stabilization modes of the original gyro. The ADV stabilizer offers an advanced mode with more programmable stabilized channels and greater flexibility.

The classic stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping on each channel in multiple flight modes such as stabilization, auto-leveling, hovering and slicing with an aircraft model.

In advanced stabilizer mode, all output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters and developer access, etc.

The advanced stabilizer function integrates high-precision telemetry sensors to monitor altitude, vertical speed, etc. This ADV function is an additional advantage over using a standard S series stabilization receiver.

• Dual 2.4 G TW mode operating simultaneously
• Basic black box data recording function
• Long control range (range varies according to RF power parameters.)
• 10 configurable channel ports
• - CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
• - CP2-10: PWM / SBUS OUT / FBUS / S.Port
• FBUS / S.Port
• SBUS output port (supports 16-channel / 24-channel mode)
• SBUS port (supports signal redundancy)
• Firmware update via radio link (OTA)

Features :

• Frequency: Dual 2.4 GHz
• Dimensions: 64.6 × 16.6 × 12.4 mm (L x W x H)
• Weight: 9.4 g
• Operating voltage range: 3.5 -12 V (2S Li-ion batteries recommended)
• Operating current: ≤120 mA at 5 V
• Voltage measurement range via AIN (external device): 0-35 V (battery voltage division ratio: 1:10)
• Compatibility: RF module compatible with TWIN serial radio and TW protocol
• 2.4 GHz triple antennas (with IPEX1 connectors)
