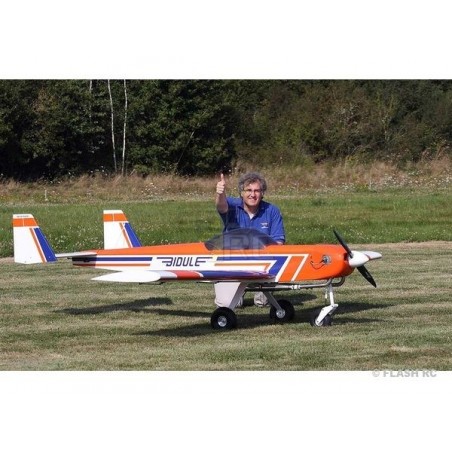

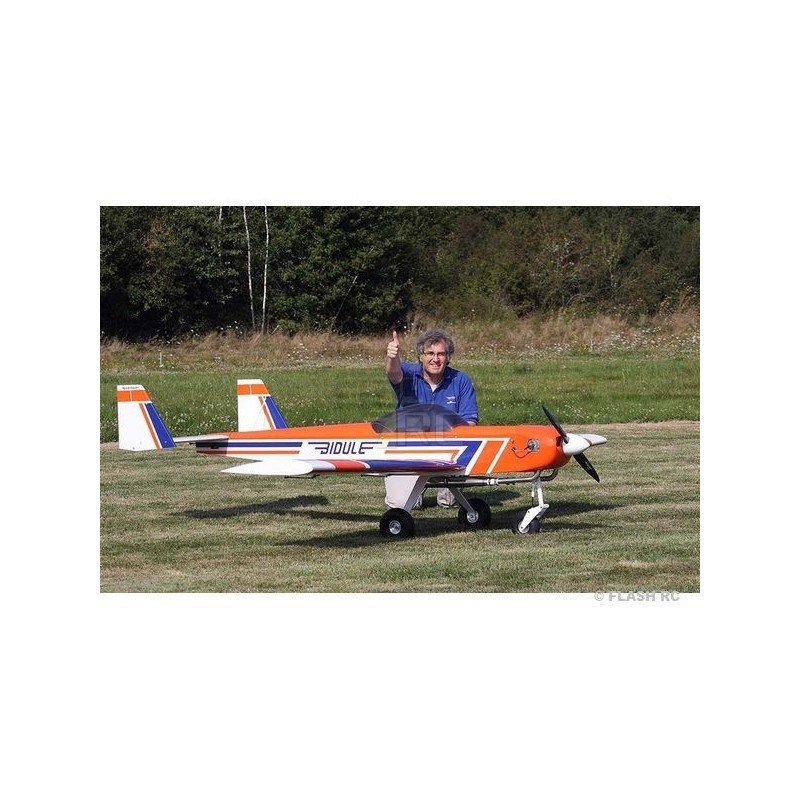

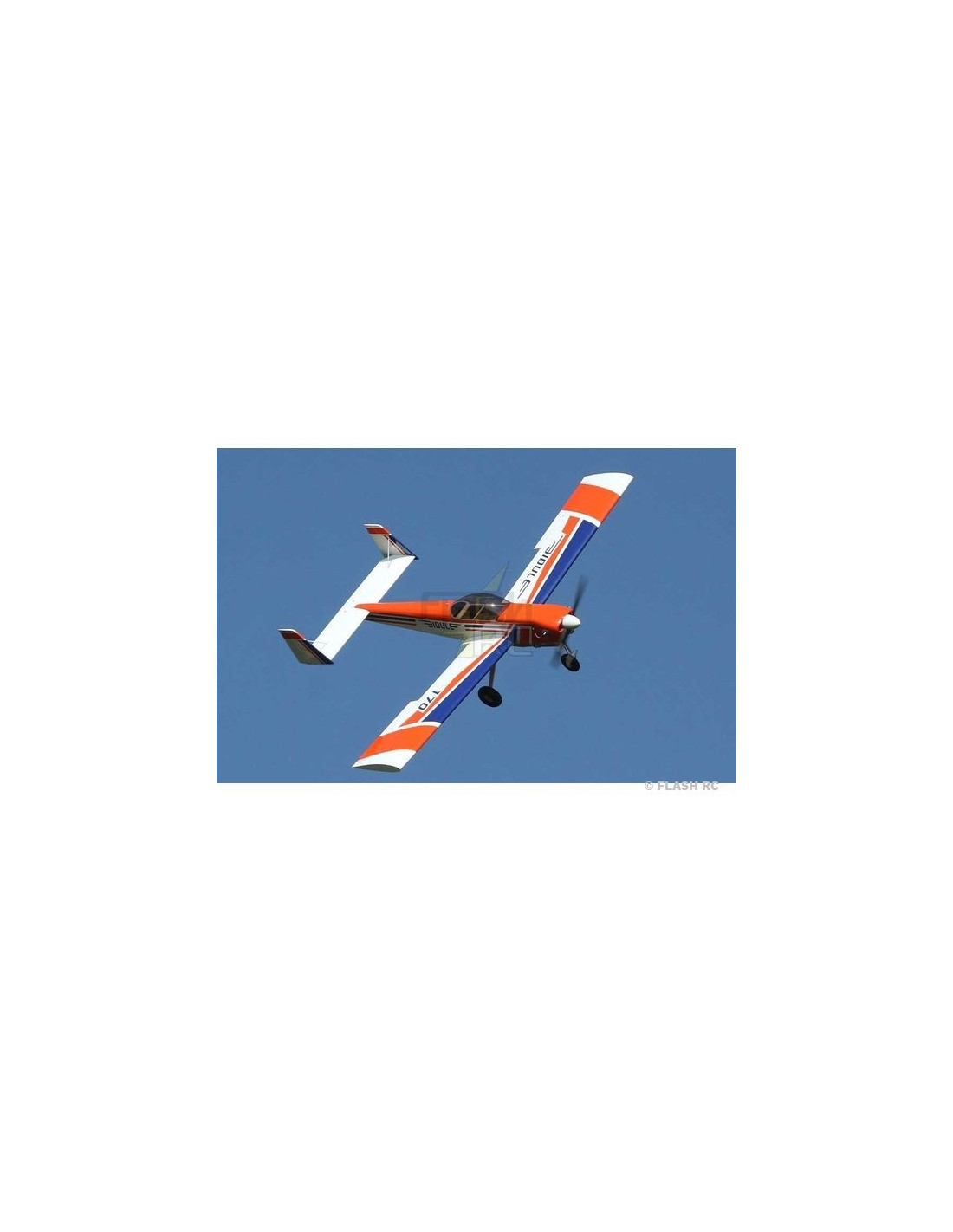

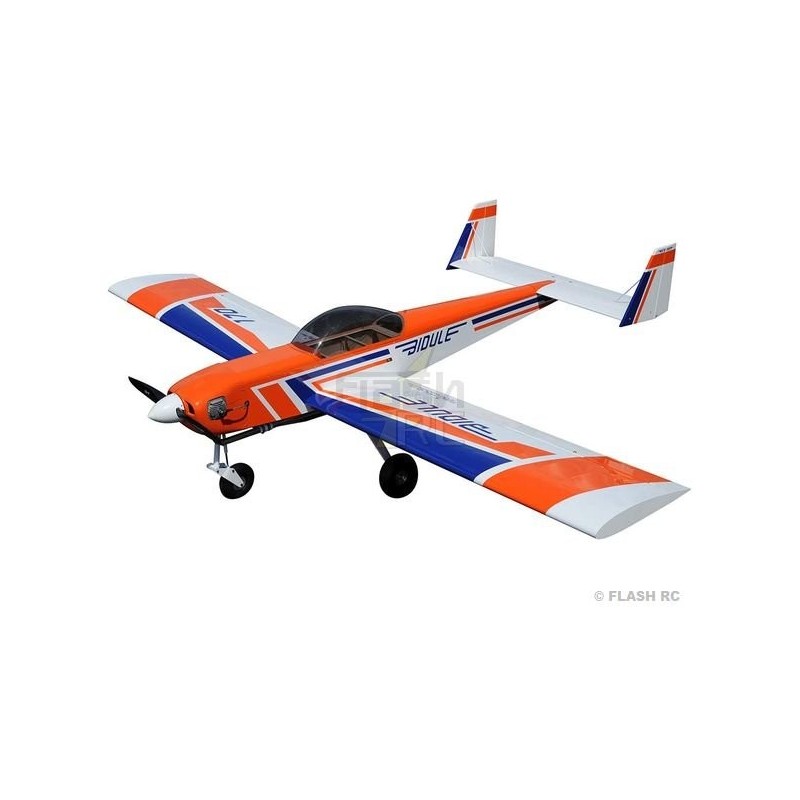

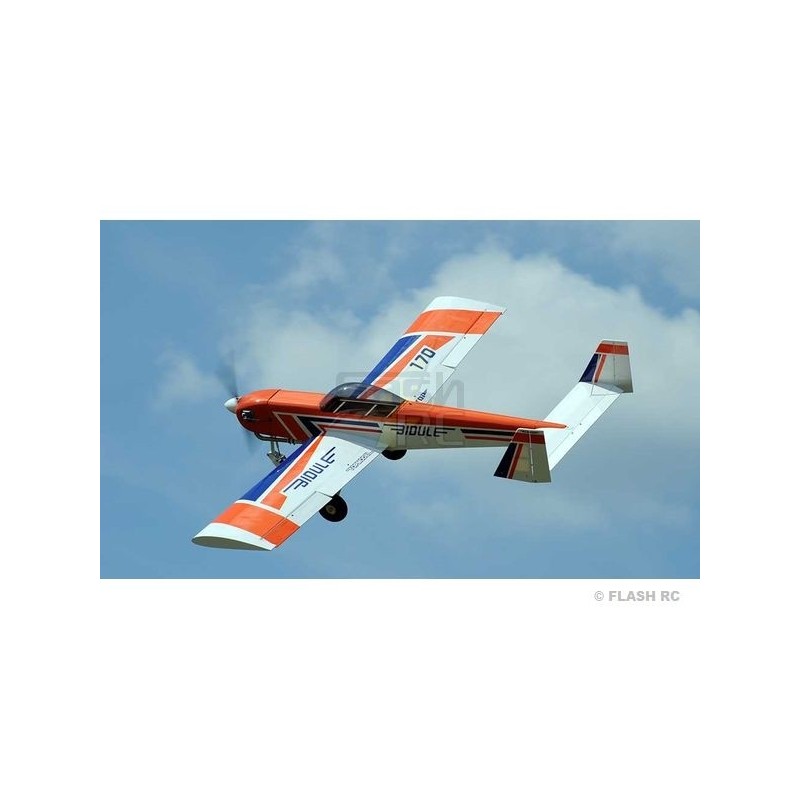

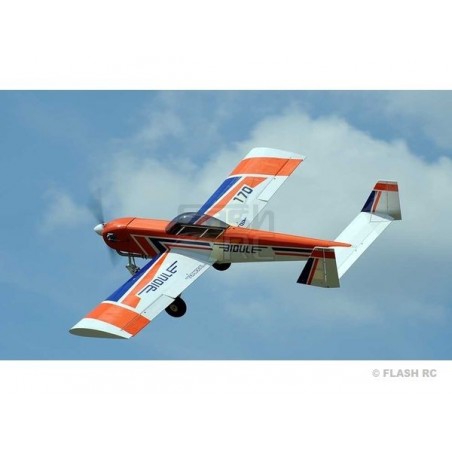

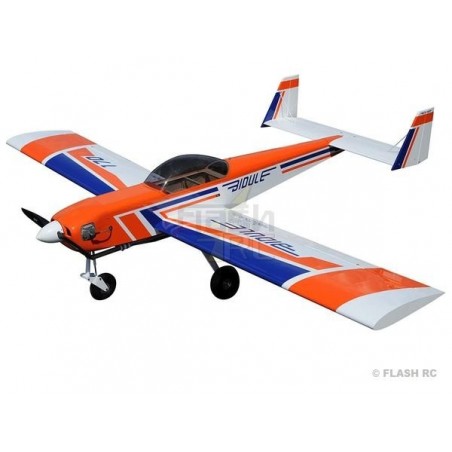

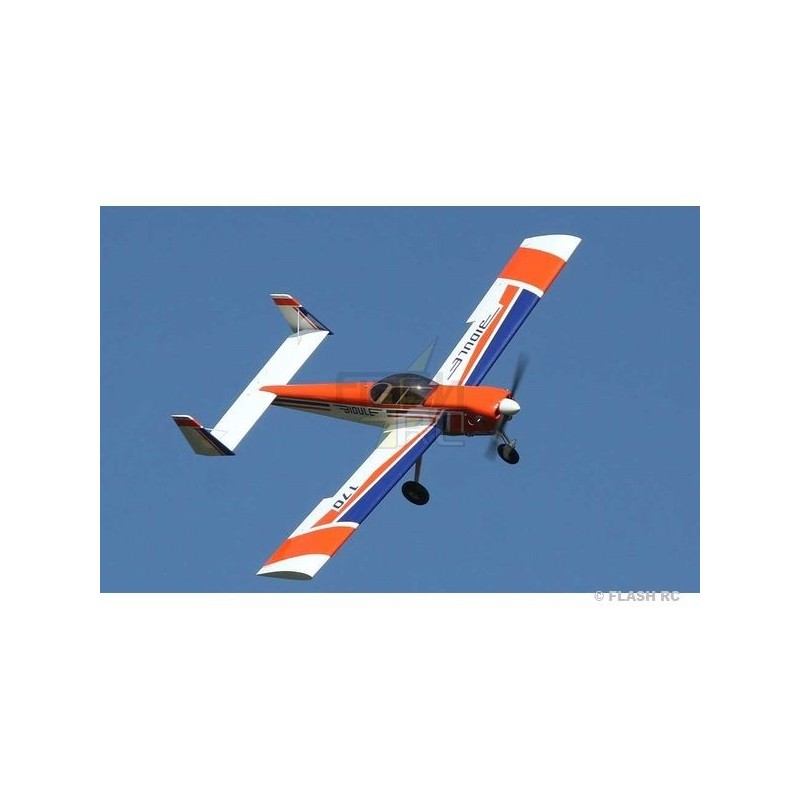

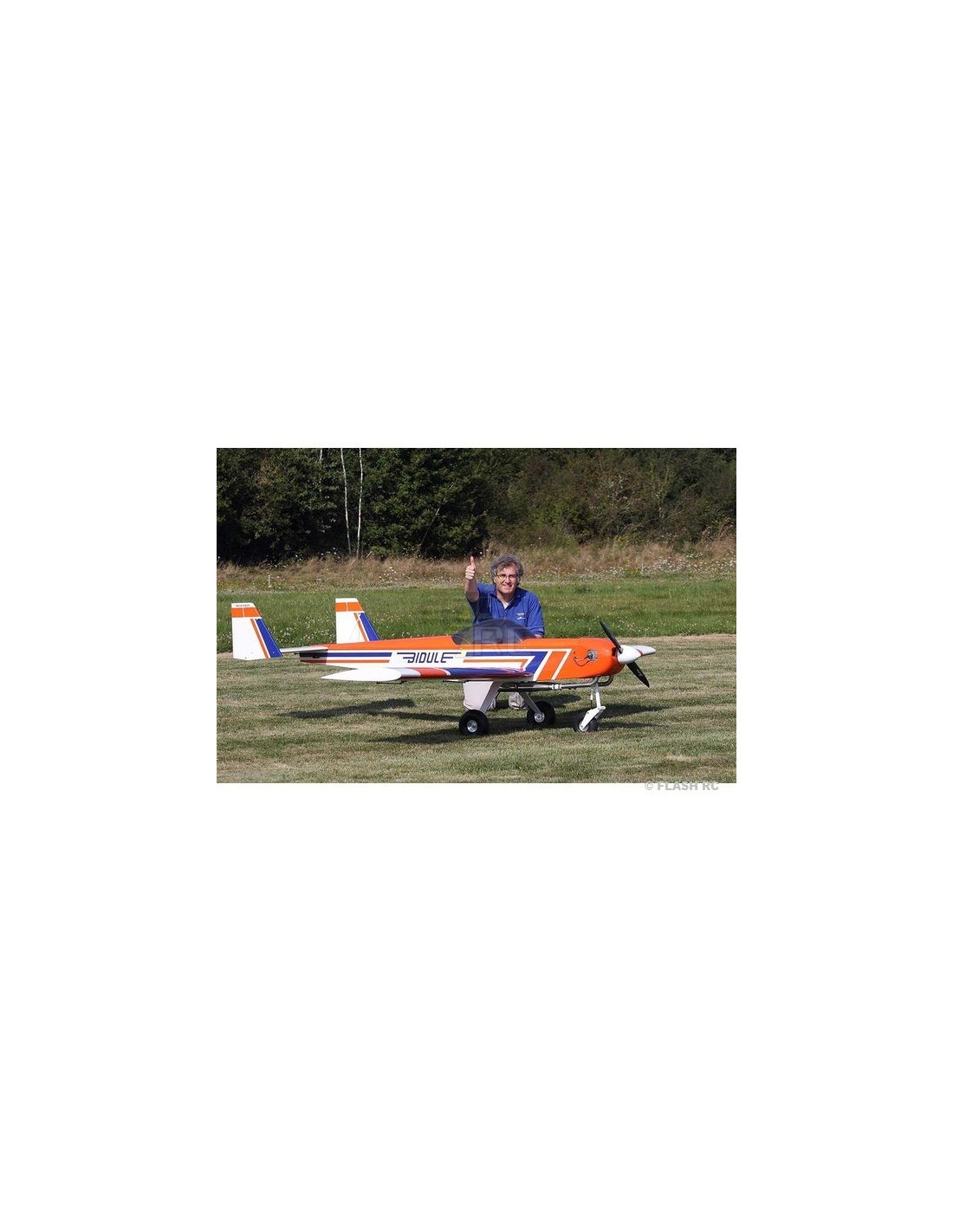

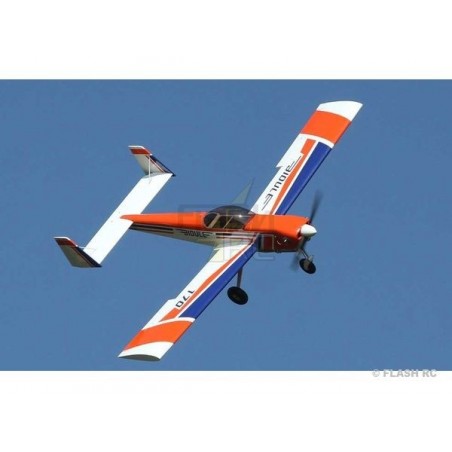

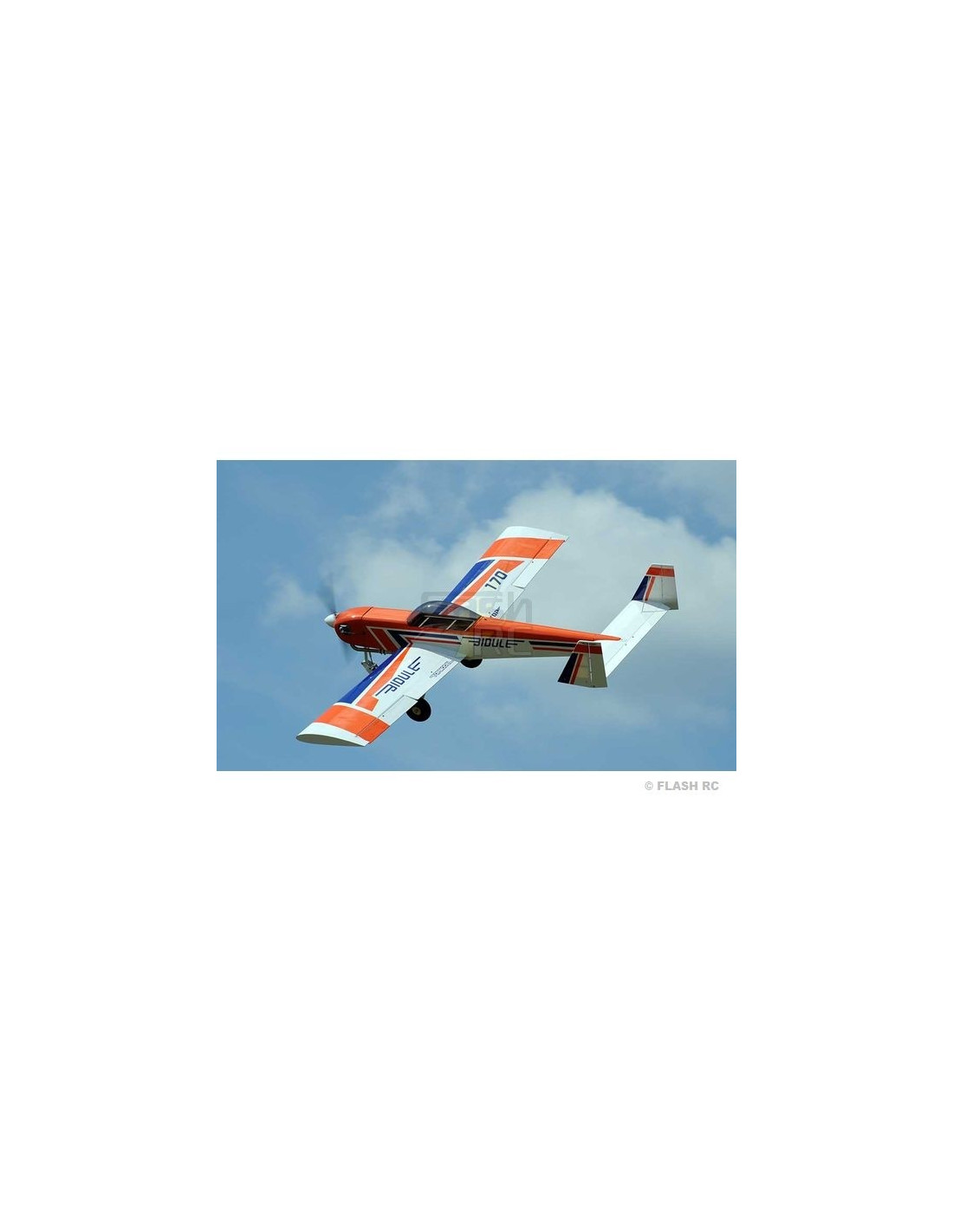

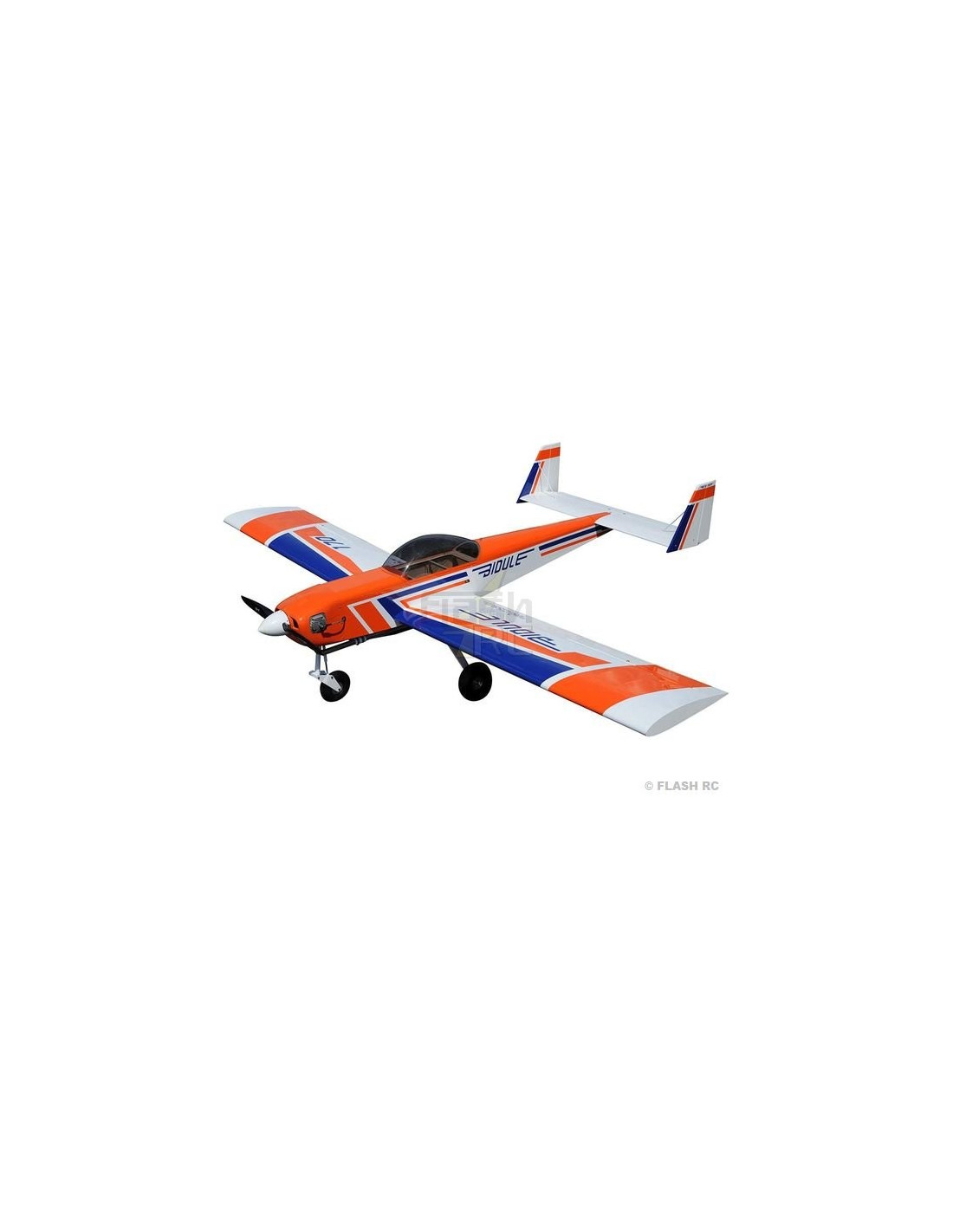

Aircraft Ecotop Bidule 170 ARF approx.3.48m

Technical characteristics

• Wingspan : 3.48m
• Length : 2.74m
• Wing area: 196.6dm².
• Wing profile : NACA 2414 modified
• Weight : 21Kg
• RC functions: rudder, elevator, ailerons, flaps, motor, tow hook

Contents of the kit

• Fuselage entirely built in CTP-balsa structure and covered with Oracover® with decoration installed at the factory.
• Fender key sleeve installed - Triangulation done at the factory. All captive nuts for gear, wing and stab attachment are in place.
• Fiberglass engine cowling, painted.
• Smoked transparent PVC bubble, ready to be installed on its bucket, painted. Balsa bucket, covered with canvas, finished and with fastening system installed.
• Painted fiberglass main gear. Special front axle, hyper resistant, damped and steerable.
• Special steering system with silent-block "Servo-saver".
• Wings made of Oracover® structure (2 parts). Fin and landing flaps finished with stick hinges installed to glue.
• Tie rod installed. Aileron and flap servo plates prepared. Captive nuts installed at the root for wing attachment.
• Carbon tubular wing key.
• Oracover® canvas tailplane structure with finished control surfaces, stick hinges installed, to be glued. Removable drifts, captive nuts installed.
• Accessories (2 x 1500cc fuel tanks, 3 wheels, towing hook, metal horns, wheel axles, quick links, clevises, screws, etc.).
• Illustrated step-by-step assembly instructions.
