Dead band: 0.001ms (Default)
Control System: +Pulse Width Control
Working frequence: 1520µs / 333hz
(RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8~6.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (4.8V): 0.15 sec/60° degrees at no load
Operating Speed (6V): 0.12 sec/60° dagrees at no load
Couple (4.8V): 2,6kg/cm
Couple (6V): 3,2kg/cm
Motor Type: DC Motor
Potentiometer Drive: Direct Drive
Driver Type: FET
Bearing Type: Dual Ball Bearings
Gear Type: Chrome gear
Programmable: NO
Connector Wire Length: 15.0 cm (5.89 in)

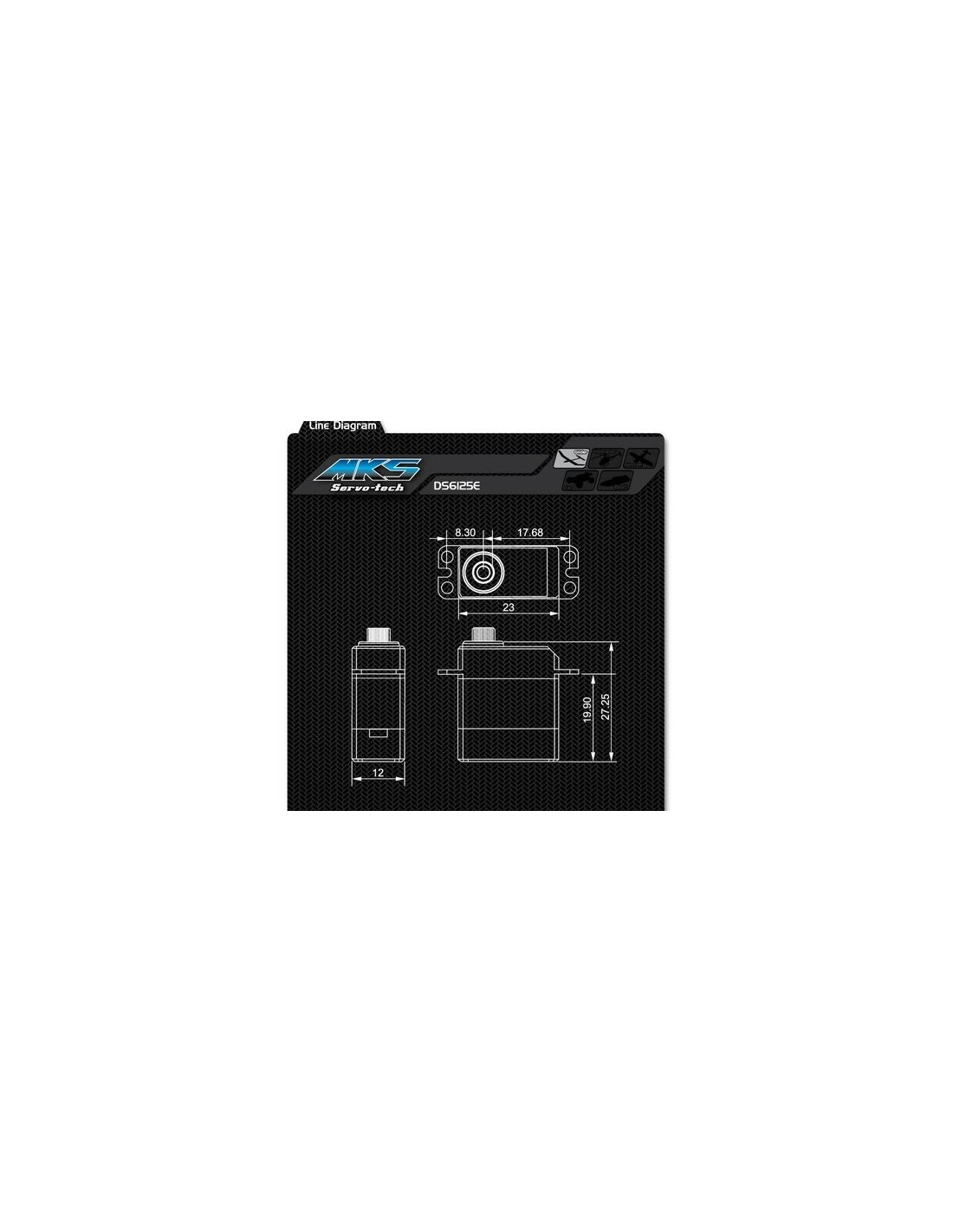

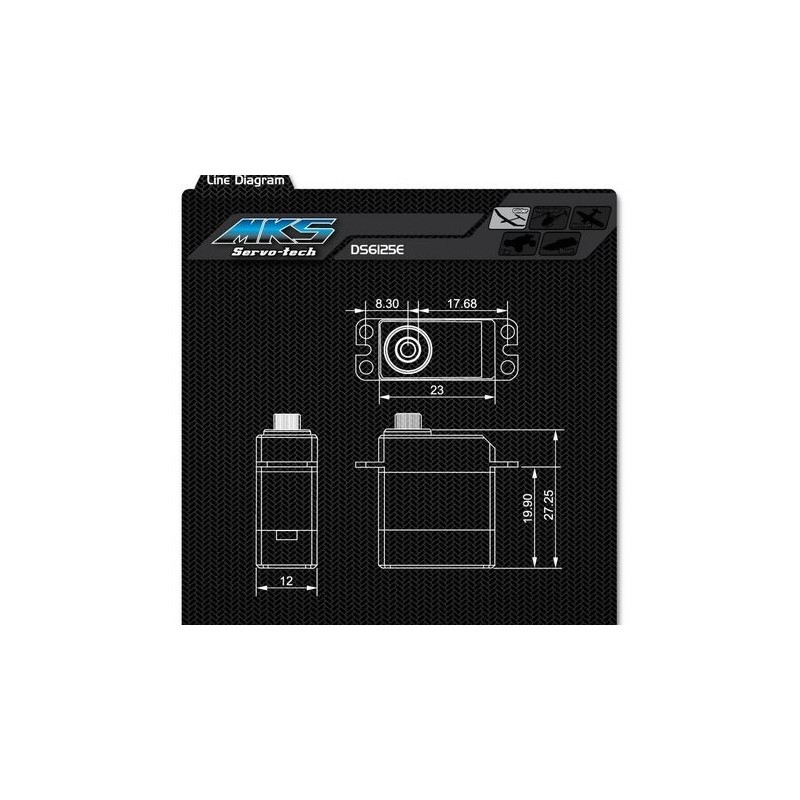

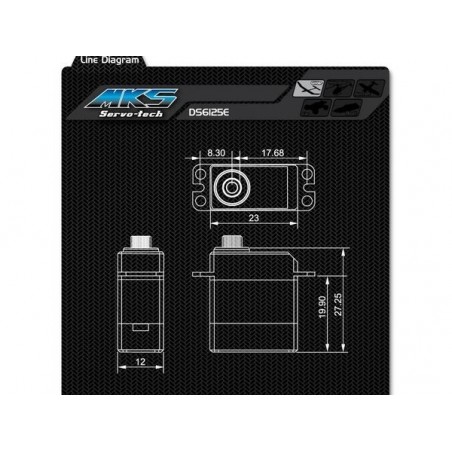

Dimensions: 30X10X35.5 mm (1.1811X0.39X1.39 in)
Weight: 28.77 g (1.01 oz)
Destruction of properties: In the 18 ~ 22 kg-cm moment of impact more than three times, the gear will start to slip (push pull at this time there are 3 ~ 5kg/cm); 23 kg-cm instant hit, Gears of collapse.
