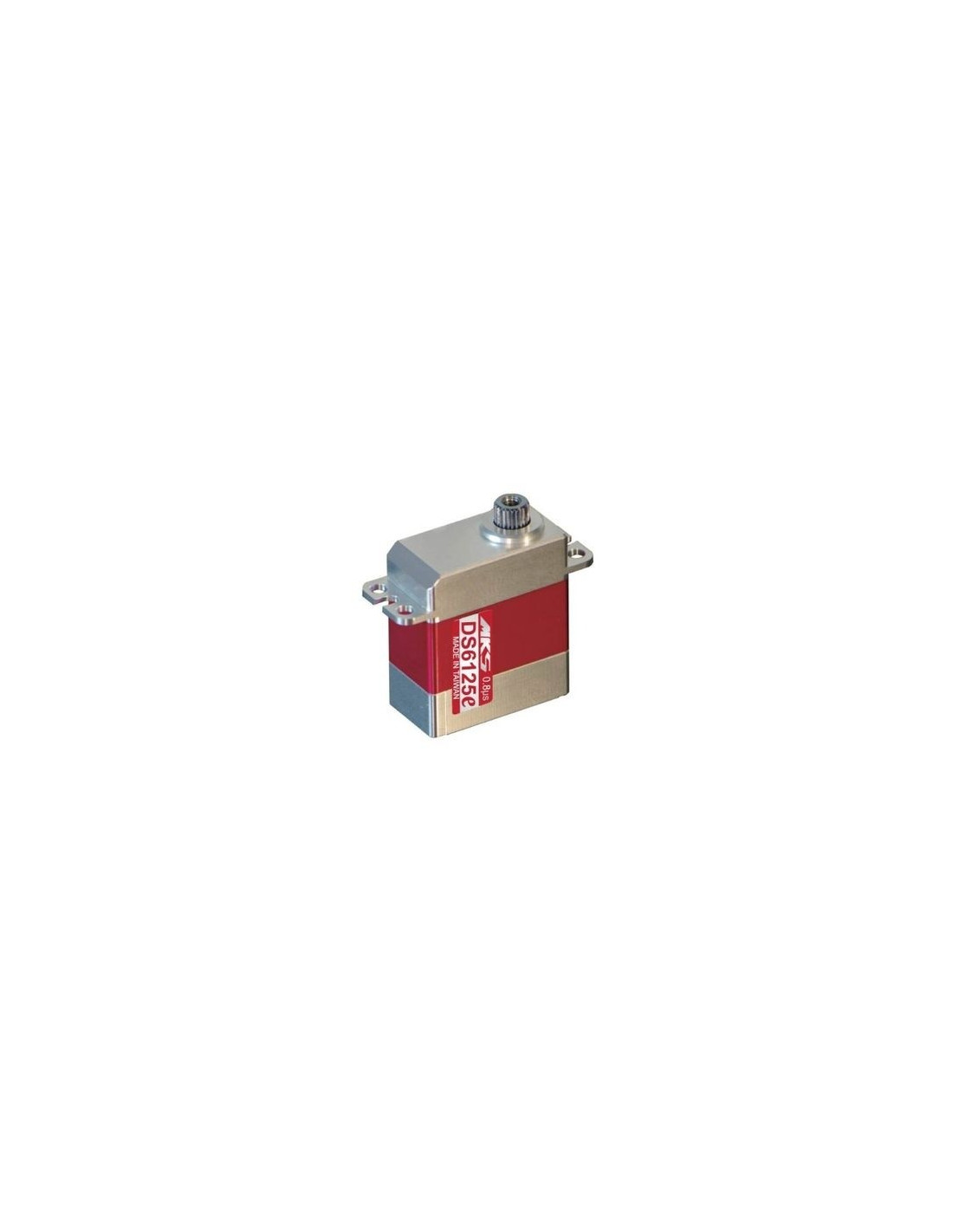

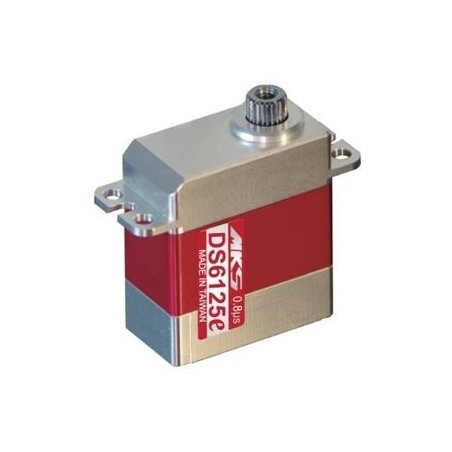

DS6125-E Mks digital metal slimline servo

€54.17
Tax included
FLASH RC, authorized distributor MKS for France offers this servo for elevator of very high quality: - digital servo - return to neutral ultra precise - zero play - aluminum case machined in the mass, for extreme rigidity - set of gears chrome - double bearing - torque blocking of 3.2kg/cm under 6.0V - dead band: 0.001ms - Dimensions: 23x12x27.5 mmThe DS6125-E is recommended for the elevator or drift on gliders type F3F, F3B.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features :

Dead band: 0.001ms (Default)
Control System: +Pulse Width Control
Working frequence: 1520µs / 333hz
(RX) Required Pulse: 3.0~5.0 Volt Peak to Peak Square Wave
Operating Voltage: 4.8~6.0 V DC Volts
Operating Temperature Range: -10 to + 60 Degree C
Operating Speed (4.8V): 0.15 sec/60° degrees at no load
Operating Speed (6V): 0.12 sec/60° dagrees at no load
Torque (4.8V): 2,6kg/cm
Torque (6V): 3,2kg/cm
Motor Type: DC Motor
Potentiometer Drive: Direct Drive
Driver Type: FET
Bearing Type: Dual Ball Bearings
Gear Type: Chrome gear
Programmable: NO
Connector Wire Length: 15.0 cm (5.89 in)

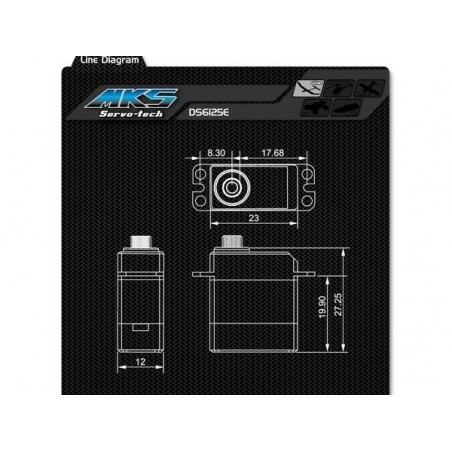

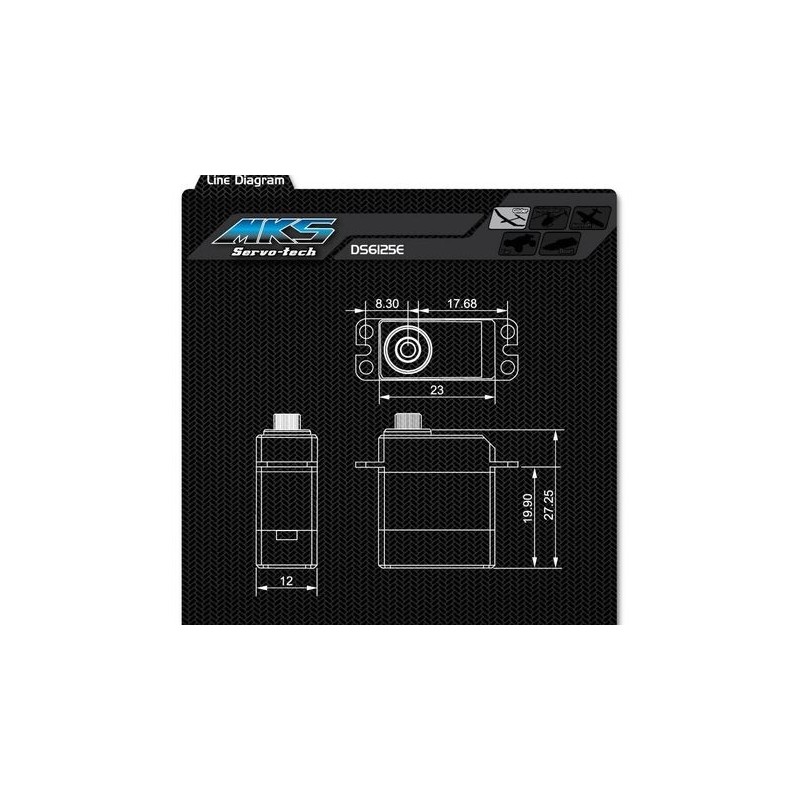

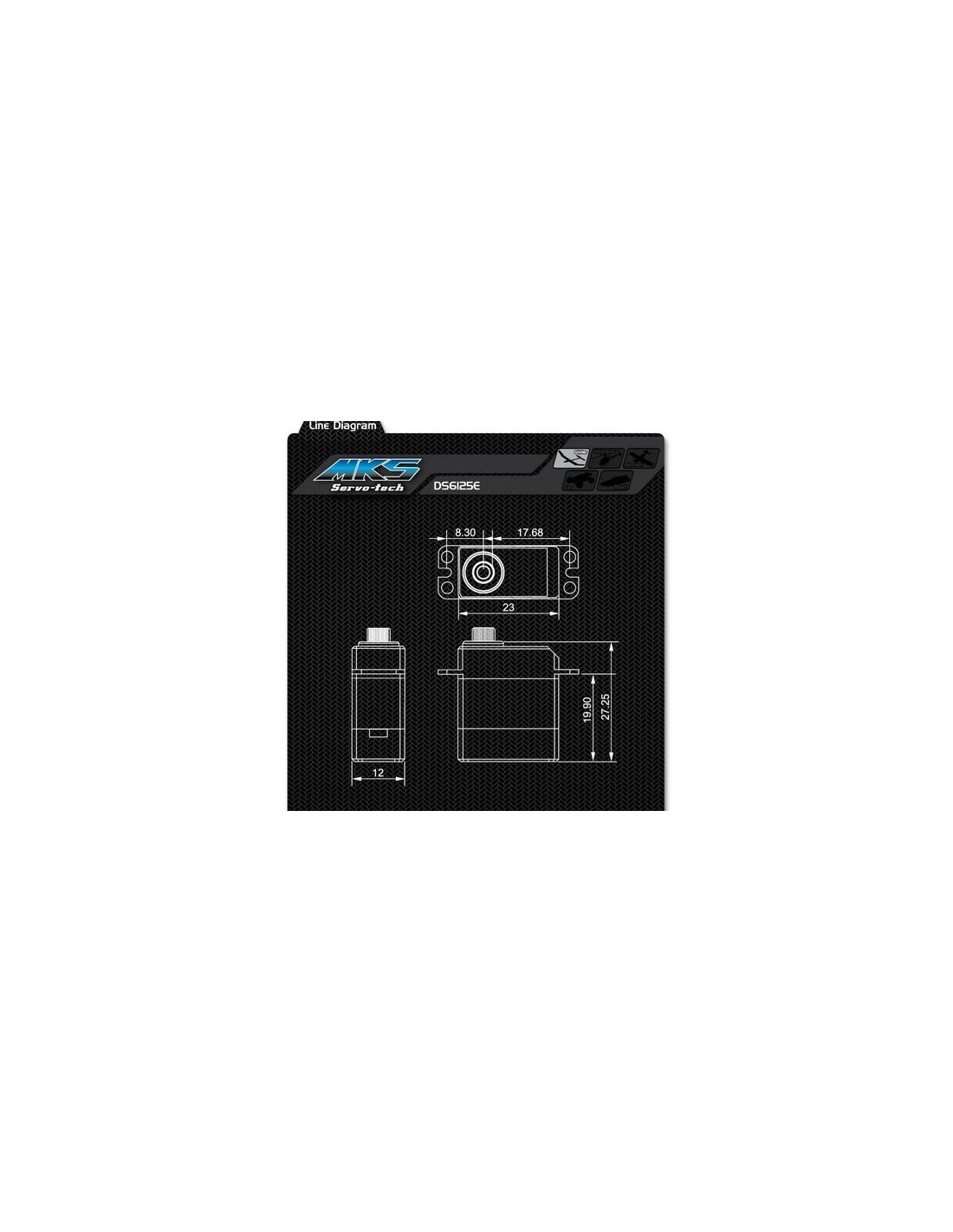

Dimensions: 30X10X35.5 mm1811X0.39X1.39 in)
Weight: 28.77 g (1.01 oz)
Destruction of properties: In the 18 ~ 22 kg-cm moment of impact more than three times, the gear will start to slip (push pull at this time there are 3 ~ 5kg/cm); 23 kg-cm instant hit, Gears of collapse.

Thickness in mm (Servos)
10
Torque in kg.cm (servos)
3.2
Speed sec / 60° (servos)
0.12
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
no
Weight in g (servos)
28.77
128-S0015004
8800223314517
