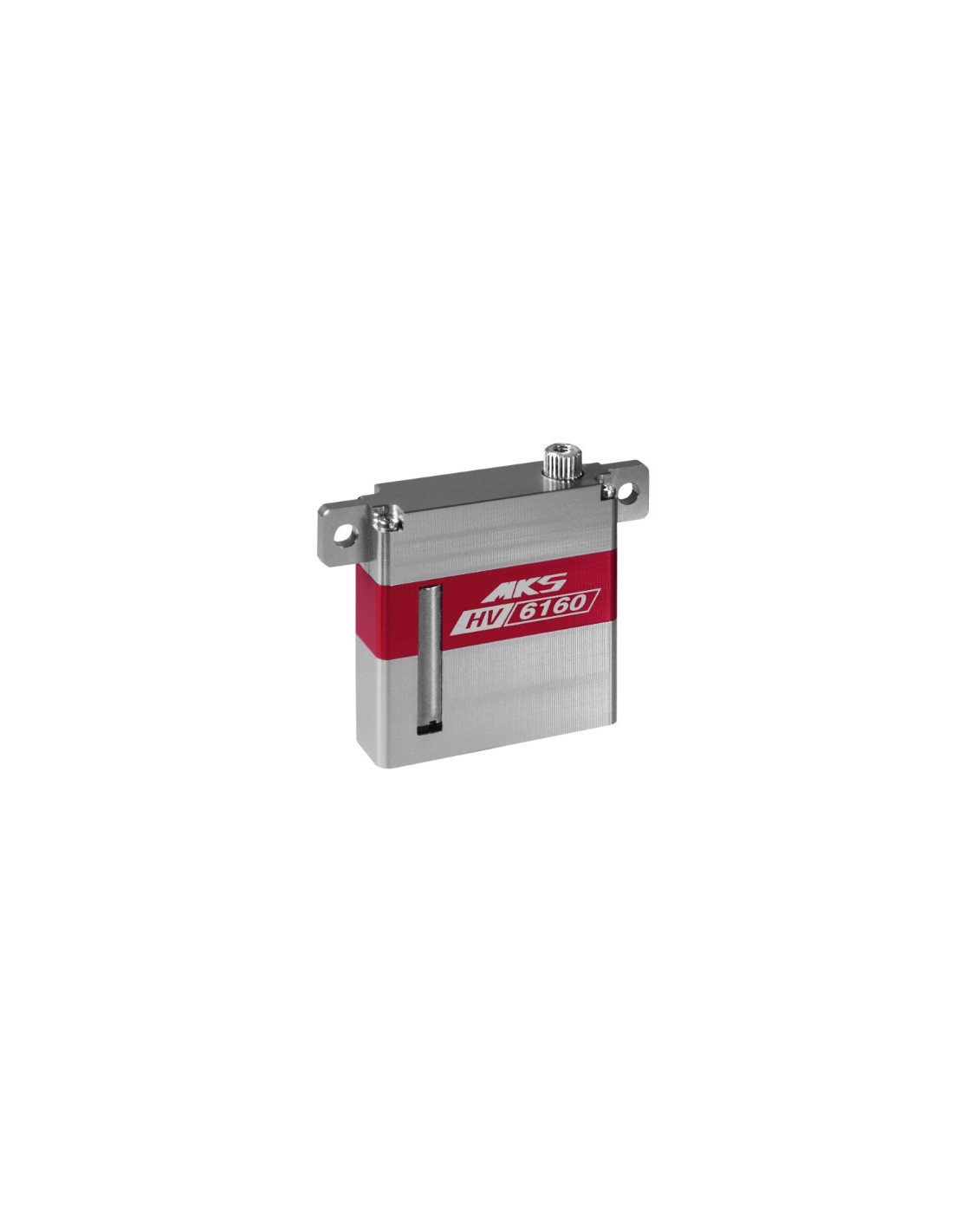

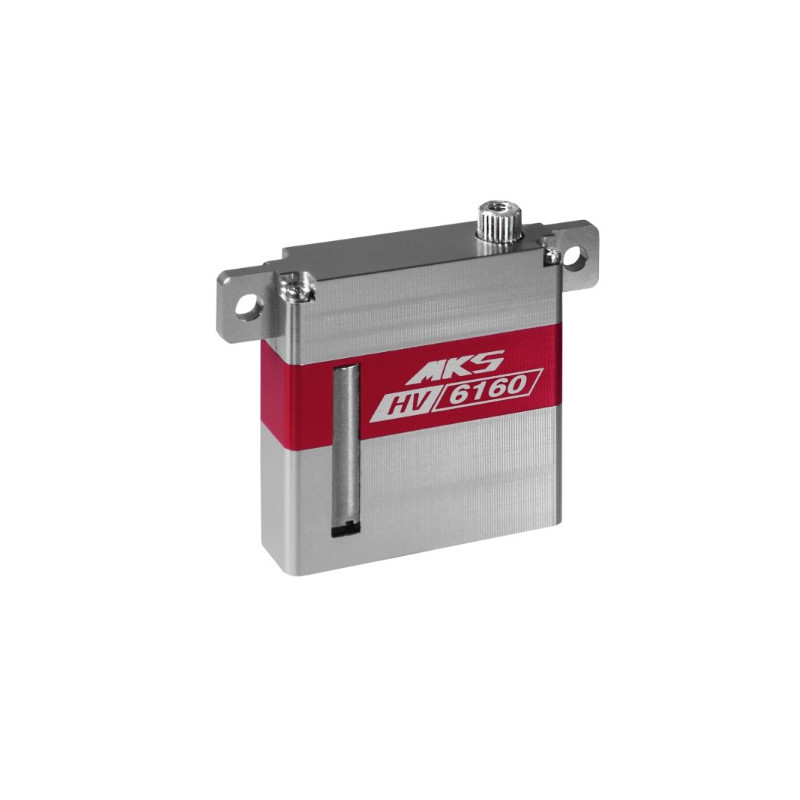

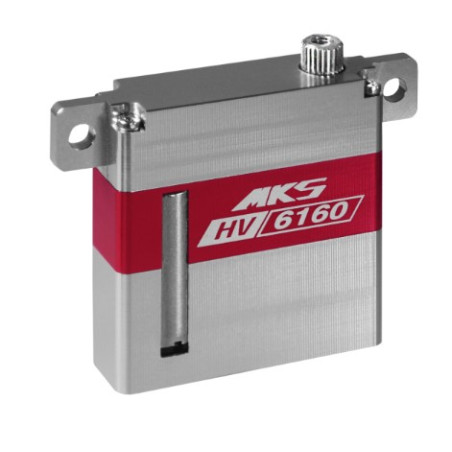

MKS HV6160 digital servo

Last items in stock
€60.00
Tax included

MKS digital servo

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features:

  • Torque (kg-cm) 11.7(4.8V) / 14.5(6.0V) / 17.0(7.4V) / 18.6(8.2V)
  • Torque (oz-in) 162.4 (4.8V) / 201.3 (6.0V) / 236.1 (7.4V) / 258.3 (8.2V)
  • Speed 0.230 s (4.8V) / 0.182 s (6.0V) / 0.147 s (7.4V) / 0.133 s (8.2V)
  • Stall current (at blocked load) 1.56A (4.8V) / 1.9A (6.0V) / 2.2A (7.4V) / 2.5 (8.2V)
  • Working voltage 4.8V ~ 8.4V DC Volt
  • Working frequency 1520μs / 333Hz
  • Dead band 0.001 ms (default)
  • Bearing 2*Oil bath bearing
  • Gearing Metal alloy gear
  • Motor Coreless motor
Thickness in mm (Servos)
10
Torque in kg.cm (servos)
Speed sec / 60° (servos)
0.13
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
128-S0022018
4710150350820
No reviews
Comments (0)
No customer reviews for the moment.
