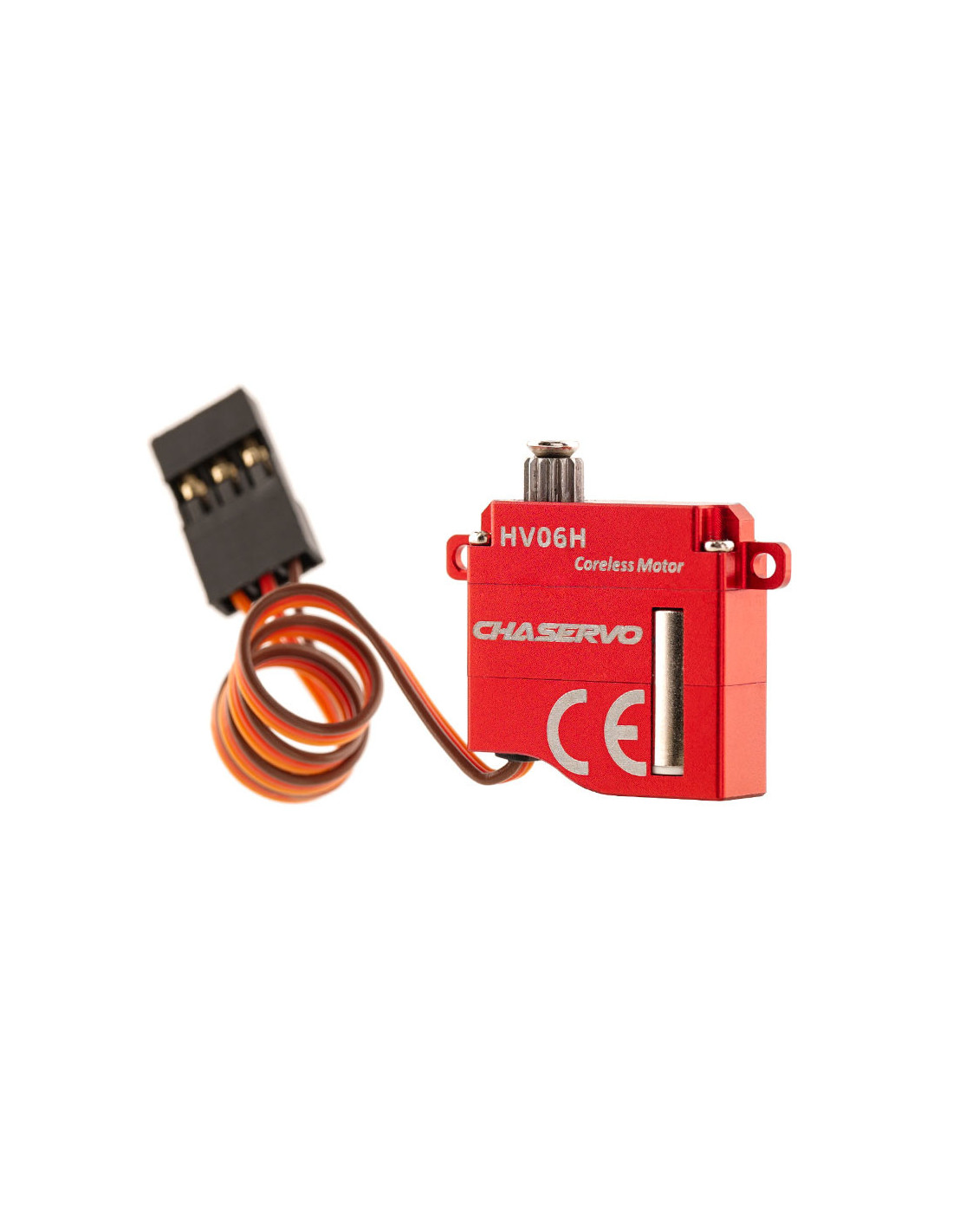

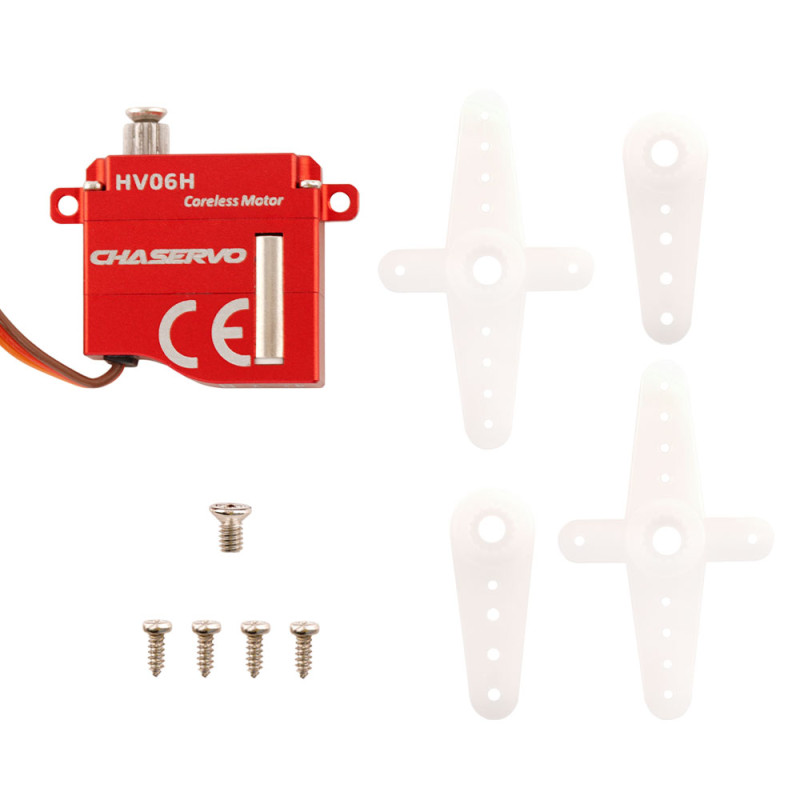

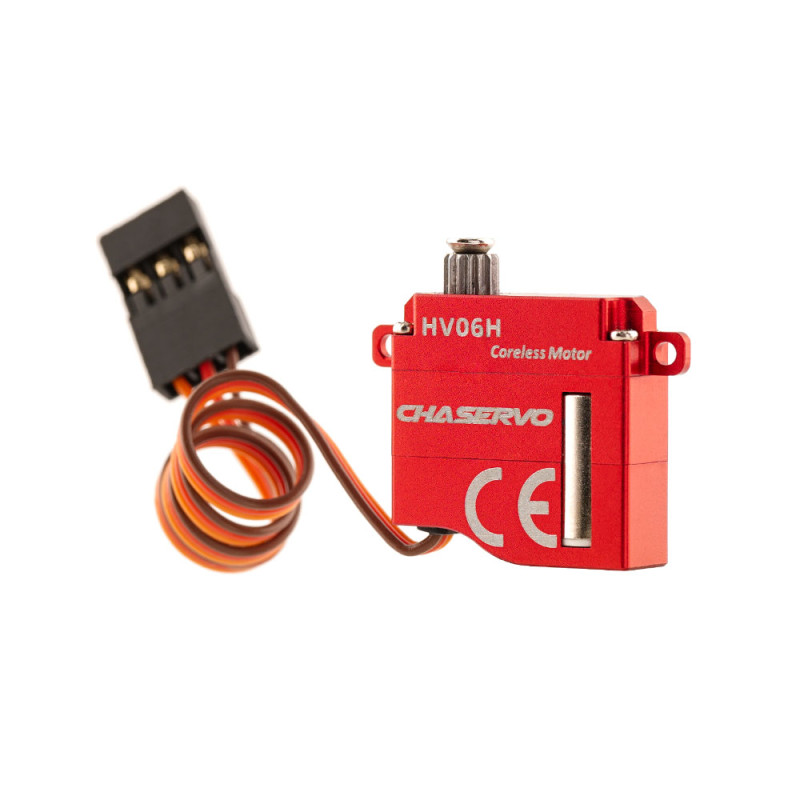

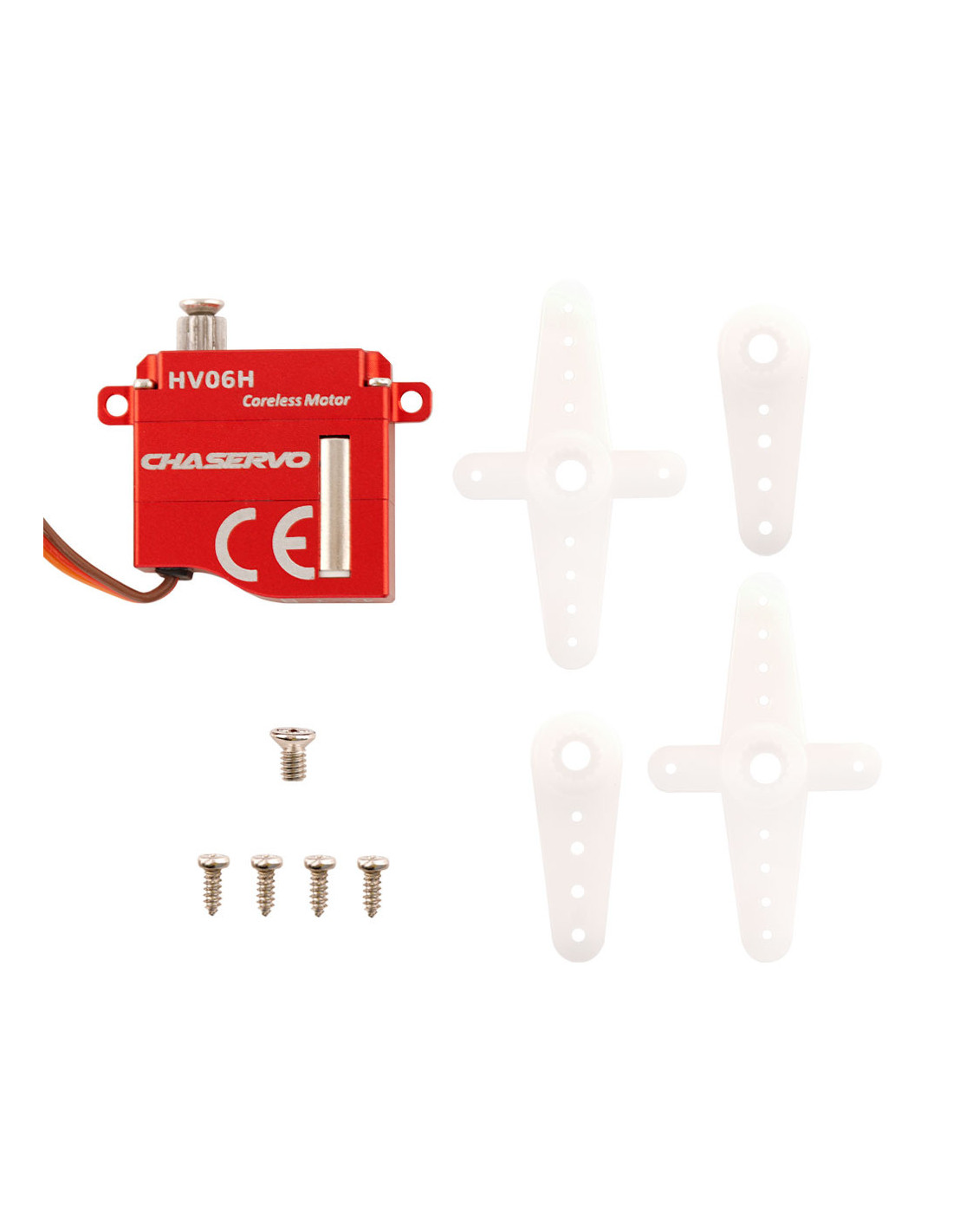

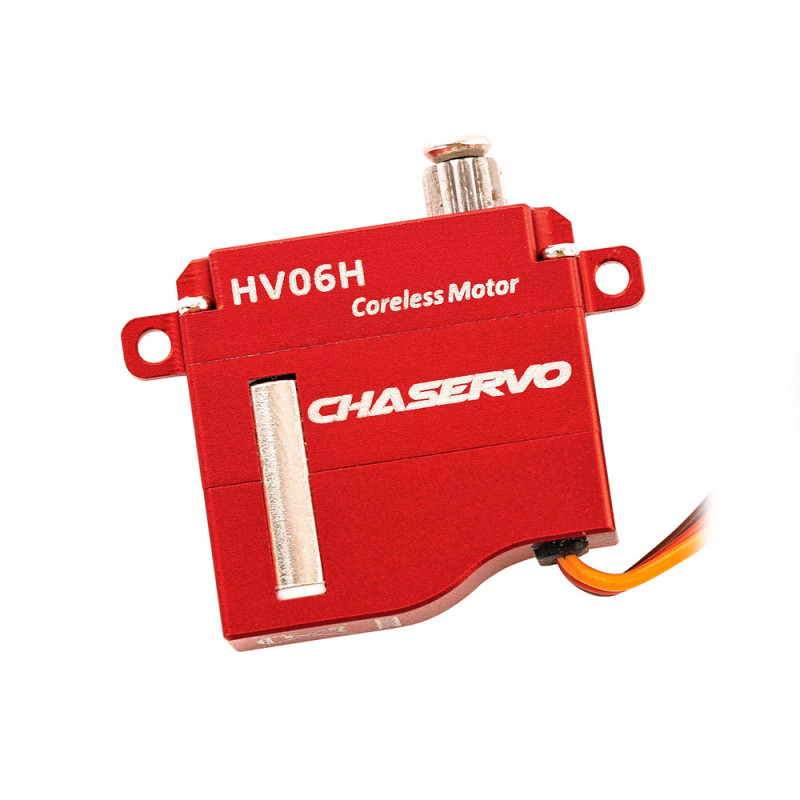

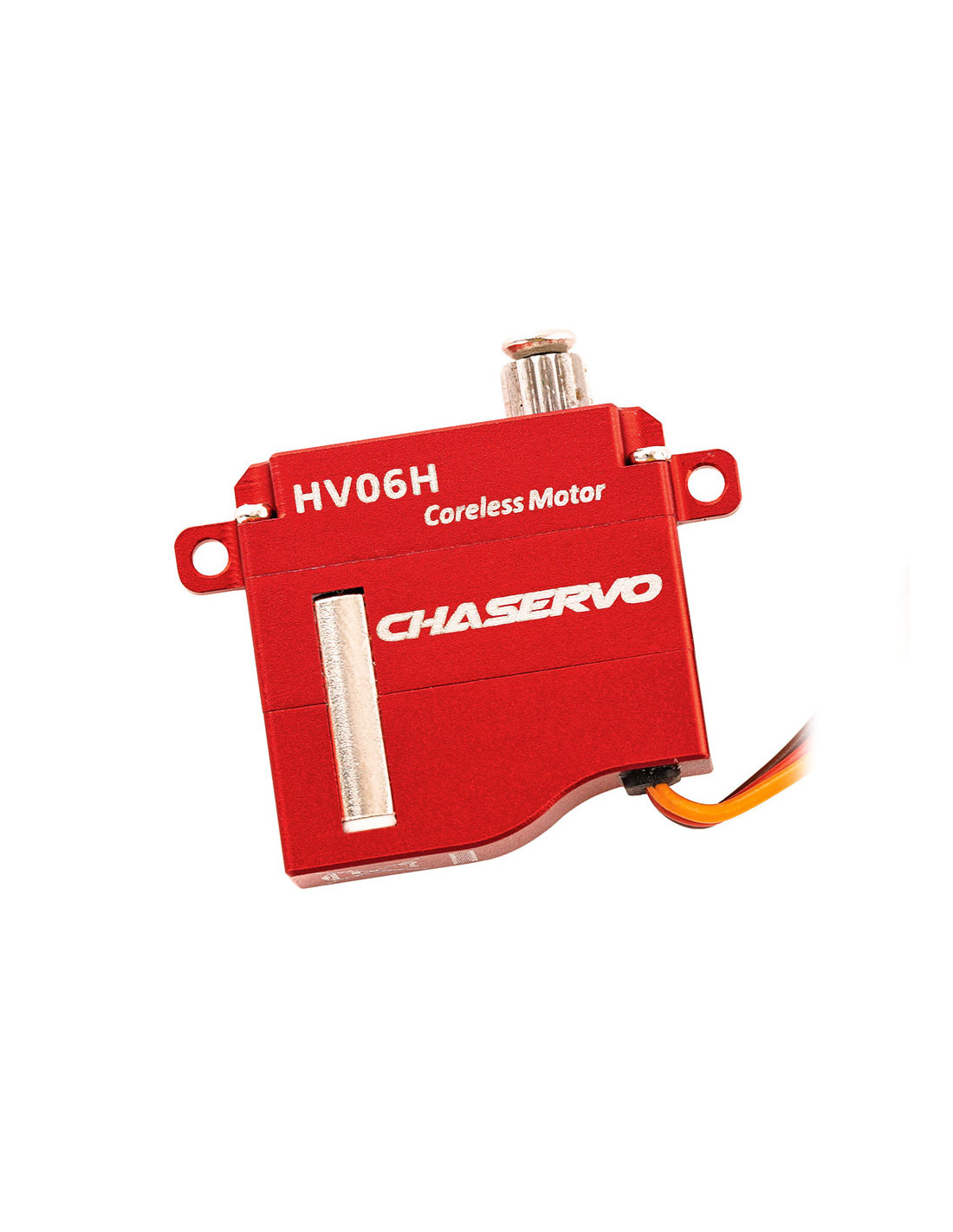

This compact high-performance servo is not only exceptionally powerful, it also provides maximum setting accuracy and speed. Thanks to its compact design for a depth of just 6 mm, our Champion HV can be used and installed safely, even in the thinnest wings.
Features:
Extremely thin, 6mm thick
Extremely light, only 6.1g
Extremely fast and precise
Superior build quality
Designed for 2S and 8.4V
Available in three versions
High-quality connection cables
Metal gearbox
Perfect for QRs in the thinnest wings
Servo characteristics :
Nominal voltage: DC 8.4V
Voltage range: DC 6V - 8.4V
Standard angle: ±60° = 120
Operating frequency: 1520µs/20KHz
Operating temperature : -10°C ... +65°C
Housing material: aluminum alloy
Motor type: Coreless DC
Gearbox material: Hardened steel
Position sensor:ren : Potentiometer
Programmable Yes
Ball bearing: Double ball bearing
Housing dimensions: 19mmX6mmX18.5mm+0.2mm
Torque
1.5 kg-cm @ 6.0V
2.0 kg-cm @ 7.4V
2.4 kg-cm @ 8.4V
Speed
0.07sec/60° @ 6.0V
0.06sec/60° @ 7.4V
0.05sec/60° @ 8.4V
