HV85H Chaservo MICRO digital servo (15g, 8.9kg, 0.11s)

€49.99
Tax included

HV85H Chaservo MICRO digital servo (15g, 8.9kg, 0.11s)

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Specification

  • Item: HV85 Micro Servos
  • Nominal voltage: DC7.4V
  • Voltage range: DC6.0V-8.4V

Torque range :

  • 6.5Kgf.cm@6.0V
  • 8.2kgf.cm@7.4V
  • 8.9Kgf.cm@8.4V

Speed :

  • 0.16sec/60°@6.0V
  • 0.12sec/60°@7.4V
  • 0.11sec/60°@8.4V

Inrush current :

  • 0.86A@6.0V
  • 1.08A@7.4V
  • 1.35A@8.4V

Operating frequency: 1520us/333Hz

Default displacement angle: ±50° = 100° total

Temperature range: -10℃......+65℃

Soft start: Programmable

Programmable: Yes

Housing material: Aluminum alloy

Motor type: Coreless DC motor

Gear set material: Hardened steel

Position sensor: Potentiometer

Ball bearing: 2BB

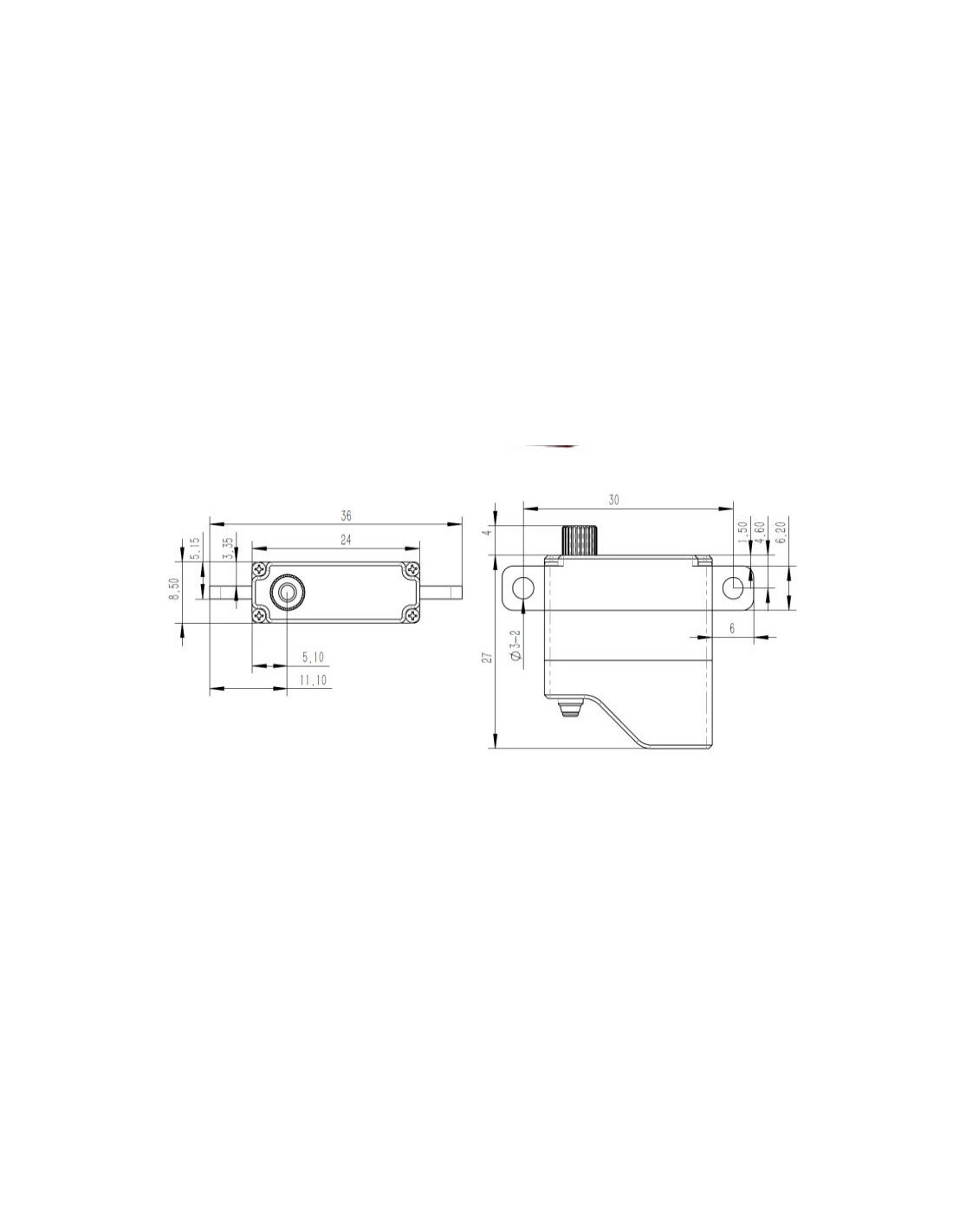

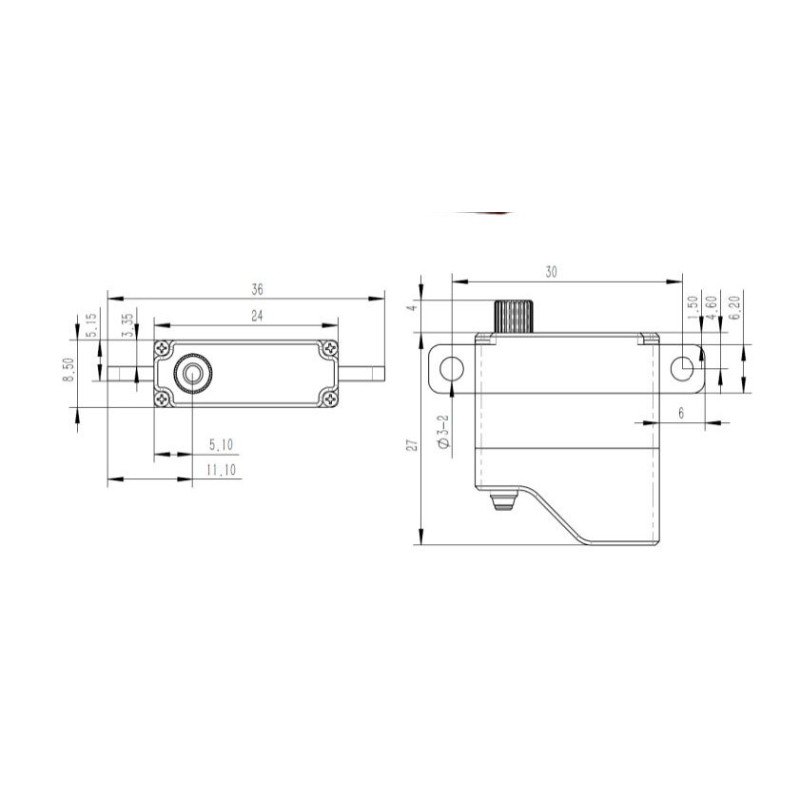

Housing dimensions: 24*8.5*27±0.2(mm)

Weight: 15g±10

Thickness in mm (Servos)
8.5
Torque in kg.cm (servos)
8.9
Speed sec / 60° (servos)
0.11
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
15
366-HV85H
4897073542386
