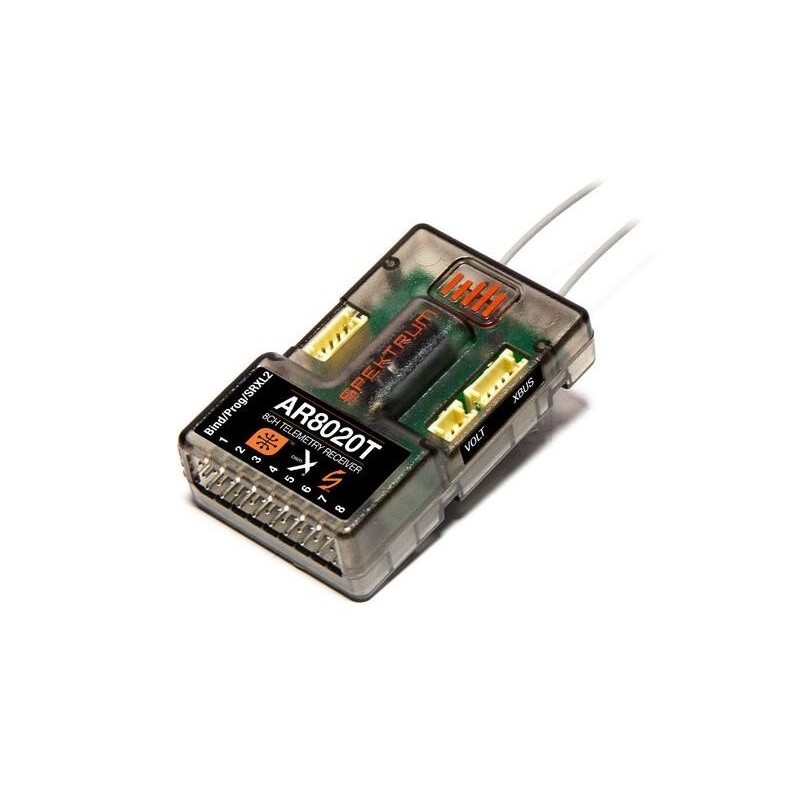

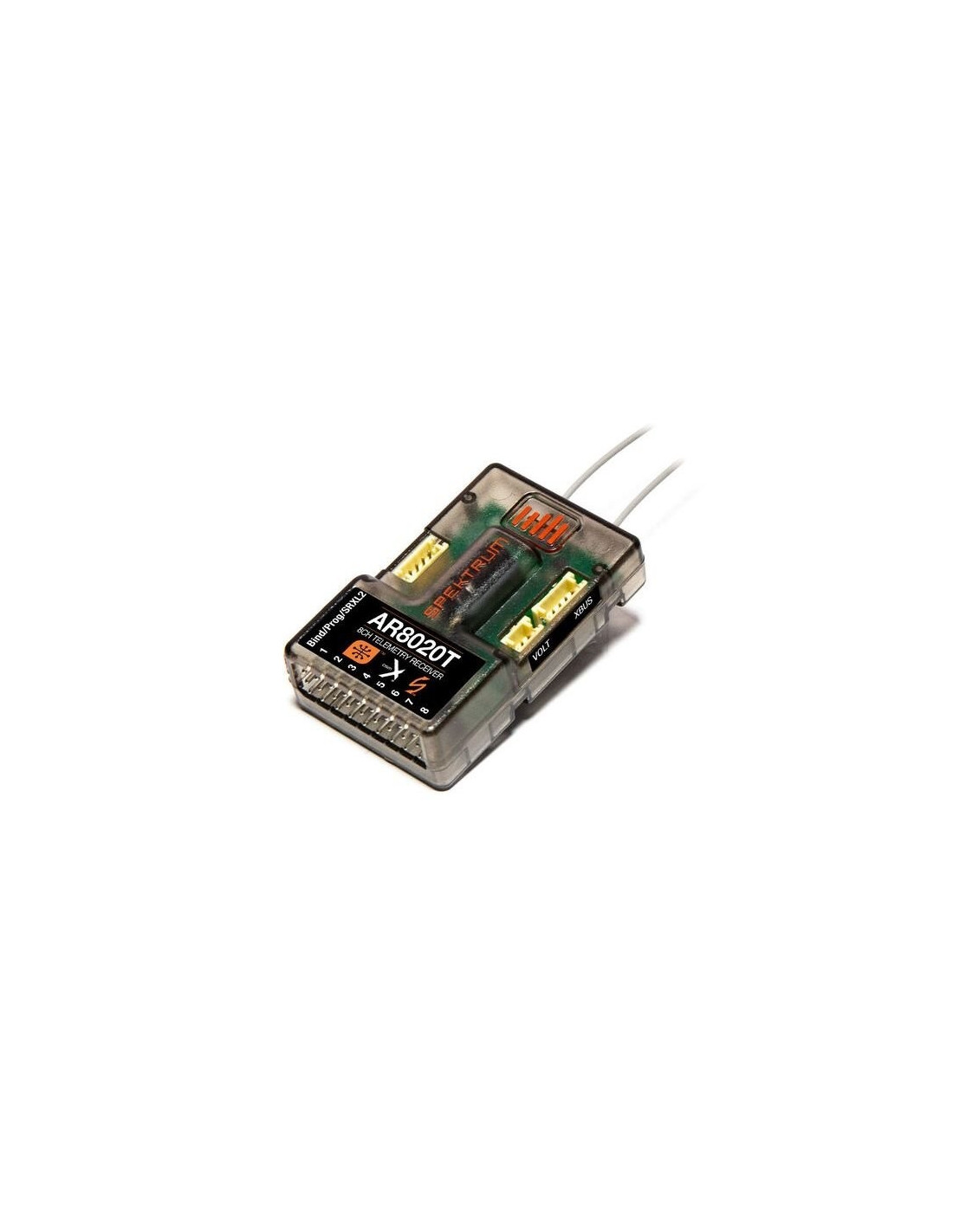

Spektrum AR8020T DSMX 8-channel telemetry receiver

The Spektrum" AR8020T 8-channel receiver is a DSM2® and DSMX® compatible receiver with a small footprint that can be installed in a wide range of aircraft. It features full telemetry, an integrated barometer to provide altitude data and vario telemetry without additional purchase. The included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also has an SRXL2 port for an SRXL2 remote receiver (SPM9747 or SPM4651), available separately, to add additional RF redundancy. An SRXL2/Bind/Program/Batt jack is available to connect smart devices, program and update the receiver, link with a traditional pairing plug, or connect a battery. The AR8020T also features a bind button for easy no-take linking and offers both SmartSafe" and Hold Last technology as well as preset safety types via direct programming. The throttle port is also compatible with the Smart ESC system right out of the box.

Note: Spektrum DX7S and DX8 Gen 1 transmitters do not display altitude or variometer telemetry with the AR8020T receiver.

Features

Compatible with all Spektrum DSM2 and DSMX transmitters
Small footprint fits most models From parkflyer to small-body
Includes full telemetry system a built-in barometer to provide altitude and vario telemetry data without the need for additional sensors
The "Bind" button makes it easy to link documents and eliminates the need for a pairing plug
Two external antennas will provide secure RF coverage from all angles of the aircraft
Additional RF channel redundancy with an additional SRXL2 remote receiver (SPM9747 or SPM4651, sold separately)
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links and wires.
End output pins for easy, compact installation
Advanced programming to set individual safety parameters per channel and more

ADVANCED PROGRAMMING

You can configure the AR8020T wireless receiver, directly from any Spektrum™ compatible transmitter, through the Forward Programming menu. No separate computer or mobile device is required for configuration and settings.

SMART TELEMETRY

To take full advantage of Smart™ technology, use the AR8020T receiver with a Smart ESC and a telemetry-capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM are sent directly to your transmitter in real time. For more information on smart technology, please visit our Spektrum Smart Technology page.

INTEGRATED BAROMETER

The Spektrum™ AR8020T receiver has a built-in barometer (integrated pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.
