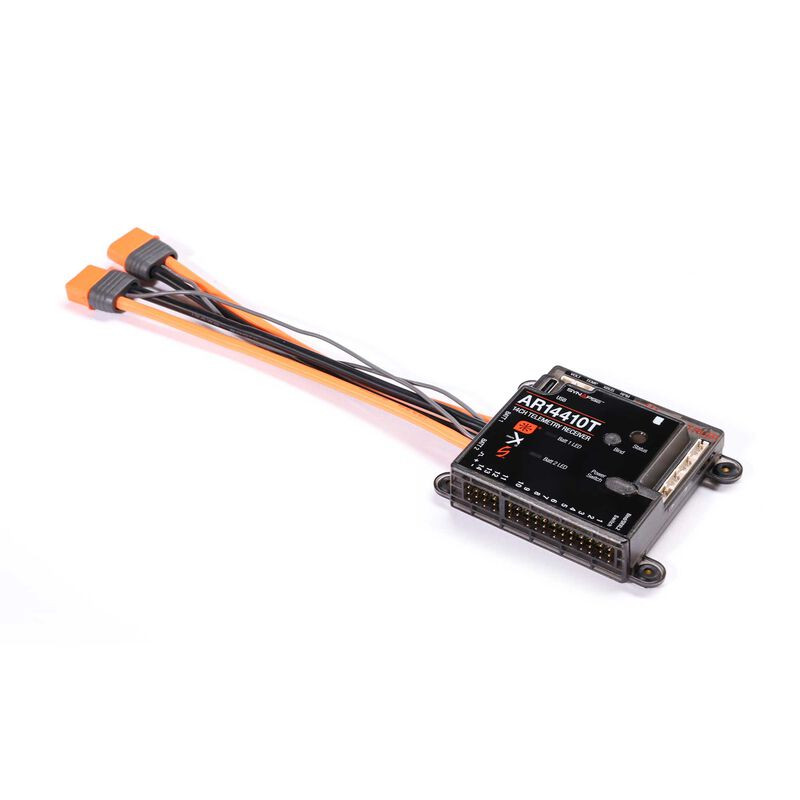

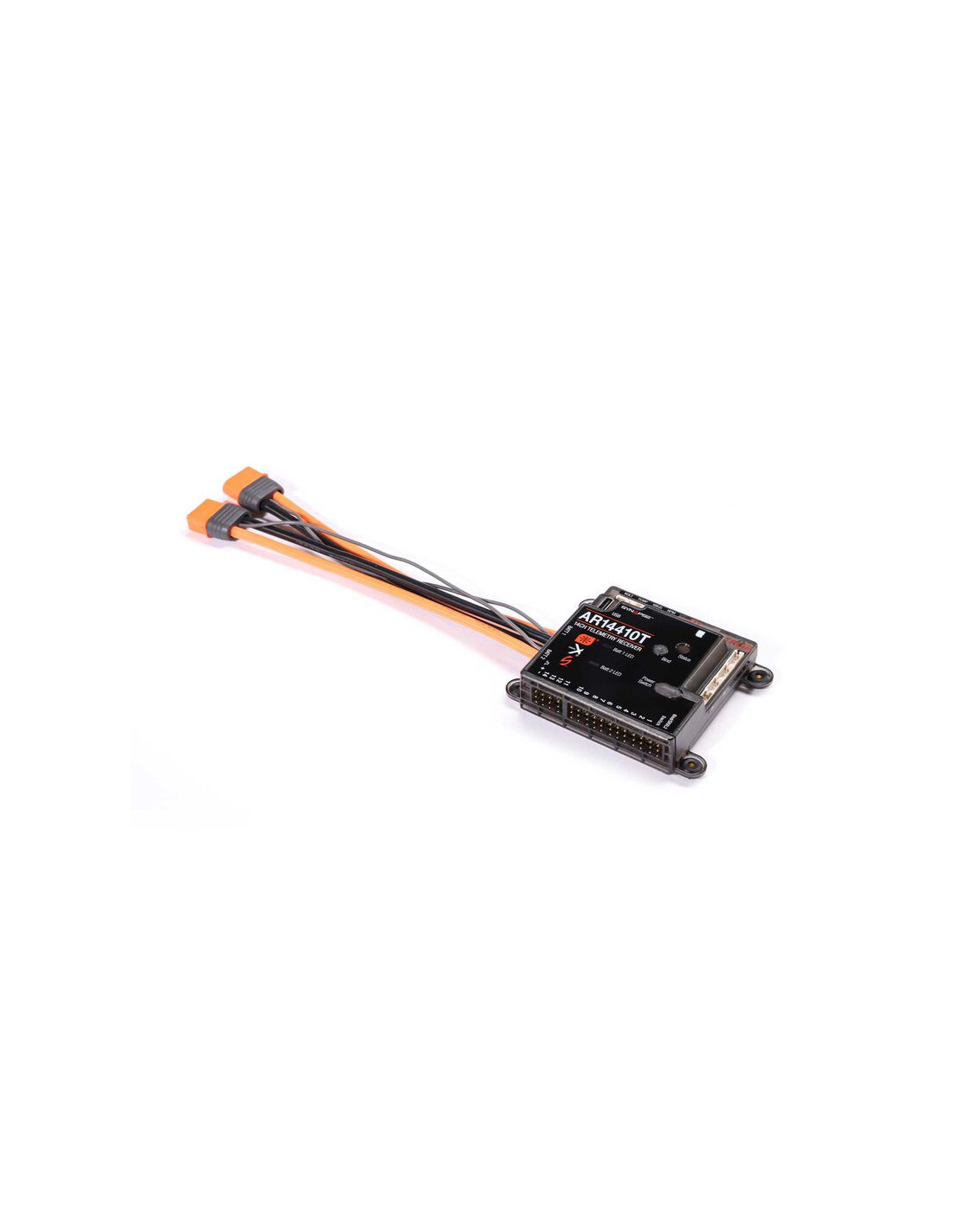

The AR14410T is a 14-channel receiver with full long-range telemetry that uses the Spektrum™ PowerSafe™ redundant battery system. It features connections for full telemetry support, including rpm, voltage and temperature from the Flight Pack and X-Bus. The receiver also has an integrated vario/altitude sensor and mAh sensors to track their consumption. It can be powered via the servo bus or 13AWG battery cables with IC3™ connections. It is compatible with the Spektrum Synapse™ AS3X+ / SAFE stabilization module (SPMAS6000), offering instant attitude corrections and improving flight stability.
Using an optional micro-SD card, the AR14410T can store flight data for later reference as a CSV file. It also features a new PowerSafe LED push-button software switch, or can be switched on and off via the integrated button. What's more, the system can be put into standby mode from a compatible Spektrum transmitter and activated between flights. It can also be switched off from your compatible Spektrum transmitter. The link can be initiated via the button or a link plug-in. The AR14410T can be easily updated via the USB-C connection.
The AR14410T is compatible with the Synapse AS3X+/SAFE stabilizer module (not included), offering enhanced stability and control for your aircraft. The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by industry experts. The system is even easier to tune, and can be easily optimized for any type of aircraft you fly. Never again spend hours tweaking and fine-tuning until your aircraft is locked in. We were able to configure most aircraft in less than 5 minutes, including the first flight setup.
Key AS3X+ enhancements include:
The Spektrum™ AR14410T is the ultimate solution for powering power-hungry radio systems. In aircraft with multiple current-intensive servos (e.g. giant-scale aircraft, jets, etc.), PowerSafe redundancy expertly manages power between the two connected receiver batteries with true dual-battery redundancy. Each battery is isolated, and if one fails/short-circuits, the other will take over without fail.
PowerSafe receivers feature dual battery capacity monitoring via telemetry when used with Spektrum AirWare transmitters. Activate the Auto Config function on your transmitter's telemetry page to display the capacity consumed by the receiver. The capacity used is stored flight by flight and is added until reset. Capacity can be automatically reset when the battery is charged, allowing easy monitoring of battery capacity.
The AR14410T receiver features an advanced power management system designed with a sleep mode allowing pilots to remotely switch the transmitter on/off. This exciting new feature lets you power up your model's electronics at the touch of a button. No hatch manipulation or physical switches are required, and it's extremely convenient for a day in the field.
When a Micro SD card is inserted in the receiver, during operation, flight information will be recorded in a file on the card, including flight log data, battery status and other telemetry data stored over time. If not deleted, older recorded data logs will be deleted, retaining the most recent logs. This can be a handy tool for examining flight data over time, which can be useful for performance diagnostics.
You can configure the AR14410T wireless receiver, directly from any compatible Spektrum transmitter, via the advanced programming menu. No separate computer or mobile device is required for configuration and settings.
The Spektrum AR14410T receiver features a built-in barometer (integrated pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.
A user-friendly micro USB port is integrated into the receiver for easy access to firmware updates via the Spektrum PC Programmer application.
In addition to built-in telemetry sensors, the AR14410T supports a long list of Spektrum telemetry sensors and third-party telemetry accessories. Easily add powerful telemetry data tools to your model, such as GPS, speed sensors, engine speed and turbine ECU telemetry from supported jet turbine controllers.
| Application | Air |
| Band | 2.4GHz |
| Bind Method | Bind Button, Bind Plug |
| Channels | 14 |
| Failsafe | Yes |
| Input Voltage | 3.5-12.6V |
| Modulation | DSMX / DSM2 |
| Data port | Yes |
| Product Height | 1.75" (44 mm) |
| Product Length | 2.6" (66 mm) |
| Product Weight | 2.7oz (76g) |
| Product Width | 2.4" (61 mm) |
| Programmable | Yes |
| Range | Full |
| Resolution | 2048 |
| Serial Out | SRXL2 |
| Technology | AS3X+ |
| Telemetry | Yes |
| XPlus Compatible | Yes |
