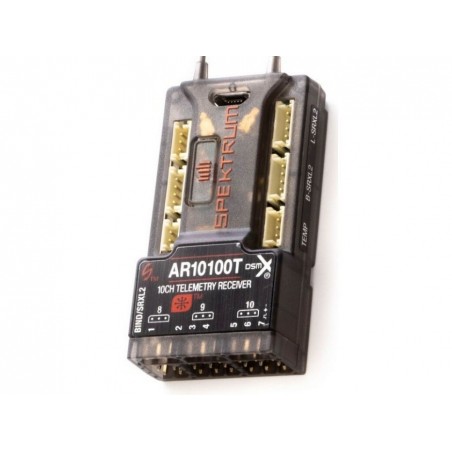

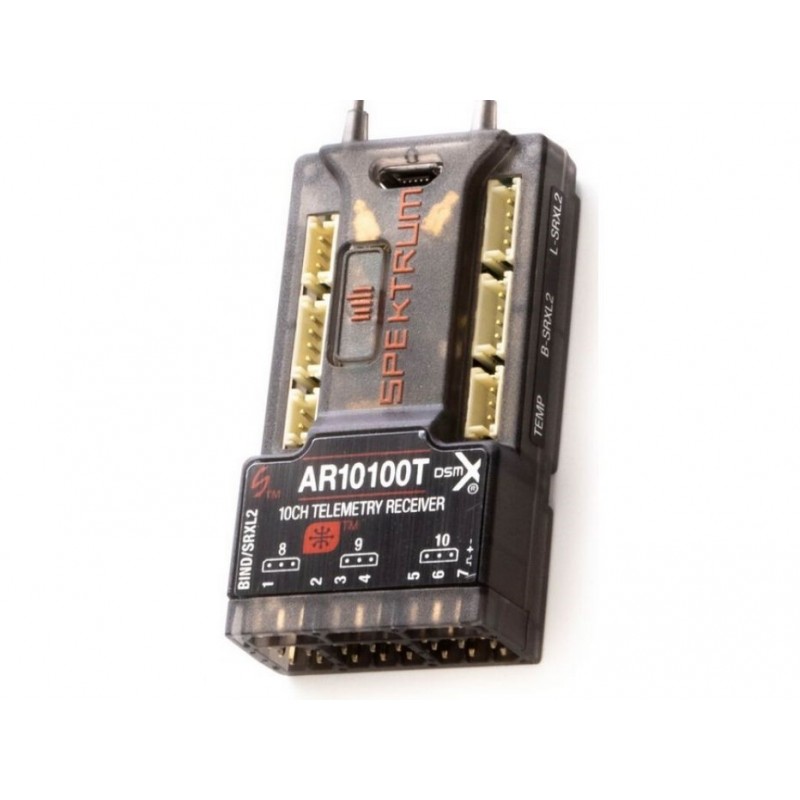

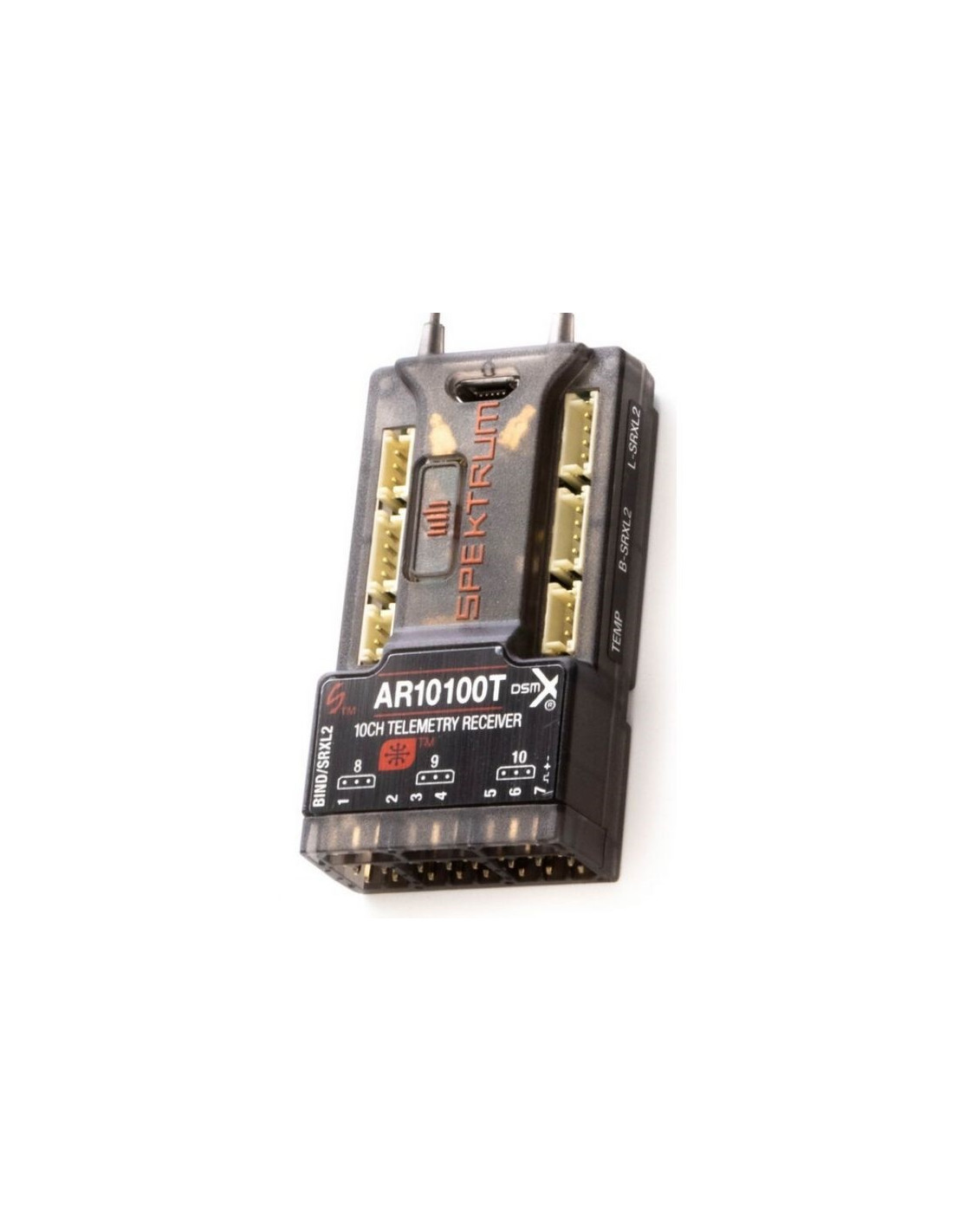

The Spektrum AR10100T 10-channel receiver is a DSM2® and DSMX® compatible receiver with a compact footprint to fit a wide range of aircraft.
The compact shape fits most parkflyer, sport and small-size models
Includes full telemetry, built-in barometer to provide altitude and vario telemetry data without the need for additional sensors.
Micro USB port for easy logging and firmware updates.
Link button allows for easy linking and eliminates the need for the link plug
Compatible with all Spektrum DSM2 and DSMX transmitters
Compact shape fits most parkflyer, sport and small size models
Includes full telemetry, built-in barometer to provide altitude and vario telemetry data without the need for additional sensors.
VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum telemetry sensors.
XBUS telemetry port for expandable telemetry capabilities, such as GPS, air speed, flight battery power and more.
Micro USB port for easy logging and firmware upgrades.
The link button allows for easy linking and eliminates the need for a link plug.
Two external antennas provide secure RF coverage from all angles of the aircraft.
Additional RF channel redundancy with up to 2 additional SRXL2 remote receivers (SPM9747 or SPM4651T, sold separately).
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need for modules, links and wires.
End output pins for easy and compact installation
Capable of forward programming to set individual fail-safe parameters per channel and more.
The Spektrum AR10100T 10-channel receiver is a DSM2® and DSMX® compatible receiver with a compact footprint to fit a wide range of aircraft. It features full range telemetry, an integrated barometer to provide altitude and vario telemetry data without additional purchase. The included XBUS and temperature ports can be used to add additional telemetry sensors available separately. A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer application. The AR10360T also features 2 SRXL2 ports for the addition of separately available SRXL2 remote receivers (SPM9747 or SPM4651T) to add additional RF path redundancy. An SRXL2/Bind servo head is available to connect smart devices, bind with a traditional link plug, or connect a battery. The AR10100T also features a link button for easy linking without the need for plugs and offers both SmartSafe'" technology and Hold Last functionality as well as preset fail-safe types through front-end programming. In addition, the throttle port is compatible with Smart ESC right out of the box.
To take full advantage of Smart™ technology, use the AR10100T receiver with a Smart ESC and a telemetry-enabled Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM are sent directly to your transmitter in real time. For more information on Smart Technology, please visit our Spektrum Smart Technology page.
The Spektrum™ AR10100T receiver has an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data to your telemetry-capable Spektrum transmitter, without the need to purchase additional sensor modules.

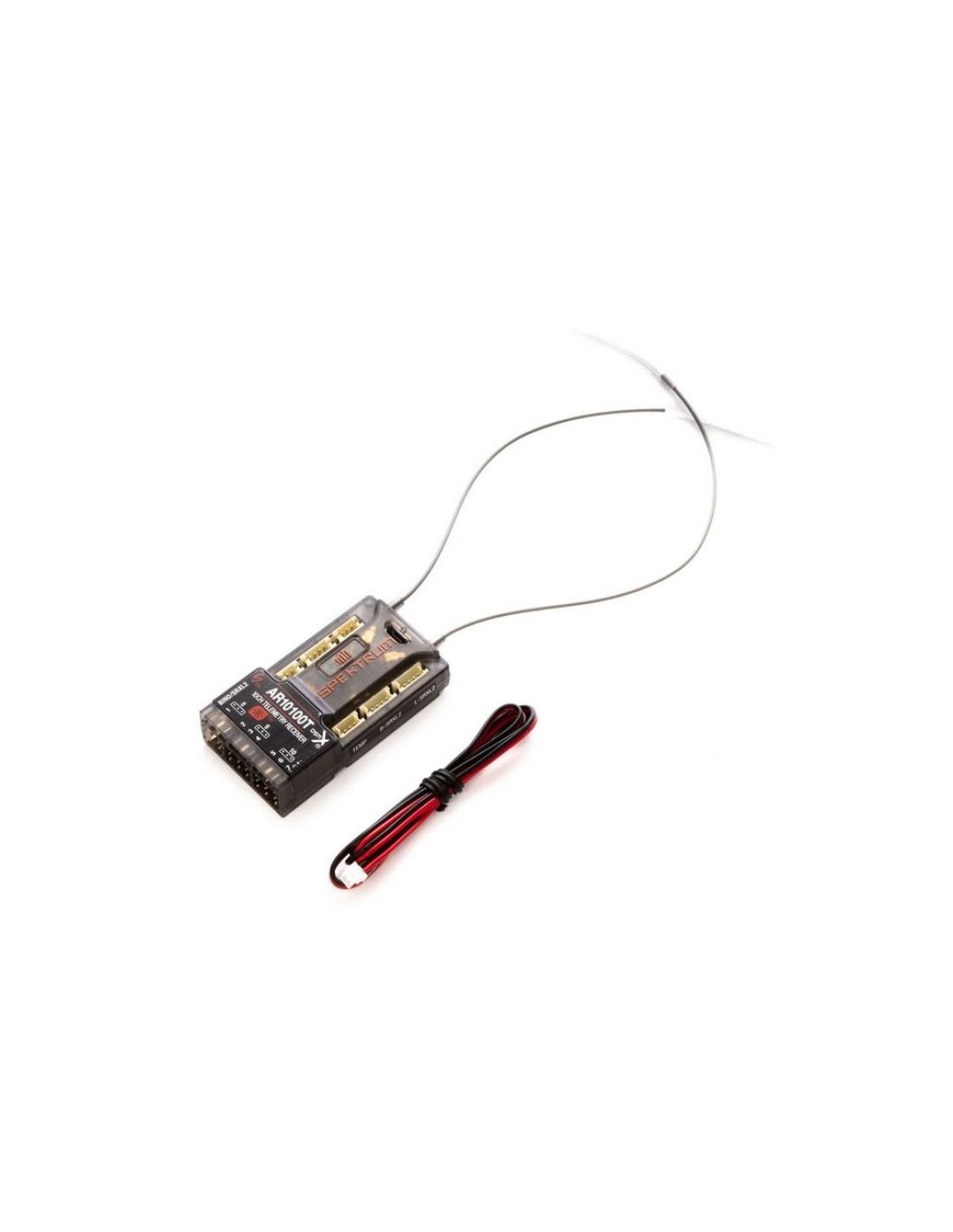

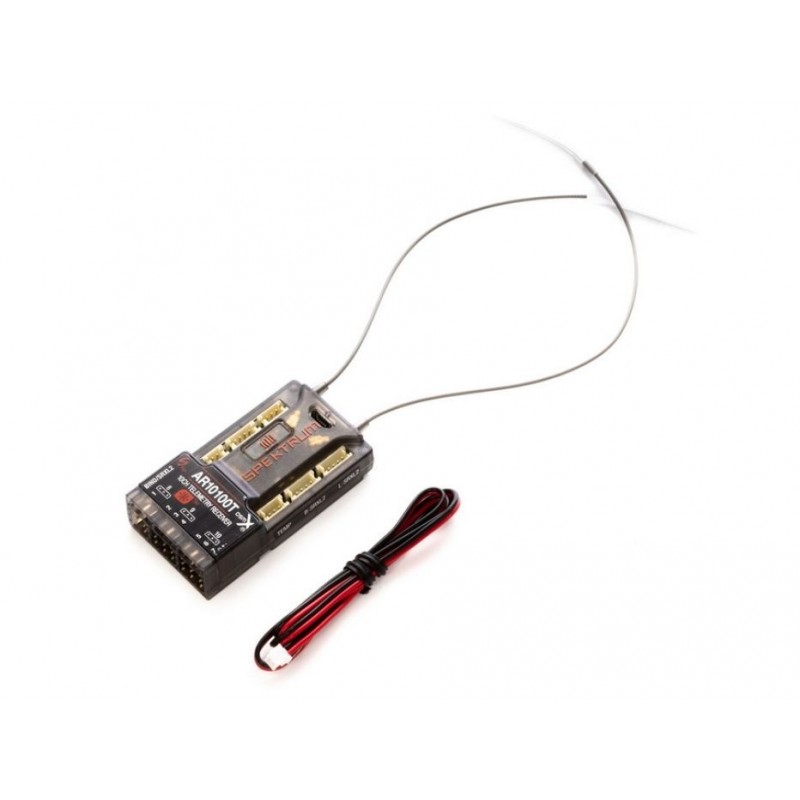

(1) AR10100T 10 channel telemetry receiver
(1) Spektrum Flight Pack voltage sensor
(1) Product manual
DSMX telemetry compatible transmitter.
One or more servo extensions may be required
