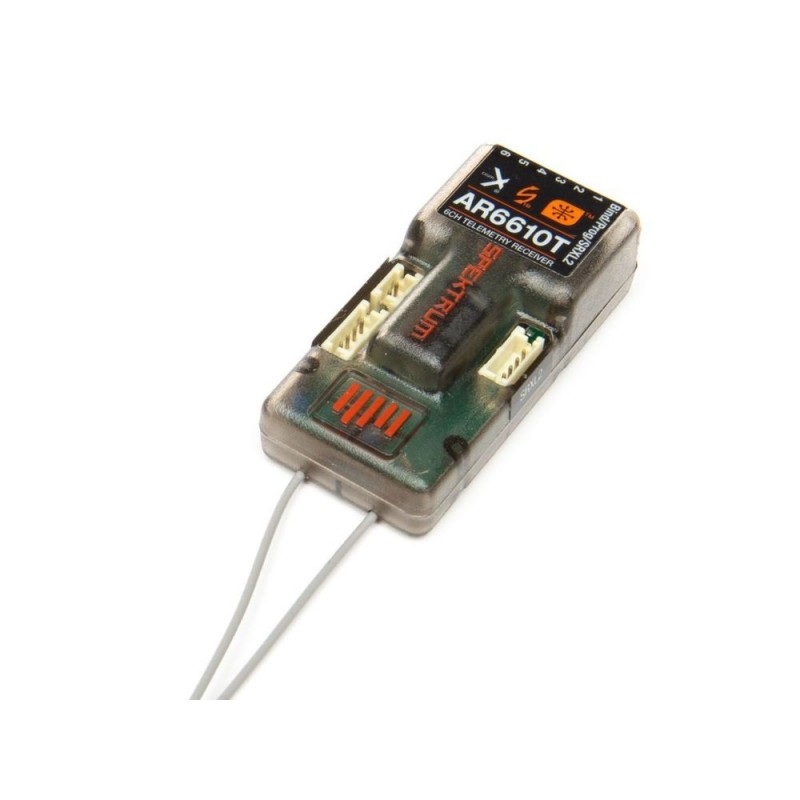

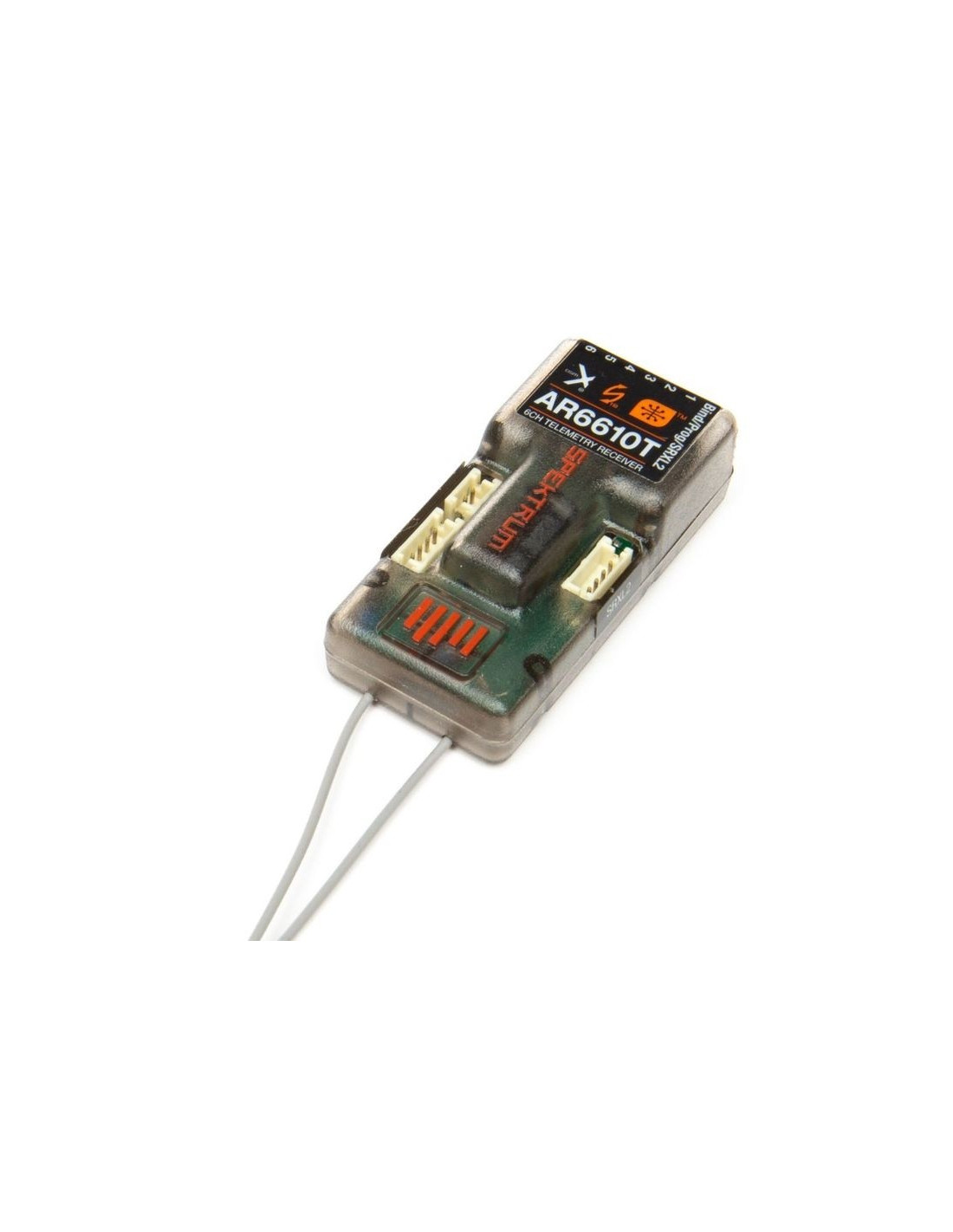

Spektrum AR6610T DSMX 6-channel telemetry receiver

The Spektrum AR6610T 6-channel receiver is a DSM2 and DSMX compatible receiver with a compact design to fit a wide range of models. It will provide a lightning fast input/output response that is perfect for high performance applications such as 3D aircraft and helicopters. It features long range telemetry, an integrated barometer to provide altitude data and vario telemetry without additional purchase. An SRXL2 port for connecting an SRXL2 receiver (sold separately) to eliminate reflected signal drops and antenna blind spots that can affect 2.4 GHz systems.

The gas channel port on the AR6610T receiver includes SMART Throttle. When equipped with SMART Throttle, the normal servo connector delivers the throttle signal to the ESC, and the ESC can send telemetry data such as voltage and current back to the receiver. The AR6610T receiver is compatible with the Spektrum Avian family of ESCs. For the SMART Throttle to work, you must have a SMART Throttle ESC paired with a SMART Throttle telemetry receiver, and a Spektrum DSMX transmitter with telemetry. Your transmitter may need to be updated for Smart Technology features. See www.spektrumrc.com to register and update your transmitter.

Product Features

• Compatible with all Spektrum DSM2 and DSMX transmitters
• Compact footprint fits most parkflyer-sized aircraft, giant scale and carbon fiber DLG installations.
• Full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need for additional sensors.
• Pairing button for easy connection and eliminates the need for a pairing dongle
• Two external antennas provide secure RF coverage from all angles of the aircraft.
• Additional RF redundancy available with an additional SRXL2 remote receiver (SPM9747, sold separately)
• Ready to use with Spektrum Smart ESCs for single-wire telemetry data without the need for modules, links and wires.

Specifications

• Antenna length: 155 mm and 186 mm
• Band: 2.4 GHz
• Link method: button link
• Channels: 6
• Data port: no
• Failsafe: Yes
• Flight log compatible: No
• Governor: No
• Height: 15,02 mm
• Input voltage: 3.5 - 9 V
• Length: 4.8 mm
• Modulation: DSMX / DSM2
• Number of receivers: one
• Range: Full
• Resolution: 2048
• RPM Limiter: no
• Telemetry: integrated
• Type: 6 channel DSM2 / DSMX telemetry receiver
• Water resistant: No
• Weight: 12g
• Width: 23.3 mm
