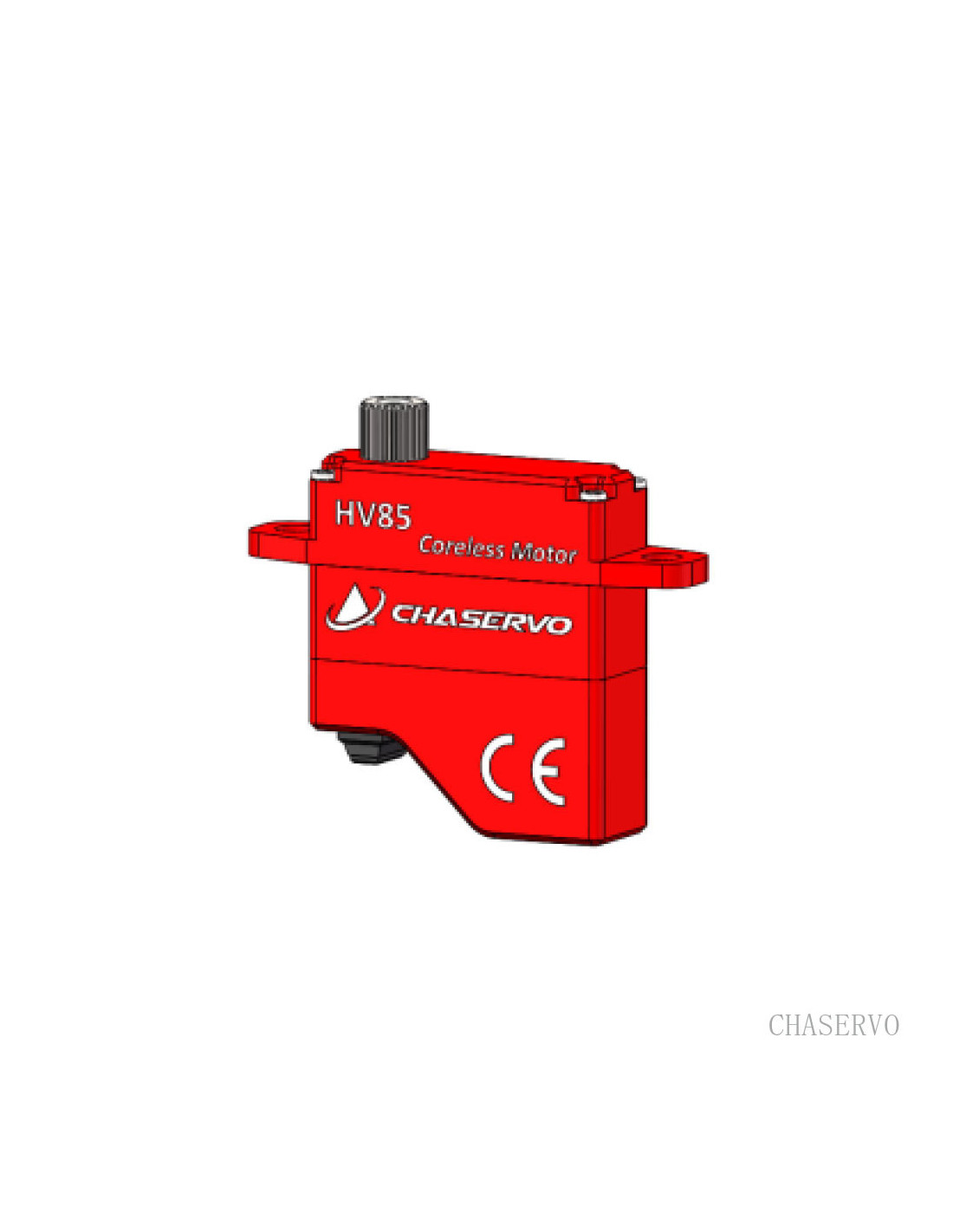

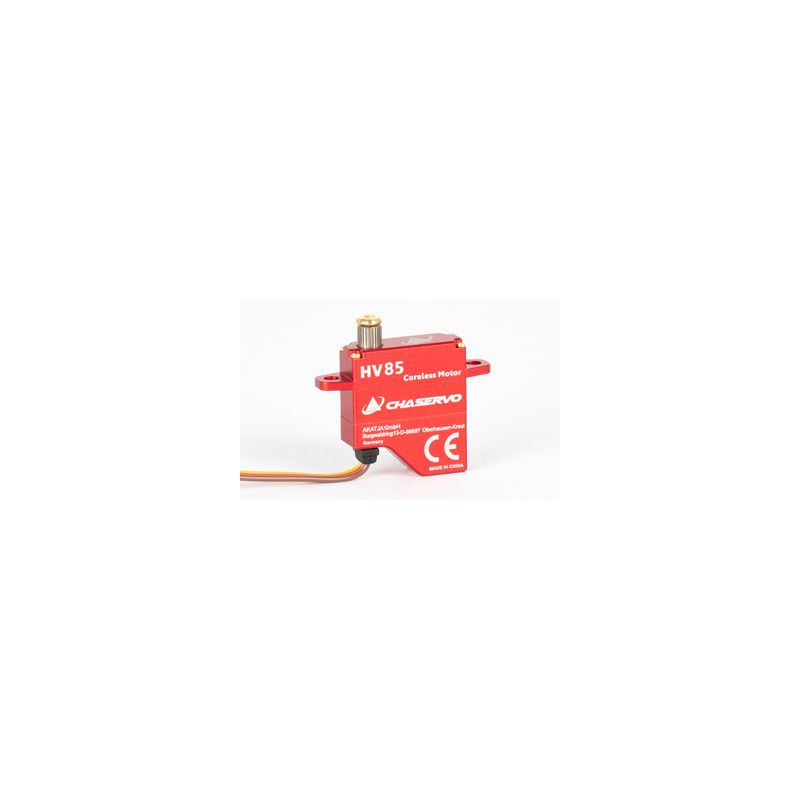

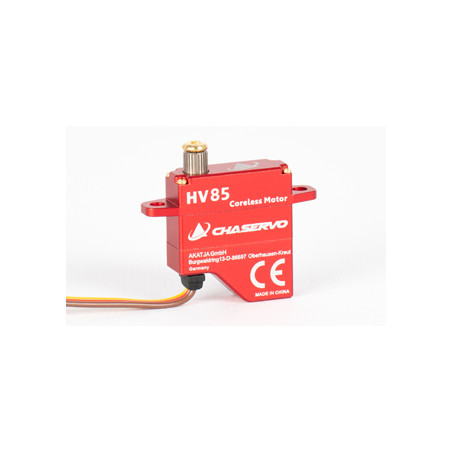

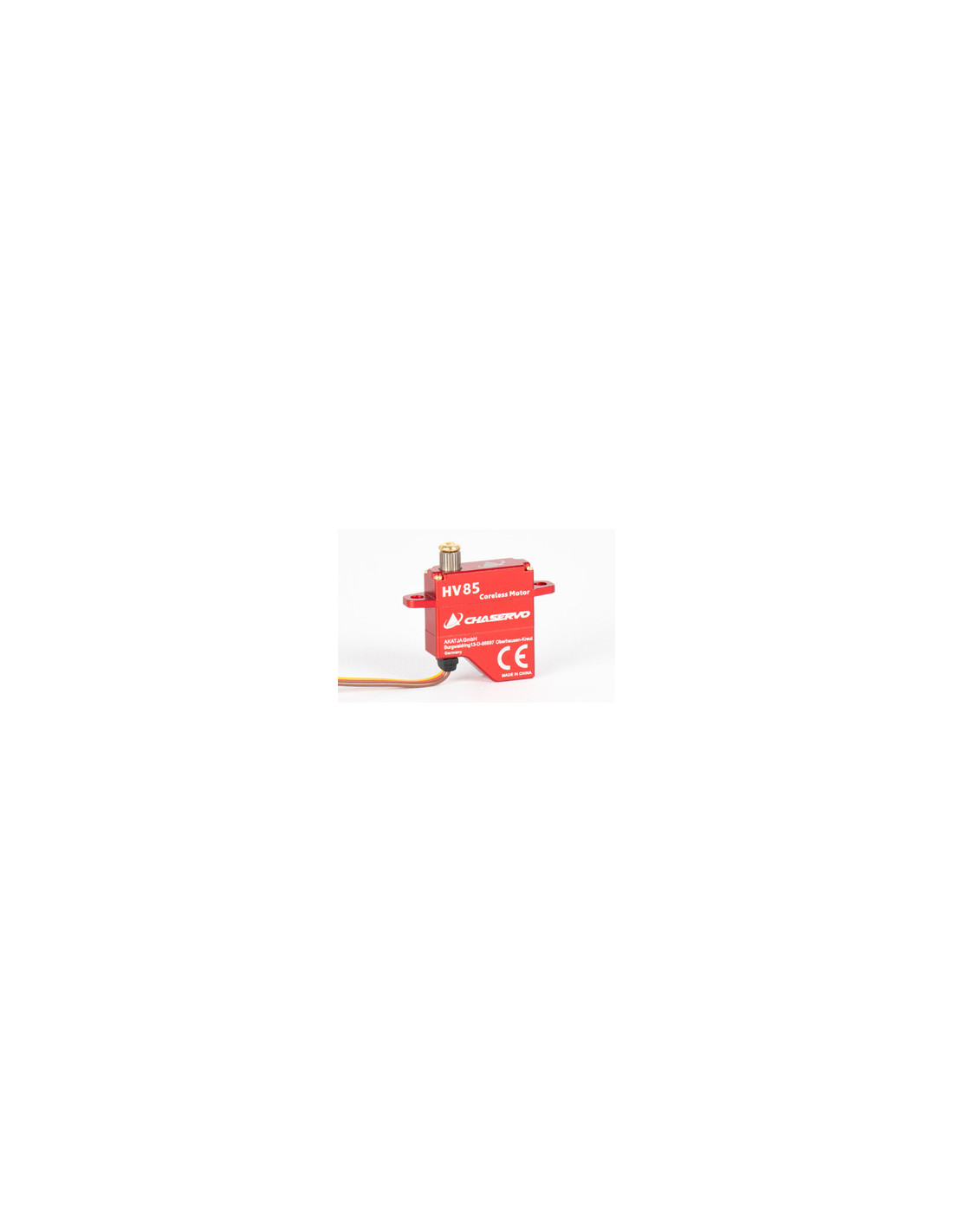

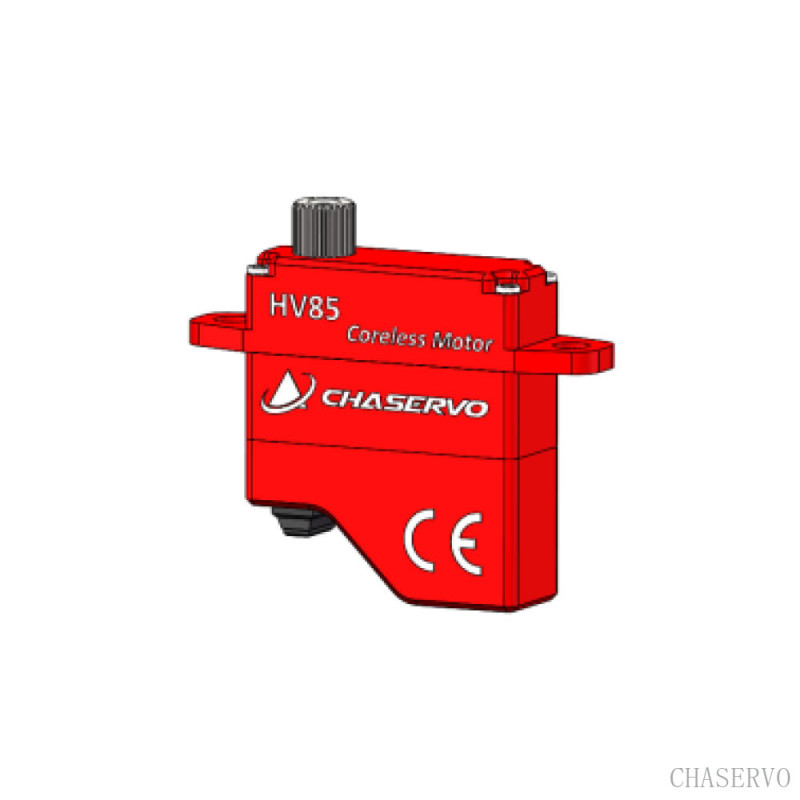

Digital servo HV85 Chaservo MICRO (15g, 8.9kg.cm, 0.11s)

Last items in stock
€49.99
Tax included

This powerful low voltage servo offers the highest level of build quality and shows its strengths with impressive precision. Wrapped in an elegant black aluminum corset has an impressive punch.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features:

  • Extremely thin, 8.5mm thick
  • Extremely light, only 15g
  • Extremely fast and accurate
  • Superior build quality
  • Designed for 2S and 8.4V
  • Available in three versions
  • High quality connection cables
  • Metal gearbox
  • Perfectly suited for QR in the thinnest of wings

Servo characteristics:

  • Nominal voltage: DC 8.4V
  • Voltage range: DC 6V - 8.4V
  • Standard angle: ±60° = 120
  • Operating frequency: 1520µs/20KHz
  • Operating temperature : -10°C ... +65°C
  • Housing material: aluminum alloy
  • Motor type: Coreless DC
  • Gearbox material: Hardened steel
  • Position sensor:ren : Potentiometer
  • Programmable Yes
  • Ball Bearing: Double ball bearing

Torque

  • 6.5 kg-cm @ 6.0V
  • 8.2 kg-cm @ 7.4V
  • 8.9 kg-cm @ 8.4V

Speed

  • 0.16sec/60° @ 6.0V
  • 0.12sec/60° @ 7.4V
  • 0.11sec/60° @ 8.4V
Thickness in mm (Servos)
Torque in kg.cm (servos)
Speed sec / 60° (servos)
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
366-HV85
