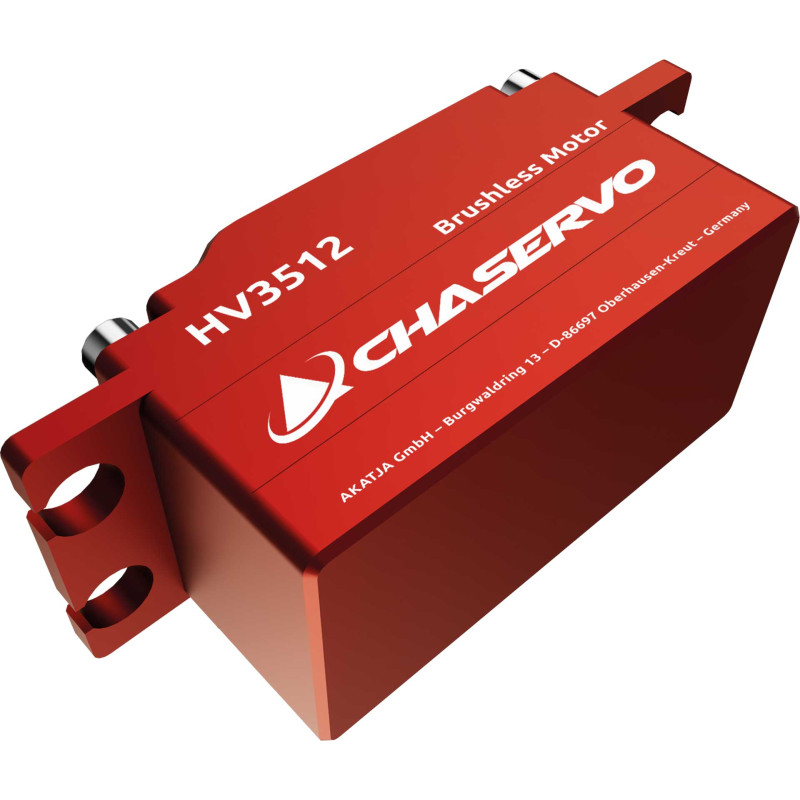

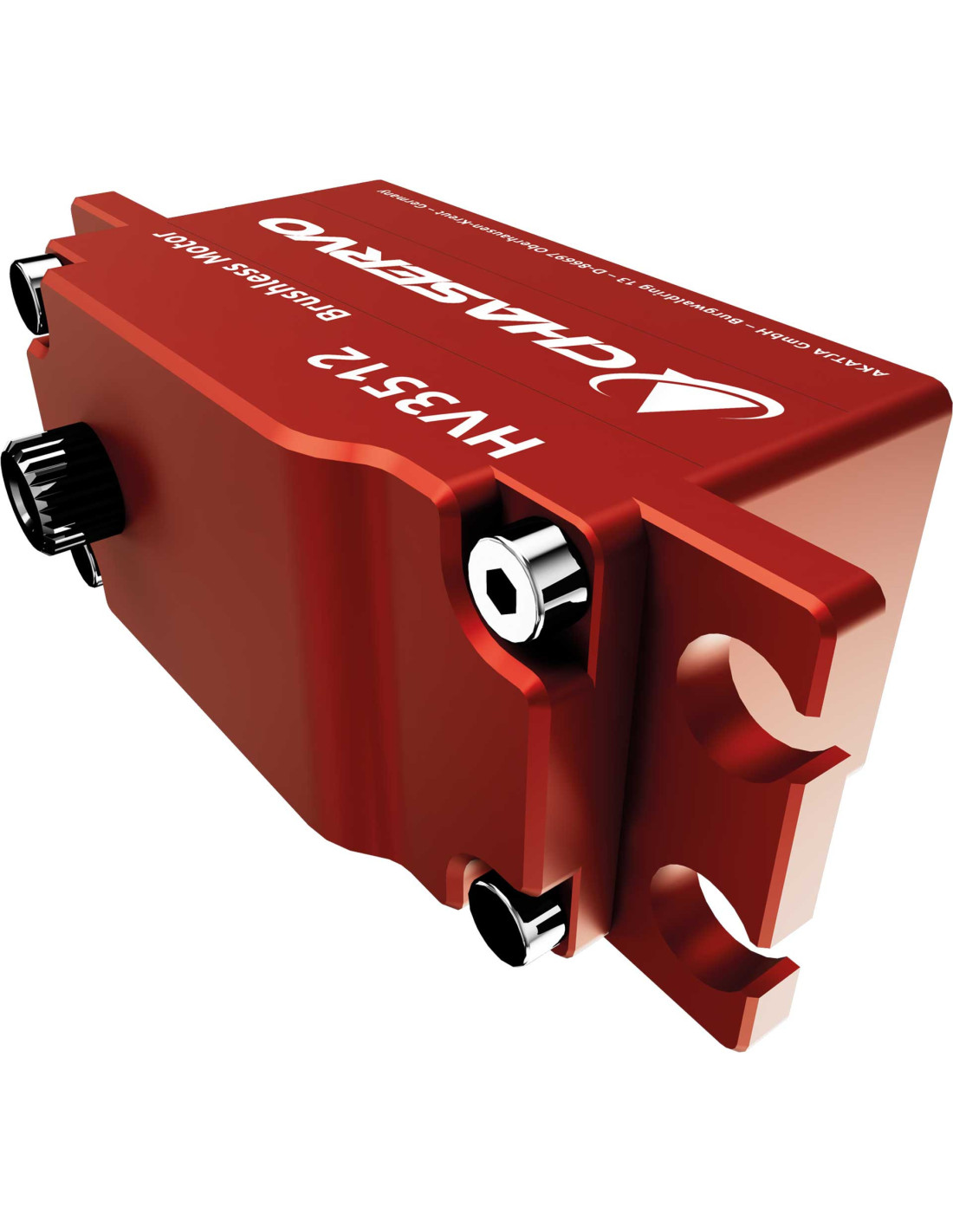

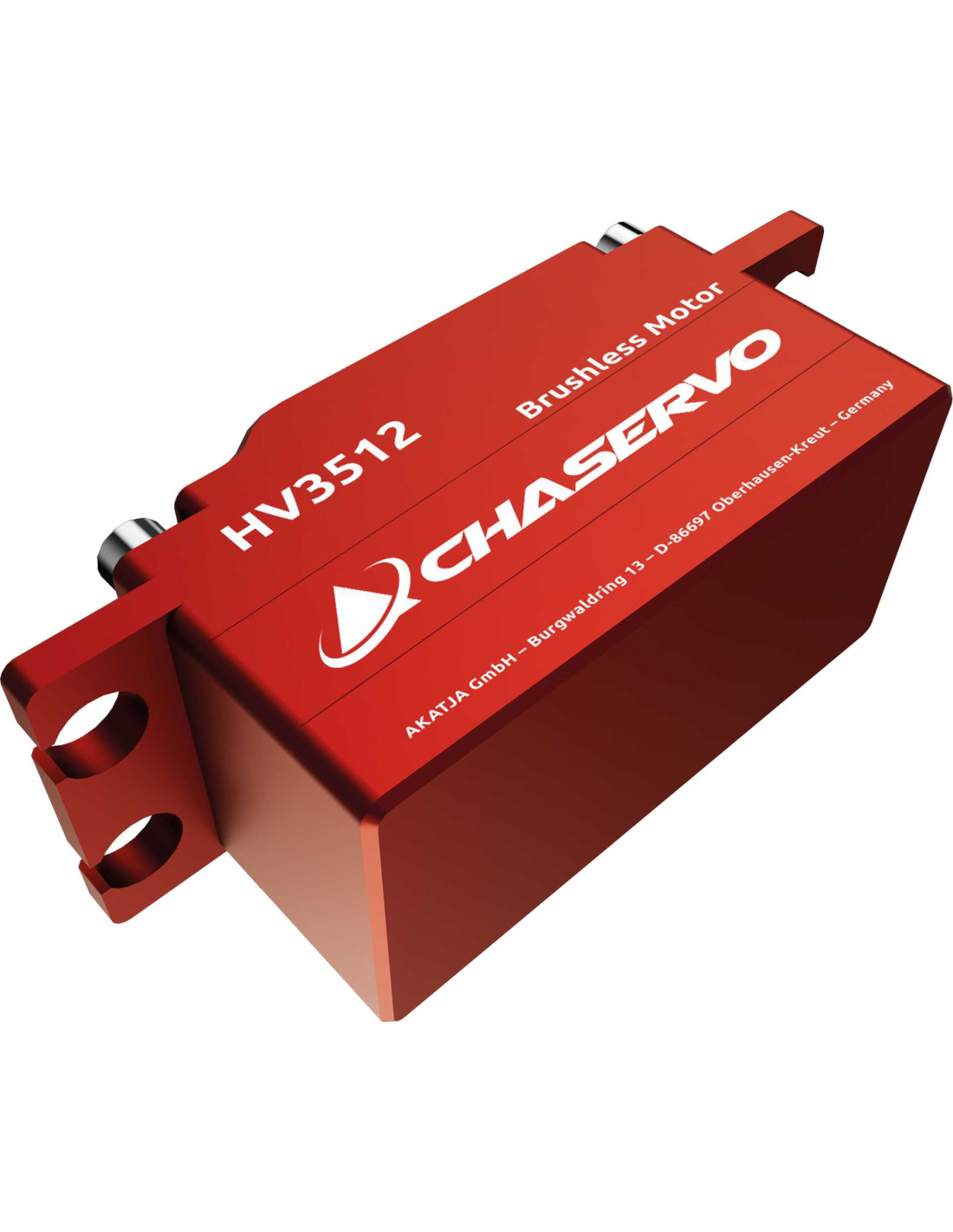

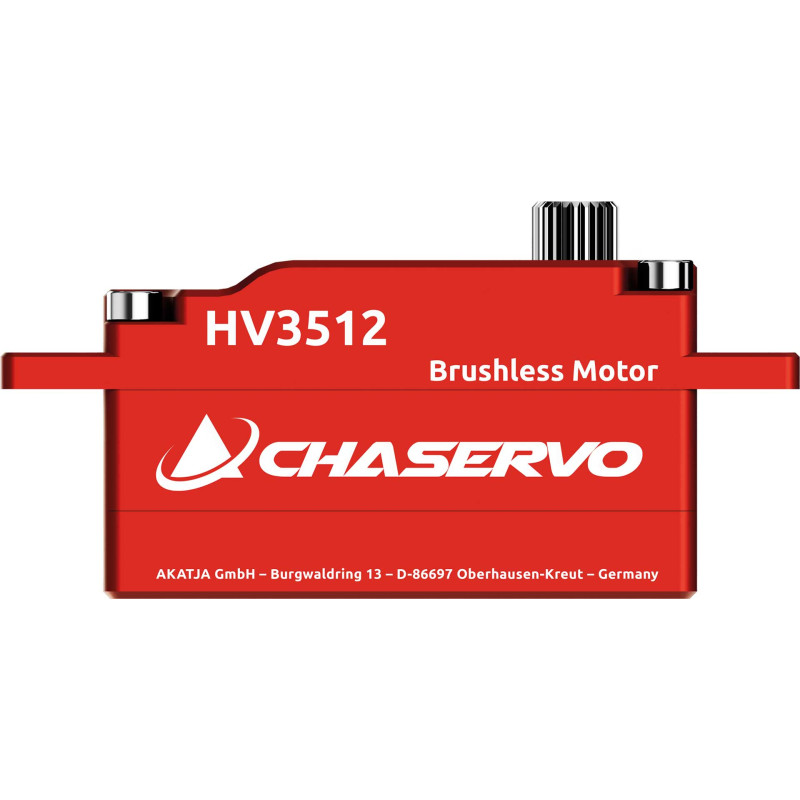

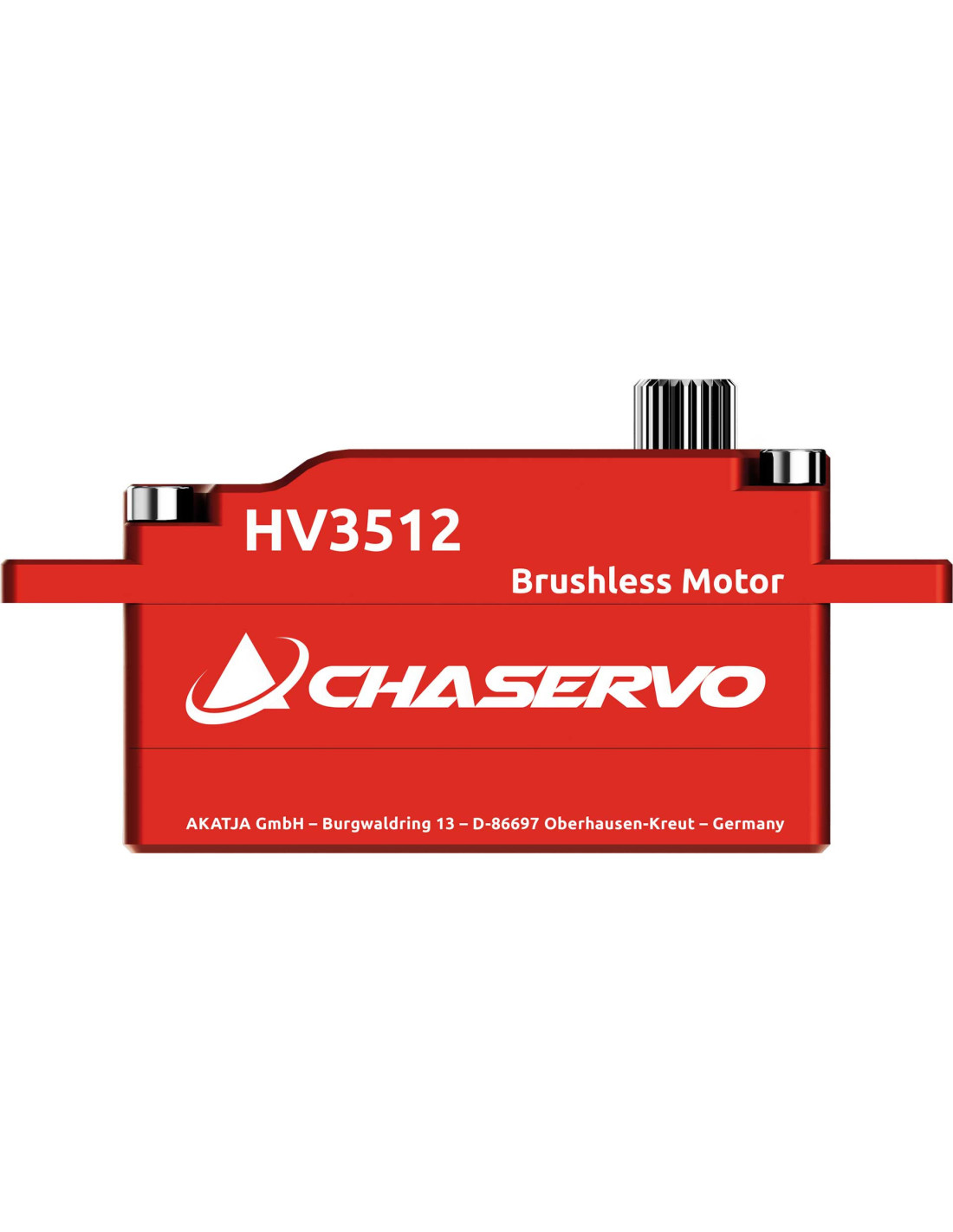

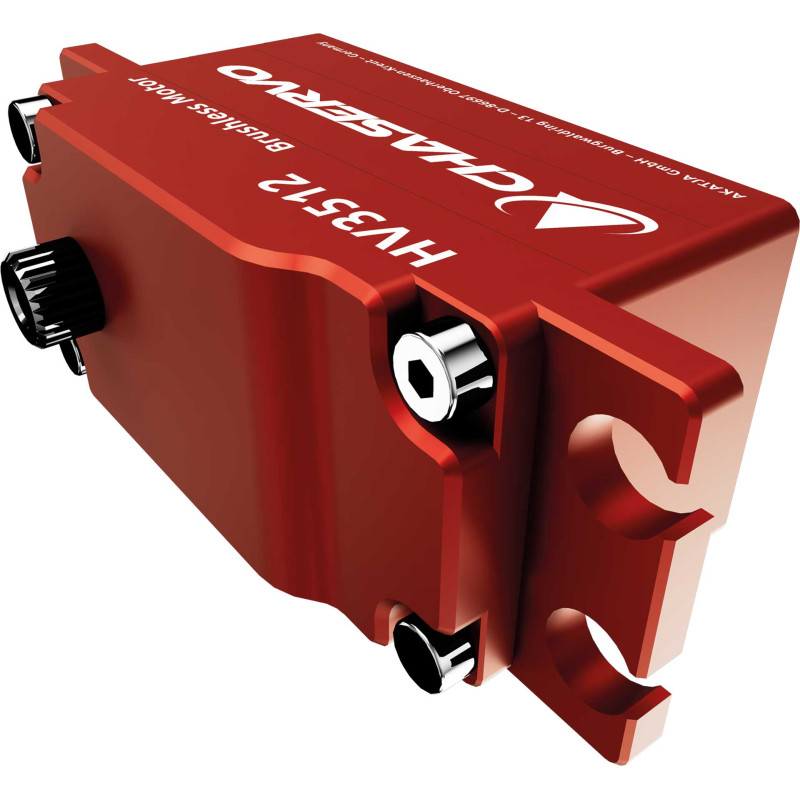

Digital servo HV3512 Chaservo Low Profile (50g, 40kg.cm, 0.11s)

€99.92
Tax included

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


SERVO DATA

  • Nominal voltage: 7.4V DC
  • Range: DC 6V - 8.4V
  • Standard magazine: ±100° = 200°.
  • Operating frequency: 1520µs/333Hz
  • Operating temperature : -20°C ... +65°C
  • Housing material: Aluminum alloy
  • Motor type: 4-pole brushless DC
  • Gear material: hardened steel
  • Position sensors: potentiometer
  • Programmable: Yes
  • Ball Bearing: Double ball bearing
  • Water resistance: IP65

Torque

  • 30 kg-cm at 6.0 V
  • 35 kg-cm at 7.4 V
  • 40 kg-cm at 8.4 V

Speed

  • 0.14 s/60° at 6.0 V
  • 0.12 s/60° at 7.4 V
  • 0.11 s/60° at 8.4 V

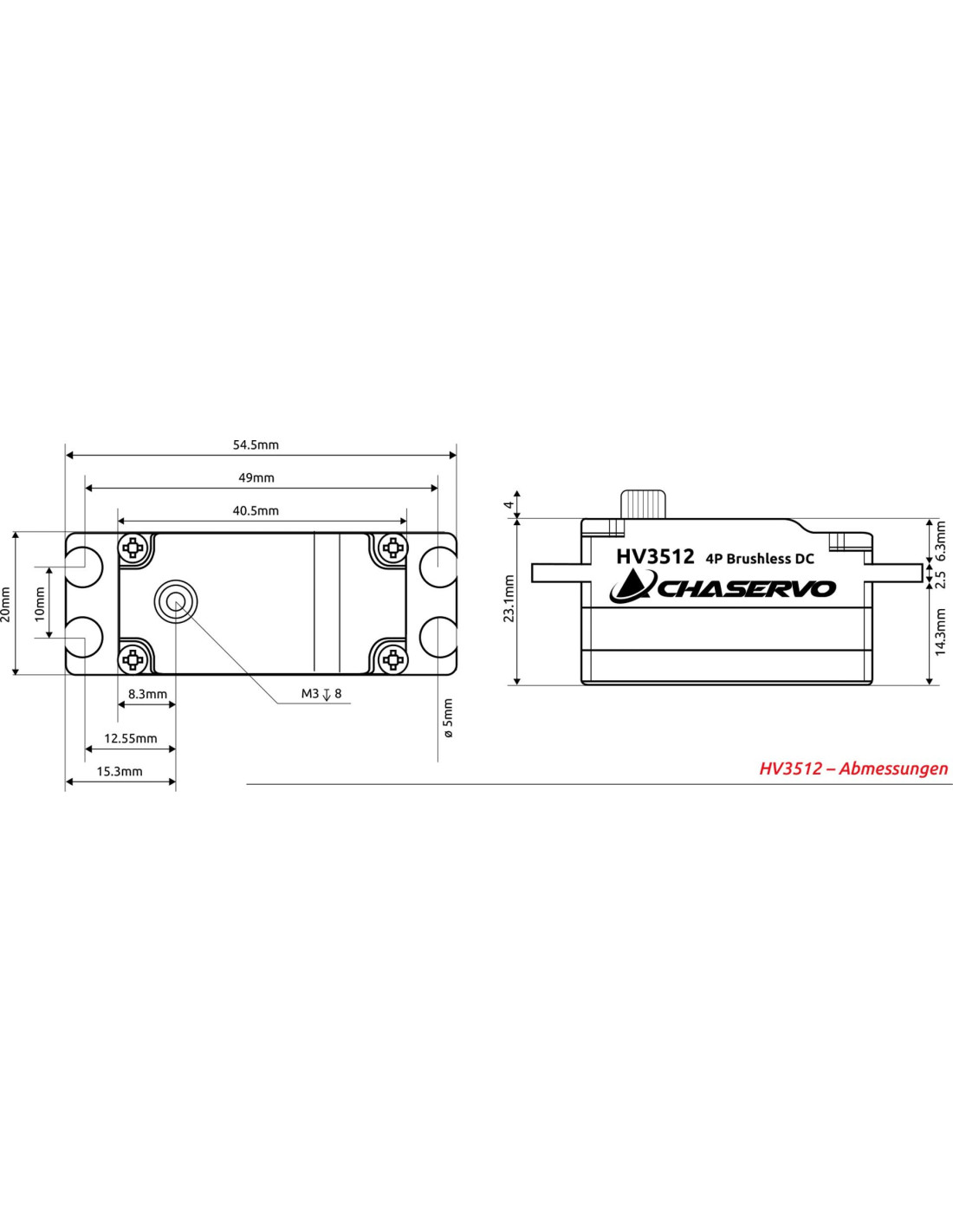

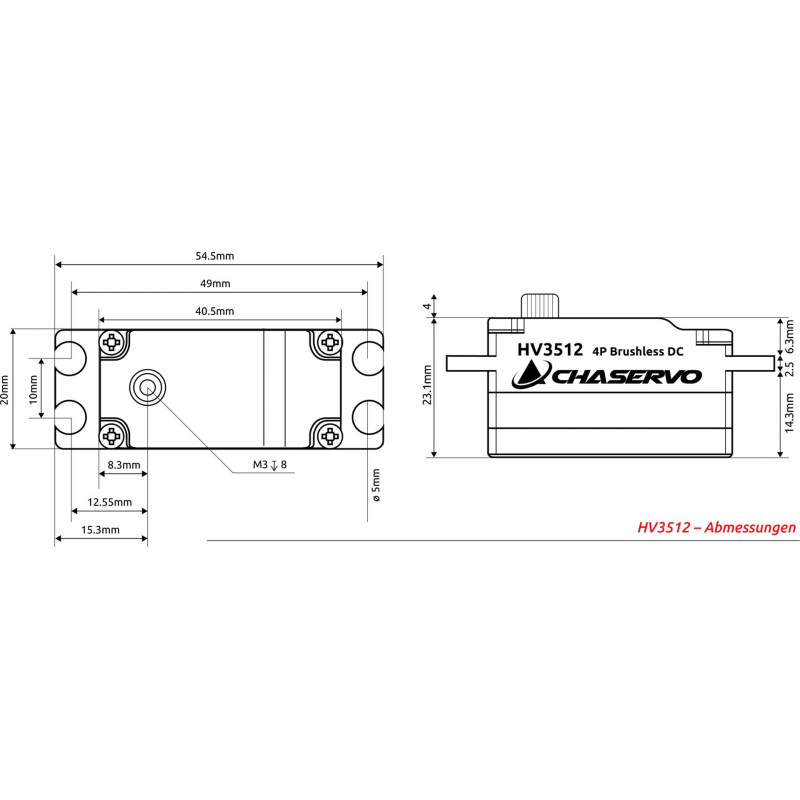

Thickness in mm (Servos)
20
Torque in kg.cm (servos)
40
Speed sec / 60° (servos)
0.11
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
50
366-HV3512
4897073542379
