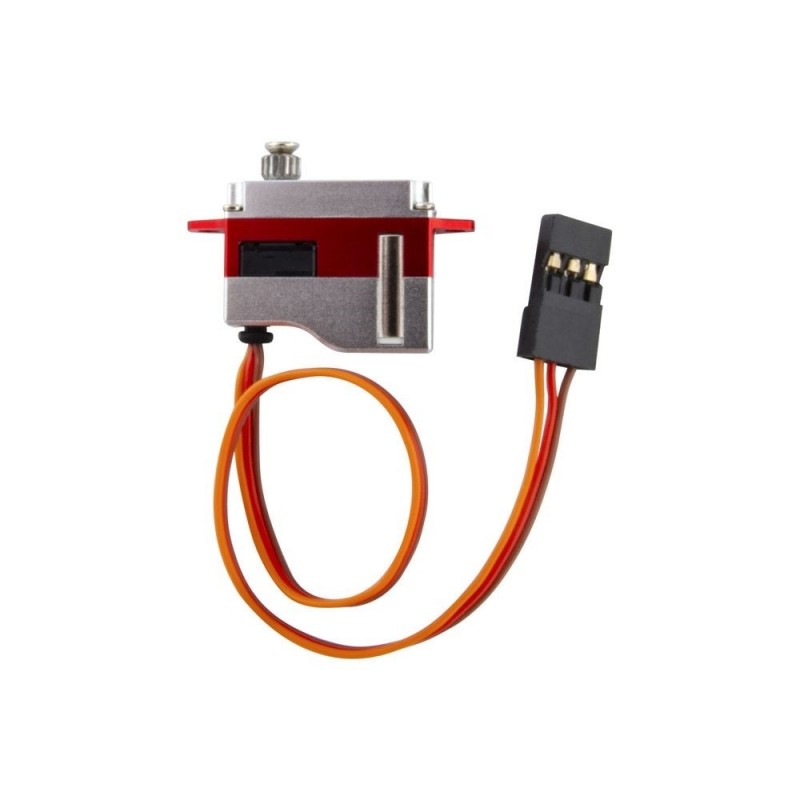

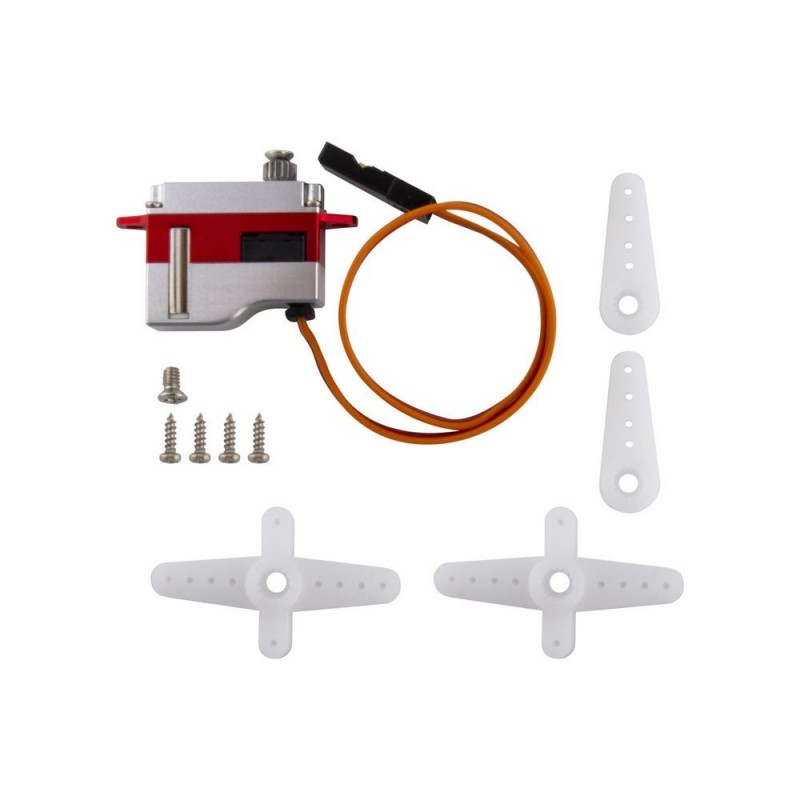

KST X06 HV digital micro servo (6g, 1.8kg/cm, 0.07sec/60°)

€33.25
Tax included

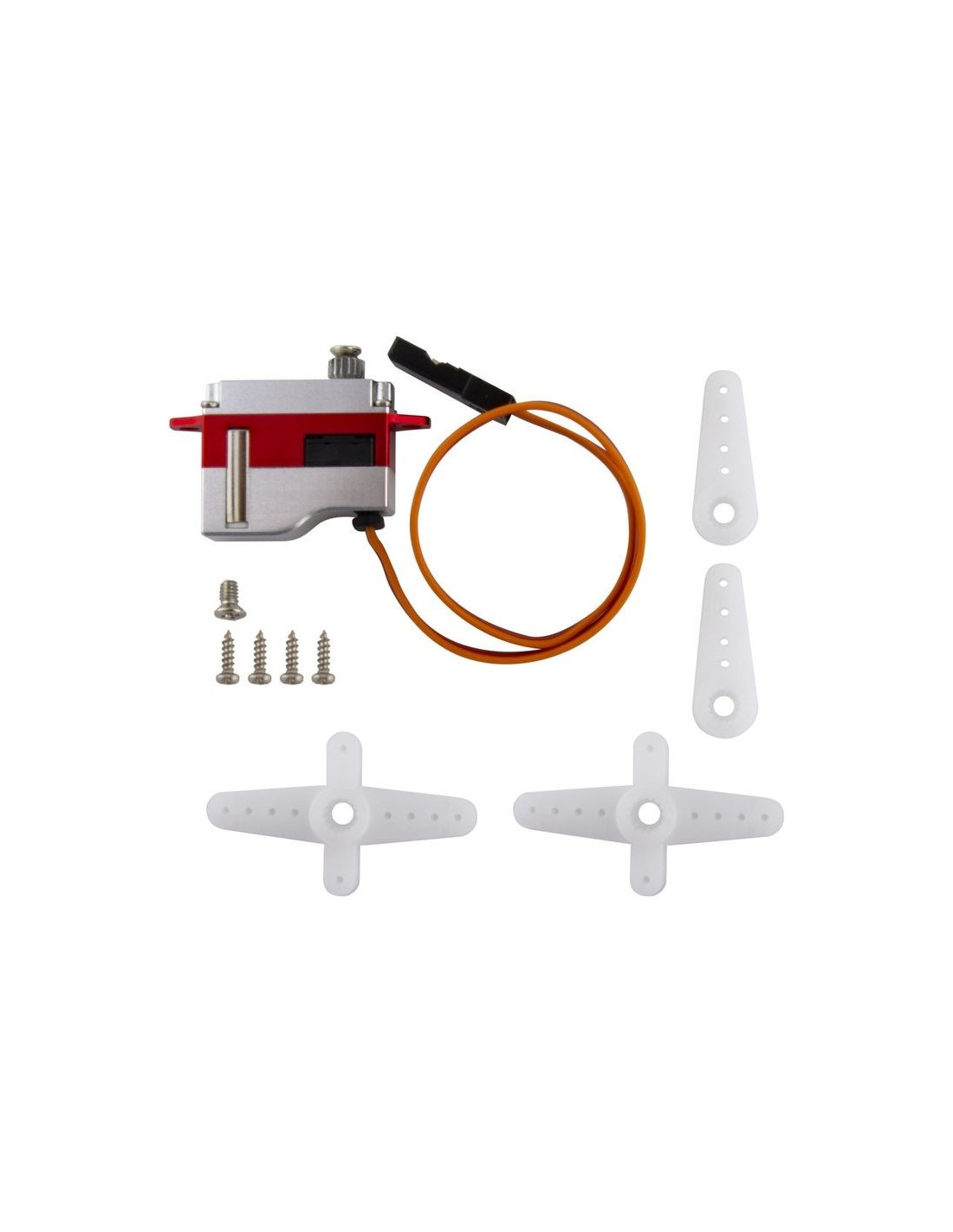

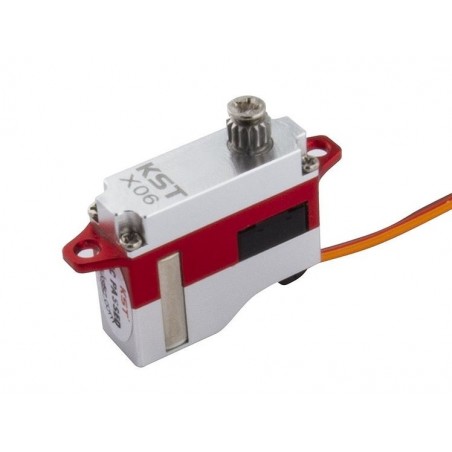

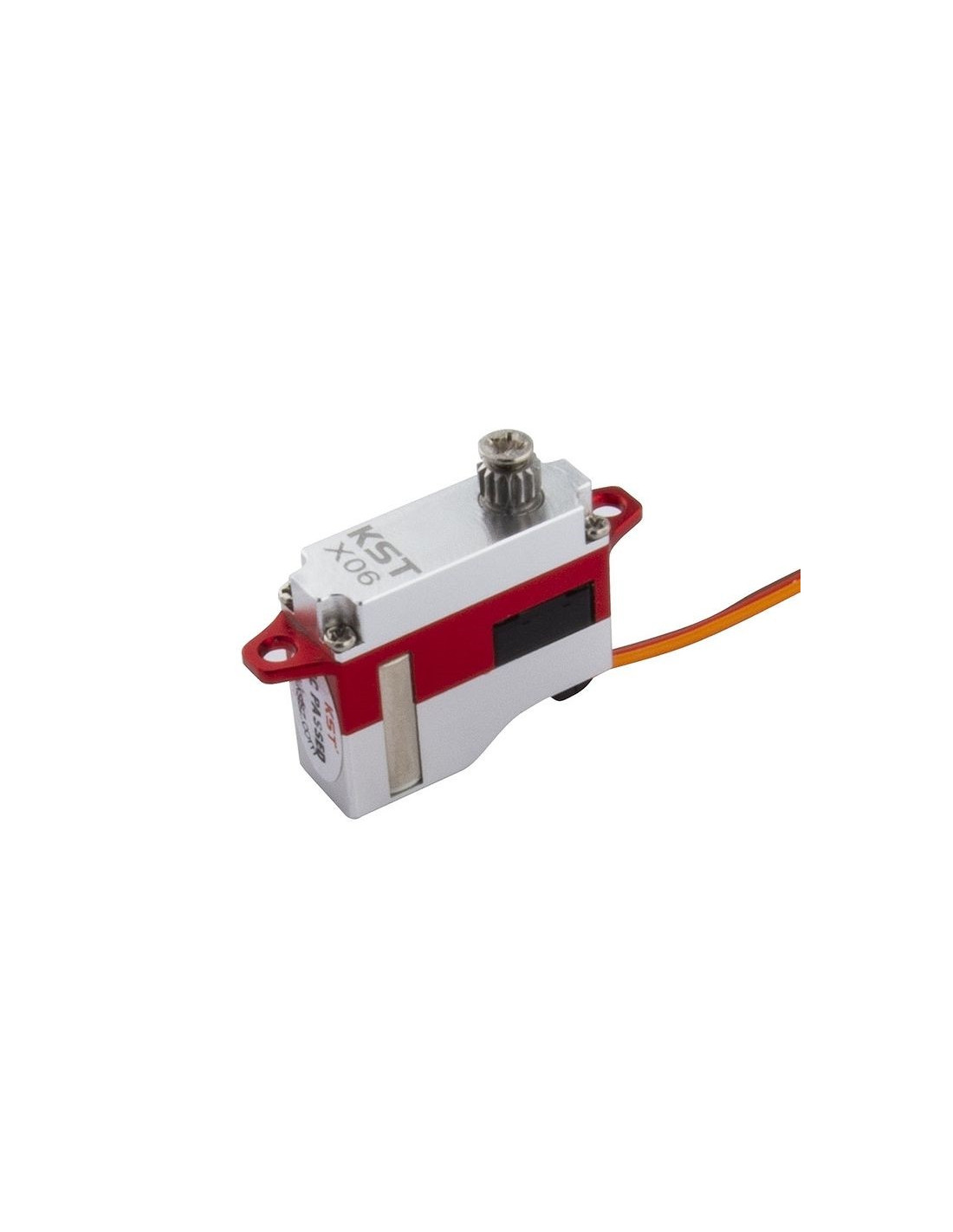

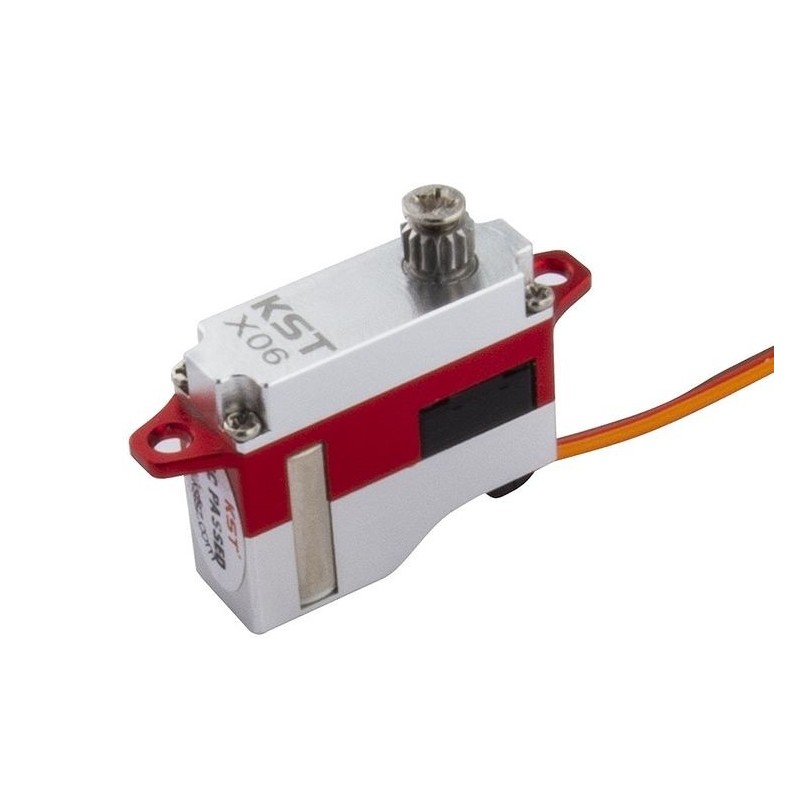

KST innovates again and offers this ultra thin (7mm) and light (6.4g) but fast and powerful X06 servo.this digital HV servo is ideal for F3K or for small control surfaces.servo with aluminium case, 1 bearing and coreless motorIt works in HV (8.4V) but also in 1S LiPo!

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Technical specifications

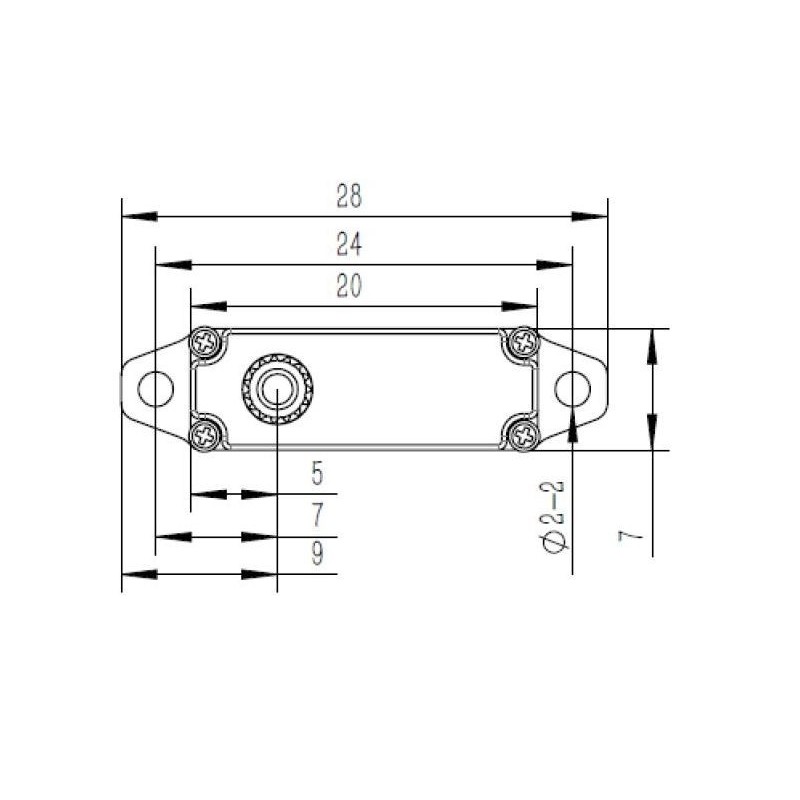

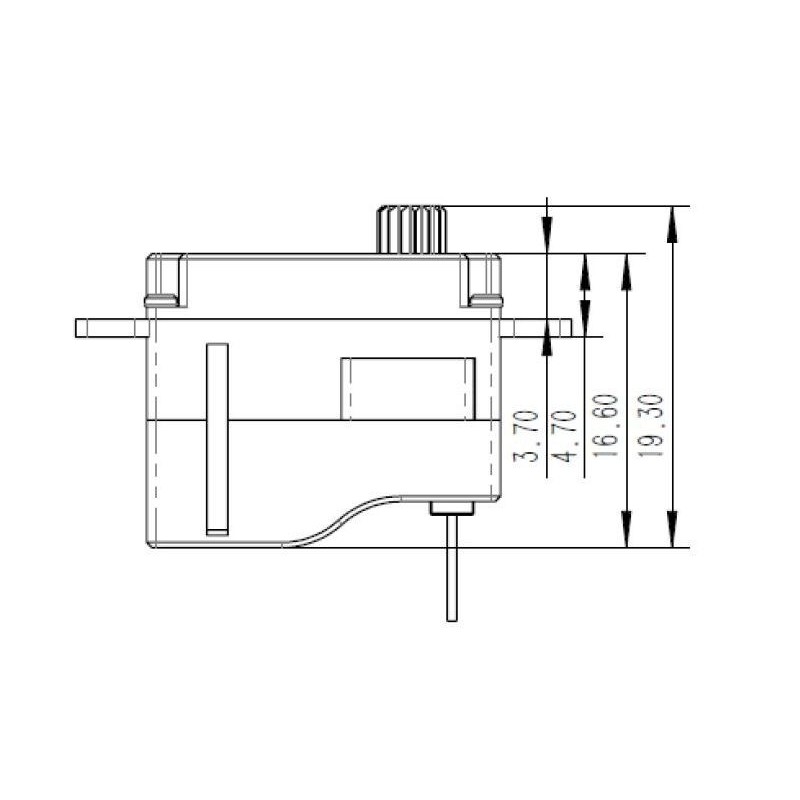

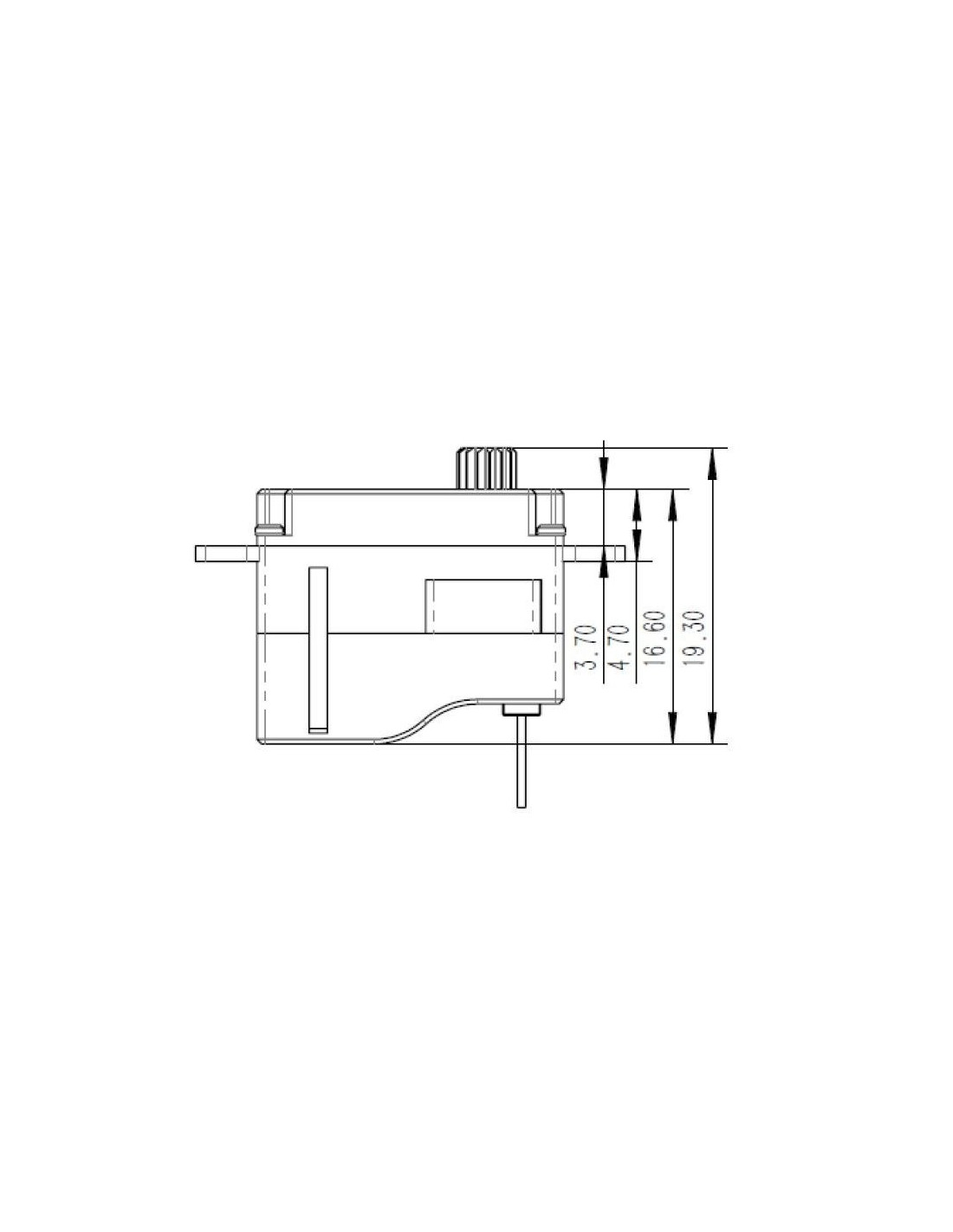

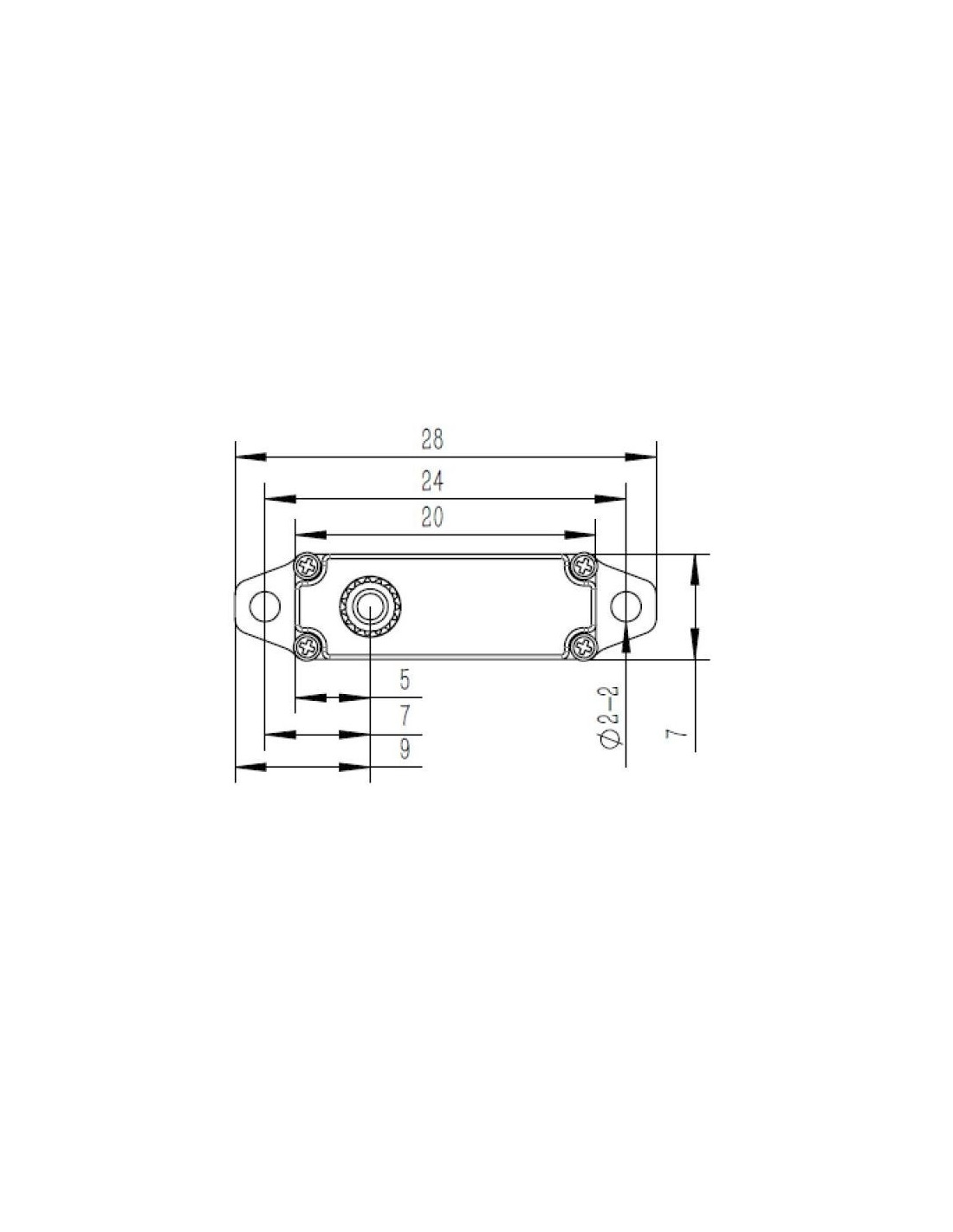

  • Dimensions: 20 mm x 7 mm x 16.6 mm
  • Torque (3.8/6.0v/8.4v) : 0.8 Kg/cm - 1.5 Kg/cm - 1.8 Kg/cm
  • Speed (3.8/6.0V/8.4V) : 0.12 sec/60° - 0.08 sec/60° - 0.07 sec/60°
  • Supply voltage : 3.8 - 8.4V
  • Weight : 6,4g

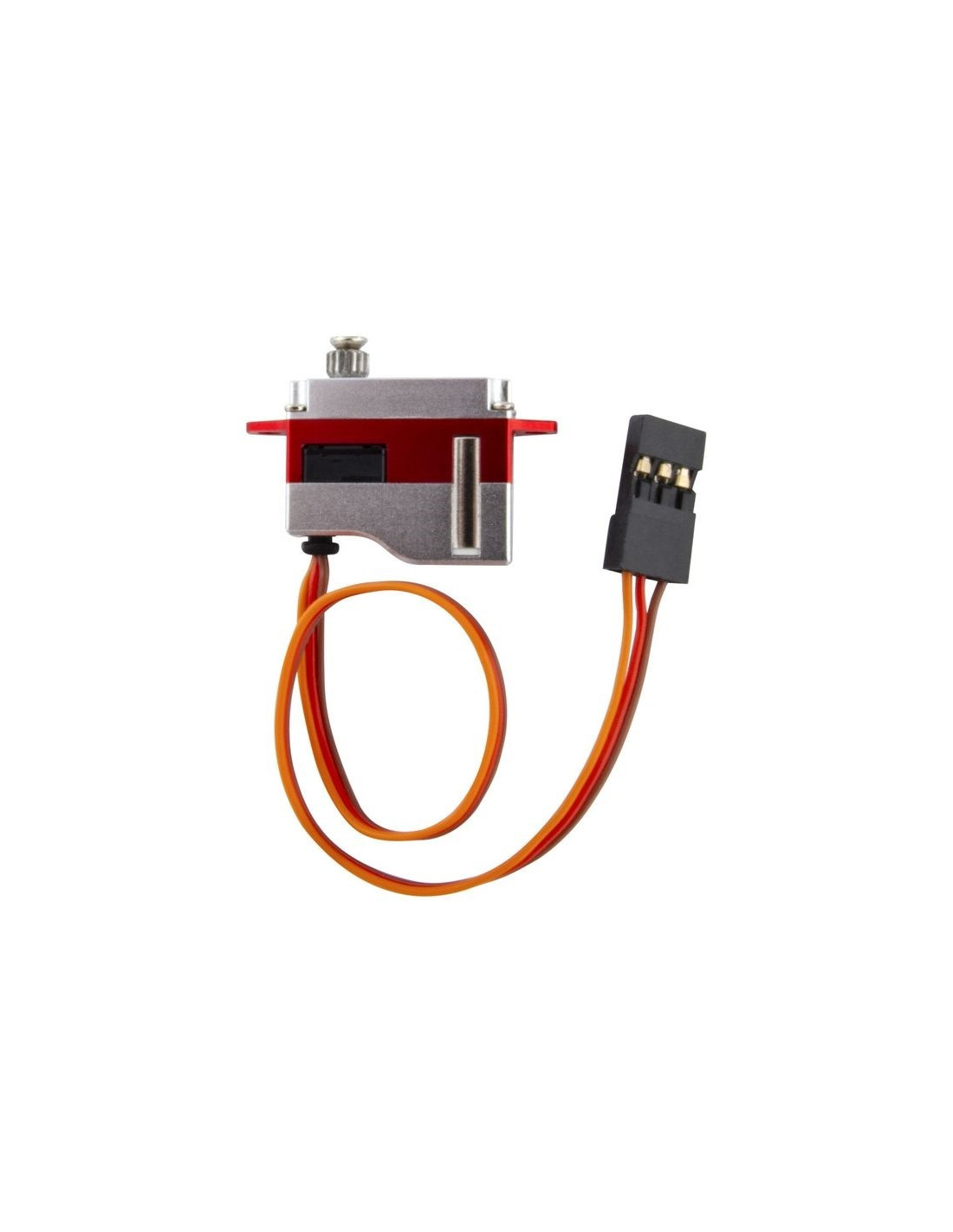

  • Cable length: 15cm
  • Max. frequency 333Hz
  • Pulse width: 1520us
  • Coreless motor
  • 1 bearing
  • Metal gears
Thickness in mm (Servos)
7
Torque in kg.cm (servos)
1.8
Speed sec / 60° (servos)
0.07
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
6.4
153-X06
4897073541518
4897073541518
