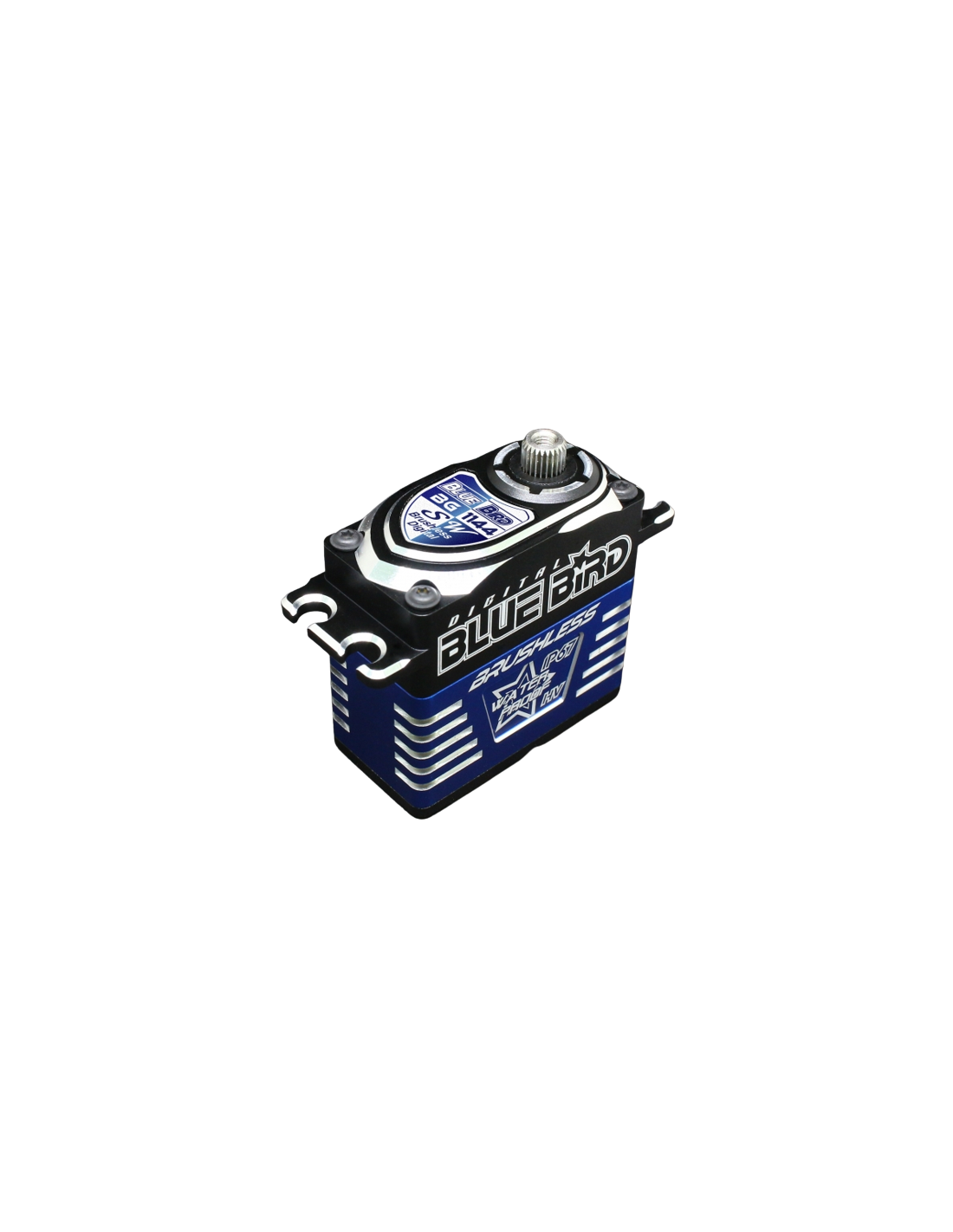

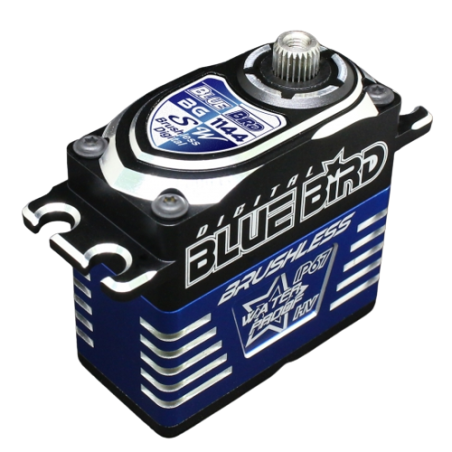

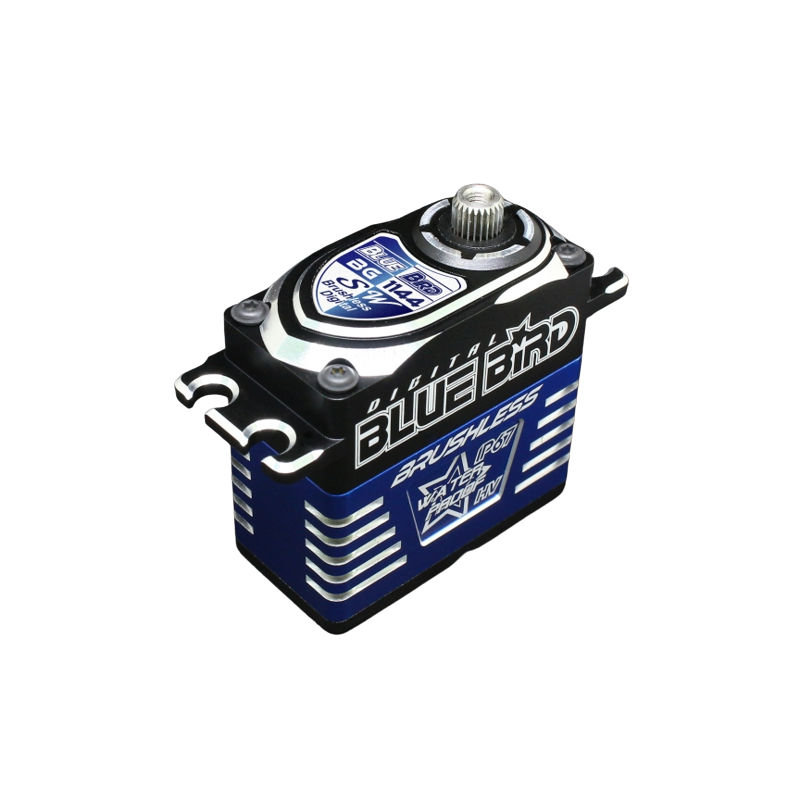

Blue Bird servo BG-1144W (48.5kg 0.10s 82g)

Last items in stock
€116.58
Tax included

Sail servo for larger boats and yachts.

custom html
you can configure this block in iqithtmlbanners module. It is hooked in displayRightColumnProduct hook.

To disable entire area go to iqitthemeeditor module > Content/Pages > Product page and set hidden for Right sidebar option


Features :

  • Torque at 6.0V 36.4 kg-cm / 505.6 oz-in
  • Torque at 7.4V 44.2 kg-cm / 613.9 oz-in
  • Torque at 8.4V 48.5 kg-cm / 673.7 oz-in
  • Speed at 6.0V 0.13 s / 60°
  • Speed at 7.4V 0,11 s / 60°
  • Speed at 8.4V 0.10 s / 60°

Control system Digital controller

Direction of rotation Clockwise/when pulse travels 900u ~ 2100u second

Operating travel Total Maximum around 2160° ( 6 Turns / Rotations )

Thickness in mm (Servos)
20
Torque in kg.cm (servos)
Speed sec / 60° (servos)
0.10
Pinions (servos)
Metal
Bearing (servos)
yes
Technology (sevos)
Digital
HV (servos)
yes
Weight in g (servos)
281-BG-1144SW
4712070533529
No reviews
Comments (0)
No customer reviews for the moment.
